IP Testing Equipment refers to standardized test instruments and systems used to verify the degree of protection provided by electrical enclosures against access to hazardous parts, solid foreign objects, dust ingress, and water intrusion. These tests are primarily defined by IEC 60529 and related international standards, and are widely applied in product design validation, quality inspection, certification testing, and regulatory compliance.
BONAD provides a complete portfolio of IP testing equipment covering the full IP code range from IP1X to IPX9K, including access probes, dust test chambers, water spray and immersion systems, and high-pressure high-temperature waterproof test chambers. All systems are designed for accuracy, repeatability, safety, and long-term industrial use.
- IP Code Coverage: IP1X · IP2X · IP3X · IP4X · IP5X · IP6X · IPX1 – IPX9K
- Applicable Standards: IEC 60529 · ISO 20653 · UL · DIN 40050-9
- Test Categories: Solid Access · Dust · Dripping · Spray · Water Jet · Immersion · High-Pressure Hot Water
- Industries: Electrical & Electronics · Automotive · Lighting · EV & Battery · Outdoor Equipment
- Customization: Chamber size · Pressure & Flow · Temperature · Control & Automation
IEC 60529 IP1X Test Probe A – 50mm Sphere
Used to verify protection of persons against access to hazardous parts and solid object ingress for IP1X-rated equipment.
- Standard Compliant: IEC 60529 & IEC 61032 Figure 1.
- Personnel Protection: Tests access to hazardous parts.
- Precision 50mm Steel Sphere for accurate results.
- Force Options: 0 N - 50 N.
- Features a Ø50 mm steel sphere, 45 mm baffle plate, and 100 mm handle.

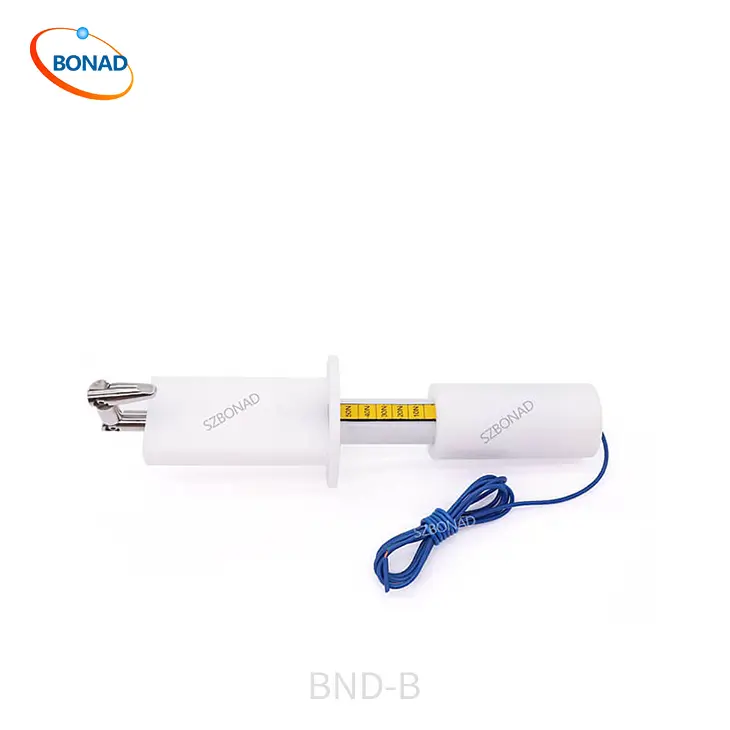

IP2X Jointed Test Finger Probe B
Used to verify IP2X protection against access to hazardous live parts in electrical and electronic enclosures.
- IEC 60529 compliant IP2X jointed access probe.
- Dual-jointed metal finger, bends up to 90°.
- Knurled finger: Ø12 mm × 80 mm.
- Baffle plate: Ø50 mm × 100 mm × 20 mm.
- Optional test force: 10N / 20N / 30N / 40N / 50N.
- Precision metal construction for repeatable testing.
- Standards: IEC 60529, IEC 61032, IEC 60335, IEC 60950, IEC 60884.

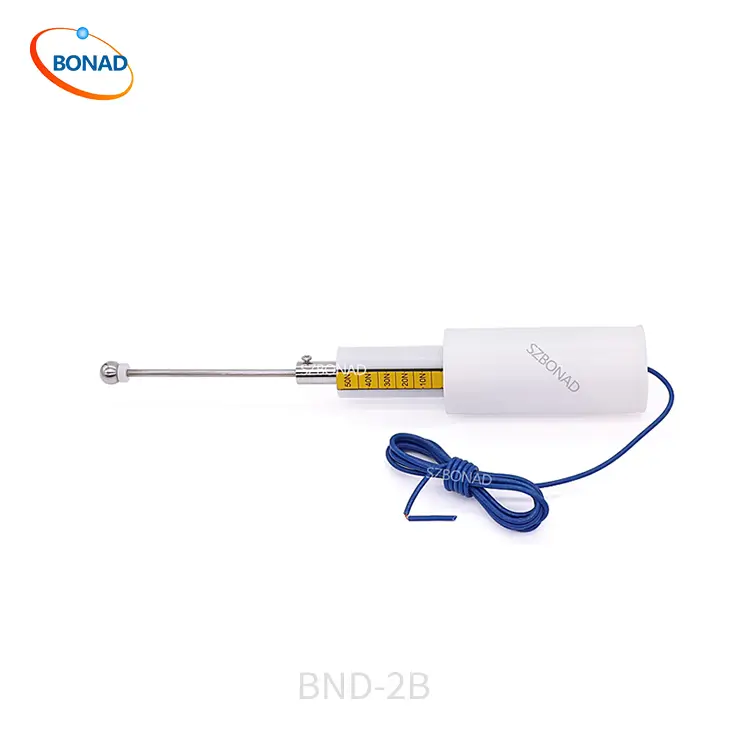

IP2X 12.5 mm Rigid Spherical Test Probe
Designed for IP2X solid object and electric shock protection testing of household and similar electrical appliances.
- IEC 60529 compliant IP2X rigid access probe.
- Stainless steel sphere: Ø12.5 mm.
- Integrated dynamometer with 10N–50N thrust.
- Baffle: Ø4 mm × 10 mm thickness.
- Handle diameter: Ø4 mm.
- Portable design; ISO 17025 / ILAC calibration optional.
IEC 60529 IP3X 2.5mm Test Probe C
Used to verify IP3X protection against access to hazardous parts and solid foreign objects ≥2.5 mm in electrical enclosures.
- Complies with IEC 60529, IEC 61032, and IEC 60335 standards.
- Uses a 2.5 mm diameter probe with a calibrated 3 N ±10% test force.
- Features a 100 mm test rod with a 35 mm stop sphere for depth limitation.
- Includes an insulated 100 mm handle for safe and stable operation.

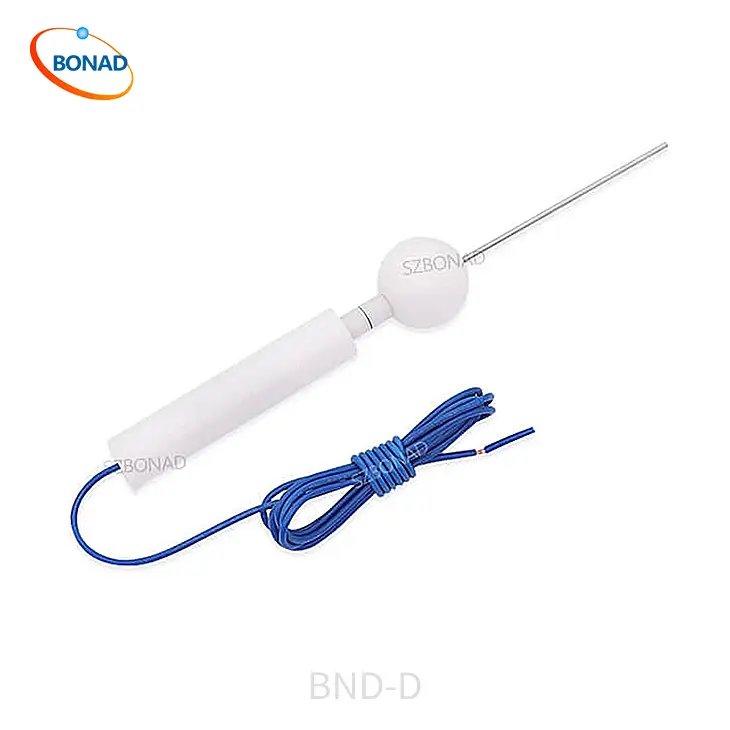

IEC 60529 IP4X 1mm Test Probe D
Used to verify IP4X protection of electrical enclosures and appliances against the ingress of solid foreign objects ≥1 mm in accordance with IEC 60529.
- Complies with IEC 60529, IEC 61032, IEC 60335.
- Probe diameter: 1.0 mm.
- Probe length: 100 mm.
- Test force: 1 N ±10%.
- Dam sphere diameter: 35 mm.
- Handle diameter: 10 mm, length: 100 mm.
- Ensures IP4X protection against solid objects.

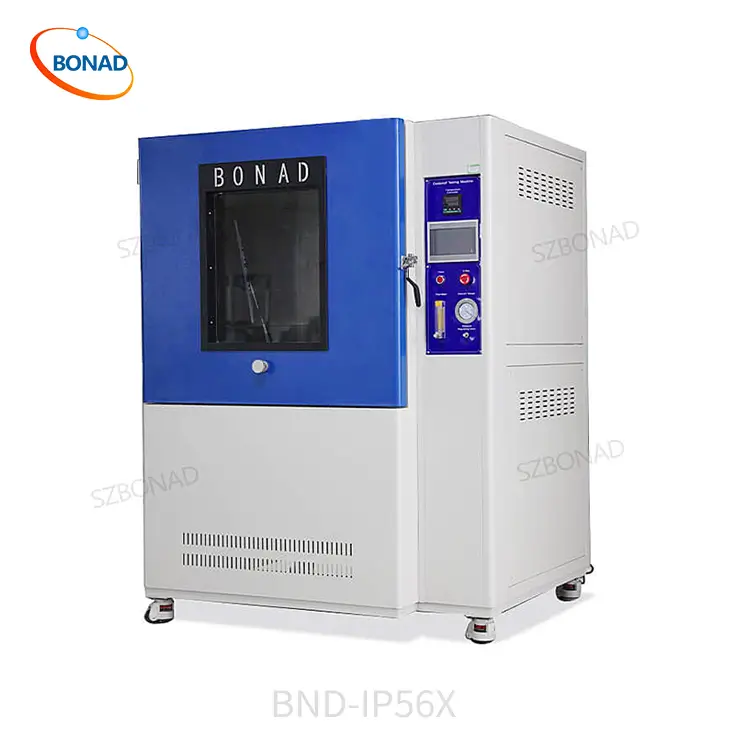

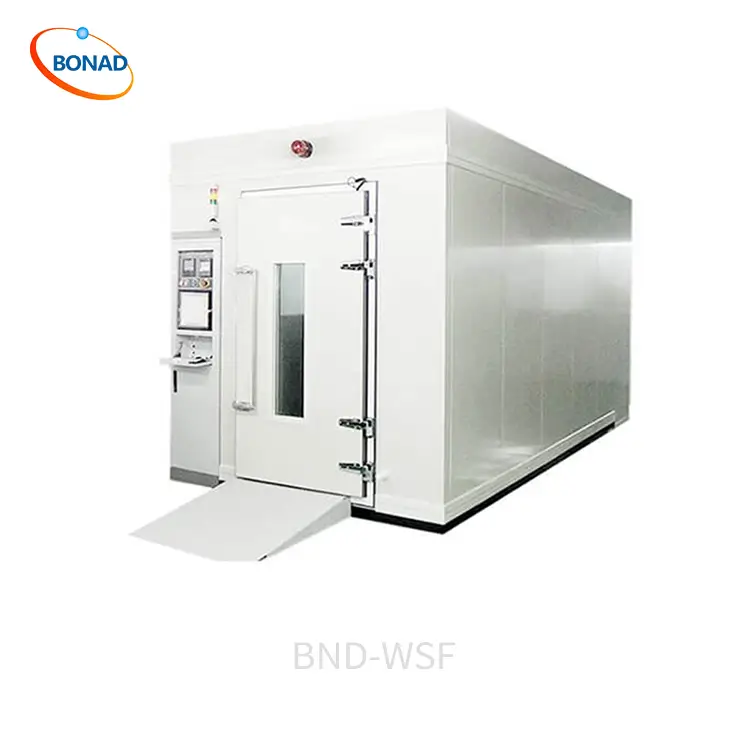

IP5X IP6X Sand & Dust Test Chambers
Ideal for testing sand and dust resistance of electronic products, lamps, electrical cabinets, automotive parts, household appliances, and other equipment requiring IP5X/IP6X protection.
- Tabletop: 125–1500L; Walk-in: 8–27 m³; fully customizable.
- Inner: SUS304 stainless steel; Outer: steel or color steel with insulation.
- Large observation window, dust scraper, and sealed doors.
- 7-inch touch screen control: dust, vibration, test time, vacuum, temperature, humidity.
- Adjustable airflow, vacuum (0–10 kPa), talc dust (50 µm), test cycles.
- Dust recovery system; optional dehumidification, camera monitoring, trolley system.
- Power: AC220V/380V; 1–3.5 kW (tabletop), customizable for walk-in.

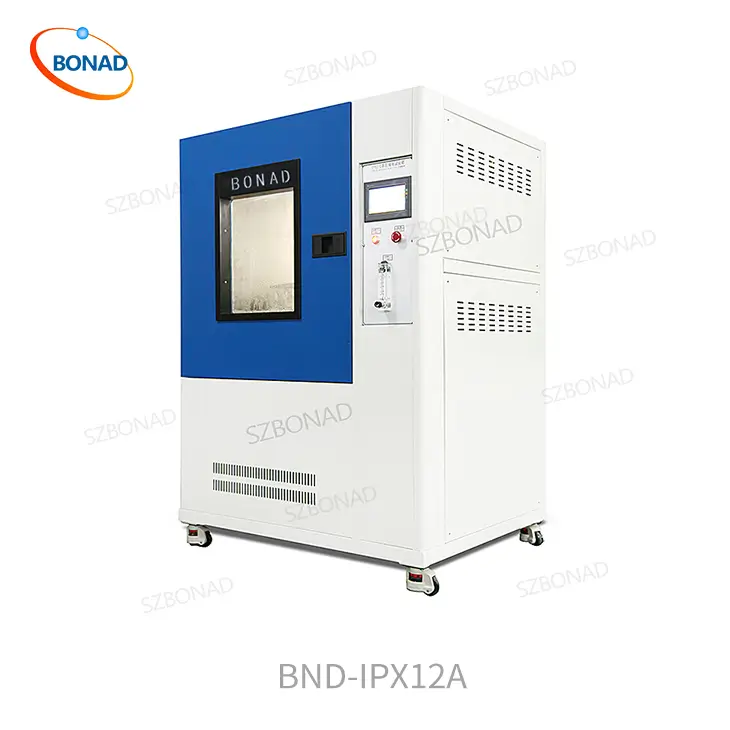

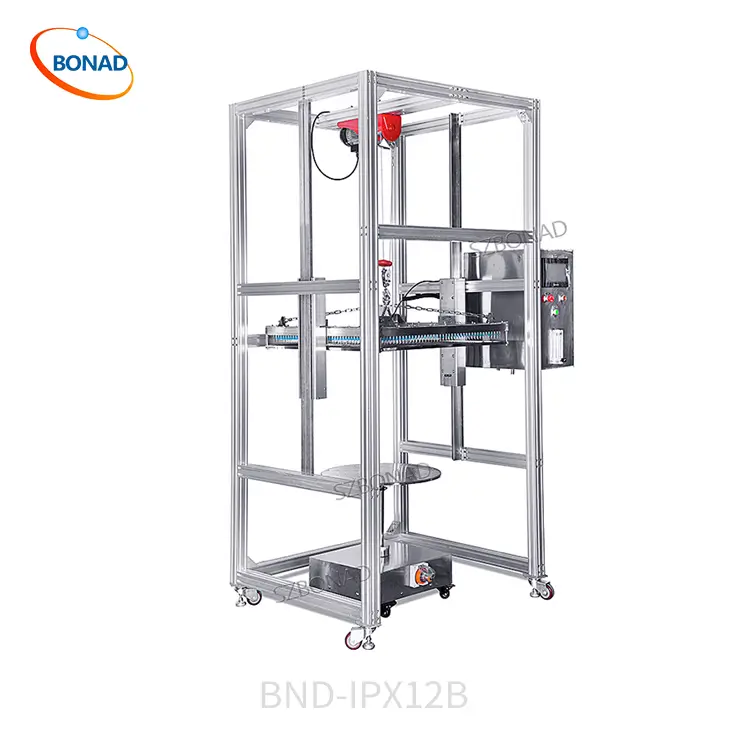

IPX1/IPX2 Drip Test Equipment
For testing water resistance of electrical, electronic, and automotive products under dripping rain; customizable for specific test requirements.
- IEC60529 IPX1/IPX2 compliant drip water testing.
- Adjustable rainfall: 1–5 mm/min; turntable 0°/15° tilt, 1 r/min rotation.
- Transparent viewing window for easy monitoring.
- Wall-mounted or lab versions; drip area & turntable customizable (200×200 mm–1600×1600 mm).
- Manual or PLC touch-screen control.
- Built-in safety: leakage, short circuit, water shortage.

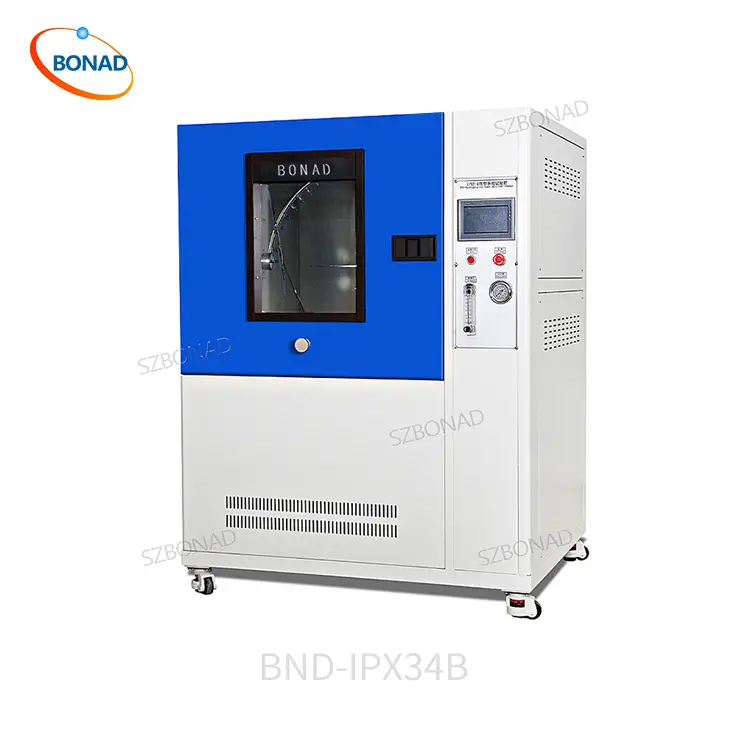

IPX3 IPX4 Water Spraying-Splashing Test Chamber
Ideal for manufacturers and laboratories to verify water resistance of electrical and industrial products under IPX3/IPX4 conditions, with customizable options to match specific testing requirements.
- Designed for IEC 60529 IPX3 & IPX4 water spray and splash testing.
- Oscillating tube & turntable simulate rain from multiple angles.
- Adjustable water flow, spray angle, and duration for flexible testing.
- Robust SUS304 stainless steel construction for corrosion resistance.
- Intuitive control system with safety protections and measurement instruments.
- Customizable chamber size, swing radius, and turntable dimensions to fit different products.
- Flow Range: 0–10 L/min (model dependent), Swing Angles: 120°–350°, Turntable Speed: 1–5 r/min.
IPX1 IPX2 IPX3 IPX4 Comprehensive Rain Test Equipment
Compact rain test chamber for accurate IPX1–IPX4 water ingress testing of electronics, lighting, cabinets, and automotive parts.
- Performs IPX1/IPX2 dripping and IPX3/IPX4 rain tests with 360° coverage.
- Built-in water tank with 8‑hour pump for stable testing.
- Adjustable swing pipe radius R400 mm and precise flow control.
- Flow rates: IPX3 1.1 L/min, IPX4 1.8 L/min; spray aperture Ø0.4 mm, 50 mm spacing.
- Turntable Ø400 mm with adjustable speed 1–10 rpm and tilt options.
- Drip/rain area: 600 × 600 mm; Inner chamber: 900 × 900 × 900 mm; Outer: 1220 × 1000 × 1750 mm.
- Rainfall precipitation adjustable 1–3 mm/min.
- Safety protections: leakage, water shortage, short circuit.
- Customizable dimensions and spray settings available.

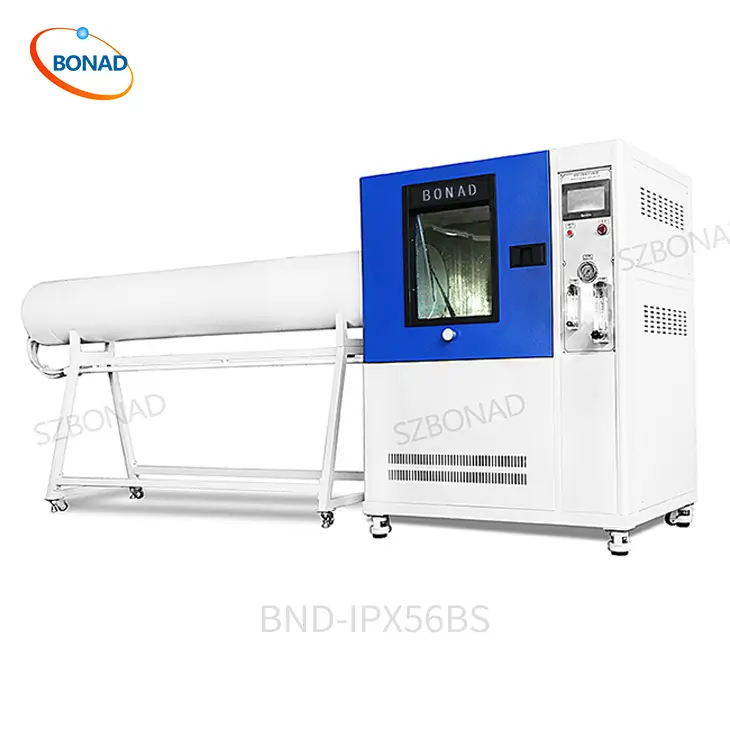

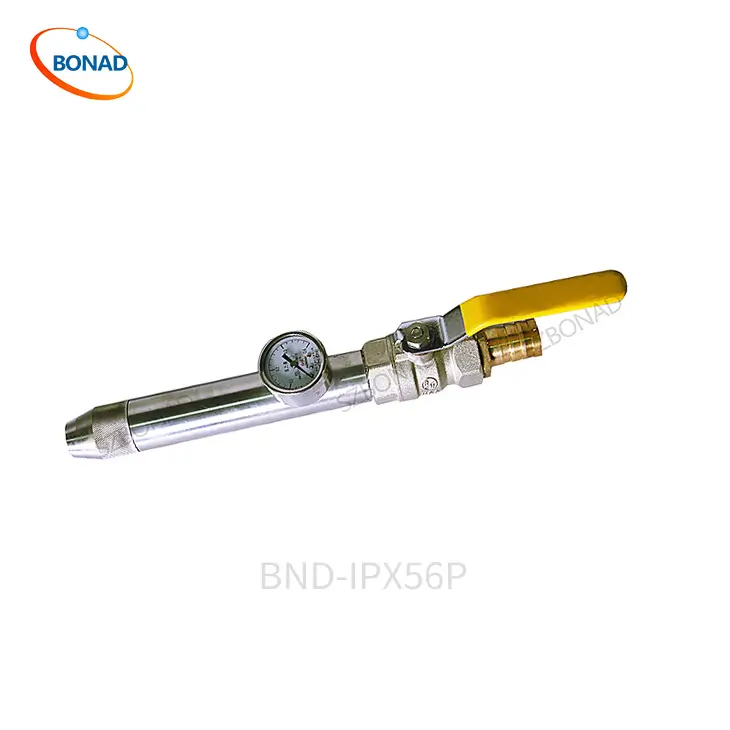

IPX5 IPX6 Water Jetting Test Equipment
Used for verifying water ingress protection (IPX5/IPX6) of electronic and electrical products under both standard spray and strong jet conditions in manufacturing, QA, and certification testing.
- Meets IEC 60529 IPX5 & IPX6 standards for water spray and strong water jet protection.
- Durable SUS304 stainless steel construction with water‑resistant turntable and chamber.
- Adjustable nozzles and flow rates for IPX5 (6.3 mm, 12.5 L/min) and IPX6 (12.5 mm, 100 L/min) testing.
- Integrated water tank and recycling system with low water alarm for continuous operation.
- Supports live testing and load up to 50 kg on turntable.
- Switchable test modes with easy control panel for automatic or manual operation.
- Customizable to client requirements, including size, nozzle type, and chamber design.

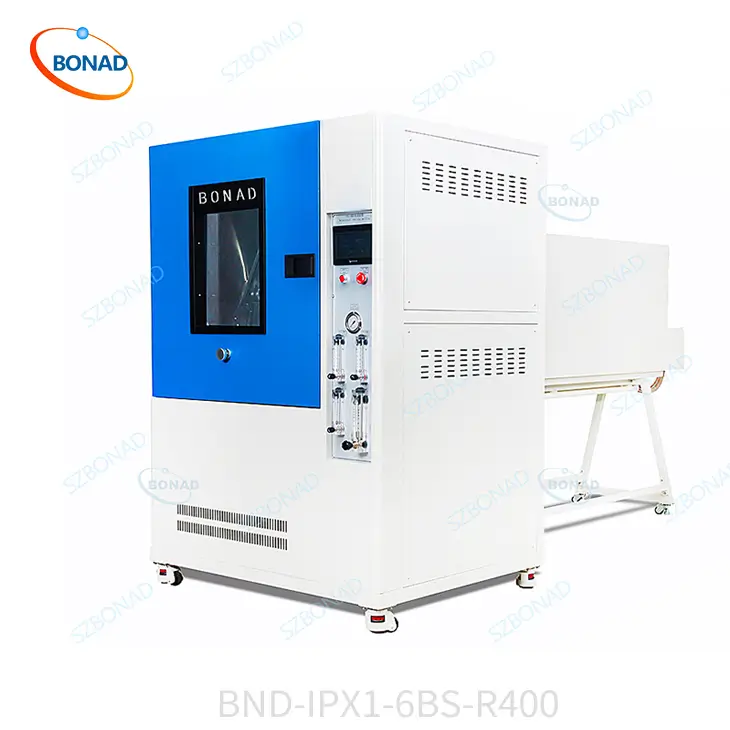

IPX1–IPX6 Waterproof Test Chamber
A customizable IP testing equipment to verify water ingress protection of electrical and electronic products under standardized rain and spray conditions from IPX1 to IPX6.
- Full IP Range: Tests IPX1–IPX6 for drip, splash, rain, and high‑pressure spray.
- Control: 7″ touchscreen + Panasonic PLC.
- Spray System: Adjustable swing tube & nozzle angles; IPX3–6 flow configurable.
- Turntable: ∮400 mm, 1–5 r/min, tilt 0°/15°; customizable size.
- Construction: Stainless steel, safety protections included.
- Dimensions: Inner 900×900×1050 mm; Outer 1350×3400×1750 mm; fully customizable.

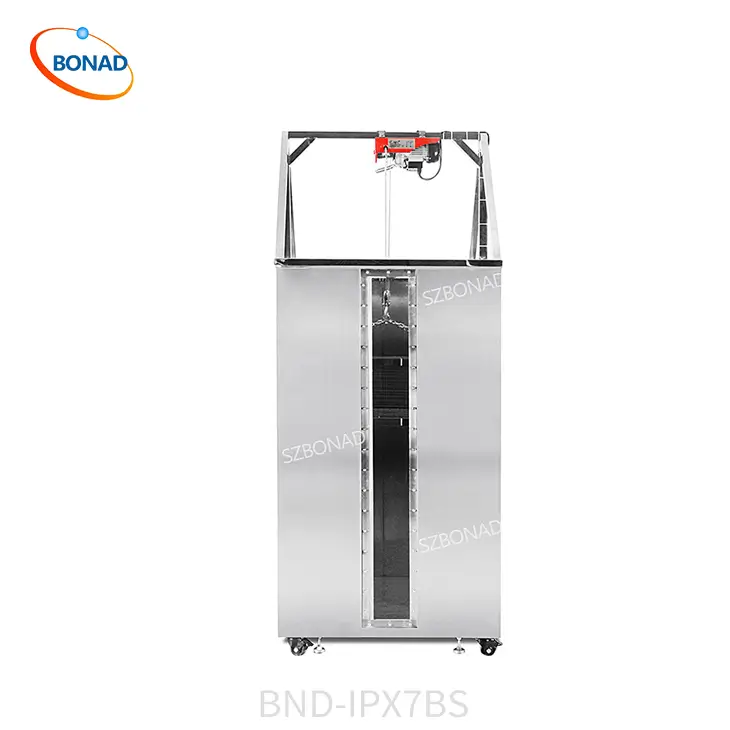

IPX7 Water Immersion Test Equipment
Used for IPX7 waterproof immersion testing of electrical and electronic products, enclosures, lighting, automotive parts, and similar components.
- Designed for IEC 60529 IPX7 water immersion waterproof testing.
- Available in standard type and electric lifting type for flexible sample handling.
- SUS304 stainless steel tank, corrosion-resistant and leak-free.
- Transparent tempered glass window for real-time test observation.
- Max immersion depth up to 1.2 m, with 1 mm precision stainless steel water level ruler.
- Multiple tank capacities and dimensions available; size, structure and lifting system can be customized.

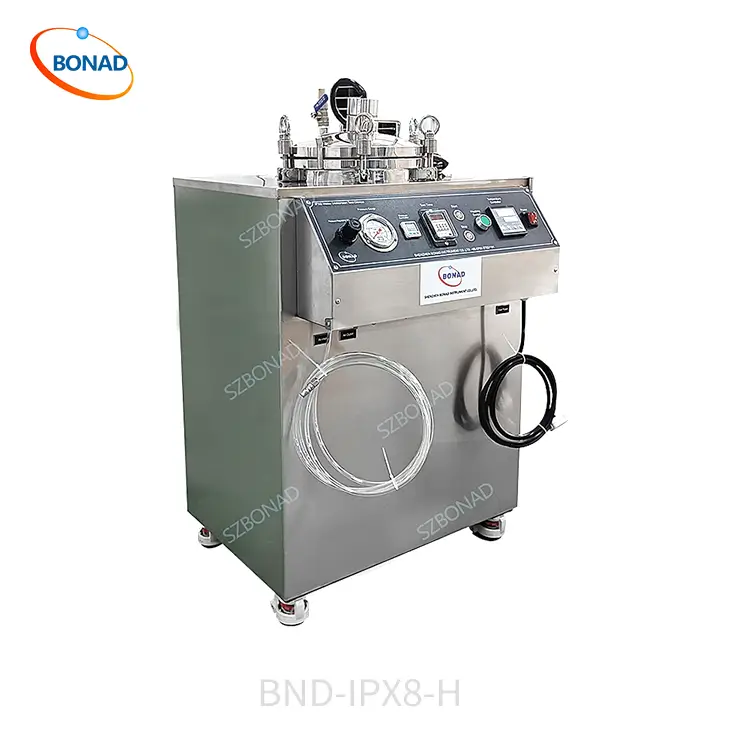

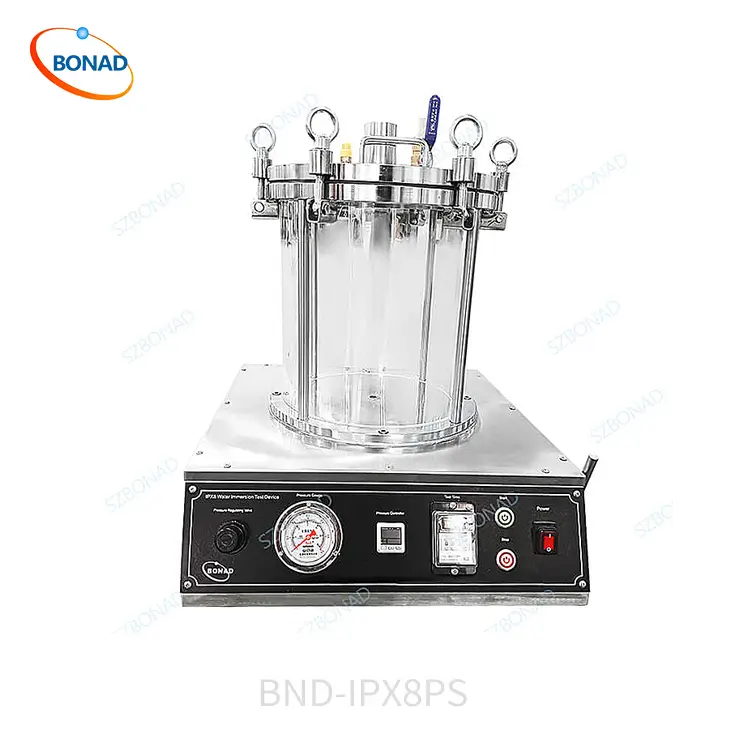

IPX8 Waterproof Pressure Immersion Test Chamber
Ideal for waterproof performance testing of electronics, automotive parts, medical devices, industrial equipment, consumer electronics, and other products requiring IPX8 certification, with flexible customizable features for lab or production use.
- Heated water control up to 60 °C and full-view transparent tank for real-time observation.
- Automatic digital pressure control, accuracy ±0.002 MPa, resolution 0.001 MPa, adjustable duration 0–999 h.
- Supports powered device testing under water pressure.
- Durable 304 stainless steel or plexiglass chamber with pneumatic lid and safety valves.
- Pressure range options: 0–0.3 MPa / 0–0.5 MPa / 0–1.0 MPa.
- Test depth options: 0–30 m / 0–50 m / 0–120 m.
- Chamber size, pressure, heating, and viewing options customizable.
- Weight: 60–100 kg depending on configuration; voltage: AC220 V.

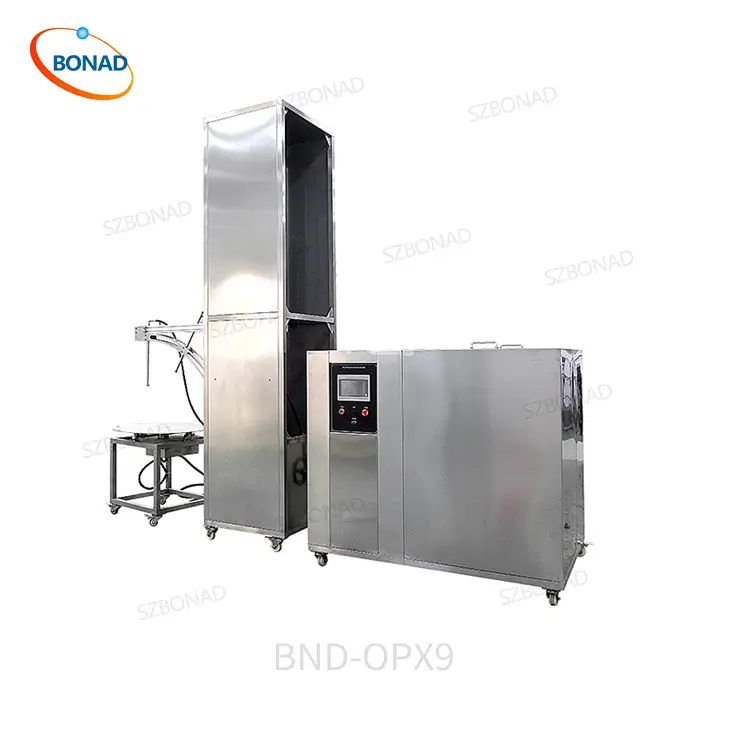

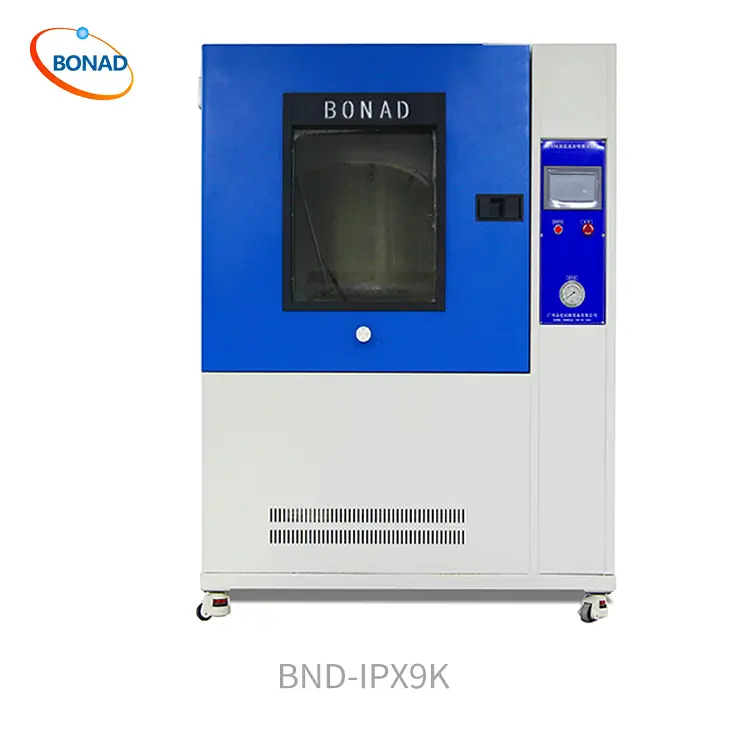

IPX9K High-Pressure Waterproof Test Chamber
Suitable for IPX9K testing of automotive, EV, outdoor, consumer, and industrial products under high-pressure and high-temperature water exposure.
- Customizable chamber types: closed or open structure for various sample sizes, weights, and shapes.
- High-pressure water jets: adjustable nozzles at 0°, 30°, 60°, 90°; flow 14–16 L/min; pressure 8,000–10,000 kPa.
- High-temperature testing: water temperature adjustable up to 80 °C to simulate real-world hot water exposure.
- Turntable rotation: adjustable speed (4–10 r/min) and height; supports samples up to 50 kg.
- Durable construction: SUS304 stainless steel, corrosion-resistant, with transparent observation window and LED lighting.
- Control system: PLC + touchscreen, programmable test time up to 999 min.
- Safety protections: water shortage, leakage, short-circuit; optional configurations available.
- Fully customizable dimensions, features, and nozzle arrangements according to testing requirements.

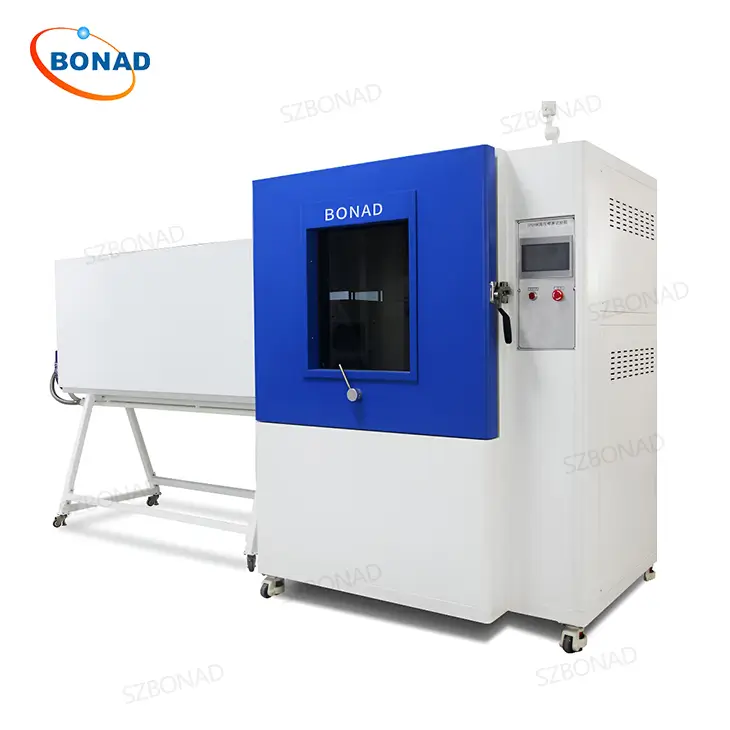

IPX5–IPX9K Water Spray and Jet Testing Chamber
This waterproof testing chamber evaluates IPX5, IPX6, IPX6K, IPX9, and IPX9K water resistance, helping manufacturers verify durability, ensure compliance, and improve reliability for electronics, automotive parts, appliances, and industrial equipment.
- Waterproof tests: IPX5–IPX9K (IEC 60529, ISO 20653, DIN 40050‑9).
- Control: 7″ touchscreen PLC, fully automated.
- Construction: Steel outer shell, SUS304 stainless steel chamber.
- Turntable: 1–10 r/min, up to 50 kg.
- Water system: 95 L tank, circulation, alarms, overheat protection.
- Nozzles: 56 adjustable (0°–90°); IPX5/6 flow 12.5–100 L/min; IPX9K 8–10 MPa, up to 80°C.
- Dimensions: Outer ~4060×1220×1820 mm, Inner ~1000×1000×1000 mm.
- Safety: Door interlock, leakage & overload protection.
- Customizable to specific test requirements or product size.

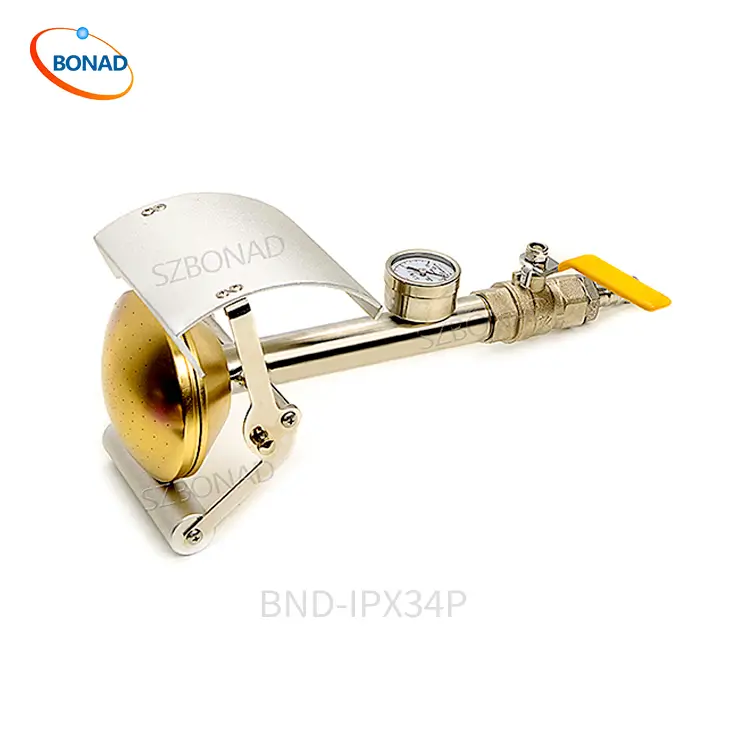

Hand‑Held Waterproof Test Nozzles & UL Rain Spray Device
Used for IP waterproof performance testing of electrical and electronic products, lighting fixtures, automotive components, and enclosures, supporting IPX3–IPX6 and UL rain spray standard verification in R&D, quality control, and compliance testing.
- Simulates water exposure from light rain to high-pressure jets for full IPX3–IPX6 testing and UL rain spray compliance verification.
- Adjustable nozzle positions, flow rate, and spray distance; supports different product sizes and test setups.
- Durable materials: stainless steel, aluminum frames, and brass nozzles for corrosion resistance.
- Portable design with casters for easy relocation and flexible lab setup.
How to Choose IP Testing Equipment?
Choosing the correct IP testing equipment requires a clear understanding of the product’s intended operating environment, applicable international standards, and the required level of ingress protection. SZBONAD provides a complete range of IP testing equipment to support accurate, repeatable, and standard-compliant verification from IP1X to IPX9K.
1. Determine the Required IP Code Level
The IP code defined in IEC 60529 consists of two digits. The first digit indicates protection against solid object access and dust, while the second digit indicates protection against water ingress. Selecting equipment starts by identifying the exact IP rating required by product design, regulations, or customer specifications.
| IP Category | Protection Objective | Recommended IP Testing Equipment |
|---|---|---|
| IP1X – IP4X | Protection against access to hazardous parts using fingers or tools | IEC 60529 test probes A, B, C, and D |
| IP5X – IP6X | Dust-protected and dust-tight enclosure verification | Sand and dust proof test chamber |
| IPX1 – IPX2 | Vertical dripping and tilted dripping water exposure | Dripping water test apparatus or laboratory rain test equipment |
| IPX3 – IPX4 | Spray and splash resistance from multiple angles | Oscillating tube test chamber or handheld spray nozzle |
| IPX5 – IPX6 | Resistance to strong water jets and cleaning processes | Water jet test equipment or IPX5/IPX6 nozzle set |
| IPX7 – IPX8 | Temporary and continuous water immersion protection | Water immersion test equipment and pressurized immersion systems |
| IPX9K | High-pressure, high-temperature water jet resistance | IPX9K high-pressure waterproof test chamber |
2. Consider Product Size, Weight, and Test Orientation
Sample dimensions and weight directly affect the selection of IP testing equipment. Large or heavy products such as automotive assemblies, electrical cabinets, and EV battery packs may require open-type chambers, reinforced turntables, or lifting mechanisms to ensure safe and repeatable testing.
3. Evaluate Test Conditions and Severity
Beyond basic compliance, many applications require precise control of water flow rate, pressure, temperature, spray angle, immersion depth, and test duration. Equipment with adjustable parameters ensures that both standard tests and customer-defined test conditions can be executed accurately.
4. Confirm Applicable Standards and Industry Requirements
While IEC 60529 is the core IP standard, certain industries require additional standards such as ISO 20653 for automotive applications, DIN 40050-9 for road vehicles, or UL standards for North American markets. Selecting equipment that supports multiple standards improves test flexibility and global compliance.
5. Customization and Future Testing Needs
For R&D laboratories and manufacturers, future product upgrades often demand higher IP ratings or larger test capacities. Modular and customizable IP testing equipment allows expansion in chamber size, automation level, and control systems, reducing long-term investment costs.
Why Choose BONAD IP Testing Equipment?
- Complete IP testing portfolio from IP1X to IPX9K under one manufacturer
- Strict compliance with IEC, ISO, UL, ANSI, and automotive standards
- Engineering-grade accuracy, repeatability, and safety protection
- Strong customization capability for non-standard samples and test conditions
- Trusted by manufacturers, laboratories, and certification bodies worldwide
Frequently Asked Questions – IP Testing Equipment
What is ip testing equipment?
IP Testing Equipment refers to standardized test instruments and systems used to evaluate the Ingress Protection (IP) level of electrical enclosures. These devices verify protection against dust, water, and hazardous access, helping manufacturers comply with IEC 60529 and other international standards.
What is IP testing equipment used for?
IP testing equipment is used to verify protection against solid objects, dust, and water ingress according to IEC 60529 and related international standards.
What is the difference between IPX7 and IPX8 testing?
IPX7 evaluates temporary water immersion, while IPX8 verifies continuous or pressurized immersion under manufacturer-defined conditions.
Is IPX9K testing required for automotive products?
Yes. IPX9K is commonly required for automotive and EV components exposed to high-pressure, high-temperature cleaning processes.
Can IP testing equipment be customized?
Yes. BONAD offers customization for chamber size, pressure range, temperature, control system, and automation level.
