IPX5 IPX6 Water Jet Test Chamber Manufacturer – BONAD
Standards
- IEC 60529:1989+A1:1999+A2:2013 — IPX5 and IPX6
- ISO 20653:2023 — Optional IPX6K configuration
Applications
The IPX5 IPX6 water jet test chamber is suitable for testing:
- Automotive electrical and electronic components
- Outdoor and industrial lighting
- Electrical enclosures and control cabinets
- Communication equipment
- Connectors and sensors
- Household electrical appliances
- Charging equipment
- Consumer electronics
IPX5, IPX6 and Optional IPX6K Test Conditions
| Test Level | Nozzle Diameter | Water Flow | Approx. Pressure | Spray Distance |
|---|---|---|---|---|
| IPX5 | 6.3 mm | 12.5 L/min ±5% | 30 kPa | 2.5–3.0 m |
| IPX6 | 12.5 mm | 100 L/min ±5% | 100 kPa | 2.5–3.0 m |
| Optional IPX6K | 6.3 mm | 75 L/min ±5% | 1000 kPa | 2.5–3.0 m |
For IPX5 and IPX6 testing, the test duration is normally calculated at 1 minute per square metre of enclosure surface area, with a minimum duration of 3 minutes. The test time can be programmed through the PLC.
Key Features
- Supports IEC 60529 IPX5 and IPX6 testing, with an optional ISO 20653 IPX6K configuration.
- Automatically regulates water flow according to the selected test level.
- Allows the operator to select fixed spraying or automatic vertical oscillation.
- PLC control supports programmable test time and operating settings.
- SUS304 construction provides corrosion resistance for long-term operation.
- The integrated water tank, filtration, automatic water supply, drainage and circulation system support continuous testing.

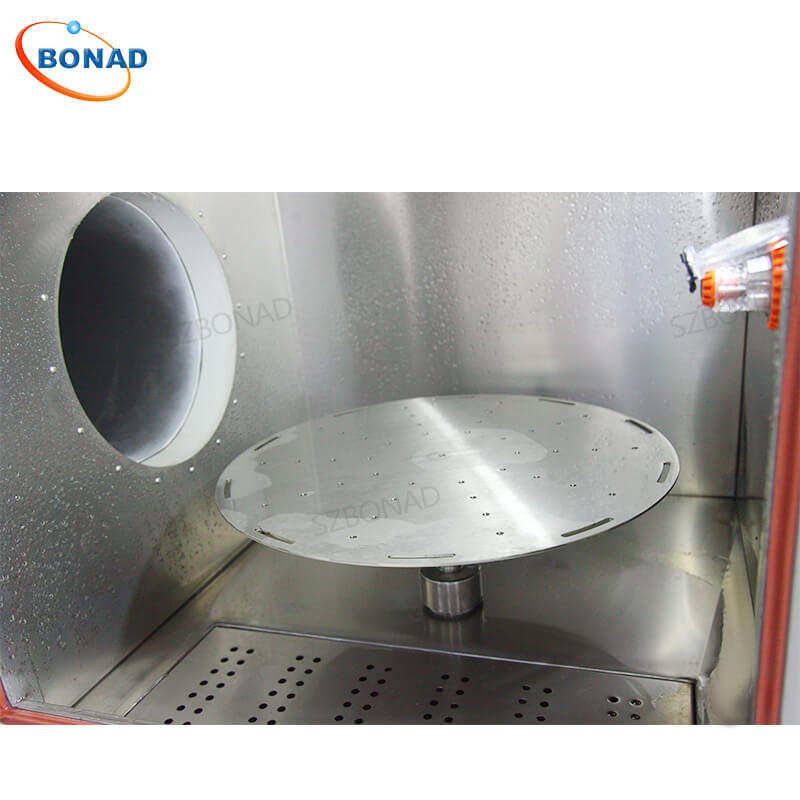

- The rotating SUS304 specimen table has a standard load capacity of at least 50 kg.
- Energized specimen power is included as standard, with customizable voltage and current.
- Safety functions include electrical leakage, water shortage, pump overload, emergency stop, door interlock and overflow protection.
Available Models and Chamber Sizes
| Model | Inner Dimensions, W × D × H | Overall Dimensions, W × D × H | Turntable Diameter |
|---|---|---|---|
| IPX56BS-500L | 800 × 800 × 800 mm | 4000 × 1050 × 1600 mm | 600 mm |
| IPX56BS-700L | 900 × 900 × 900 mm | 4000 × 1150 × 1700 mm | 600 mm |
| IPX56BS-1400L | 1180 × 1180 × 1000 mm | 4000 × 1450 × 1800 mm | 800 mm |
| IPX56BS-1700L | 1180 × 1180 × 1180 mm | 4000 × 1450 × 1850 mm | 800 mm |
| IPX56BS-1900L | 1180 × 1180 × 1300 mm | 4000 × 1450 × 2000 mm | 800 mm |
Note: The overall dimensions include the water guide pipe required to maintain the specified spray distance of 2.5–3.0 m.
Chamber dimensions and electrical configurations can be customized according to the specimen and installation requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Test Levels | IPX5 and IPX6 |
| Optional Test Level | IPX6K |
| Flow Control | Automatic regulation |
| Spray Distance | 2.5–3.0 m |
| Nozzle Movement | Fixed spraying or automatic vertical oscillation, user-selectable |
| Control Mode | PLC control |
| Test Time | Programmable through the PLC |
| Material | SUS304 stainless steel |
| Turntable Load | ≥50 kg |
| Pump | Stainless-steel multistage pump |
| Water System | Water tank, filtration, automatic water supply, drainage and circulation |
| Energized Specimen Power | Included as standard; voltage and current customizable |
| Standard Power Supply | 380 V |
| Rated Power | 3 kW |
| Power Customization | Available according to regional electrical standards |
Key Components of the IPX5 IPX6 Water Jet Test Chamber
Six Safety Protection Functions
Options and Support
IPX6K testing, chamber size, power supply, and specimen voltage and current can be customized. CE documentation and third-party calibration certificates are available; additional fees may apply.
A one-year warranty, remote technical support, operating guidance and spare parts support are provided.
Looking for an Open-Type Option?
For large, fixed or irregularly shaped specimens, consider open-type IPX5 IPX6 water jet test equipment. Its handheld nozzle provides greater operating flexibility when a suitable waterproof test area and drainage system are available.
Frequently Asked Questions
1. What tests can the IPX5 IPX6 water jet test chamber perform?
The chamber supports IEC 60529 IPX5 and IPX6 water jet testing. An ISO 20653 IPX6K configuration is available as an option.
2. What are the differences between IPX5, IPX6 and IPX6K testing?
IPX5 uses a 6.3 mm nozzle at 12.5 L/min ±5%, while IPX6 uses a 12.5 mm nozzle at 100 L/min ±5%. Optional IPX6K testing uses a 6.3 mm nozzle at 75 L/min ±5% and approximately 1000 kPa.
3. How are the nozzle movement, water flow and test time controlled?
The operator can select fixed spraying or automatic vertical oscillation. Water flow is regulated automatically, and the test time can be programmed through the PLC.
4. Can energized specimens be tested?
Yes. Energized specimen power is included as standard, with customizable voltage and current.
5. What certificates and after-sales support are available?
CE documentation and third-party calibration certificates are available; additional fees may apply. The equipment includes a one-year warranty, remote technical support, operating guidance and spare parts support.
Request a Quote
Please feel free to contact BONAD if you need help choosing an IPX5 IPX6 water jet test chamber. Share your specimen and test requirements with us, and we’ll be happy to recommend a suitable chamber size and configuration.
