IPX9K High Pressure Waterproof Test Chamber Manufacturer – BONAD
Understanding IPX9K Waterproof Testing
IPX9K is one of the highest levels of waterproof protection defined in ISO 20653. It simulates high-pressure (80–100 bar) and high-temperature (up to 80°C) water jets applied from multiple angles.
This test is essential for products exposed to intensive cleaning or harsh environments, especially in automotive, industrial, and outdoor applications.
Our IPX9K test chamber is specifically designed to replicate these conditions with high accuracy and repeatability.
Standards:
This IPX9K test chamber is designed in accordance with:
- ISO 20653
- DIN 40050-9
Applications & Industries
Our IPX9K test chamber is widely used in:
- Automotive components (connectors, sensors, ECUs)
- Outdoor lighting systems
- Electrical enclosures
- Industrial equipment
- New energy & EV components<
Ideal for manufacturers, testing laboratories, and certification bodies.
Test equipment features:
- The inner box and turntable are all made of SUS304# stainless steel to ensure that they will not rust for a long time.
- Box-type structure; comes with water tank and circulating water; the water tank is equipped with a water level float valve to automatically control water inlet and has low water level alarm detection to effectively prevent dry burning of the water pump.

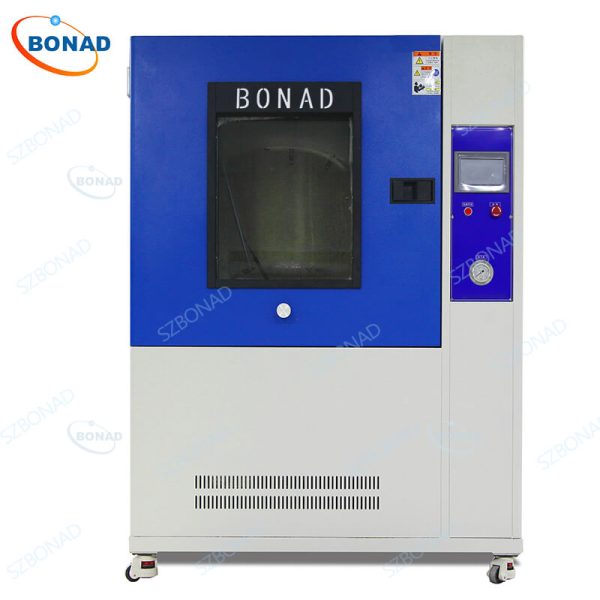

- There is a transparent observation window (tempered glass) on the door, and an LED light is installed inside the box to facilitate observation of the internal test conditions.

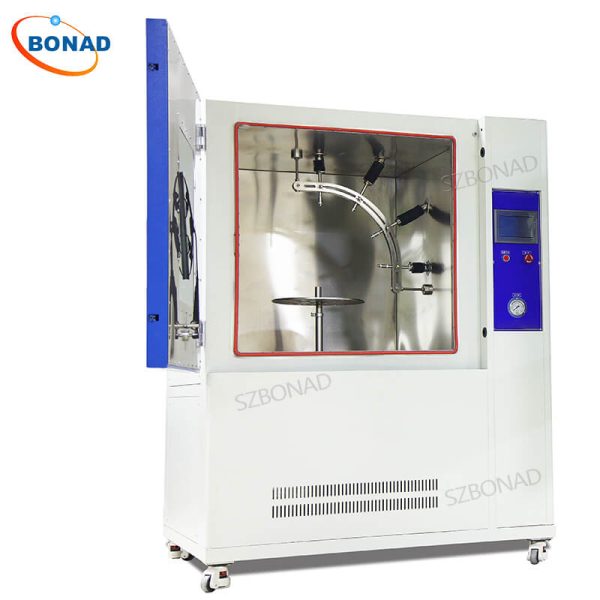

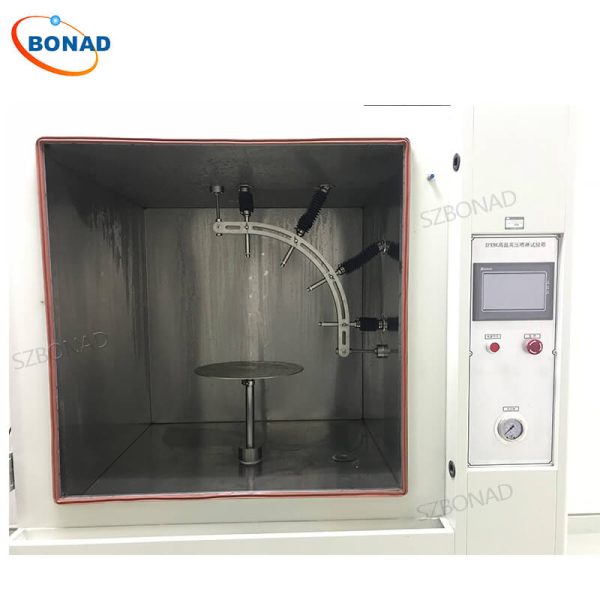

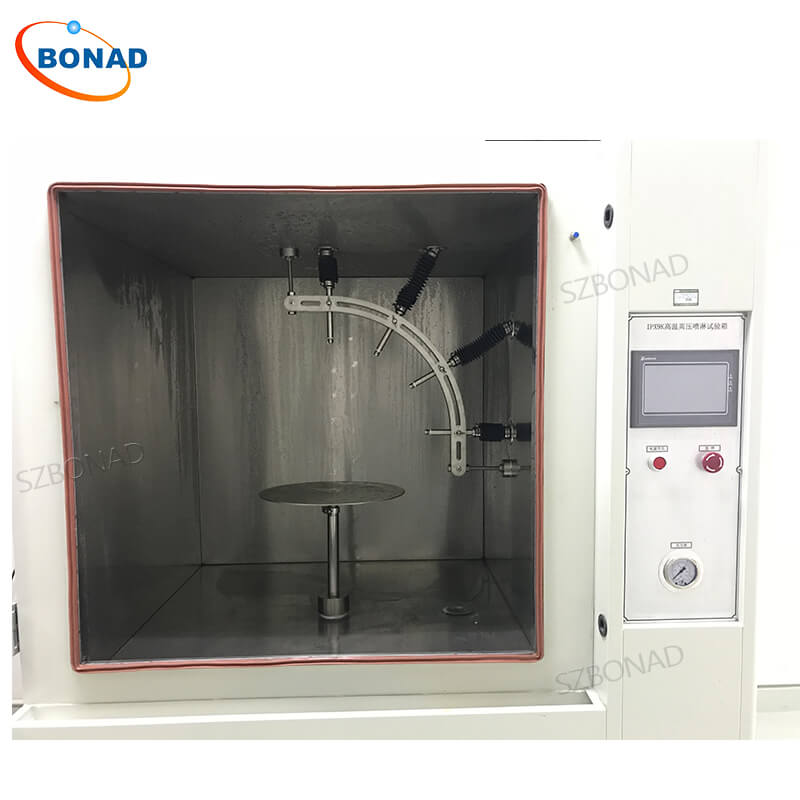

- There are four high-pressure nozzles with angles of 0, 30, 60 and 90 degrees. The distance between the nozzle and the sample can be adjusted up and down by 50-100MM.
- The turntable can be tested in forward and reverse directions and has fixed holes to easily fix the sample; the turntable can bear a load of 50KG and can also be customized according to needs.
- 3-layer waterproof device, samples can be tested with electricity.
IPX9k high pressure waterproof test chamber technical parameters:
| Model | BND-IPX9K-512L | BND-IPX9K-1000L |
| Overall dimensions (mm) | 1200*980*1650 | 1450*1200*1900 |
| Internal dimensions (mm) | 800*800*800 | 1000*1000*1000 |
| nozzle holes quantity | 4 pcs | |
| Water Spray Angle | 0°、30°、60°、90° | |
| Spray nozzle space | 100-200mm(adjustable) | |
| Turntable Diameter | Φ400mm | |
| Turntable lifting mode | manual | |
| Water Flow Rate | 14—16L/min | |
| Water Spray Temperature | Normal temperature(25°C)； | |
| Water Pressure | 8000-10000Kpa | |
| Turntable load | 50KG | |
| Rotate speed | 4—10r/min | |
| Test time | 120S(30S each position) | |
| Sample power supply | 220V | |
| Power Supply | 380V/10.0KW | |
| Environment request | Temperature：5℃—35℃；humidity：≤85%；air pressure：86Kpa-106Kpa | |
| safety protection function | Leakage protection, water shortage protection, short circuit protection | |
| Test standard | ISO20653 | |
Tailored IPX9K Testing Solutions
Every testing requirement is unique. We provide flexible customization to match your specific applications:
- Custom chamber dimensions for different sample sizes
- Adjustable nozzle quantity and spray layout
- Integrated water heating and filtration systems
- Data logging, remote control, and automation options
Tell us your testing requirements — get a tailored solution within 24 hours.
Why Choose BONAD
- 10+ years of experience in testing equipment manufacturing
- Trusted by customers in 50+ countries worldwide
- Professional engineering support from design to delivery
- Equipment compliant with ISO / IEC standards
- Reliable after-sales service, training, and technical support
- Multiple IPX9K testing solutions available, such as the Open-Type Chamber
Frequently Asked Questions:
1. What standards does this IPX9K test chamber comply with?
It is designed in accordance with ISO 20653 and can support IEC 60529 requirements for waterproof testing.
2. What is the difference between IPX9 and IPX9K?
IPX9K involves higher water pressure and temperature, making it suitable for demanding environments such as automotive and industrial cleaning processes, while IPX9 is generally less intensive.
3. Can the IPX9K test chamber be customized?
Yes, customization is available, including chamber size, nozzle configuration, temperature control, and automation features based on your testing requirements.
4. What is the delivery time?
Standard models are typically delivered within 2–4 weeks, while customized solutions may require additional time depending on specifications.
