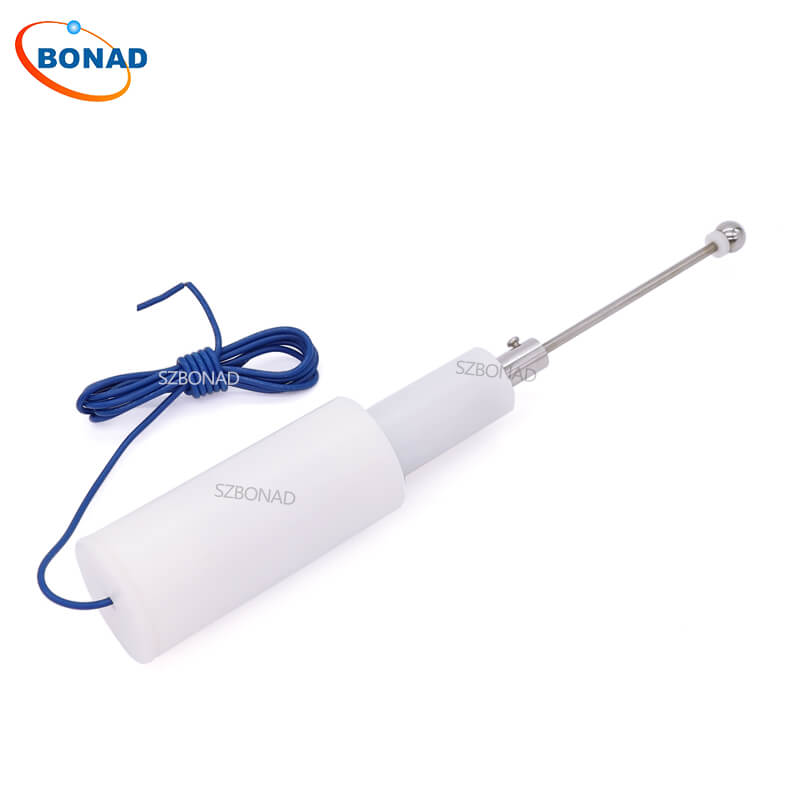

IEC 60529 12.5mm Rigid Spherical IP2X Test Probe – Anti-Electric Shock Protection Test Equipment
Features:

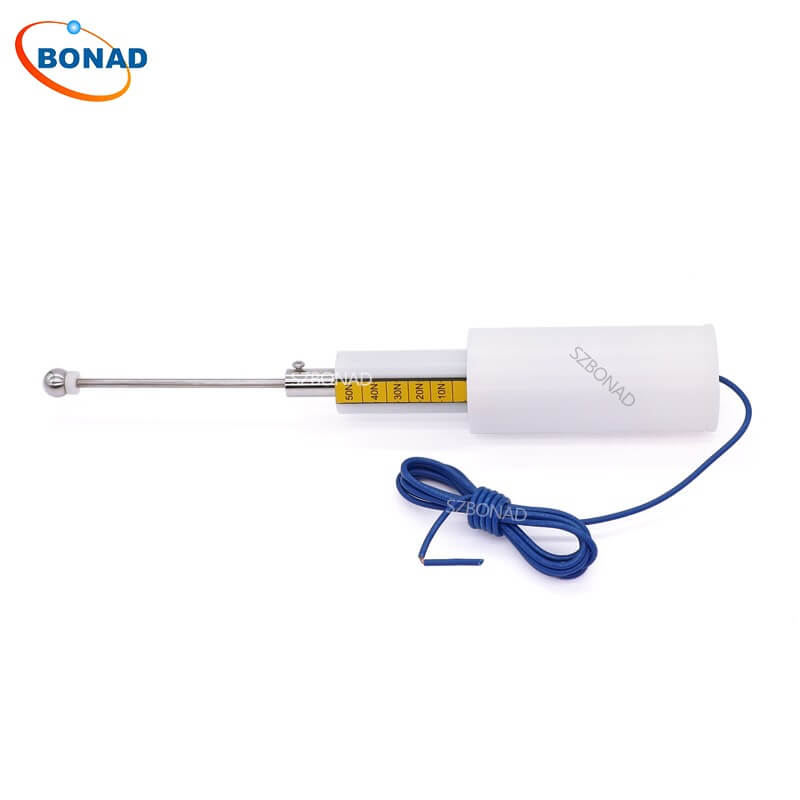

- The IP2X test probe is equipped with a 12.5 mm stainless steel ball and a 50N dynamometer, which can provide 10N/20N/30N/40N/50N thrust for testing.
- All specifications are fully compliant with IEC60529.
- ISO 17025 / ILAC calibration certificate can be provided. (Additional fee required)
- It adopts portable packaging, which is easy to store and carry. It is an essential instrument for the protection test of household and similar electrical appliances against electric shock.
Technical parameters:
- Ball diameter: 12.5 mm.
- Baffle diameter: 4 mm.
- Baffle thickness: 10 mm.
- Handle diameter: 4 mm.
- Thrust level: 10N/20N/30N/40N/50N.
Note:
- The ball cannot touch live parts or approach dangerous parts.
- In the test requirements to prevent approaching dangerous parts, a non-thrust test steel ball must be used in conjunction with a thrust dynamometer, and the steel body must apply a thrust of 30±3N to the protective layer.
FAQ:
What is an IP2X test probe?
An IP2X test probe is used according to IEC 60529 to verify protection against solid objects ≥12.5 mm and prevent access to hazardous parts.
Why use a 12.5 mm sphere?
The 12.5 mm sphere simulates a human finger to ensure users cannot touch dangerous internal components.
What test force is applied?
Standard IP2X testing uses 30N force. This probe supports 10N–50N adjustable force for flexible testing.
What is this probe used for?
It is widely used for testing electrical enclosures, household appliances, and electronic products.
Is calibration available?
Yes, optional ISO 17025 calibration certificates are available.
