Applicable Standards
- IEC 60529 – Degrees of protection provided by enclosures (IP Code).
- IPX5 – Protection against water jets.
- IPX6 – Protection against powerful water jets.
IPX5 IPX6 Water Jet Test Nozzle Set Information

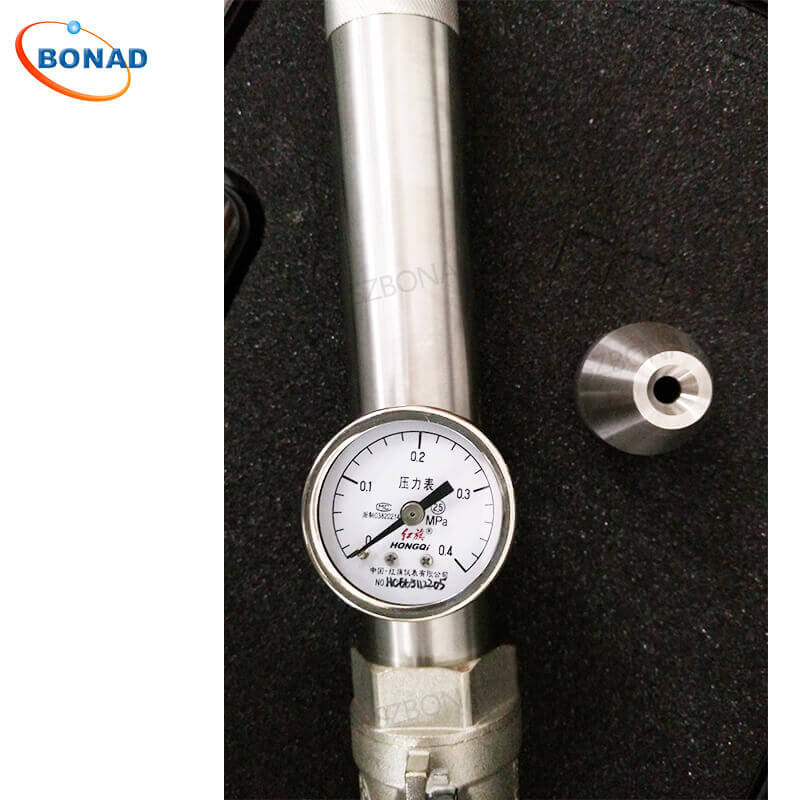

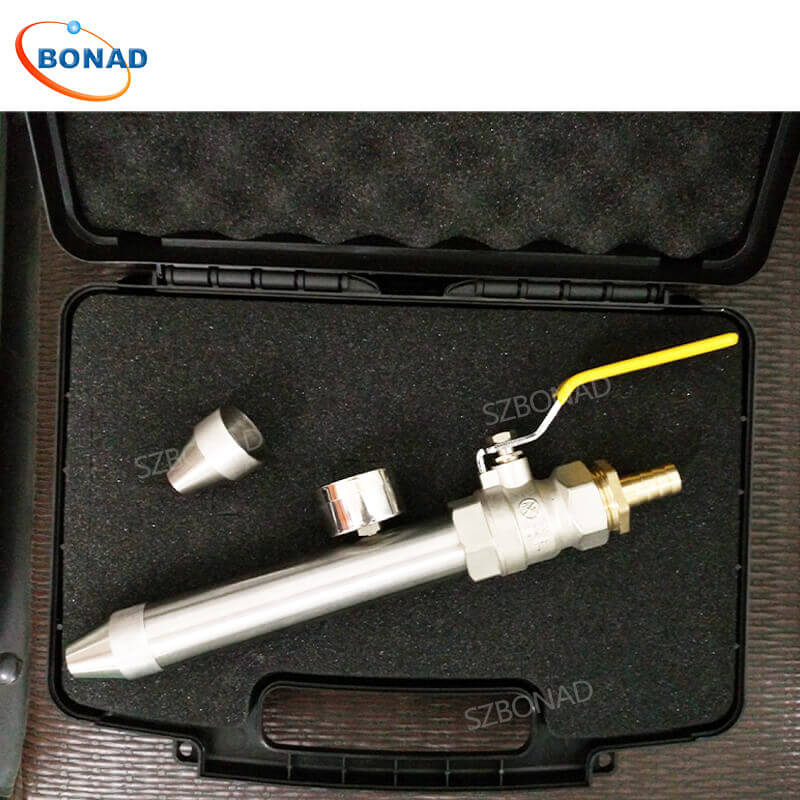

- Spray handle with pressure gauge and throttle valve.

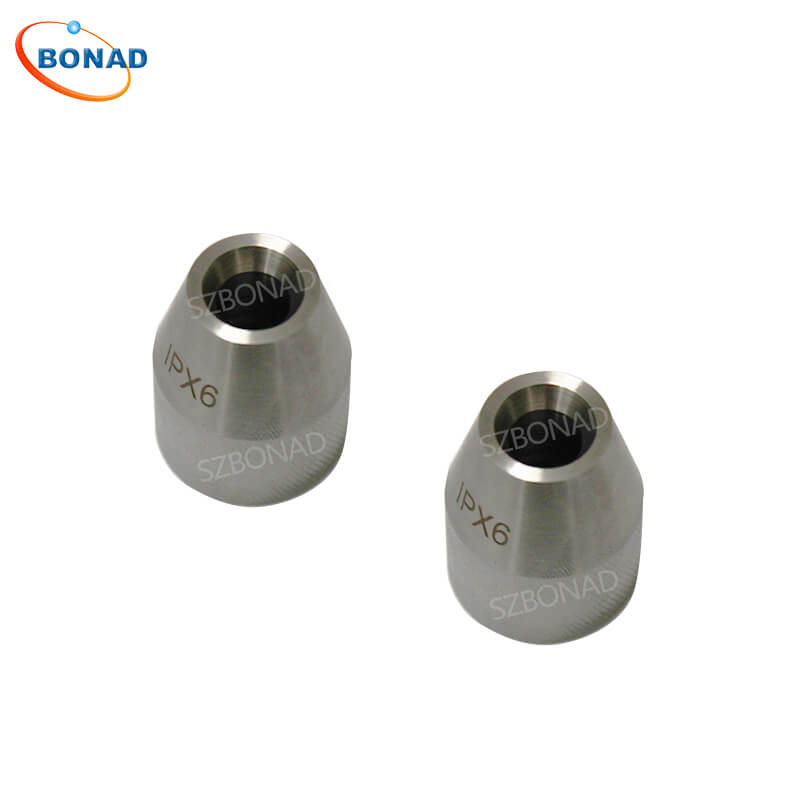

- IPX5 and IPX6 spray heads.
- Flow meter.
Key Features
- Dedicated nozzles for IPX5 and IPX6 testing.
- Fully compliant with IEC 60529 requirements.
- Integrated pressure gauge and flow meter for precise control.
- Durable stainless steel and brass construction.
- Stable water flow and repeatable test performance.
- Suitable for manual operation or chamber integration.
- Custom configurations available upon request.
IPX5 IPX6 Water Jet Test Nozzle Set Technical Parameters
| Item | IPX5 | IPX6 |
| Nozzle diameter | 6.3 mm | 12.5 mm |
| Pressure gauge | 0–0.25 MPa | 0–0.25 MPa |
| Water discharge | 12.5 ± 0.625 L/min, adjustable | 100 ± 5 L/min, adjustable |
| Distance between nozzle and enclosure | 2.5–3 m | 2.5–3 m |
| Test time | More than 1 min/m² and minimum 3 min | More than 1 min/m² and minimum 3 min |
| Conforms to | IEC 60529 | |
IPX5 / IPX6 Water Jet Test Method
Step 1: Water Supply Connection
Connect the nozzle set to the water supply system. Ensure the water source is clean, clear, and free of impurities, then fully open the water supply.
Step 2: Start Spraying and Adjust Flow
Open the valve to begin spraying. Adjust the flow meter valve to control and stabilize the water flow according to the required test level.
Step 3: Set Standard Flow Rate
Configure the water flow rate based on the test grade and replace the corresponding nozzle and flow meter when switching between test levels:
- IPX5 Test: Water flow rate 12.5 L/min ± 5%.
- IPX6 Test: Water flow rate 100 L/min ± 5%.
Ensure that the appropriate nozzle and flow meter are used for each protection level to maintain IEC 60529 compliance.
Step 4: Perform the Water Jet Test
Direct the nozzle toward the test sample and spray water from all practical directions around the enclosure.
- Test Duration: ≥ 1 minute per square meter of enclosure surface area (excluding mounting surfaces), minimum 3 minutes.
- Nozzle Distance to Enclosure: 2.5–3 meters.
Applications
This IPX5 IPX6 water jet nozzle set is widely used for testing:
- Electrical enclosures and control cabinets.
- Household and commercial electrical appliances.
- Automotive and EV components.
- Lighting fixtures and outdoor luminaires.
- Industrial and consumer electronic products.
Why Choose BONAD?
- Professional IP waterproof test equipment manufacturer.
- Products designed strictly according to international standards.
- Reliable performance and long service life.
- Custom solutions for different test requirements.
- Technical support before and after purchase.
BONAD helps customers reduce retesting risks, improve testing efficiency, and accelerate certification processes.
FAQs
1. What components are included in the nozzle set?
The set includes dedicated stainless steel IPX5 and IPX6 nozzles, a spray handle, a pressure gauge, and a flow meter for accurate and repeatable testing.
2. Can it be used without a test chamber?
Yes. It can operate as a handheld test solution or be integrated into an IP waterproof test chamber, providing flexible testing options.
3. What types of products can be tested?
Suitable for electrical enclosures, control cabinets, household appliances, automotive components, lighting, and industrial electronics.
4. Is customization available?
Yes. BONAD offers customized configurations for different test setups, water supply conditions, and sample sizes. We can also custom-make IPX5 IPX6 waterproof test chambers to meet specific laboratory or production requirements.
5. What after-sales support does BONAD provide?
BONAD provides technical guidance, operation support, and long-term spare parts supply to ensure reliable testing and minimize downtime.
