GB1002 Plug Socket And Gauge

Application: BONAD offers a wide range of gauge to meet the most common standards including those from IEC ,EN,UL,GB,DIN,VDE and the others , Such standards require the checking of size &definition etc. These gauge are constructed from senior stainless steel and appropriate steel with a hardness of at least 60 HRC and roughness according require to standard require. Each gauge is supplied with a certificate of calibration.

GET A QUOTE
CONTACT US

Application:
BONAD offers a wide range of gauge to meet the most common standards including those from IEC ,EN,UL,GB,DIN,VDE and the others , Such standards require the checking of size &definition etc. These gauge are constructed from senior stainless steel and appropriate steel with a hardness of at least 60 HRC and roughness according require to standard require. Each gauge is supplied with a certificate of calibration.

No. Figure No. Type Quantity

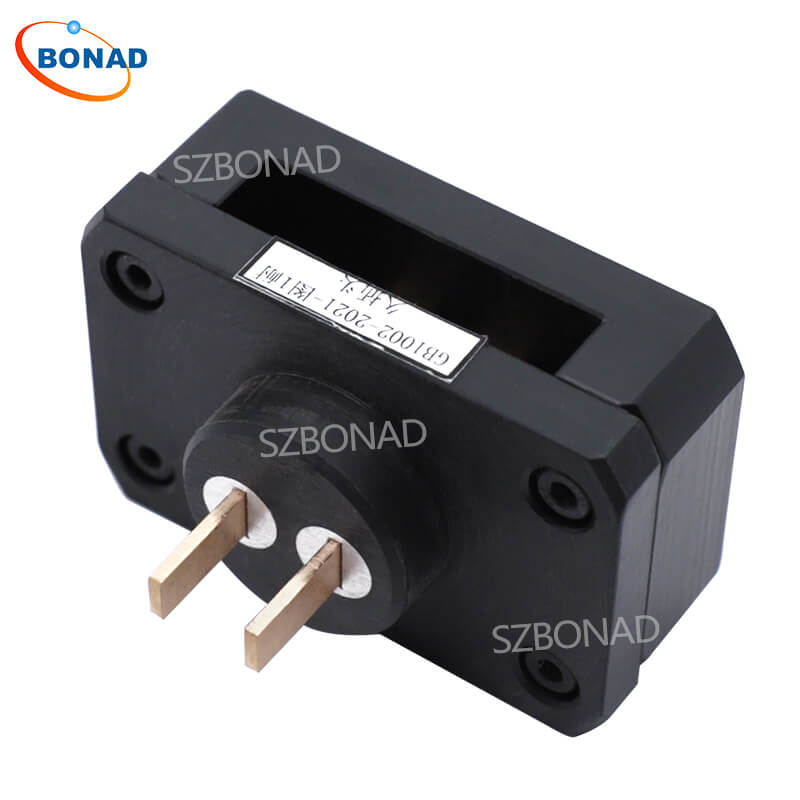

1 Figure 1(GB1002-2008) 6A.10A Single-phase two-pole plug 1
2 Figure2(GB1002-2008) 10A Single-phase two-pole socket-outlet 1
3 Figure3(GB1002-2008) 6A.10A Single-phase two -pole grounding plug 1
4 Figure3(GB1002-2008) 16A Single-phase two -pole grounding plug 1
5 Figure4(GB1002-2008) 10A Single-phase two-pole grounding socket-outlet 1
6 Figure4(GB1002-2008) 16A Single-phase two-pole grounding socket-outlet 1
7 Figure5(GB1002-2008) 10ASingle-phase two-pole Flat-and-round socket-outlet 1
8 Figure6(GB1002-2008) 6A.10A Single-phase two –pole plug gauge 1
9 Figure7(GB1002-2008) 6A.10A Single-phase two –pole grounding plug inner gauge 1
10 Figure7(GB1002-2008) 16A Single-phase two -pole grounding plug inner

gauge

1
11 Figure8GB1002-2008) 10A Single-phase two -pole grounding plug outer

gauge

1
12 Figure8GB1002-2008) 16A Single-phase two -pole grounding plug outer

gauge

1
13 Figure9GB1002-2008) 10A Single-phase two-pole socket-outlet Max. Go gauge 1
14 Figure10GB1002-2008) 10A Single-phase two-pole socket-outlet Min. GO gauge 1
15 Figure11GB1002-2008) 10A Single-phase two-pole socket-outlet NOGO gauge 1
16 Figure12GB1002-2008) 10A Single-phase two-pole socket-outlet Non-contact gauge 1
17 Figure13GB1002-2008) 10A Single-phase two-pole grounding socket-outlet Max. Go gauge 1
18 Figure13GB1002-2008) 16A Single-phase two-pole grounding socket-outlet Max. Go gauge 1
19 Figure14GB1002-2008) 10A Single-phase two-pole grounding socket-outlet Min. GO gauge 1
20 Figure14GB1002-2008) 16A Single-phase two-pole grounding socket-outlet Min. Go gauge 1
21 Figure15GB1002-2008) 10A Single-phase two-pole socket-outlet NOGO gauge 1
22 Figure15GB1002-2008) 16A Single-phase two-pole socket-outlet NOGO gauge 1
23 Figure16GB1002-2008) 10A Single-phase two-pole grounding socket-outlet Non-contact gauge 1
24 Figure16GB1002-2008) 16A Single-phase two-pole grounding socket-outlet Non-contact gauge 1
25 Figure17(GB1002-2008) 10A Single-phase two-pole grounding round socket-outlet partial Go gauge 1
26 Figure18(GB1002-2008) 10A Single-phase two-pole grounding round socket-outlet partial NOGO gauge 1

These measuring gauge confirm to the standard of GB2099.1-2008 clause9,GB1002-2008 and GB1003-2008 which are used for the dimensional measurement and verification of the plug socket for household and similar use. They are the necessary testing devices used in the laboratory and measurement test department.
