Go No Go Gauges

VDE0620-1 Gauge for Plug and Socket

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to VDE0620-1:2010 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
Product Information For VDE Gauges:
These measuring gauges confirm to the standard of IEC 60884-1:2013 clause 9, which are used for the dimensional measurement and verification of the plug socket for household and similar use. They are the necessary testing devices used in the laboratory and measurement test department. The specific measuring gauges are made according to DIN VDE 0620-1:2010:

GET A QUOTE

Specifications:

Newest Supply V DE 0620-1 Gauge for Plug and Socket
1. Reference to VDE 0620-1
2. Plug and Socket Gauges
3. With ISO 9001 certificate
4. High Quality Socket

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to VDE0620-1:2010 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

Product Information For VDE Gauges:

These measuring gauges confirm to the standard of IEC 60884-1:2013 clause 9, which are used for the dimensional measurement and verification of the plug socket for household and similar use. They are the necessary testing devices used in the laboratory and measurement test department. The specific measuring gauges are made according to DIN VDE 0620-1:2010:

Series gauge:

No Seite Details Qty

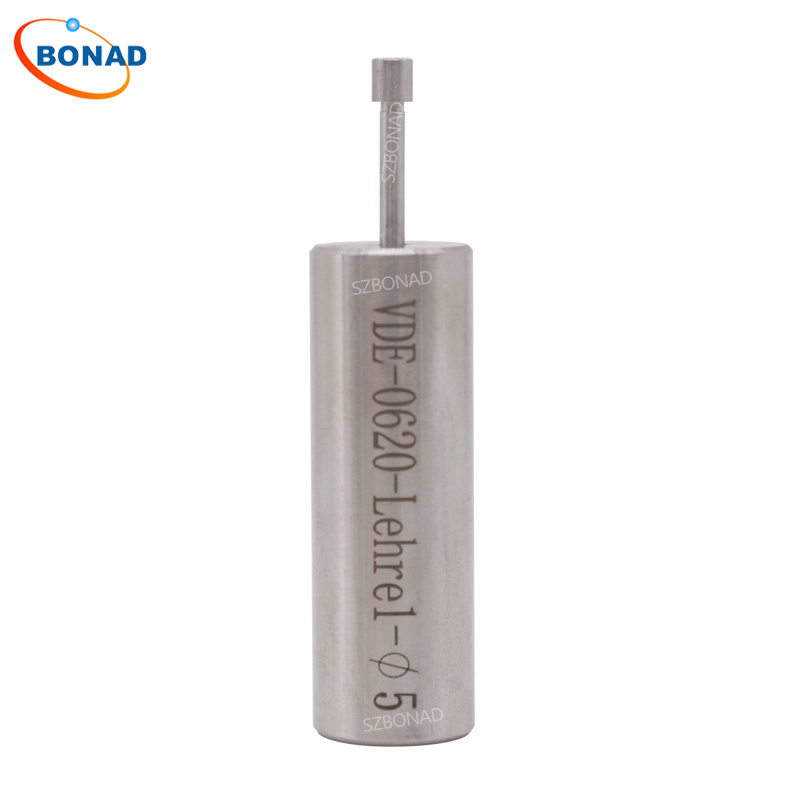

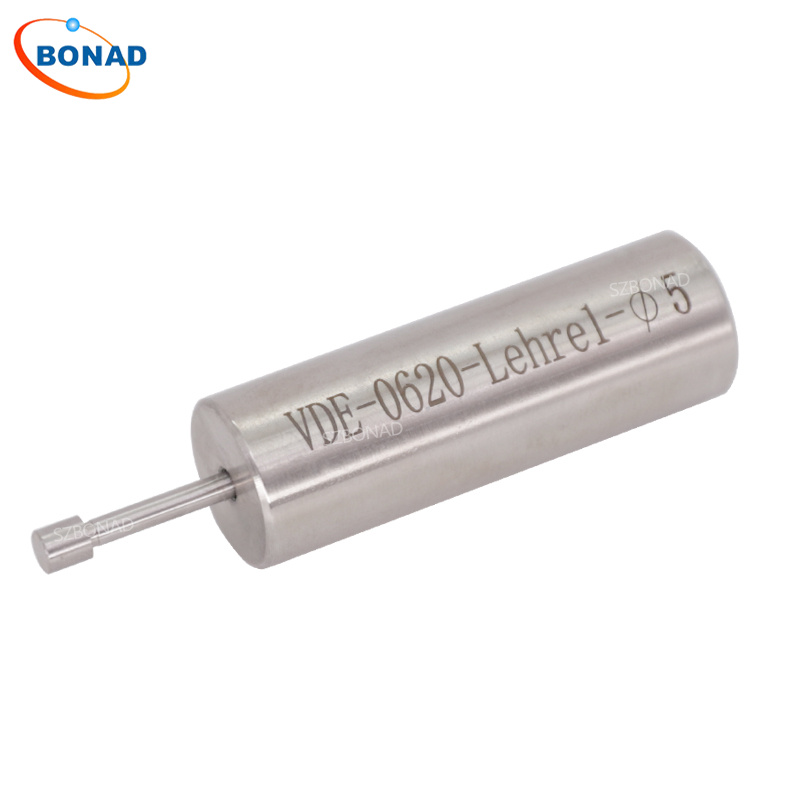

1 DIN-VDE0620-1-Lehre1 aperyure socket R gauge(2) 3 pcs
2 DIN-VDE0620-1-Lehre2  Min. wide and lest force contacting jack(3) 2 pcs
3 DIN-VDE0620-1-Lehre3 The entering force of  two-pole plug(14) 1 pcs

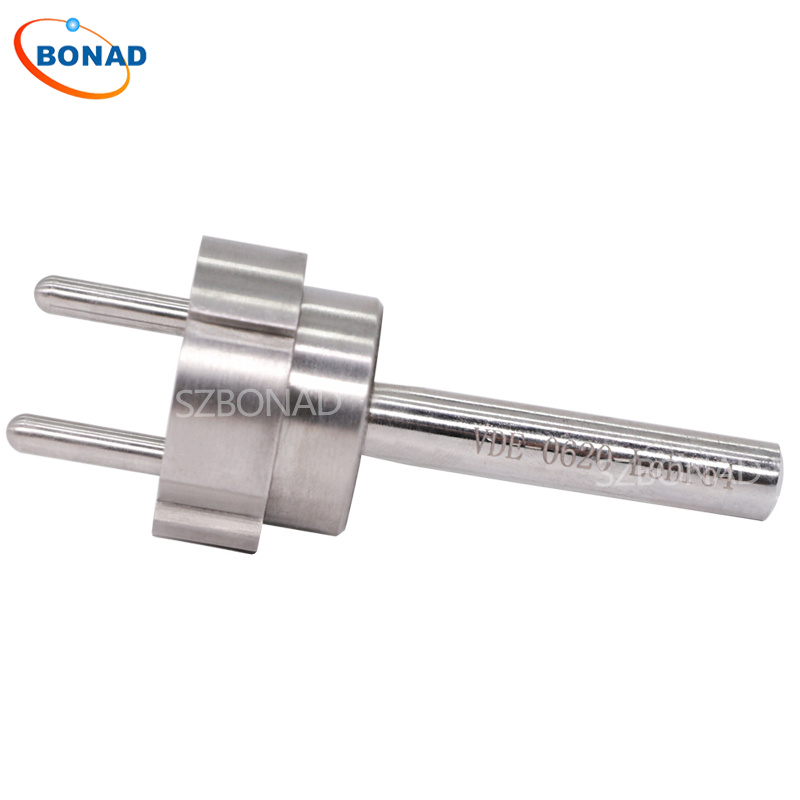

4 DIN-VDE0620-1-Lehre4  The entering force of  two-pole plug with side earthing contacting Head 1 pcs

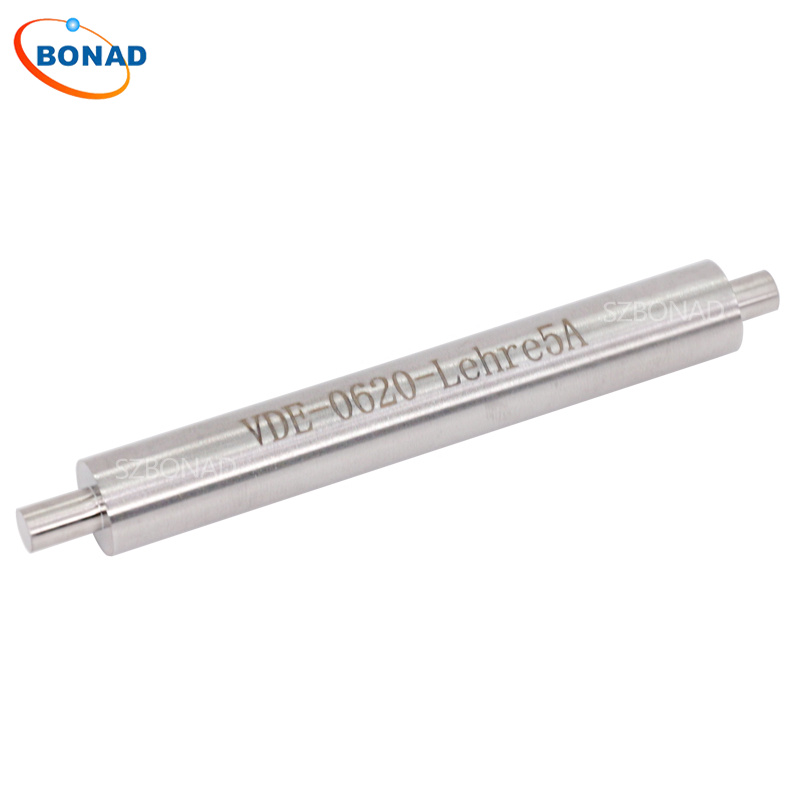

5 DIN-VDE0620-1-Lehre5 Gauge for test the interval of the first contact point(5) 1 set/4 pcs

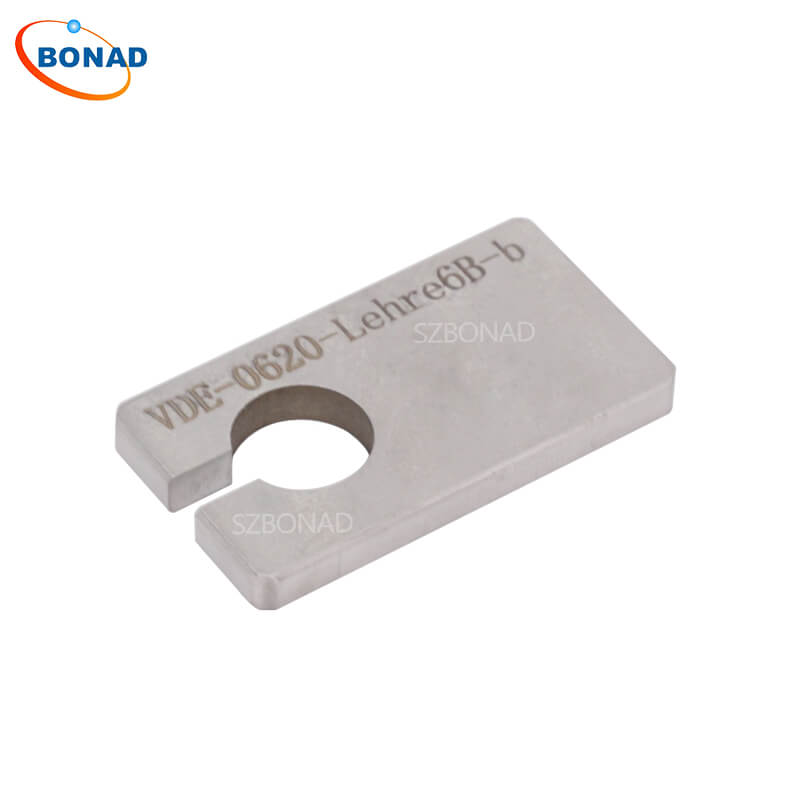

6 DIN-VDE0620-1-Lehre6  the radius of plug pins(each 2 point ,total 8 points) 1 set/4 pcs
7 DIN-VDE0620-1-Lehre7  the radius of plug pins(each 2 point ,total 8 points) 1 set/2 in 1
8 DIN-VDE0620-1-Lehre8 largest wide connecting aperture(3) 1 pcs
9 DIN-VDE0620-1-Lehre9 gauge for testing the changeability of plugs(12) 1 pcs

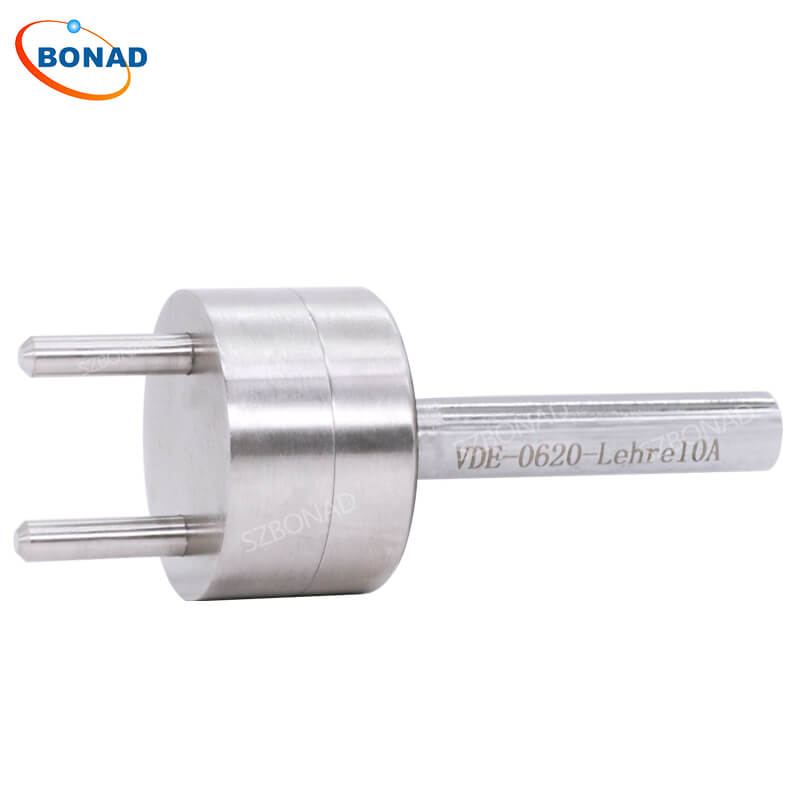

10 DIN-VDE0620-1-Lehre10-A single-pole hole contact point of impossibility A(7) 1 pcs
11 DIN-VDE0620-1-Lehre10-B single-hole hole contact point of impossibility B(12) 1 pcs
12 DIN-VDE0620-1-Lehre11 without earthing contact two-poles plug of nonintrusive(9) 1 pcs
