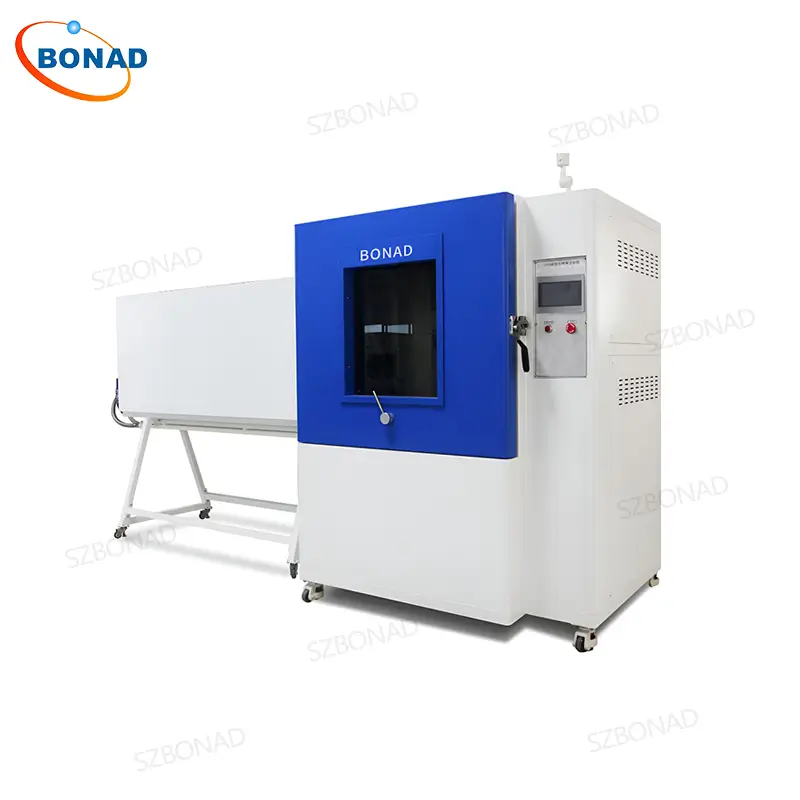

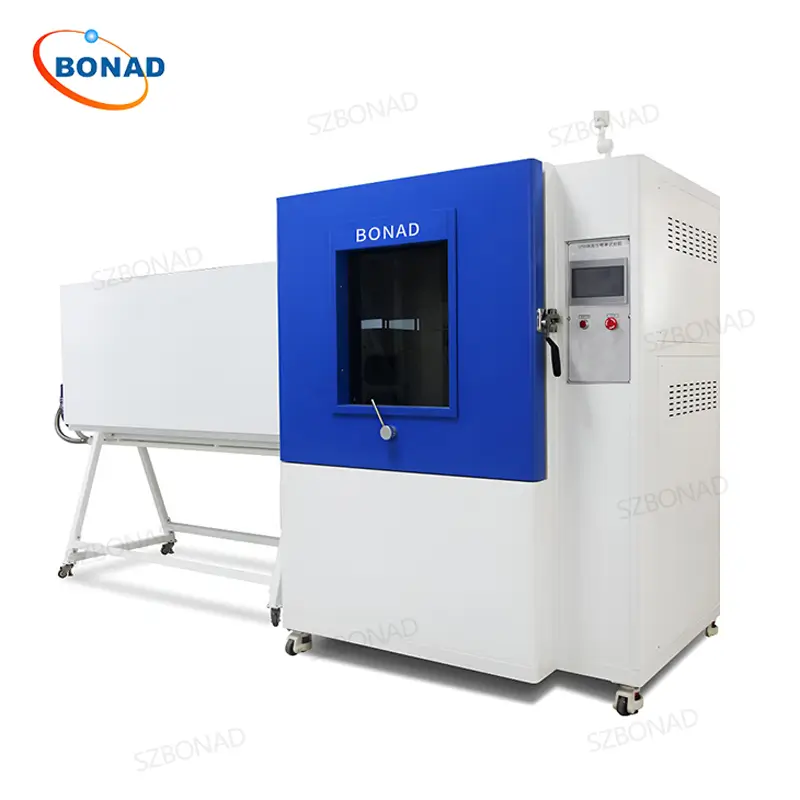

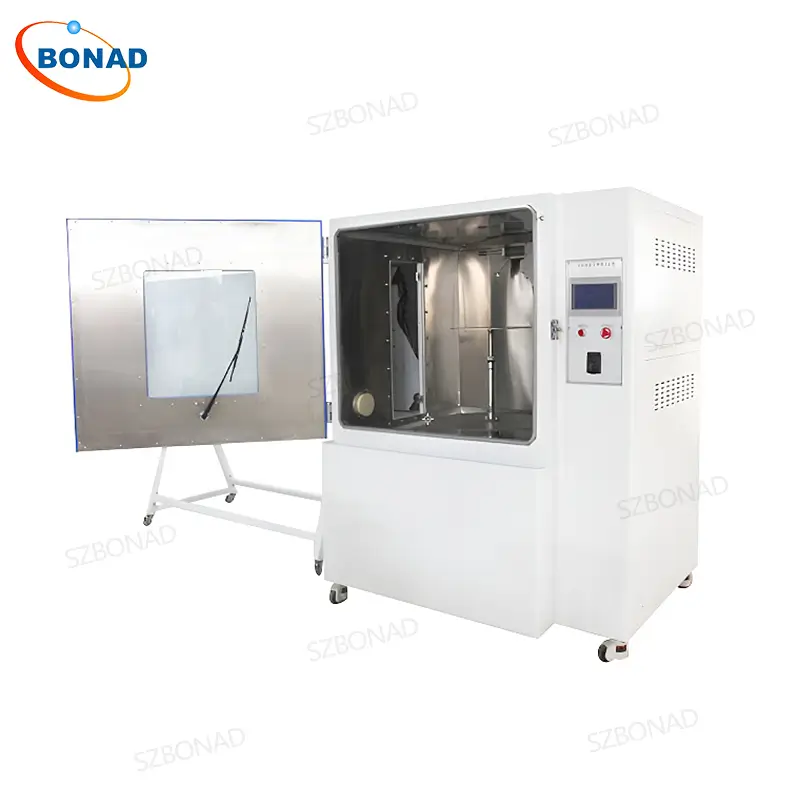

For IPX5, IPX6, IPX6K, IPX9 and IPX9K Spray and Jet Testing (Non-Immersion) – BONAD Test Chamber
Applicable Standards
- IPX5, IPX6, IPX9: IEC 60529
- IPX6K, IPX9K: ISO 20653 / DIN 40050-9
Applications
- Outdoor lighting.
- Household appliances.
- Automotive parts and components.
- Electrical cabinets and equipment.
- Electronics, motorcycles, and other electrical products.
Features & Highlights
- Supports IPX5, IPX6, IPX6K, IPX9, and IPX9K waterproof testing.
- Automatic operation; integrated box design, no need to hold the spray gun.

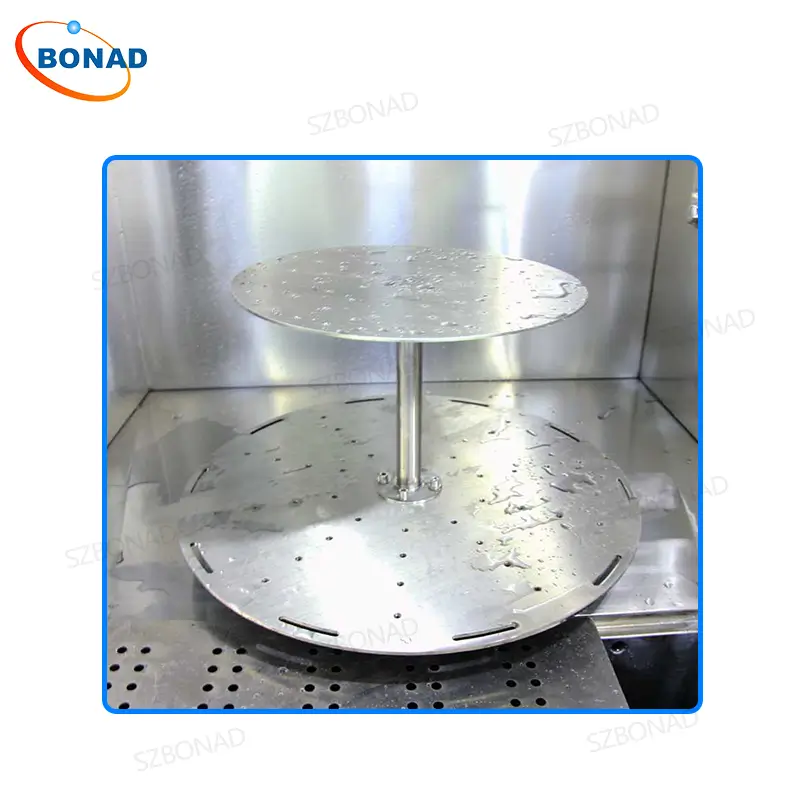

- Durable construction: steel outer shell, SUS304 stainless steel inner chamber & turntable.

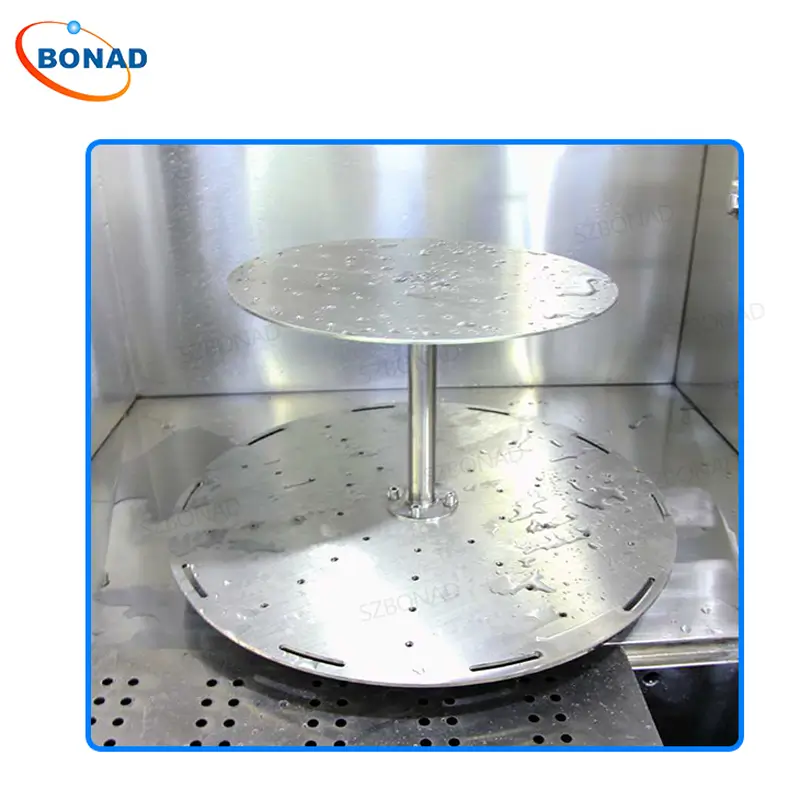

- Precision stepping motor control; adjustable speed, angle, and rotation.
- Circulating water system with float valve, low-water alarm, overheat protection, built-in heating.

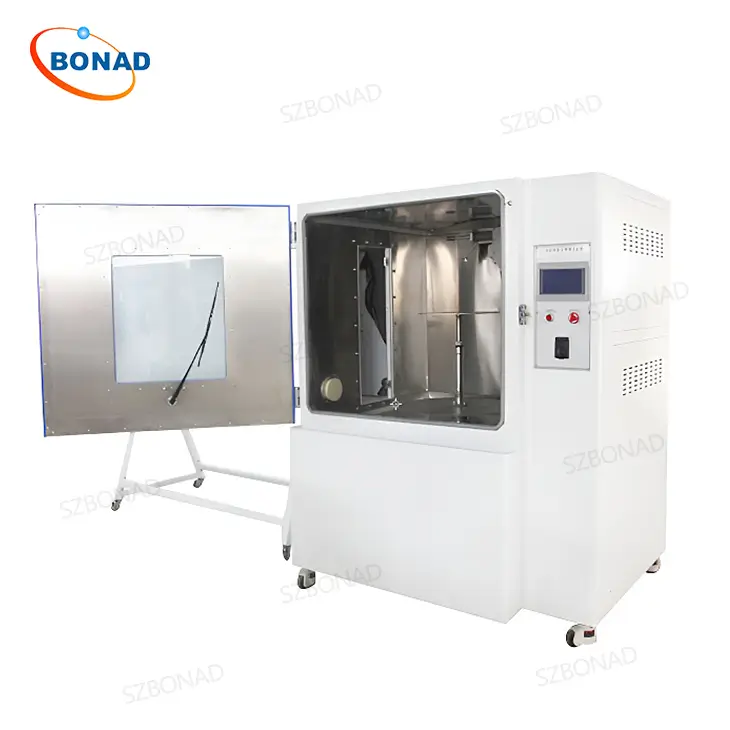

- Tempered glass window with LED lighting for observation.

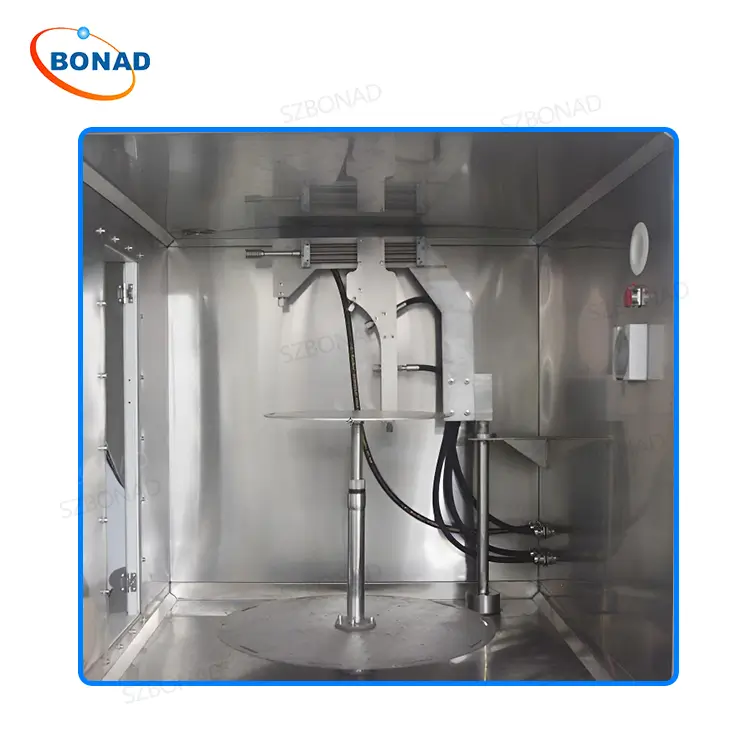

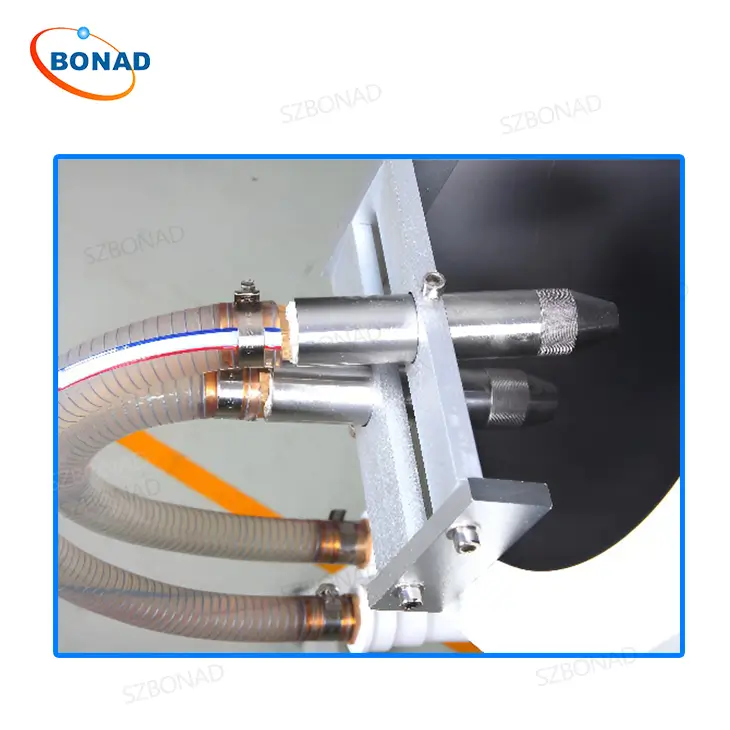

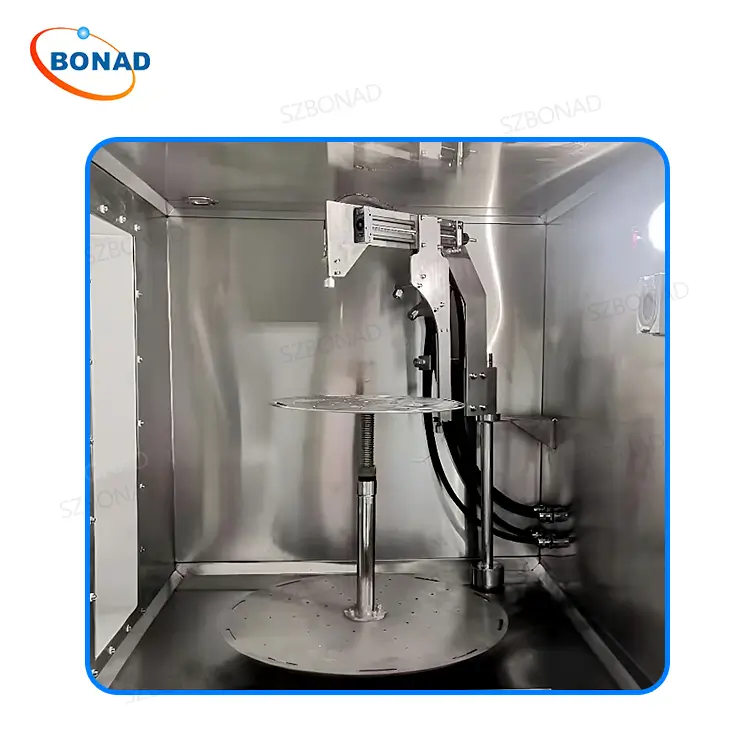

- 56 high-performance nozzles; fan-shaped nozzles (0°, 30°, 60°, 90°), adjustable distance 50–100 mm.
- Imported high-pressure water pump; precise pressure measurement.
- 7-inch touchscreen interface, Panasonic PLC, imported electrical components.
- Adjustable water flow, temperature, and test duration (0–999 min).
- High-precision force sensor and stable multi-directional spray.

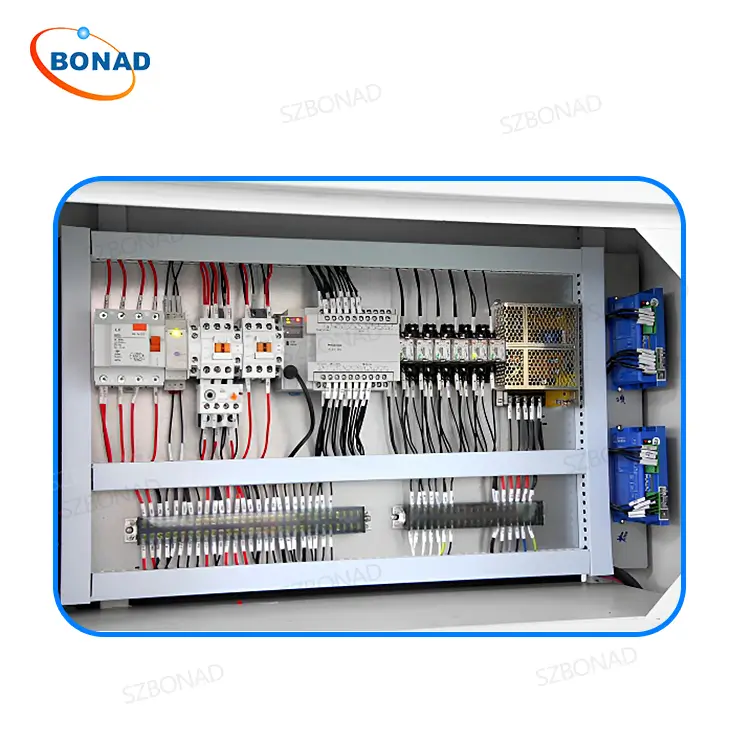

Six Protection Systems
- Door Safety: Test cannot start with door open.
- Power & Leakage Protection.
- Solid-State Relay: Prevents short circuit, overload, overheating.
- Water Level Safety: Anti-overflow, low-water protection for pump.
- Variable Frequency Drive: Controls pump speed and water flow.
- AC Contactor & Thermal Relay: Protects pump against overload and overheating.
Technical parameter
| Structural parameters | ||

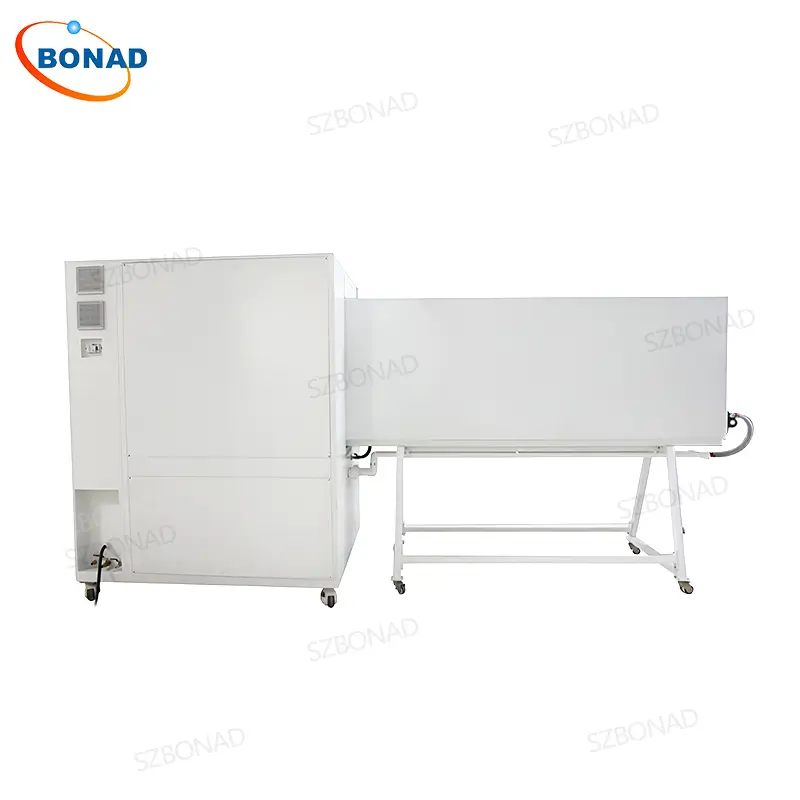

| Outer dimensions of the device | About length 4060* depth 1220* height 1820mm (including aqueduct) | |
| Inner box size | About length 1000* depth 1000* height 1000mm | |
| Storage tank volume | About 95L | |
| IPX9 Sample Turret Dimensions | Diameter 400mm | |
| IPX5 water spray aperture | Diameter 6.3mm | |
| IPX6 water spray aperture | Diameter 12.5mm | |
| Number of nozzles | 4 | |
| Nozzle angle | 0°, 30°, 60°, 90° (vertical orientation) | |
| Nozzle distance | 100-200mm (manually adjustable) | |
| Turntable lifting method | Manual adjustment | |
| Function parameter | ||
| IPX5 water spray flow | 12.5±0.625（L/min） | |
| IPX6 water jet flow | 100±5（L/min） | |
| IPX9K water jet flow | 14~16L/min | |
| IPX9K water spray temperature | Normal temperature (25°C); 80±5°C (deviation temperature can be negotiated) | |
| IPX9K water spray pressure | 8000~10000 Kpa | |
| Turntable load | 50kg | |
| Turntable rotation speed | 1~10 r/min (accurately adjustable) | |
| Flow control method | Set as standard (flow sensor) | |
| IPX56 water spray distance | 2.7 meters (the distance between the nozzle and the center of the turntable) | |
| How to fix the spray gun | Mechanical fixation (the angle of the spray gun can be adjusted manually) | |
| Turntable maximum load | 50KG | |
| Turntable lifting range | 400-700mm (manual adjustment) | |
| Water supply method | Circulating water supply | |
| Test time | 0-9999S (can be set) | |
| Electrical parameters | ||
| Control System | (touch type) 7 inch touch screen + PLC | |
| Device power | 380V, 50Hz | |
| Test sample power supply | 220V, 50Hz | |
| Equipment power | 15.0KW | |
| Safety protection function | Leakage protection, water shortage protection, short circuit protection | |
Why Choose BONAD?
- Expert Consultation: Recommend suitable IPX5–IPX9K solutions; provide specifications, demos, and custom options.
- Reliable Quality: High-quality steel, SUS304 stainless steel, imported precision components; compliant with IEC, ISO, DIN, UL.
- Installation & Training: Correct setup guidance and operator training on controls and testing procedures.
- Technical Support: Lifetime support, remote troubleshooting, maintenance, and calibration.
- After-Sales Service: Warranty on core components, fast service response, spare parts available.
BONAD ensures reliable, accurate, and fully supported waterproof testing—from consultation to after-sales.
FAQ
1. What products can be tested in the IPX5–IPX9K Water Spray & Jet Test Chamber?
This chamber is suitable for testing electronics, household appliances, automotive parts, outdoor lighting, electrical cabinets, and industrial equipment for waterproof performance according to IPX5–IPX9K standards.
2. Which IP waterproof levels does this chamber support?
The chamber supports IPX5, IPX6, IPX6K, IPX9, and IPX9K tests, covering rain exposure, water jets, and high-pressure, high-temperature sprays.
3. Is the testing process automated?
Yes. The chamber has an integrated design that allows automatic testing without manually holding the spray gun. Test parameters, including water flow, temperature, duration, and nozzle angles, are adjustable via a 7-inch touchscreen interface.
4. What standards does the chamber comply with?
The chamber is compliant with IEC 60529 for IPX5, IPX6, and IPX9 tests, and ISO 20653 / DIN 40050-9 for IPX6K and IPX9K high-pressure, high-temperature tests.
5. What safety features does the chamber include?
The chamber is equipped with six protection systems, including door safety interlock, power and leakage protection, solid-state relay control, water level safety, variable frequency drive, and AC contactor with thermal relay, ensuring safe and reliable operation.
6. Does BONAD provide installation and support?
Yes. BONAD offers installation guidance, operator training, lifetime technical support, preventive maintenance advice, and spare parts supply to ensure smooth operation and accurate testing results.
7. Can the chamber be customized for specific testing needs?
BONAD provides custom solutions for special testing requirements, including adjustable nozzles, high-pressure settings, and specialized sample fixtures for different products.
