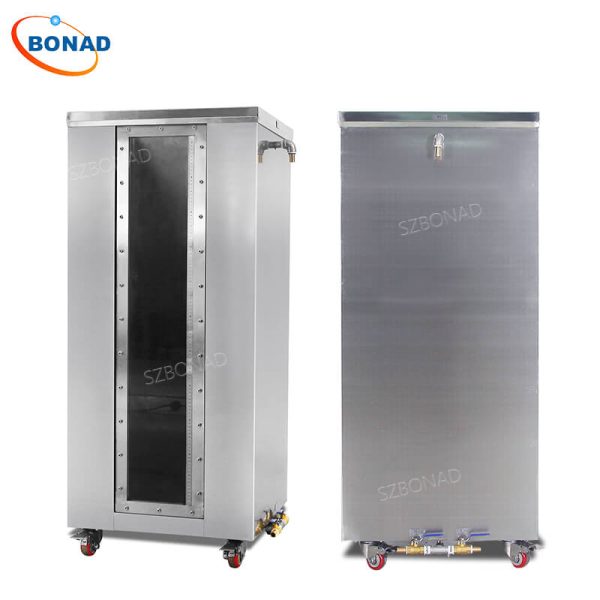

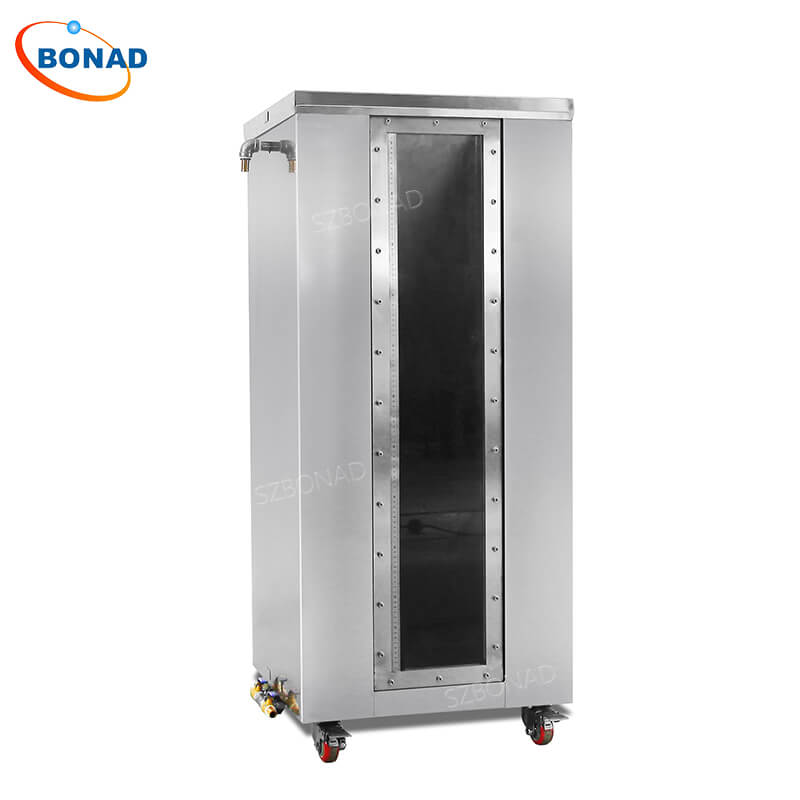

Stainless Steel IPX7 Water Immersion Test Equipment – BONAD Waterproof Tester
Test equipment use:
The main function of this equipment is to test whether the performance of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts meets the requirements through waterproof tests, so as to facilitate product design, improvement, verification and factory inspection.
Test equipment features:

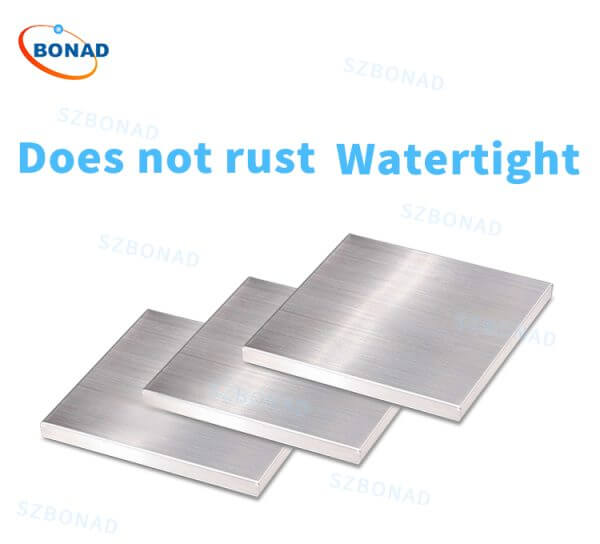

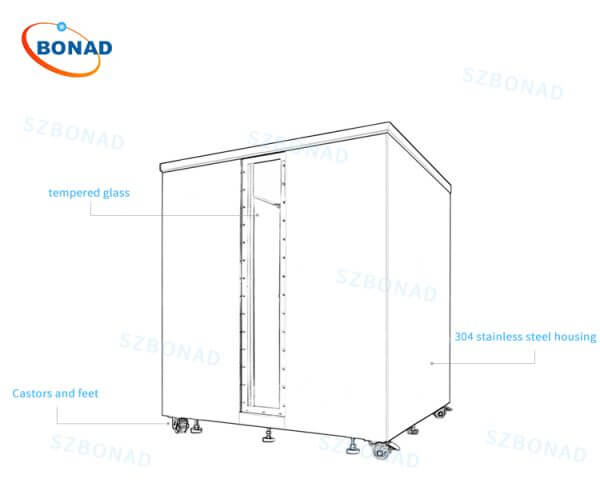

- The inner and outer layers are made of SUS304# stainless steel plate with high precision and arc welding, which ensures that it will not rust or leak after long-term use.

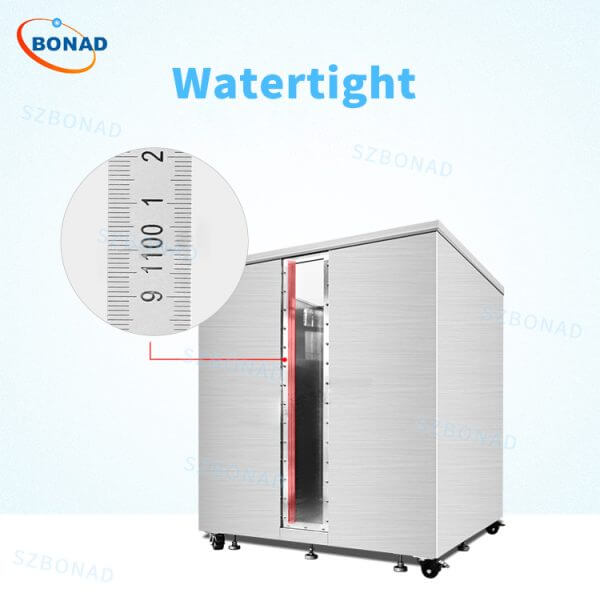

- External high-precision stainless steel ruler, accurate water level.

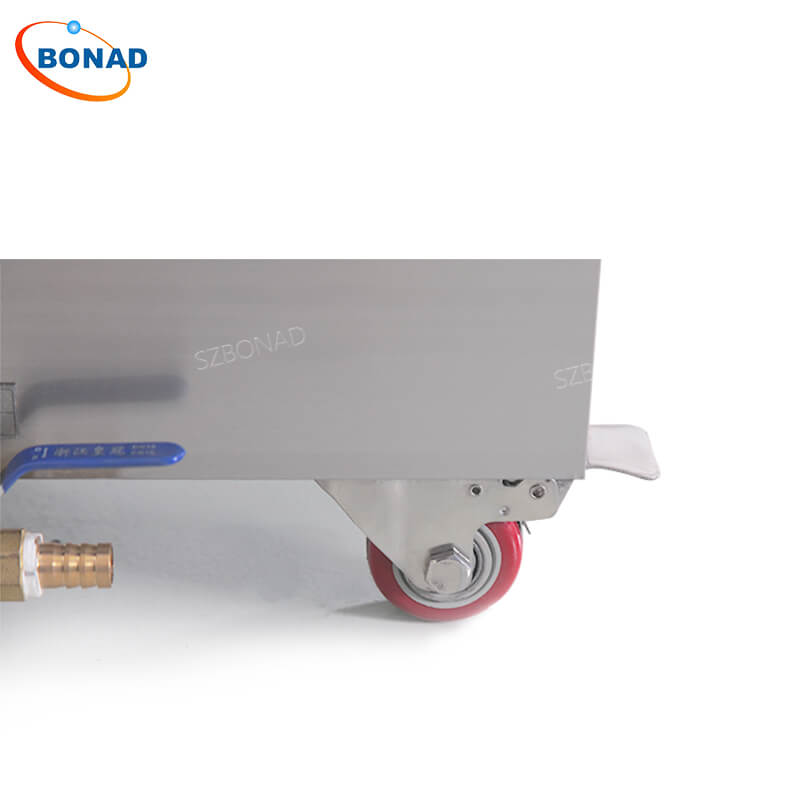

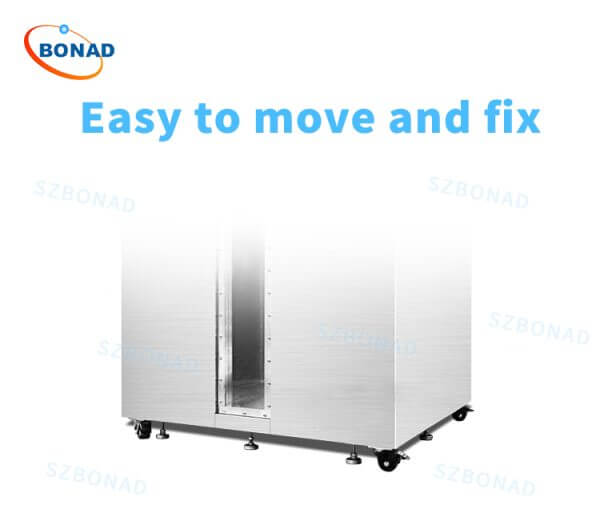

- Stainless steel chassis with load-bearing casters and foot cups for easy movement and fixation.

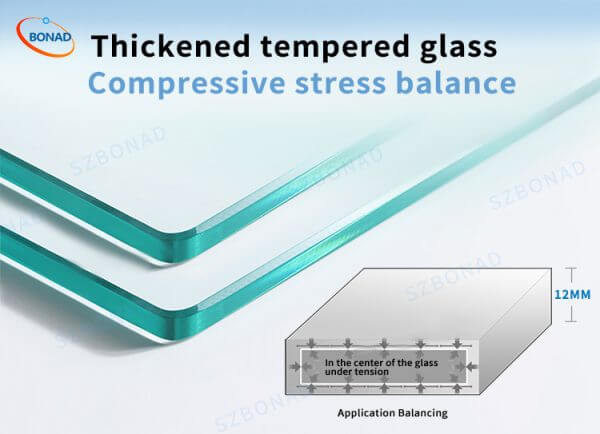

- The observation window is bonded with 12mm tempered glass, which can clearly observe the test conditions of the sample; it is strong and durable, and will not leak after long-term use.
Test equipment technical parameters:
| Model | BND-IPX7B-108L | BND-IPX7B-432L | BND-IPX7B-960L | BND-IPX7B-1200L | BND-IPX7B-1728L |
| Inner size(mm) | 300*300*1200 | 600*600*1200 | 1000*800*1200 | 1000*1000*1200 | 1200*1200*1200 |
| outer size(mm) | 360*360*1300 | 660*660*1300 | 1080*880*1300 | 1080*1080*1300 | 1280*1280*1300 |
| Thickness of plate | 1.5mm | 1.5mm | 1.5mm | 2mm | 2mm |
| highest water depth | 1.2m | ||||

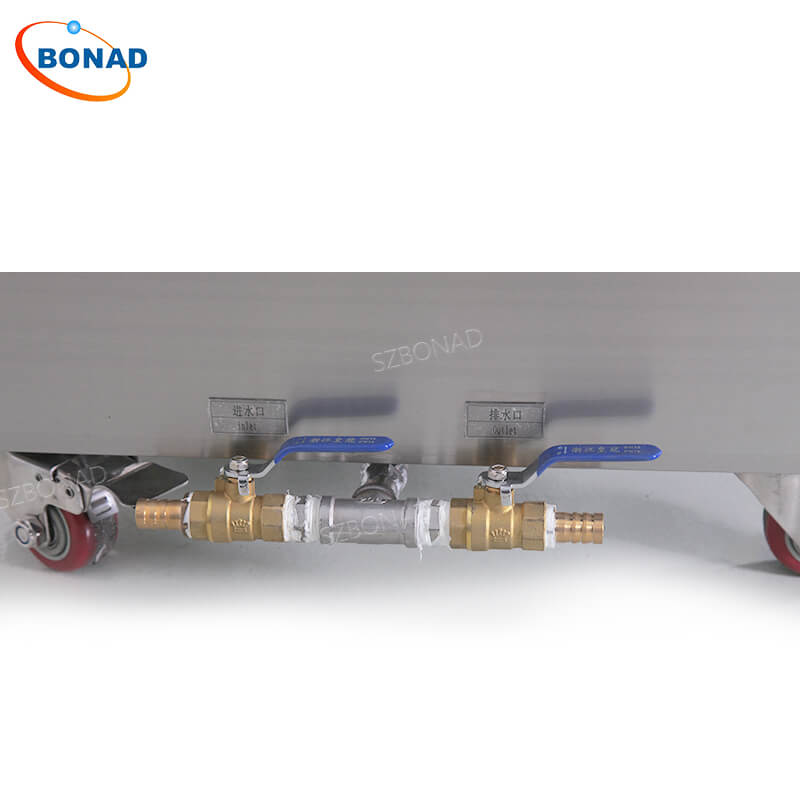

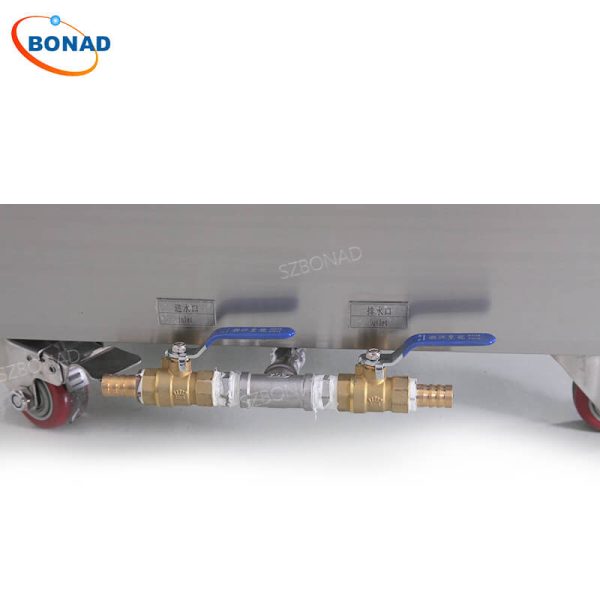

| Water adjustment | Manual adjustment | ||||
| Water level display | Stainless steel ruler（show several degree 1mm） | ||||
| Tank material | Stainless steel | ||||
| Standard | IEC60529:1989+A1:1999、GB4208、GB7000.（IPX7) | ||||
Why Choose BONAD IPX7 Water Immersion Test Equipment?
- Reliable Performance: Compliant with IEC 60529 / GB4208, ensuring accurate and stable IPX7 immersion testing. Durable SUS304 stainless steel structure for long-term use.
- Experienced Manufacturer: 10+ years in IEC testing equipment, serving global laboratories and manufacturers.
- Quality Production: In-house manufacturing with strict quality control for consistent performance and fast delivery.
- Professional Pre-Sales Support: Expert guidance on model selection and customized testing solutions.
- Responsive After-Sales Service: Technical support, training, and maintenance to ensure smooth operation.
IPX7 Water Immersion Test Equipment – FAQs & Buying Guide
What is IPX7 water immersion test according to IEC 60529?
IPX7 is a waterproof rating defined in IEC 60529. It requires the test sample to withstand immersion in water at a depth of up to 1 meter for 30 minutes without harmful water ingress.
What products can be tested with IPX7 immersion test equipment?
This equipment is suitable for testing:
- Electronic and electrical products
- Lamps and lighting fixtures
- Electrical enclosures
- Automotive and motorcycle components
It is widely used in product development, quality inspection, and compliance testing.
What is the maximum water depth and testing capability?
The standard water depth of this equipment is up to 1.2 meters, fully compliant with IEC 60529 IPX7 requirements. It supports reliable immersion testing for most industrial applications.
What are the advantages of stainless steel IPX7 test equipment?
Compared with glass tanks, SUS304 stainless steel offers:
- Strong corrosion resistance
- Long service life without leakage
- Higher strength for industrial use
It is ideal for continuous laboratory and factory testing.
How to choose and customize the right IPX7 test equipment?
Selection depends on:
- Product size and weight
- Required tank volume
- Testing frequency
- Automation needs (e.g., electric lifting)
Customization is available for tank size, fixtures, and structure to meet specific testing requirements.
Tell us your testing requirements and get a customized IPX7 solution.
