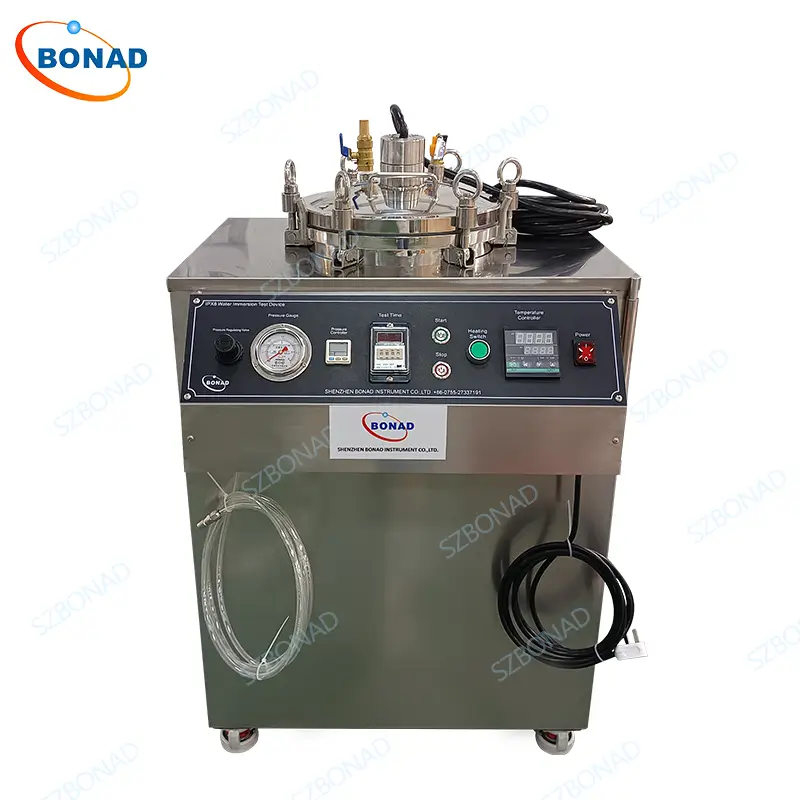

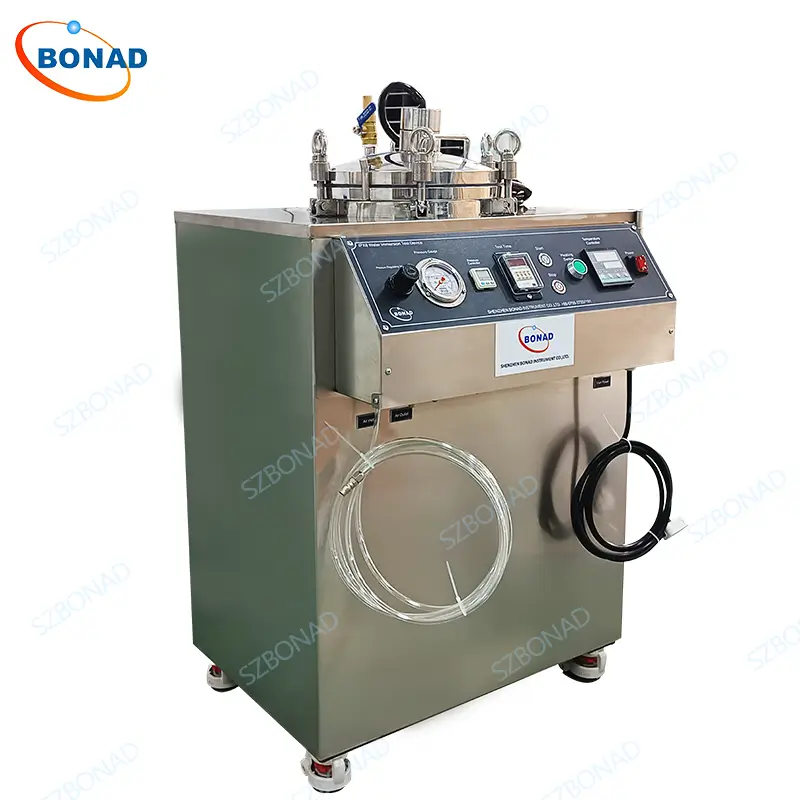

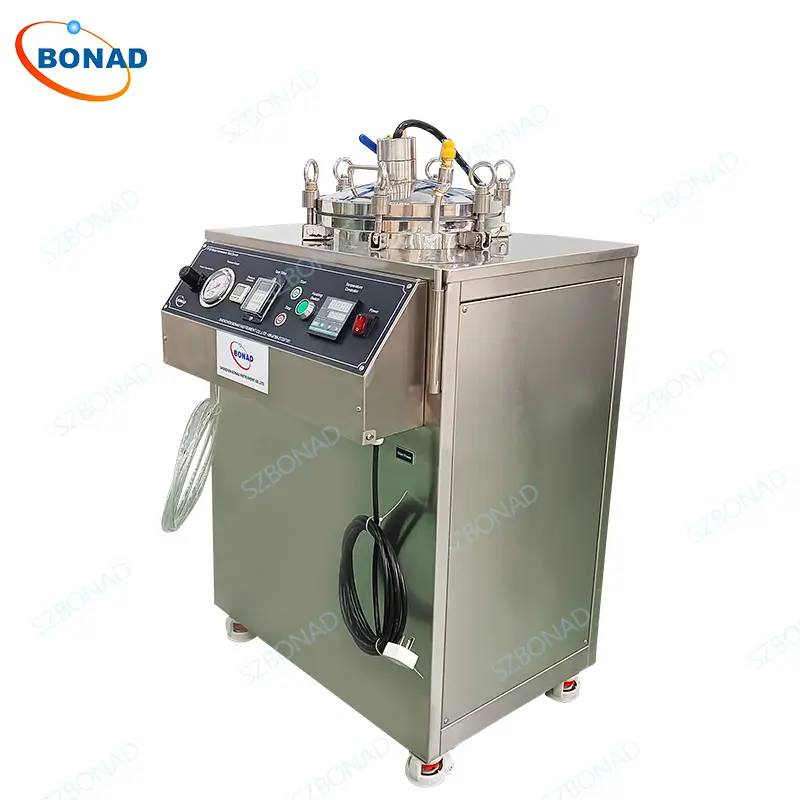

IEC 60529 IPX8 Heated Immersion Pressure Test Chamber – BONAD Waterproof Testing Chamber
Compliant Standards
This immersion pressure test device meets the following standards:
- IEC 60529 (IPX8)
- ISO 20653
- And other customer-specified waterproof test requirements
Applications
The BONAD IPX8 test chamber is widely used for:
- Consumer electronics (smartphones, watches, earphones)
- Automotive components (sensors, lights, connectors)
- Outdoor and industrial equipment
- Medical devices
- Military and aerospace products
Key Features
- High-Strength Stainless Steel Tank: Constructed from thickened 304 stainless steel for maximum durability and pressure resistance.
- Customizable Tank Size: Available in various dimensions to accommodate different sample sizes.
- Pneumatic Lid Assistance: For larger models, pneumatic lifting devices enable smooth and safe opening and closing.
- Advanced Sealing System: Silicone seal ring and 8-bolt fastening ensure excellent pressure retention.

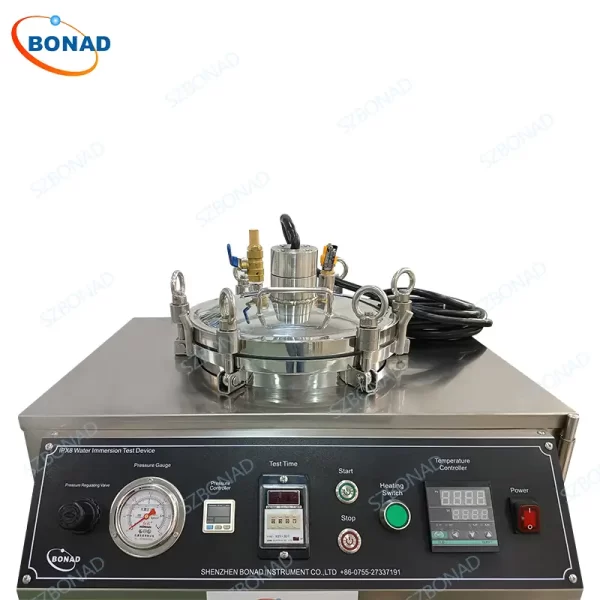

- Digital Pressure Control: Real-time pressure and time display with automatic pressure maintenance.
- Heating Function: Optional water heating capability for temperature-relevant testing.
- Safety Mechanisms: Includes manual exhaust valve and automatic pressure relief valve.
- Viewing Window: Allows visual monitoring of samples during testing (on selected models).
- User-Friendly Interface: Simple operation via control panel with clear parameter settings.
Technical Parameters:
| Item | Specification |
| External Dimensions | 460(L) × 575 (W) × 1000 (H) mm |
| Internal Dimensions | Ø300 × 500 mm (diameter × height) |
| Chamber Material | Stainless steel |
| Weight | 60 kg |
| Pressure Control | Automatic regulation |
| Pressure Accuracy | ±0.002 MPa |
| Sensor Resolution | 0.001 MPa |
| Test Depth Range | 1–30 meters (0.01–0.3 MPa) |
| Test Duration Setting | 0–999 Hours(Hours/Min./Sec. adjustable) |
| Water temperature range | Room temperature to 60℃ |
Operation Notes
- Always depressurize the tank using the exhaust valve before opening the lid.
- Use only specified voltage (AC 220V/2A).
- Ensure samples are fully immersed and securely placed.
- Avoid foreign objects inside the tank.
- Regularly maintain and calibrate the device.
Maintenance Guidelines
- Store in a dry and ventilated environment.
- Clean the tank regularly and change water every 3–7 days.
- Inspect and maintain locks and seals every three months.
- Annual calibration by a certified third party is recommended.
Customization and Heating Options
The BONAD IPX8 test chamber supports custom tank sizes and optional water heating capabilities to meet specific test requirements. Contact us for tailored solutions.
