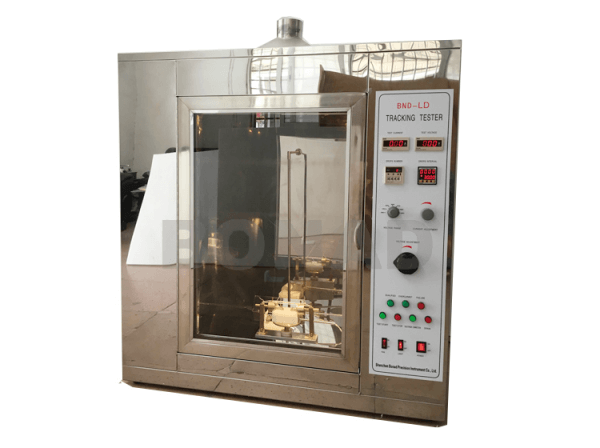

Tracking Resistance Tester for CTI and PTI Testing
Test Standards
The tester supports CTI and PTI testing based on IEC 60112.
For projects specifying UL 746A, ASTM D3638 or GB/T 4207, please provide the required method and edition. BONAD will review the test conditions and confirm the suitable configuration before order placement.
Applications
Typical test materials and specimens include:
- Engineering plastics and insulating material plaques.
- Moulded insulation parts and connector materials.
- Insulating parts used in electrical and electronic equipment.
CTI testing supports material development, selection and comparison. PTI testing is used for acceptance testing and quality control of materials and manufactured parts. Specimens must be prepared according to the selected test method.
Key Features
- Adjustable electrical settings: A voltage range selector, fine-adjustment control and current adjustment allow operators to set and check the test conditions.
- Controlled electrolyte delivery: The drop count and interval can be preset, while the dispensing arrangement allows the drip height and position to be adjusted.

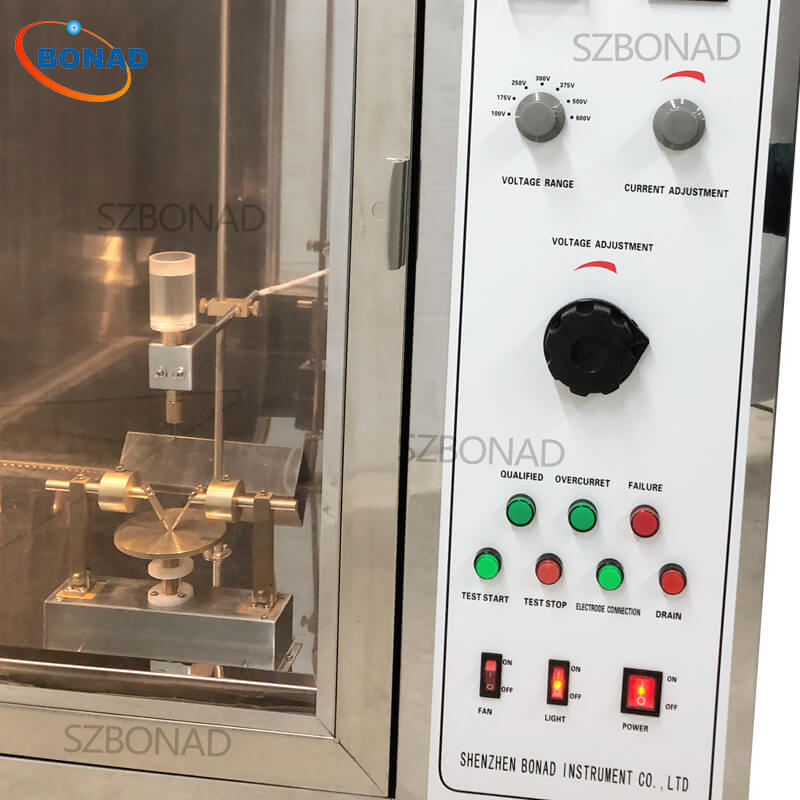

- Flexible specimen positioning: The adjustable platform and electrode assembly help align the specimen surface, electrode contact points and drip location.

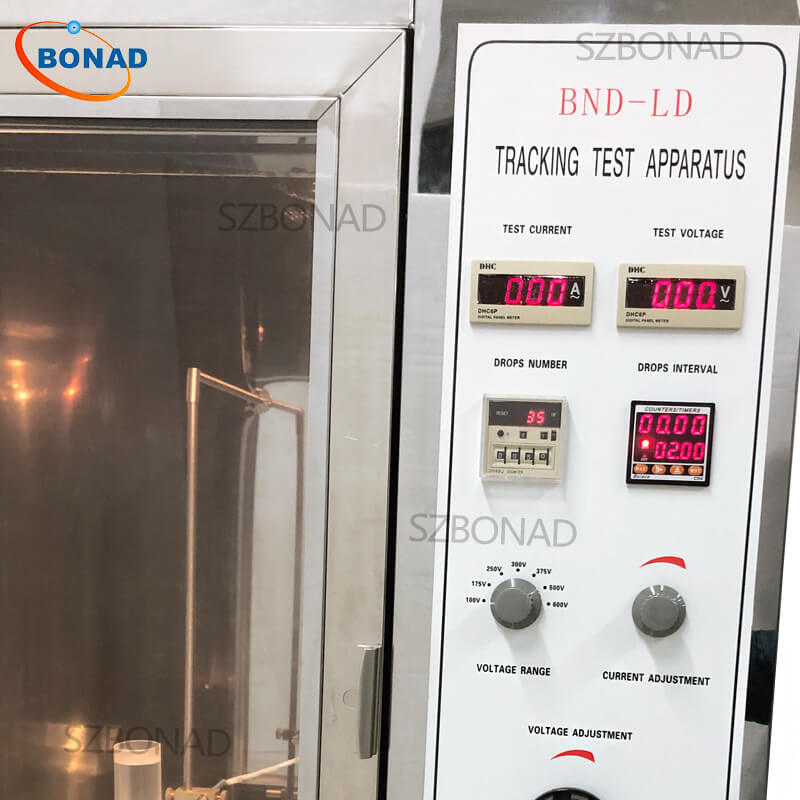

- Digital monitoring: Separate displays show voltage, current, drop count and interval for checking settings and monitoring the test.
- Automatic test-circuit cut-off: The circuit is interrupted when the current exceeds 0.5 A for 2 seconds. Panel indicators show QUALIFIED, OVERCURRENT and FAILURE status.

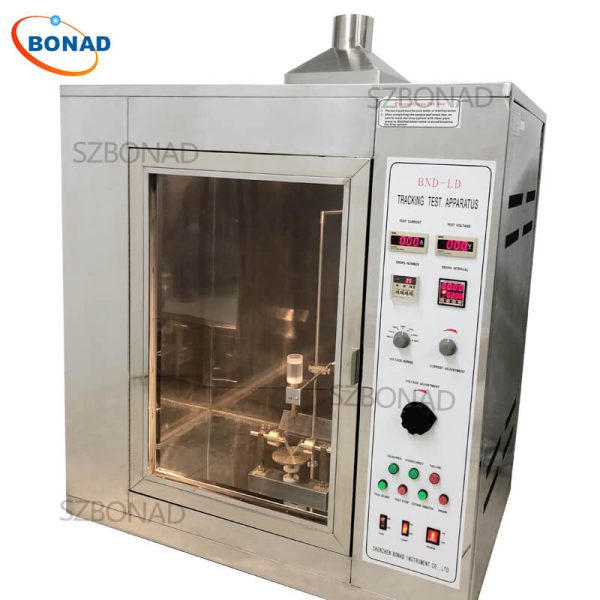

- Observation and ventilation: The enclosed chamber has a viewing window and an independently controlled ventilation function for use after testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BND-LD |
| Test applications | Comparative tracking index (CTI) and proof tracking index (PTI) |
| Test voltage | 100–600 V AC |
| Test voltage frequency | 48–60 Hz |
| Short-circuit current | 1.0 ± 0.1 A |
| Current-trip condition | Current greater than 0.5 A for 2 seconds |
| Electrode material | Platinum |
| Electrode force | 1.0 ± 0.05 N |
| Nominal electrode spacing | 4.0 mm |
| Drop height | 30–40 mm, adjustable |
| Drop size adjustment | 44–55 drops per 1 mL |
| Specified drop interval | 30 ± 5 seconds |
| Drop count setting | 0–9999 |
| Test sequence | Automatic control after manual setup |
| Ventilation | Independently controlled |
| Chamber volume | 0.5 m³ |
| Overall dimensions, W × D × H | 1000 × 650 × 1300 mm |
Test Principle
The tracking index tester applies AC voltage between two platinum electrodes while electrolyte drops fall onto the specimen. Leakage current and surface discharges can form conductive tracks. The circuit is interrupted when the current-trip condition is reached.
CTI is determined through tests at different voltages, while PTI verifies performance at a specified voltage. Both follow the applicable standard’s test and acceptance requirements.
Manufacturer and Technical Support
BONAD manufactures testing equipment and provides standard and customized solutions. Support includes equipment selection, a one-year warranty, remote technical assistance, operating guidance and spare parts support.
CE documentation and third-party calibration are available on request, depending on the configuration. Additional fees apply to certain certificates.
Frequently Asked Questions
What is the difference between CTI and PTI?
CTI compares the tracking resistance of insulating materials. PTI checks whether a material meets the required criteria at a specified voltage.
Does the tracking index tester require manual setup?
Yes. The specimen, electrodes and test settings are prepared manually. The tester then controls dripping and the configured test sequence.
Is the CTI value the material’s operating voltage?
No. CTI indicates tracking resistance under test conditions; it does not define the material’s safe operating voltage.
Can I request a customized configuration?
Yes. Contact us to discuss your testing needs and available configuration options.
Request a Quotation
Contact BONAD for a quotation or help choosing the right configuration. We provide technical advice before purchase and operating guidance and technical support after delivery.
