IPX1/2 Waterproof Laboratory Test Equipment

The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

GET A QUOTE
CONTACT US

Box-Type Drip Chamber Standard

In accordance with IEC 60529: 2001 “Degrees of protection provided by enclosures (IP Code)”

Product Introduction

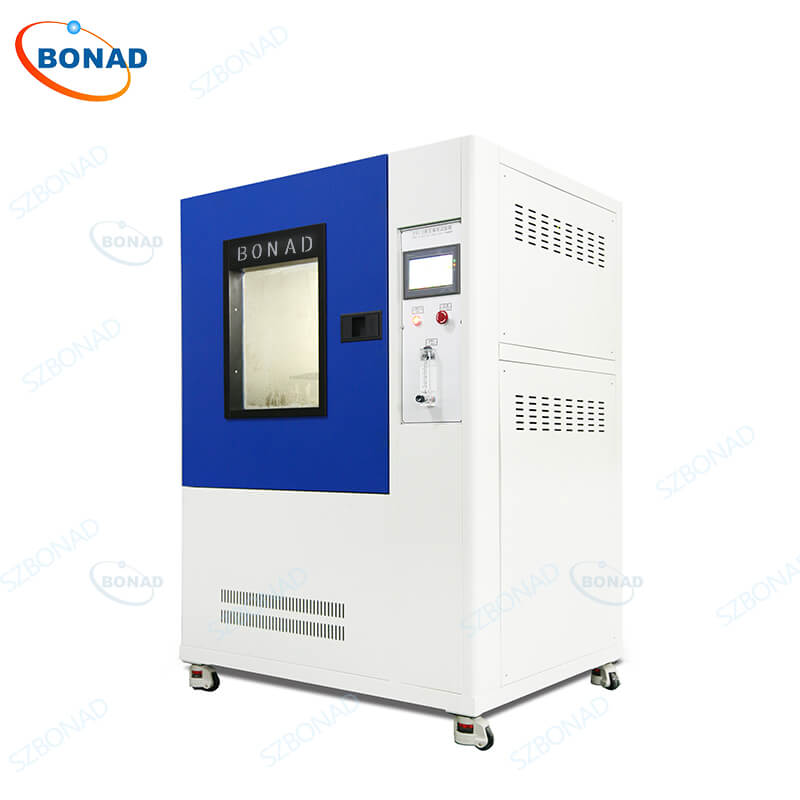

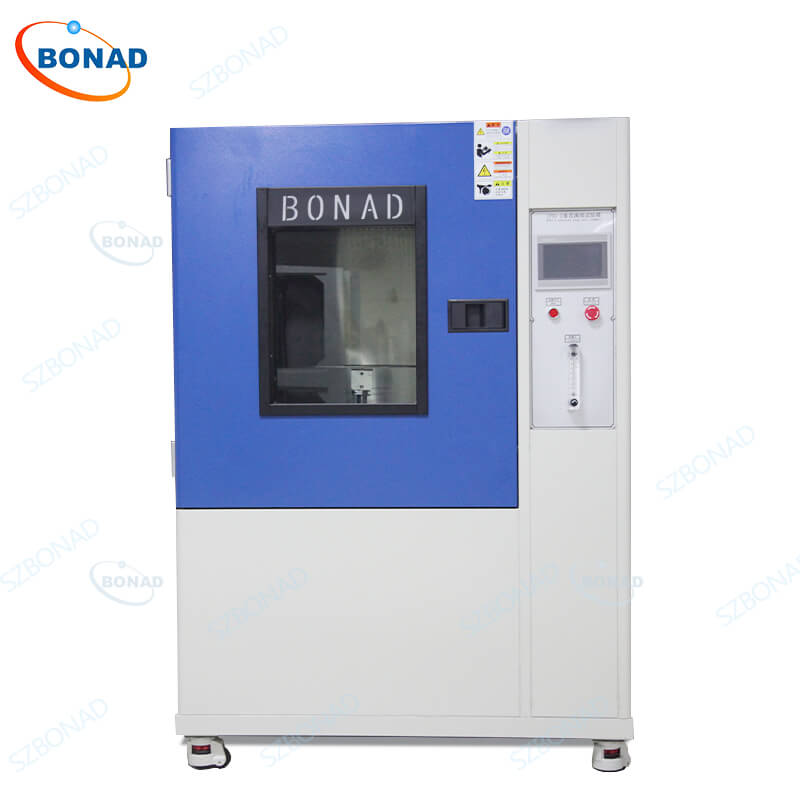

The IPX1 IPX2 Waterproof test chamber is a specialized testing equipment designed to evaluate the degree of protection provided by electronic products against water ingress. This test chamber can simulate rain and dripping water conditions to assess the level of waterproofing performance of different products in accordance with international standards such as IEC 60529.

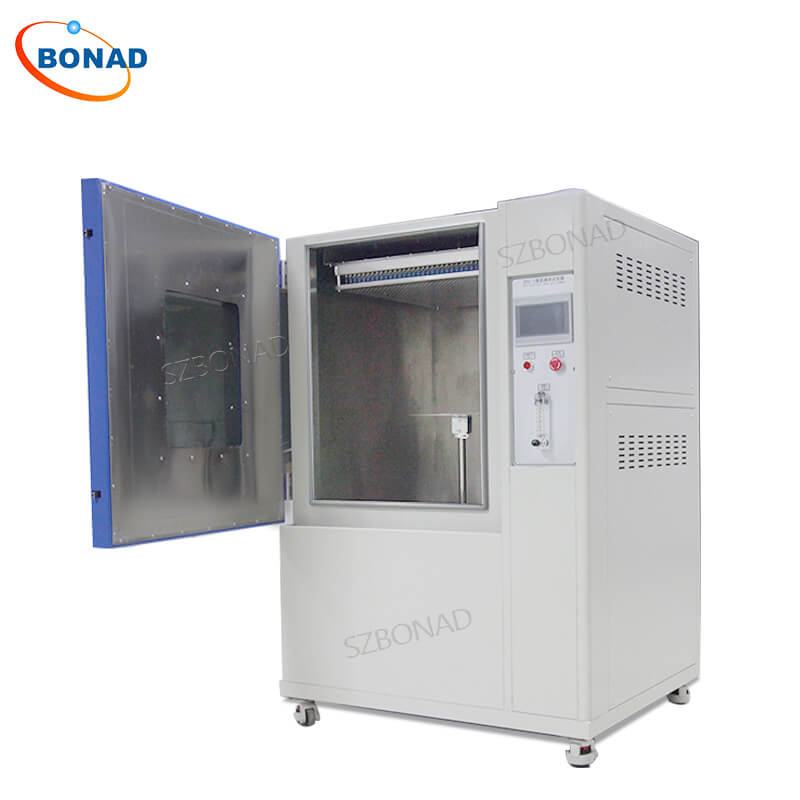

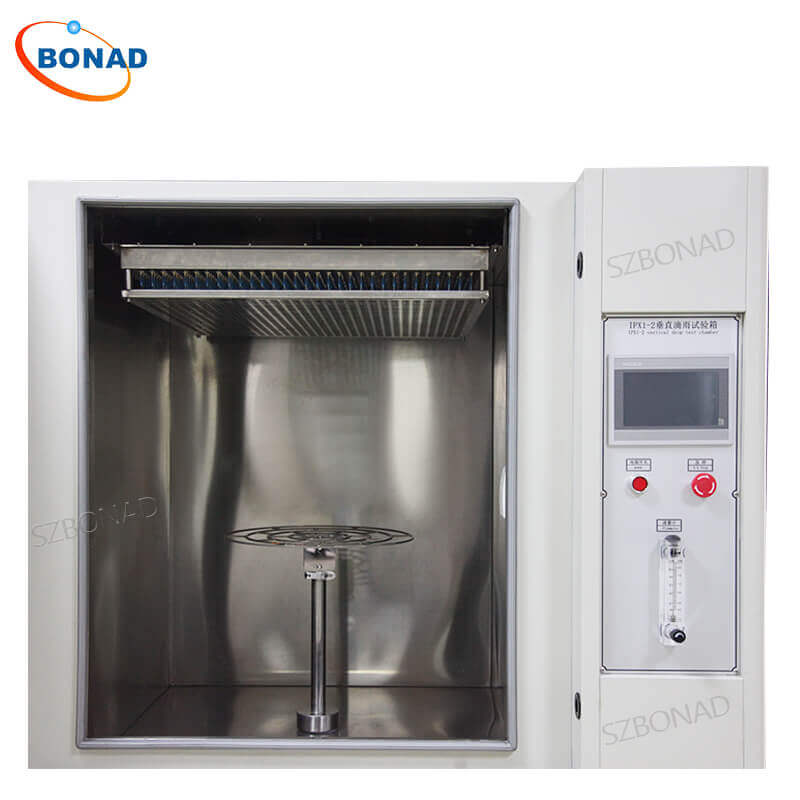

The IPX1 IPX2 Waterproof test chamber features a durable stainless steel construction and a transparent viewing window that allows operators to monitor the testing process. The chamber is equipped with a water supply system and a spray nozzle that can produce water droplets of various sizes and angles, which can be adjusted to simulate different environmental conditions.

During the IPX1 IPX2 Waterproof test, the product under test is placed in the test chamber and subjected to controlled water spray for a specified time. The amount of water that enters the product is analyzed to determine the level of protection provided by the product.

Appliance

IPX1 IPX2 waterproof chamber is an essential tool for manufacturers of electronic products and components who need to ensure their products can withstand water exposure and meet the necessary safety and quality standards.

Technology parameter

Technology parameter
No. Model BND-IPX12A-200 BND-IPX12A-600
1 Drip of rain area 200*200mm(can customize) 600*600mm(can customize)
2 Equipment outer dimensions L350*D350*H750mm L800*D800*H1000mm
3 Turntable diameter ¢200 mm ¢600 mm
4 Dripping aperture ¢0.4mm.
5 The distance between holes 20*20 mm
6 Rainfall 1-5mm/Min(±0.5mm/min)
7 Flow adjustment mode manual setting
8 Drop of rain tank lifting height fixed
9 Turntable bearing 20KG 50KG
10 Turntable Speed 1 r/min
11 Turntable Adjustable Incline 0° or 15°
12 Turntable lifting range 200-400mm
13 Testing time 0-999 min
14 Protective device Leakage, water shortage, short circuit
15 Power (V) 220V
16 Power (KW) 1
17 Standards compliant IEC60529:1989+A1:1999(IPX1 IPX2)



FAQ

1.What is IPX1 testing?

IPX1 testing is a part of the Ingress Protection (IP) Code, which classifies and rates the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. The “X” in IPX1 stands for the level of protection against solid objects, and in this case, it indicates that there is no specific rating for protection against solid particles. The “1” in IPX1 refers to the level of protection against water.

Specifically, IPX1 testing evaluates the degree of protection against vertically falling water droplets when the enclosure is in its normal position. During the test, the equipment or enclosure is placed on a turntable, and it rotates at a rate of 1 r/min. Water is sprayed at it from above at a rate of 10 L/min with a test duration of 10 minutes.  The purpose of this test is to determine if product can withstand vertically falling water droplets without allowing water to enter and affect its performance.

The IPX1 rating indicates that the equipment or enclosure provides protection against vertically falling water droplets but does not guarantee protection against other forms of water ingress such as spraying or splashing from different angles.

2. What is IPX2 testing?

IPX2 testing evaluates the degree of protection against dripping water when the enclosure is tilted at an angle of 15 degrees from its normal position. During the test, water is dripped onto the equipment or enclosure  for a duration of 10 minutes. The purpose of this test is to determine if the equipment can withstand dripping water without allowing it to enter and affect its performance.

3. Are the IPX1 IPX2 waterproof chamber is  for both IPX1 and IPX2 testing?

Yes. Our product is for both IPX1 AND IPX2 testing. You could adjust the flow rate and tilt angle based on your aims.
