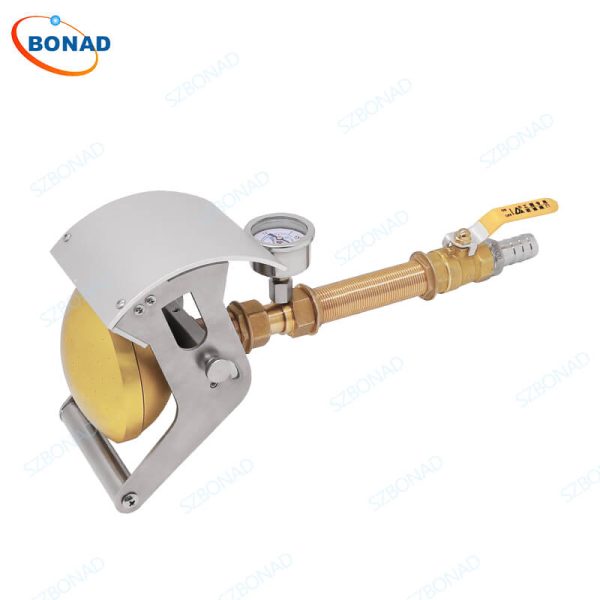

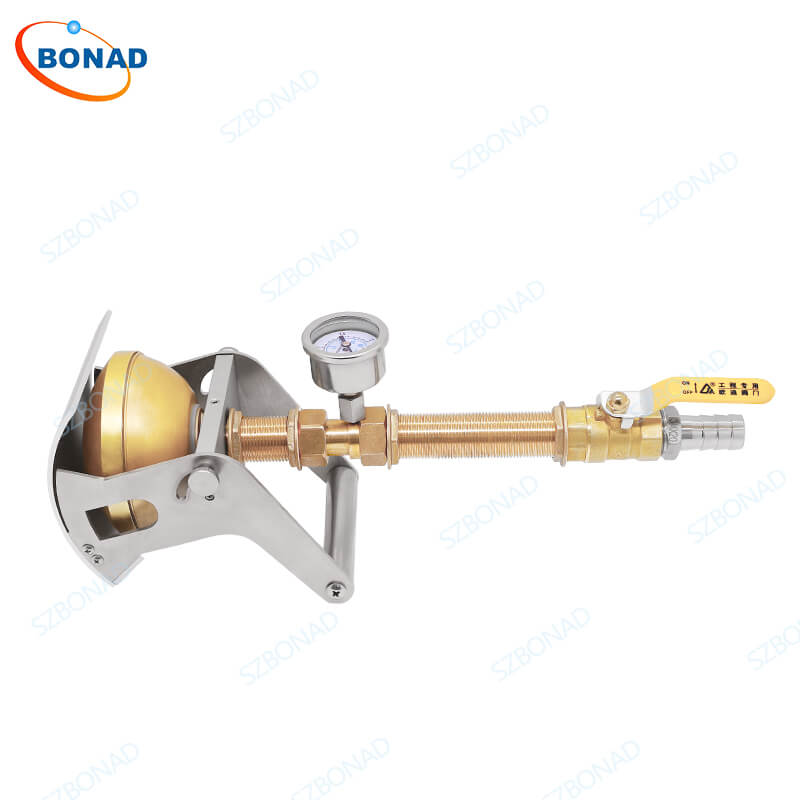

Upgraded Brass Handheld IPX3/IPX4 Waterproof Test Nozzle – BONAD Test Equipment
Standards:
- International Standards: Fully compliant with IEC 60529 for IP rating testing.
- Calibration Certification: Optional ISO 17025 / ILAC calibration certificate (additional cost).
- Key Parameters:

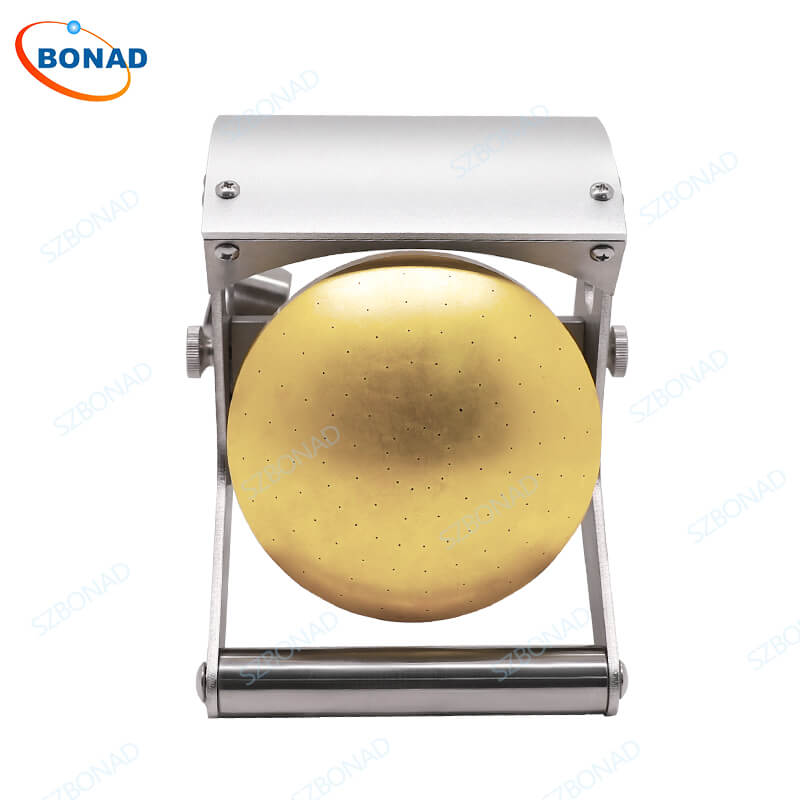

- Nozzle Angle: 78° mirror with 121 precision-drilled holes (0.5mm diameter).
- Flow Control: Adjustable water pressure and flow rate via electronic flow meter for precise measurement.

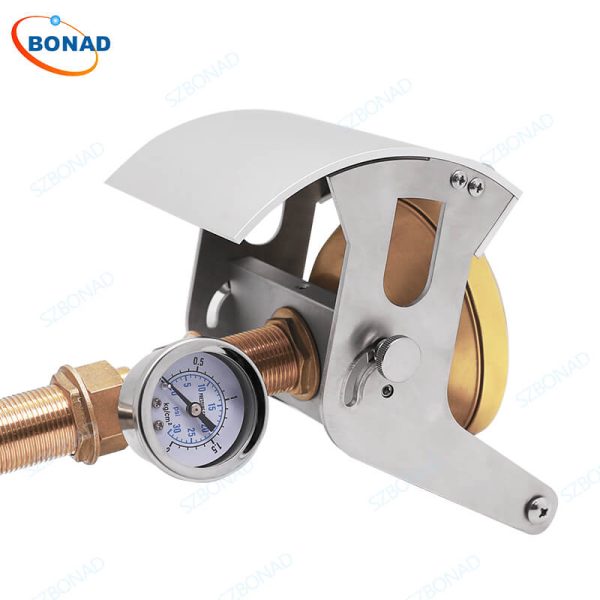

- Shield Configuration: Includes movable shields for seamless switching between IPX3 and IPX4 modes.
Applications:
- Electronics: Smartphones, wearables, tablets, and outdoor devices.
- Automotive: Sensors, headlights, connectors, and dashboard modules.
- Industrial Equipment: Electrical cabinets, machinery enclosures, LED lighting.
- Appliances & Lighting: Waterproof appliances, garden lights, outdoor fixtures.
Features:
- Military-Grade Brass Construction
- Solid brass ensures corrosion resistance and extended lifespan under high-frequency testing.

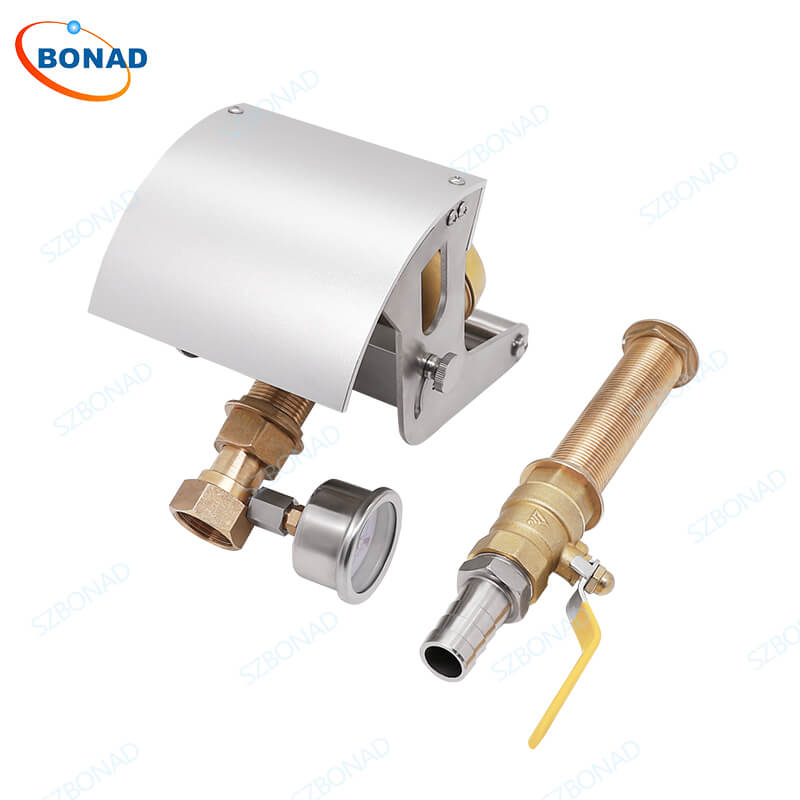

- Modular Detachable Handle
- Easily removable for customization, maintenance, and reduced downtime.
- Leak-Proof Silicone Seal
- Integrated silicone ring guarantees a watertight seal, eliminating leaks.

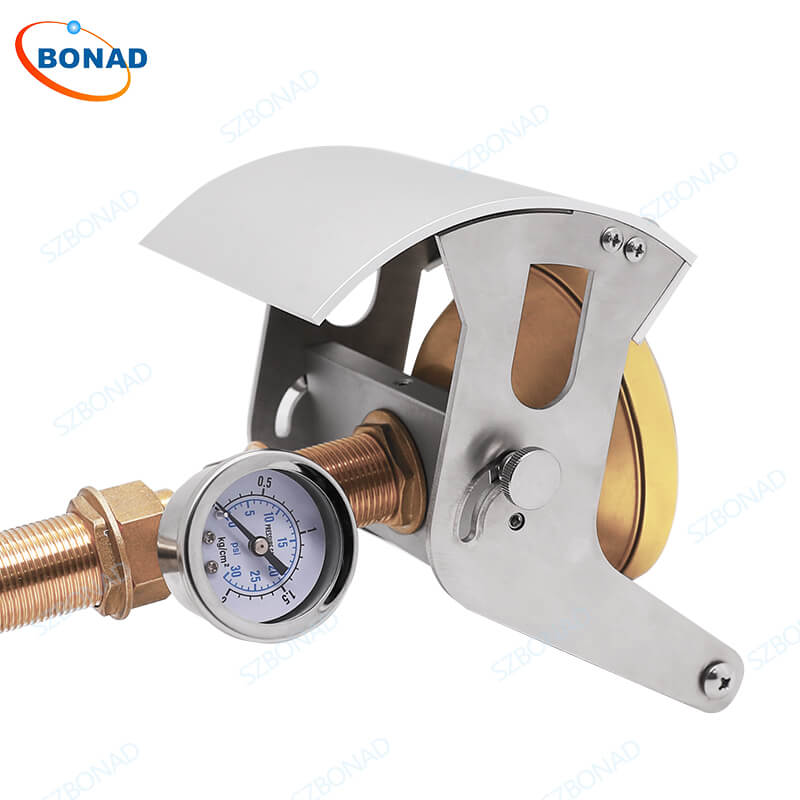

- 90° Rotatable Pressure Gauge
- Enhances visibility and accessibility for real-time monitoring.

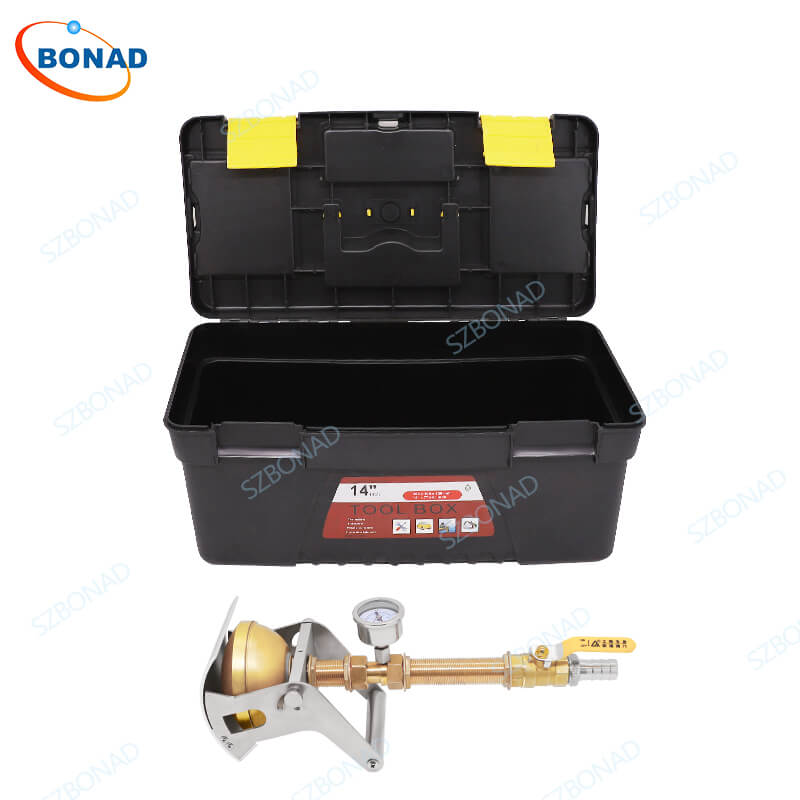

- Portable Carrying Case
- Compact, shock-resistant case for safe storage and transport.
- Smart Flow Calibration
- Electronic flow meter ensures precise water volume measurement (IPX3/IPX4: 10L/min ±5%) with digital clarity for compliance reports.
Technical parameters:
| Number of holes | Total 121 |
| Diameter of nozzle holes | 0.5 mm |
| Material | Brass |
| Pressure gauge | 0 ~ 0.25Mpa |
| Water discharge | 10L/min, ±5%, can adjustment |
| Reference | IEC60529 IPX3 IPX4, IEC60598-1, IEC 60335-1, IEC60745-1 |
| Nozzle diameter | 102 mm |
| Nozzle hole surface radian | 78° |
FAQ – Upgraded Brass Handheld IPX3/IPX4 Waterproof Test Nozzle
What are IPX3 and IPX4 waterproof tests, and when are they required?
IPX3/IPX4 are IEC 60529 waterproof levels, verifying protection against spraying and splashing water. They are commonly used for electrical enclosures, lighting, automotive parts, and outdoor electronics.
What are the main advantages of this handheld nozzle?
Solid brass construction ensures durability and corrosion resistance. It provides manual flexibility and stable spray, ideal for R&D, on-site, or irregular-shaped product testing.
What is the difference between a handheld IPX3/IPX4 nozzle and an oscillating tube test device?
The handheld nozzle is manually operated for flexible, low-volume, or non-repetitive testing. An oscillating tube (swing pipe) IPX3/IPX4 waterproof test device provides automated, repeatable spray movement for laboratories, batch testing, and standardized quality control.
Is customization available?
Yes, connection interfaces, nozzle structure, and pressure range can be customized while maintaining IEC 60529 compliance.
What warranty and support are provided?
The nozzle comes with a 12-month warranty, and technical support, spare parts, and calibration assistance are available for users.
When should a complete IPX3/IPX4 test device be chosen instead of a handheld nozzle?
For automated, repeatable, or batch testing, an oscillating tube IPX3/IPX4 waterproof test device is recommended. The handheld nozzle is better suited for flexible testing and early-stage validation.
