BONAD IPX1-IPX6 Waterproof Test Chamber: Drip, Oscillating Spray and Water Jet Testing
Applicable Test Standard
The chamber is designed for IPX1-IPX6 water ingress testing in accordance with IEC 60529:1989+A1:1999+A2:2013, Degrees of protection provided by enclosures (IP Code).
IEC 60529 IPX1-IPX6 Test Methods
| Test Level | Test Method | Main Test Parameters |
|---|---|---|
| IPX1 | Vertical drip water | 600 × 600 mm drip area; Ø0.4 mm holes; 1 mm/min rainfall |
| IPX2 | Inclined drip water | 3 mm/min rainfall; specimen tested at four 15° inclined positions |
| IPX3 | Oscillating tube spray | R400 tube; 60° on either side of vertical; 1.1 L/min |
| IPX4 | Oscillating tube splash | R400 tube; 180° on either side of vertical; 1.8 L/min |
| IPX5 | Water jet | Ø6.3 mm nozzle; 12.5 ± 0.625 L/min; 2.5–3.0 m distance |
| IPX6 | Powerful water jet | Ø12.5 mm nozzle; 100 ± 5 L/min; 2.5–3.0 m distance |
Applications
The IPX1-IPX6 waterproof test chamber can be used for testing:
- Indoor and outdoor lighting products
- Electrical enclosures and control cabinets
- Household appliances
- Electronic and electrical components
- Communication products
- Industrial control equipment
- General vehicle electrical components tested according to IEC 60529
- Laboratory and certification test specimens
It is suitable for product development, type testing, engineering verification, factory inspection and routine quality control.
Features

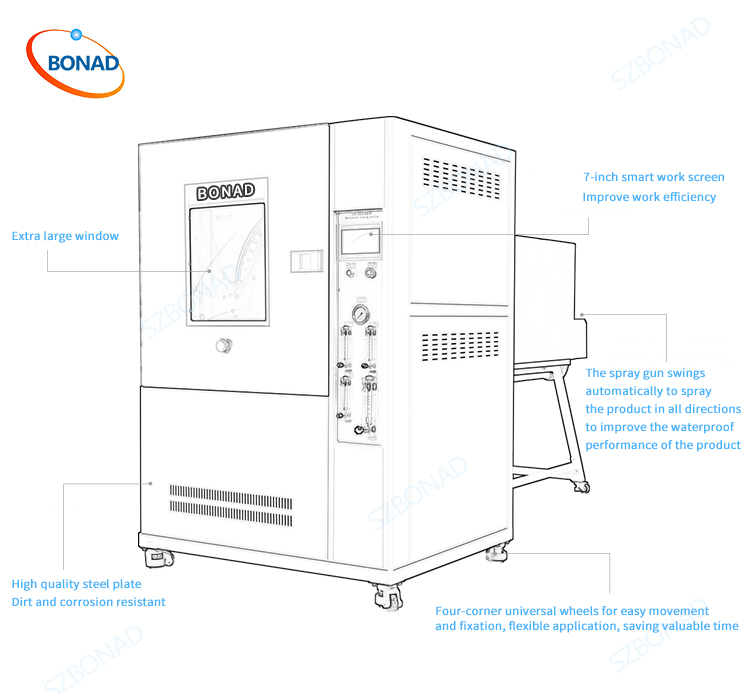

- Integrated IPX1-IPX6 testing: Combines drip water, oscillating spray and water jet tests in one enclosed chamber.
- Touchscreen and PLC control: A 7-inch touchscreen is used to set test time, tube movement, nozzle scanning and turntable operation.
- Automatic nozzle scanning: The IPX5/IPX6 nozzle moves vertically, with adjustable scanning height, range and speed.
- Stable nozzle positioning: A stepper motor and encoder feedback maintain consistent movement during repeated test cycles.
- Water circulation and filtration: The built-in water tank and circulation system collect, filter and reuse test water.
- Anti-clogging design: Filtration helps reduce blockage of the drip holes, oscillating tube openings and water jet nozzles.
- Door safety interlock: IPX5/IPX6 spraying is disabled when the chamber door is open.
- Powered specimen testing: An internal waterproof power socket supports energized testing when required.
- Adjustable SUS304 turntable: Supports forward, reverse and alternating rotation, with 0° and 15° positioning.
- LED chamber lighting: Provides a clear view of the specimen and test process.
- Safety protection: Includes leakage, short-circuit, overload, water-shortage and overflow protection.
Technical Specifications
General System
| Item | Specification |
| Model | BND-IPX1-6BS-R400 |
| Test Levels | IPX1, IPX2, IPX3, IPX4, IPX5 and IPX6 |
| Chamber Type | Enclosed integrated waterproof test chamber |
| Control System | 7-inch touchscreen with Panasonic PLC |
| Internal Test Space | 900 × 900 × 1050 mm (W × D × H) |

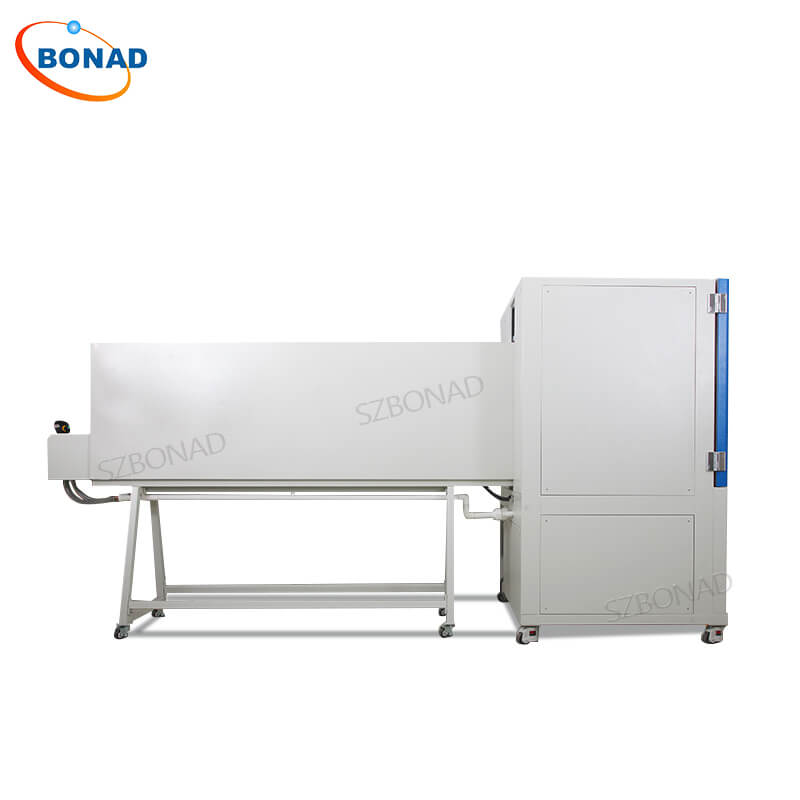

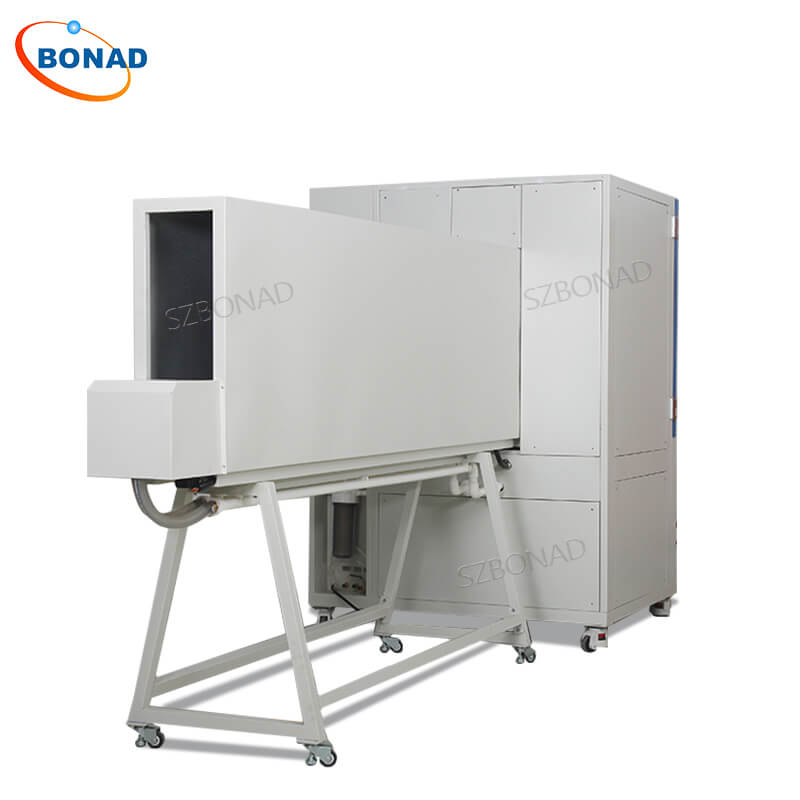

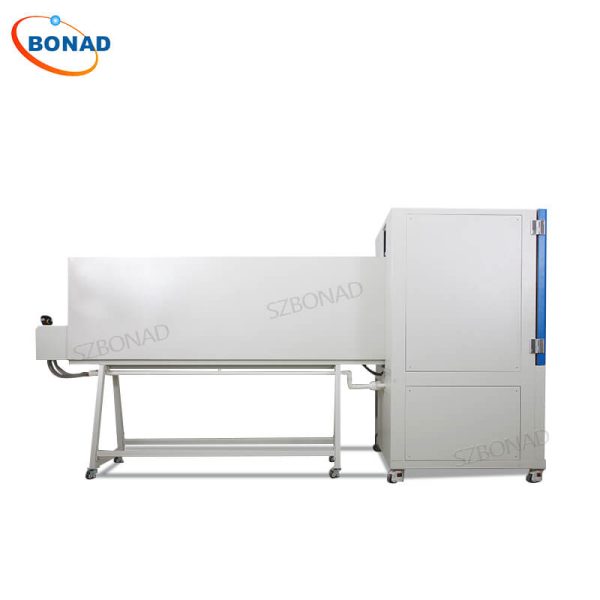

| Overall Dimensions | Approx. 1350 × 3400 × 1750 mm (L × D × H) |
| Water System | Built-in water tank, circulation circuit and filtration system |
| Chamber Lighting | LED lighting |
| Door Protection | Front door safety interlock |
| Specimen Power Supply | Internal waterproof power socket |
| Test Control | Programmable test time, movement and turntable operation |
IPX1/IPX2 Parameters
| Item | Specification |
| Drip Area | 600 × 600 mm |
| Drip Hole Diameter | Ø0.4 mm |
| Hole Spacing | 20 × 20 mm |
| IPX1 Rainfall Rate | 1 mm/min |
| IPX2 Rainfall Rate | 3 mm/min |
| Drip Board Position | Fixed |
| Specimen Position | 0° for IPX1; four 15° inclined positions for IPX2 |

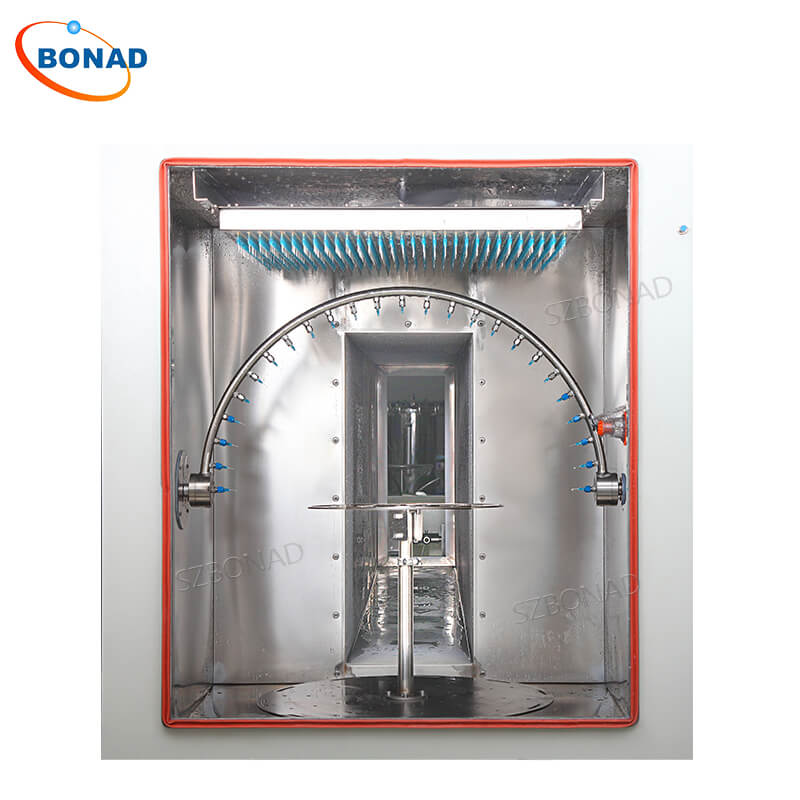

IPX3/IPX4 Parameters
| Item | Specification |
| Oscillating Tube Radius | R400 standard; R200 optional |
| Spray Hole Diameter | Ø0.4 mm |
| Spray Hole Spacing | 50 mm |
| Tube Inner Diameter | 15 mm |
| IPX3 Water Flow | 1.1 L/min |
| IPX4 Water Flow | 1.8 L/min |
| IPX3 Oscillation Range | 60° on either side of the vertical, 120° total |
| IPX4 Oscillation Range | 180° on either side of the vertical, 360° total |
| IPX3 Oscillation Cycle Time | Approx. 4 s per complete back-and-forth cycle |
| IPX4 Oscillation Cycle Time | Approx. 12 s per complete back-and-forth cycle |

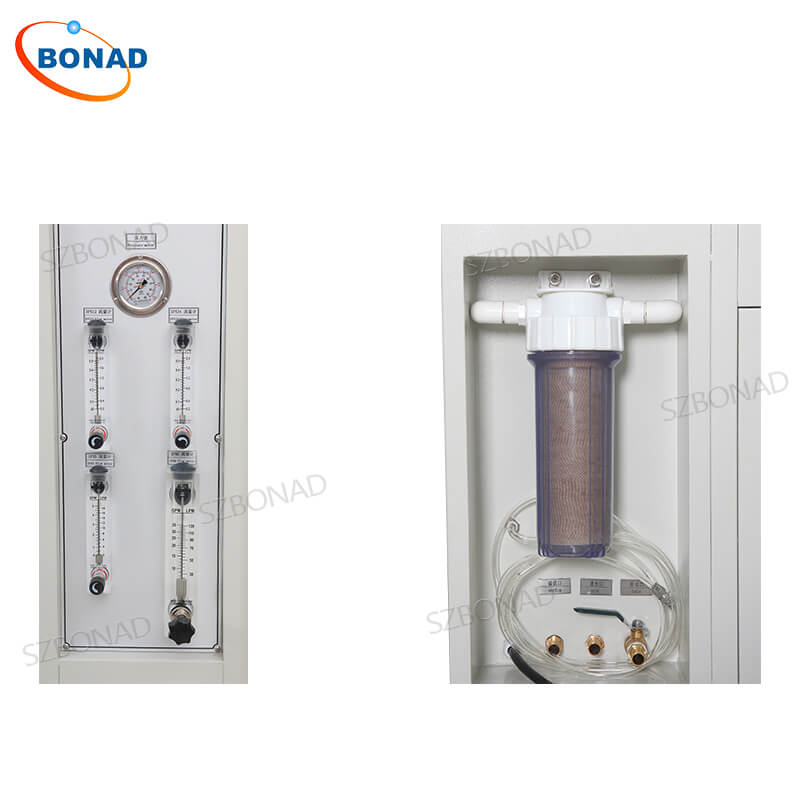

| Flow Adjustment | Manual regulation with panel-mounted flow meter |
IPX5/IPX6 Parameters
| Item | Specification |
| IPX5 Nozzle Diameter | Ø6.3 mm |
| IPX6 Nozzle Diameter | Ø12.5 mm |
| IPX5 Water Flow | 12.5 ± 0.625 L/min |
| IPX6 Water Flow | 100 ± 5 L/min |
| Spray Distance | 2.5–3.0 m |
| Pressure Control | Adjusted as required to maintain the specified water flow |
| Nozzle Movement | Automatic vertical scanning |
| Movement Adjustment | Scanning height, range and speed adjustable |
| Drive System | Stepper motor with encoder feedback |
| Flow Adjustment | Manual regulation with panel-mounted flow meter |
Specimen Turntable
| Item | Specification |
| Material | SUS304 stainless steel |
| Standard Diameter | Ø400 mm |
| Optional Diameter | Ø200 mm or customized |
| Rotation Speed | 1–5 r/min, adjustable |
| Rotation Direction | Forward, reverse or alternating rotation |
| Tilt Position | 0° or 15° |
| Height Adjustment | 400–750 mm |
| Load Capacity | ≥50 kg; higher load capacities can be customized |
Electrical and Safety Parameters
| Item | Specification |
| Standard Power Supply | AC 380 V, 50 Hz |
| Customized Power Supply | Voltage and frequency configured according to the destination country or region |
| Rated Power | Approx. 3.0 kW |
| Specimen Power Supply | AC 220 V standard; customizable |
| Electrical Protection | Air circuit breaker, leakage, short-circuit and overload protection |
| Water System Protection | Water-shortage and overflow protection |
| Spray Safety | Door-open spray interlock |
Specifications may vary according to the chamber size, turntable capacity, power supply and customized configuration.
Why Choose BONAD for IPX1-IPX6 Waterproof Test Chambers?
BONAD manufactures testing equipment and provides customized solutions for product safety, environmental reliability, battery safety, electrical appliance testing and mechanical performance evaluation.
The BND-IPX1-6BS-R400 can be configured in chamber size, oscillating tube radius, turntable, specimen fixture, water system, control functions and power supply. Technical selection, installation guidance and after-sales support are available.
A CE certificate and third-party calibration or measurement certificates can be provided according to project requirements.
Frequently Asked Questions
1. Can one chamber perform all IPX1-IPX6 tests?
Yes. The chamber integrates IPX1/IPX2 drip testing, IPX3/IPX4 oscillating tube testing and IPX5/IPX6 water jet testing. Each test level is selected and operated separately according to its required procedure.
2. Is the system fully automatic?
The PLC controls test timing, oscillating tube movement, nozzle scanning and turntable operation. Water flow is monitored through panel-mounted flow meters and adjusted manually according to the selected test level.
3. Can the chamber accommodate larger specimens?
Yes. The standard model provides a 900 × 900 × 1050 mm test space with an R400 oscillating tube. For larger specimens, BONAD can customize the chamber size, oscillating tube radius, turntable and specimen fixture.
4. Can the specimen be powered during testing?
Yes. A waterproof power socket is installed inside the chamber for energized testing. The specimen power supply can be configured according to the project requirements.
5. Does the chamber require a dedicated waterproof test room?
The enclosed structure and water circulation system contain and reuse most of the test water, reducing facility preparation compared with open-type equipment. A suitable water supply, drainage connection, electrical supply and operating clearance are still required.
6. How does the equipment reduce blocked drip holes and nozzles?
The water circuit includes filtration to reduce particles entering the drip board, oscillating tube and water jet nozzles. Filters and spray openings should be inspected and cleaned as part of routine maintenance.
7. Can the power supply be configured for my country?
Yes. Equipment voltage and frequency can be configured according to the electrical requirements of the destination country or region.
8. Are CE and calibration certificates available?
Yes. A CE certificate can be provided. Third-party calibration or measurement certificates are also available according to project requirements.
9. What after-sales support is provided?
BONAD provides technical selection, operating guidance, installation support, maintenance assistance and spare-parts support. The warranty and service scope are confirmed with the equipment quotation.
