IEC 60529 IPX8 Continuous Immersion Test Equipment

Brand: SZBONAD

Product Number: BND-CITE

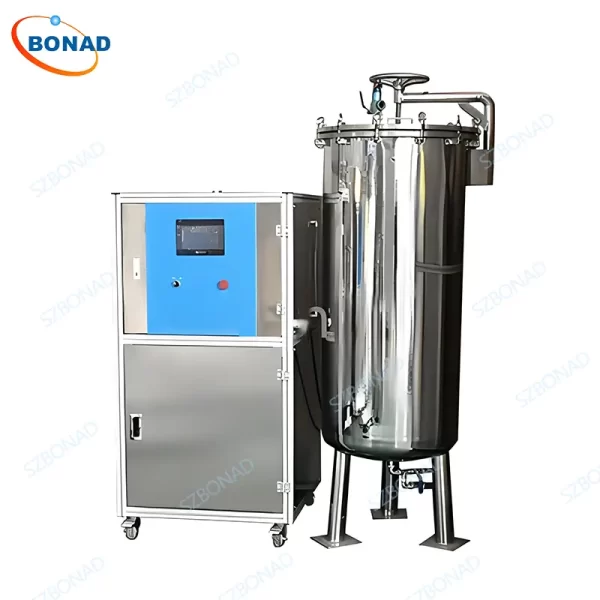

The IEC 60529 IPX8 Continuous Immersion Test Equipment is designed to evaluate the protective performance of enclosures for electronic and electrical products, automotive components, household appliances, seals, and lighting fixtures under continuous water immersion at the IPX8 level as per IEC 60529:2013. This high-pressure water tank simulates various depths of water pressure, ranging from several meters to tens of meters, to ensure the waterproof integrity of tested samples.

The equipment features an efficient pressurization system that continuously increases the pressure inside the sealed tank until it reaches the preset value. Once the specified pressure is achieved, the system maintains this pressure for the designated duration. The sample passes the test if no harmful amount of water ingress occurs during the testing period.

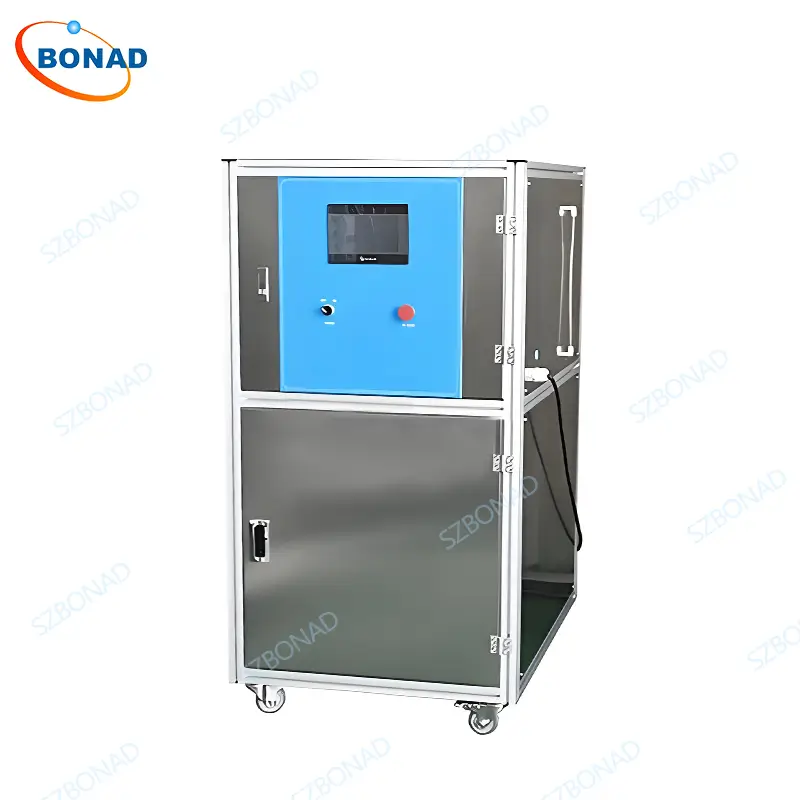

Constructed with stainless steel, the equipment is controlled by a PLC system, allowing users to set test parameters directly on the touchscreen interface. Water supply and pressure adjustments are fully automated, ensuring precise and consistent results.

GET A QUOTE

IEC 60529 IPX8 Continuous Immersion Test Equipment – BONAD Waterproof Test Equipment

Standards:

  • Compliant with IEC 60529:2013 standards for IPX8 waterproof testing.
  • Suitable for industries such as electronics, automotive, household appliances, sealing materials, and lighting fixtures.

Applications:

This IPX8 Continuous Immersion Test Equipment finds application in various sectors:

  1. Consumer Electronics: Testing the waterproof capabilities of smartphones, tablets, smartwatches, and other portable devices.
  2. Automotive Industry: Assessing the water resistance of car electronics like windshield wiper motors and sensors.
  3. Household Appliances: Ensuring the sealing performance of washing machines, refrigerators, microwaves, and more.
  4. Lighting Industry: Validating the reliability of outdoor lighting fixtures such as streetlights and landscape lights.
  5. Other Industries: Ideal for any product requiring high-level waterproof protection.

Features:

  1. Efficient Pressurization System: Rapidly achieves and sustains the desired pressure levels.
  2. Precise Pressure Control: Equipped with internal pressure sensors and control systems for real-time monitoring and adjustment.
  3. Safety Design: Features manual exhaust valves and automatic pressure relief valves (safety valves) to ensure operational safety.
  4. Visual Monitoring: Some models include a viewing window for observing the test specimen during the process.
  5. Automation Capabilities: PLC controls water supply and pressure regulation, minimizing human intervention and enhancing efficiency.
  6. Durability: Constructed with stainless steel for superior corrosion resistance and longevity.
  7. User-Friendly Interface: Touchscreen allows direct parameter settings, making operation simple and intuitive.

Technical parameters:

Item Specifications
Equipment power supply AC380V 50HZ 35KW.
Sample placement Use electric hoist gantry hanger to lift, carrying 50KG.
Opening the cover The screw rod is lifted and moved laterally, and it can be fully opened, which is convenient for placing samples.
Double pressure protection (1) mechanical protection: spring-type safety relief valve; (2) program control: the pressure exceeds the upper limit value of the water pump to stop working and immediately release the pressure.
Safety valve protects ultimate pressure 0.55 MPa.
Test time 0-99H99M99S can be set.
The principle of pressurization method Water pressure pressurization, PLC program control, the current value of pressure is collected from time to time through PLC, the frequency converter controls the pump speed and frequency to pressurize, and the pressure is constant.
Water temperature control 5～30℃ can be controlled, the heating adopts stainless steel heating tube, and the cooling adopts 10HP chiller.
Allowable samples with max. dimensions 500 X 500 X 500 mm

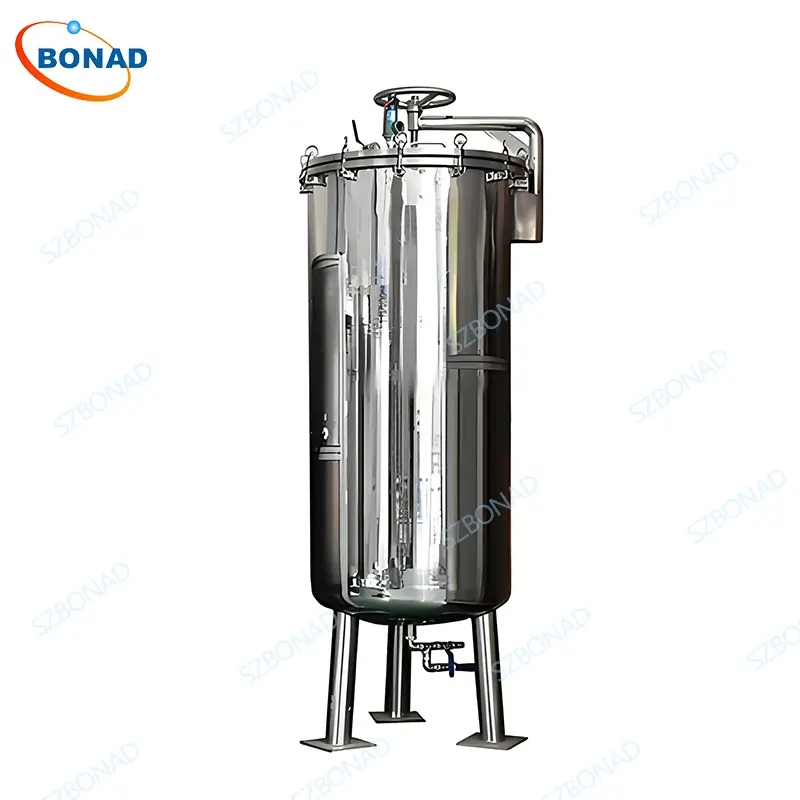

Pressurized container SUS304 stainless steel tank, the diameter of the tank body is 800mm, and the height of the tank body is 1000mm.

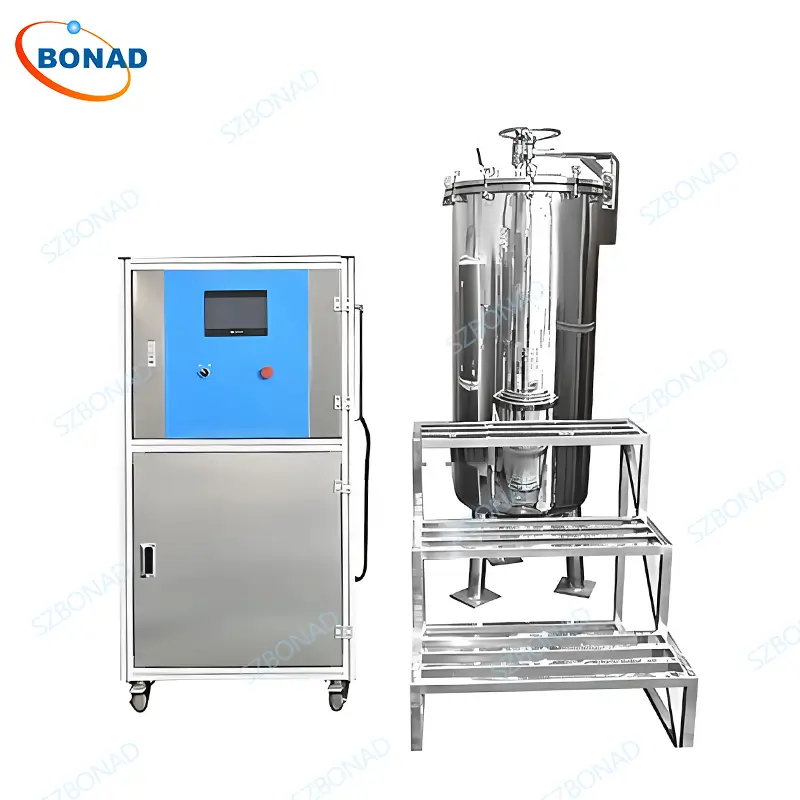

Stair Stainless steel stair
Water supply Tap water / pure water
