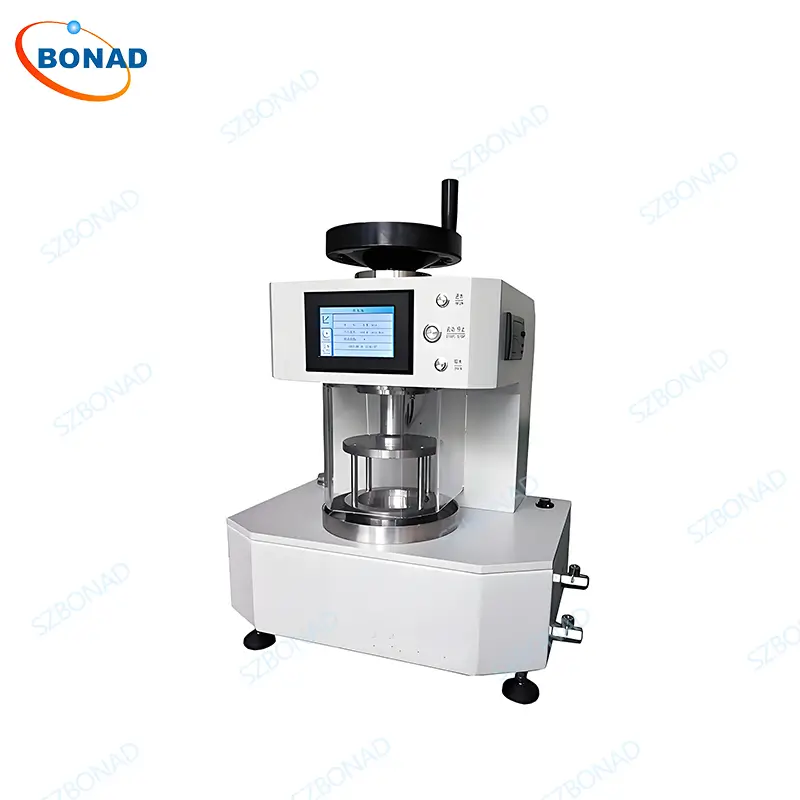

AATCC 127 Hydrostatic Head Tester
AATCC 127 Hydrostatic Head Tester

AATCC 127 Hydrostatic Head Tester

Brand: SZBONAD

Product Number: BND-AHHT

The BONAD AATCC 127 Hydrostatic Head Tester is an advanced automated system for determining fabric resistance to water penetration under controlled hydrostatic pressure. Engineered for precision, this electric testing machine eliminates manual pressurization with its industrial-grade microprocessor and in-built pressurization system. It measures water pressure resistance per global standards by applying steadily increasing pressure to fabric samples until third-point penetration occurs, delivering laboratory-accurate results for all textile types – including water-repellent treated materials.

GET A QUOTE

AATCC 127 Hydrostatic Head Tester – BONAD Fabric Water Resistance Test Machine

Standards:

Hydrostatic head tester meets major international protocols:

  • AATCC 127: Water Resistance (Hydrostatic Pressure Test)
  • ISO 811: Textile Resistance to Water Penetration
  • ISO 1420: Water Penetration for Coated Fabrics
  • DIN 53886: Textile Water Penetration Resistance
  • JIS L1092: Textile Water Resistance Testing
  • EN 20811: Textile Resistance to Water Penetration
  • EN 13726-3: Waterproofness Testing for Medical Dressings

Applications:

  • Quality control for waterproof outdoor apparel (rainwear, tents)
  • Medical textile validation (surgical gowns, wound dressings)
  • Testing industrial coated fabrics (tarpaulins, truck covers)
  • Geotextile and filtration material certification
  • R&D for water-repellent finishes in technical textiles

Features & Benefits

  1. Fully Automated Operation
    • Electric pressurization with programmable pressure ramp rates
    • Automatic pressure maintenance at target levels
  2. Precision Engineering
    • ±0.1% accuracy pressure sensor for repeatable results
    • Stainless steel test reservoir (100 cm² contact area)
  3. Intelligent Control System
    • PLC with 7″ touchscreen for parameter setup
    • Real-time pressure curve display
  4. Enhanced Usability
    • One-touch water filling/drainage system
    • Built-in thermal printer for instant reports
    • Multi-unit pressure display (kPa, mbar, cmH₂O)
  5. Safety & Compliance
    • Acrylic protective hood with emergency stop
    • Water shortage alarm & auto-shutdown
    • LED inspection lighting for droplet detection
  6. Data Management
    • Stores 5 test groups with min/max/average values
    • Customizable test protocols

Technical parameters:

Model BND-AHHT-100 BND-AHHT-200
Measuring Scale 0 ~ 100 kpa 0 ~ 200 kpa
Test Accuracy ± 0.2% ± 0.5%
Sample Grip Area 100 cm2
Test Units Pa, KPa, mmH2O, cmH2O, mbar
Hydrostatic Pressure Rising Rate 60 mbar / min (AATCC 127)

Adjustable steplessly
Water tank Capacity 2500 ml
Dimensions 580 × 400 × 700 mm
Weight 75 kg
Power supply  1 phase AC 220V 50/60 Hz or specified

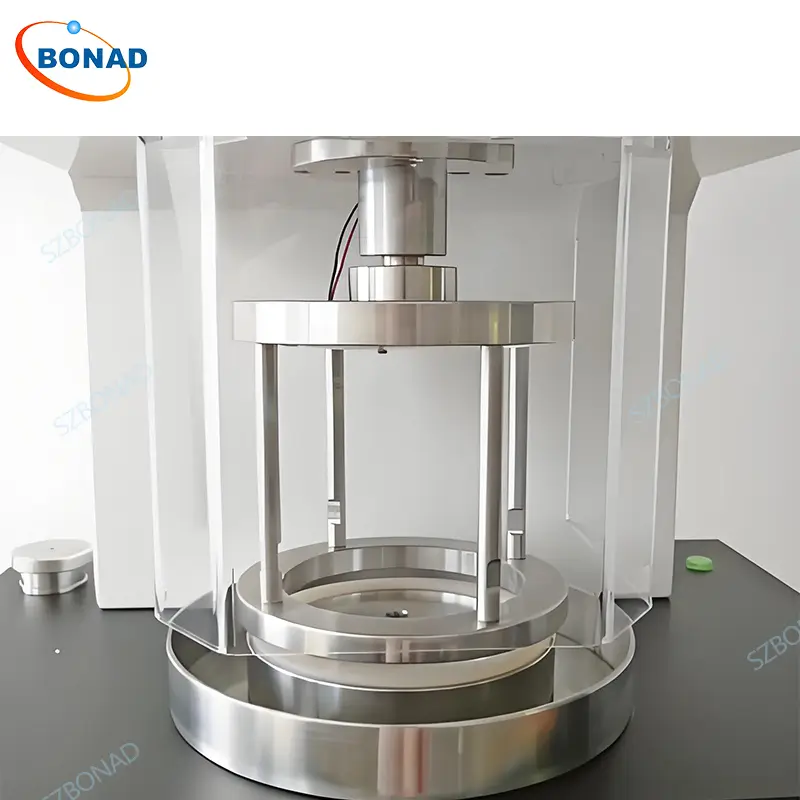

AATCC 127 Hydrostatic Head Tester - 2
