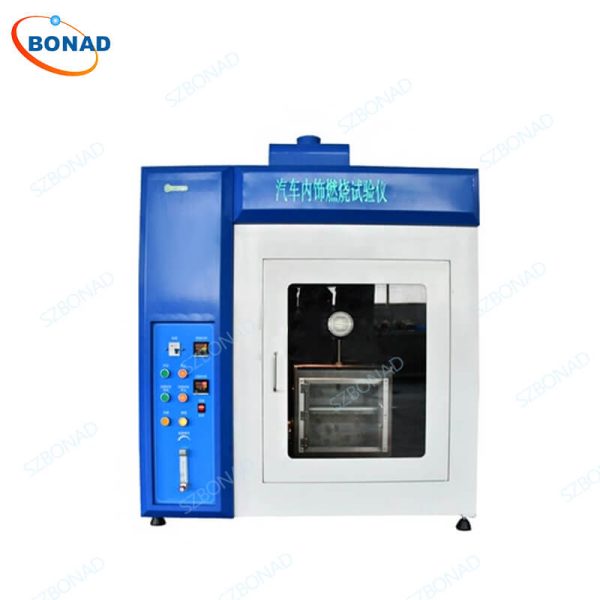

FMVSS 302 Automotive Materials and Interior Flammability Tester – BONAD Flammability Test Chamber
Standards:
- FMVSS 302
- ASTM D5132
- ISO 3795
- DIN 75200
Applications:
This tester is specifically designed to evaluate the horizontal burning characteristics of interior materials used in a variety of automotive vehicles such as sedans, multi-purpose passenger vehicles, trucks, and buses.
Features:

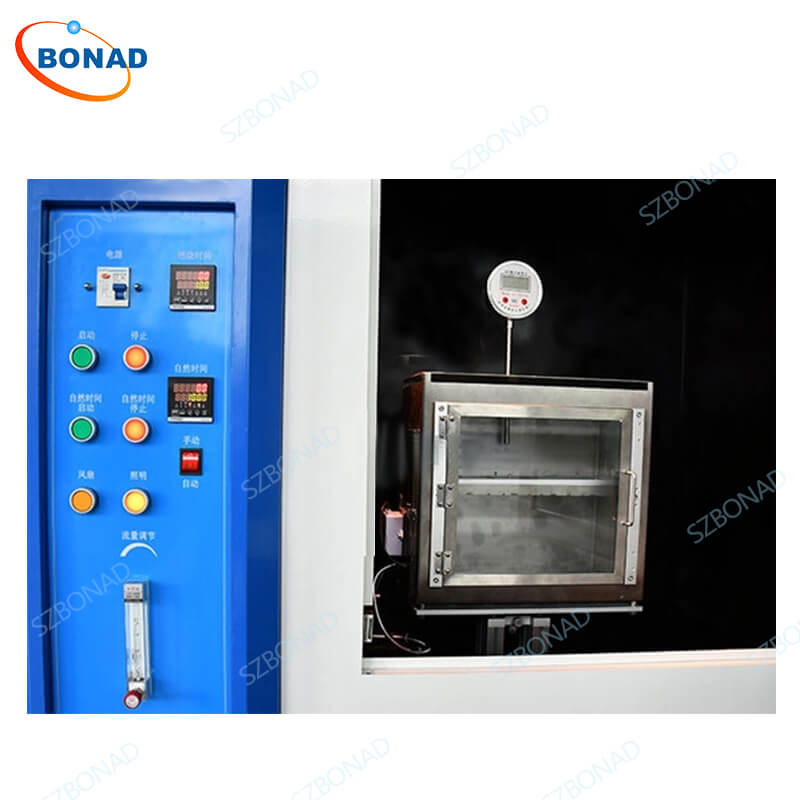

- Durable Construction: Made from stainless steel with a wall thickness of 2 mm to resist deformation during combustion tests.
- Clear Observation: Equipped with a tempered glass window for clear visibility during testing.
- Optimal Ventilation: Includes ten ventilation holes at the bottom (19 mm wide) and side slots (13 mm wide) to ensure proper airflow.
- Precision Control: Features a Bunsen burner with precision valve allowing flame height adjustment up to 38 mm.
- Standard Compliant Tubes: Comes with interchangeable combustion tubes meeting ISO 3795 (φ9.5 mm) and FMVSS 302 (φ10 mm) standards.
- Efficient Collection: A stainless steel tray collects molten drips at the chamber’s base.
- Automated Operations: Boasts functions like automatic ignition, gas supply control, timing automation, and test conclusion automation.
- Customization Options: Can be tailored to meet specific test requirements.
Technical parameters:
| Item | Specification |
|---|---|
| Combustion Chamber | Length: 385 mm, Depth: 204 mm, Height: 360 mm |
| Timer Accuracy | ≤ 0.5 seconds |
| Test Gases | Natural Gas, City Gas, Liquefied Gas |
| Flame Application Timer | 0~999.9 seconds/minutes/hours, presettable, Accuracy: ≤ 0.5 seconds |
| Combustion Timer | 0~999.9 seconds/minutes/hours, Accuracy: ≤ 0.5 seconds |
| Flame Height | 38 mm, observed using a 38 mm flame height gauge, adjustable via flow meter |
| Burner Inner Diameter | Inner diameter: 9.5 mm, made of brass, with automatic ignition feature |
Why Choose BONAD as Your FMVSS 302 Tester Manufacturer
- Direct Manufacturer & Factory Supply
BONAD designs and manufactures FMVSS 302 flammability testers in-house, ensuring stable quality control, technical consistency, and reliable long-term supply. - Compliance with Multiple Automotive Standards
One system supports FMVSS 302, ISO 3795, ASTM D5132, and DIN 75200, reducing duplicate investment for global testing requirements. - Engineered for Repeatability and Safety
The test chamber provides controlled flame application, accurate timing, and enclosed operation to support reliable, operator-safe testing. - Suitable for OEMs, Suppliers, and Test Labs
Widely applied in automotive R&D, supplier qualification, and compliance verification environments. - Technical Service and After-Sales Support
BONAD offers documentation support, operation guidance, and maintenance assistance to help customers maintain compliant testing capability over time.
This makes BONAD a practical choice for organizations evaluating automotive interior materials under FMVSS 302 requirements.
