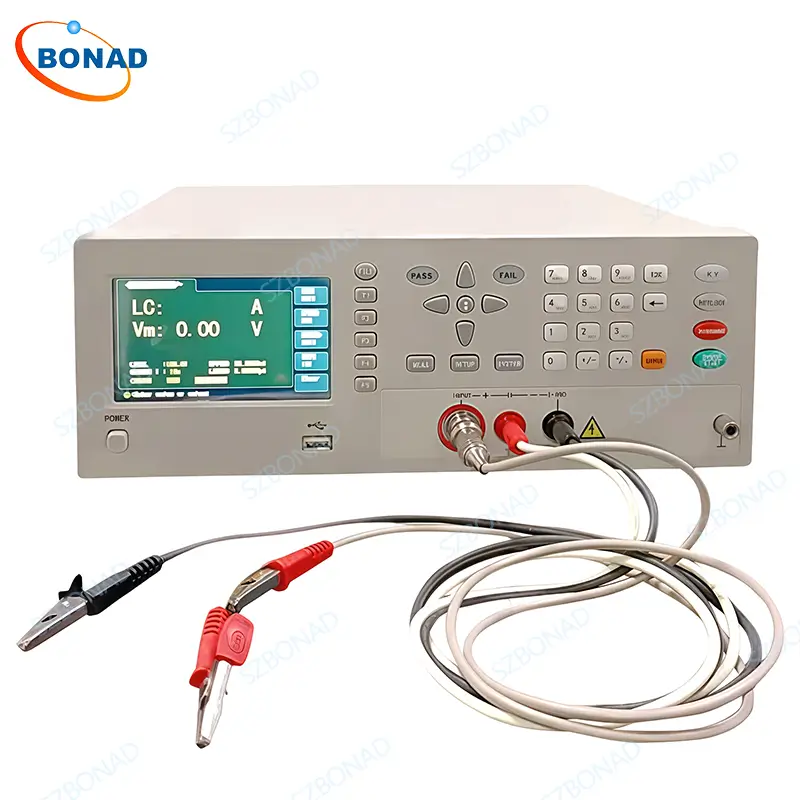

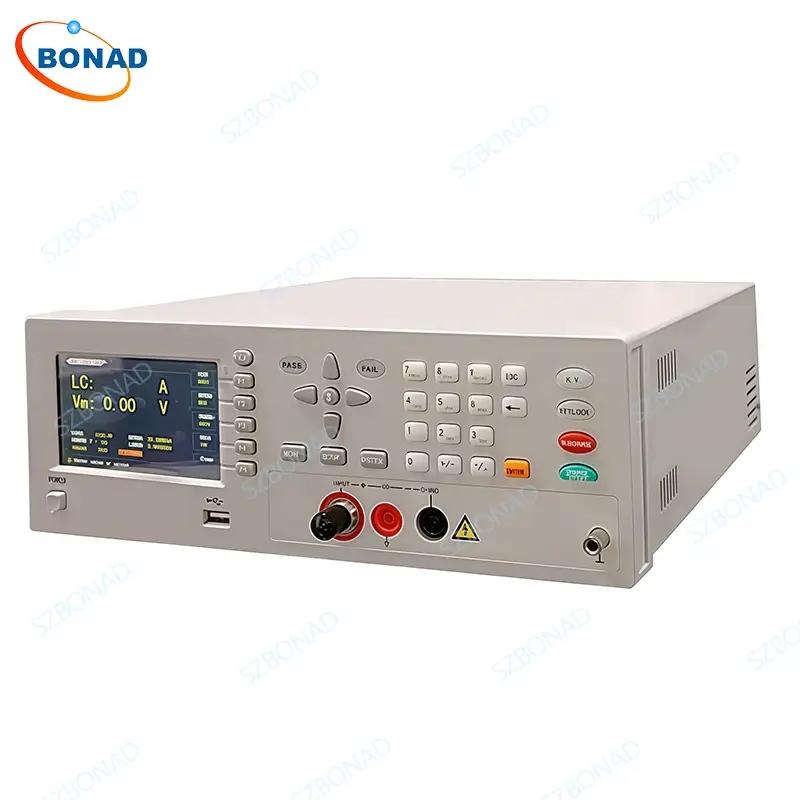

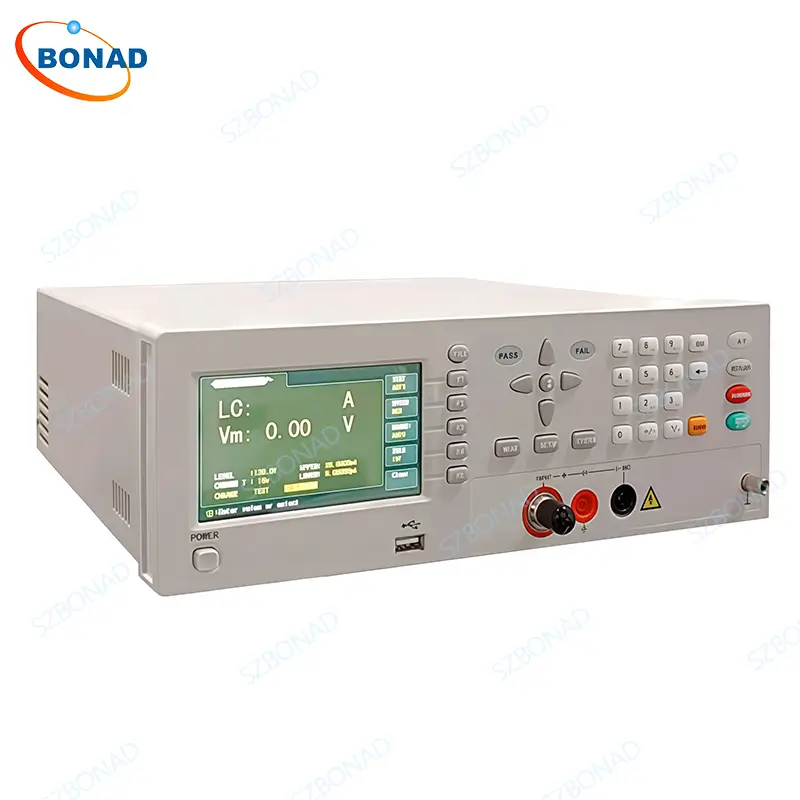

IEC 61010-1 Capacitor Leakage Current Tester – BONAD Electrical Appliance Testing Equipment
Standard
IEC 61010-1
Certified for electrical safety in measurement, control, and laboratory use, ensuring operator protection and operational integrity during high-voltage testing.
Applications
- Leakage current testing for:
- Electrolytic capacitors, high-dielectric ceramic capacitors.
- Semiconductor components (diodes, insulation resistance).
- Aluminum foil withstand voltage tests (EIAJ RC-2364A compliant).
- Insulation resistance (IR) validation of:
- Anti-static materials.
- Non-ultrahigh insulation components.
Features
- High Stability & Reliability
Industrial-grade components ensure consistent performance under extended use. - 4-Digit Color LCD Display
Clear visualization of measurements (range: 0.001μA–20.00mA). - Automation-Ready
SCPI commands enable seamless integration with automated systems. - Smart Data Management
Save 50 test profiles internally + 500 via USB; customizable data recording/processing. - Versatile Interfaces
RS232, USB, Handler, Device, and optional GPIB for flexible connectivity. - Comparator Function
Auto-sort components into Pass/Fail categories for quality control. - Upgradable via USB
Easy firmware updates and feature customization.
Technical Specifications
| Model | BND-CLCT-500 | BND-CLCT-800 |
| Test voltage | 1-500V，Continuously adjustable | 1-800V，Continuously adjustable |
| Test function | LC（Leakage current）、IR（Insulation resistance） | |
| Voltage accuracy | 0.5% Set value ±0.2V | |
| Measuring range | LC（0.001uA-20.00mA）、IR（0.01kΩ-99.99G） | |
| Measurement accuracy | 1%±0.05uA | |
| Charging time | 0-999s，Continuously adjustable | |
| Test time | Fast：About 30 times/second，Medium：About 15 times/second，Slow：About 6 times per second | |
| Test range | Automatic, 20mA, 2mA, 200µA, 20µA, 2µA total of 5 ranges | |
| HANDLER port | Pass, fail, exceed the upper limit, exceed the lower limit, buzzer alarm, indicator display | |
| Rich interface | RS232、USB DEVICE、GPIB（Optional），HANDLER port | |
| Volume and weight | Volume（W*H*D）：310mm*110mm*315mm；Weight：8kg | |
