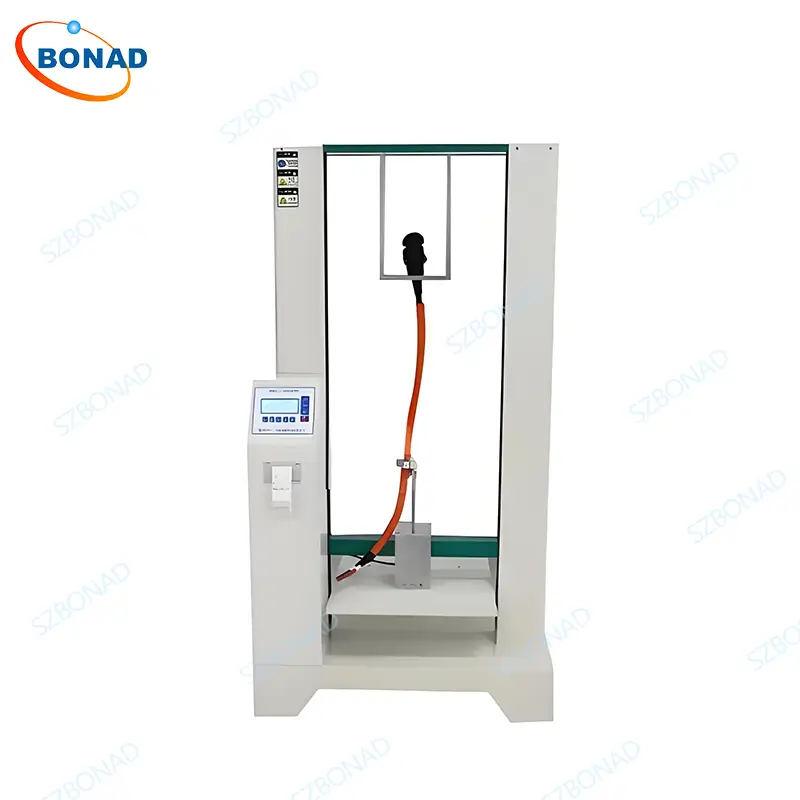

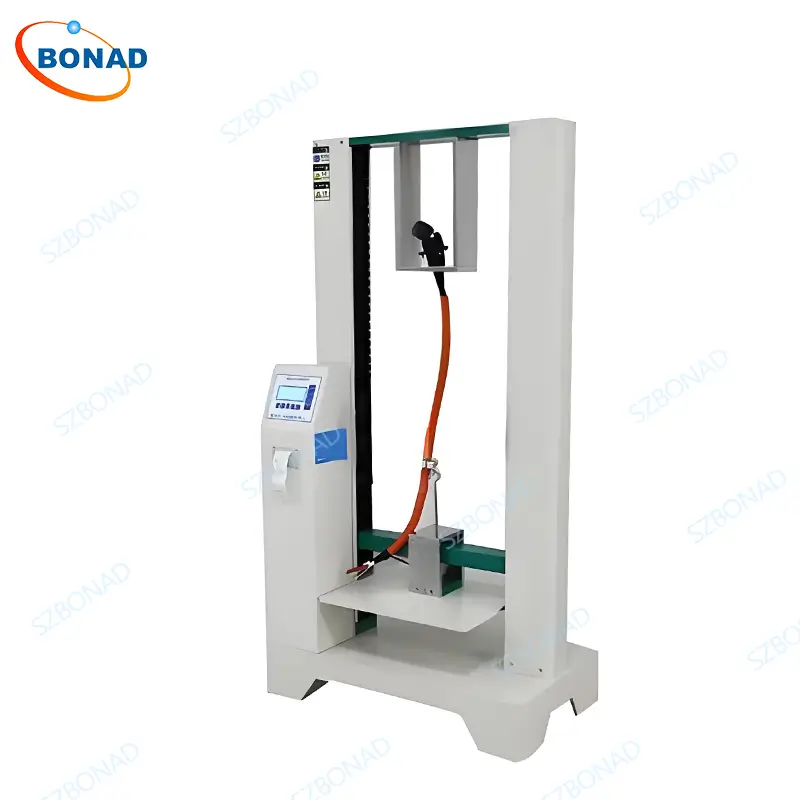

Static Tension and Compression Test Equipment – BONAD Vehicle Testing Equipment
Standards
- IEC 62196-1 (EV Connectors)
- GB/T 20234.1 (China Charging Gun Standard)
- ISO 1456 (Metallic Coatings Abrasion Test)
Applications

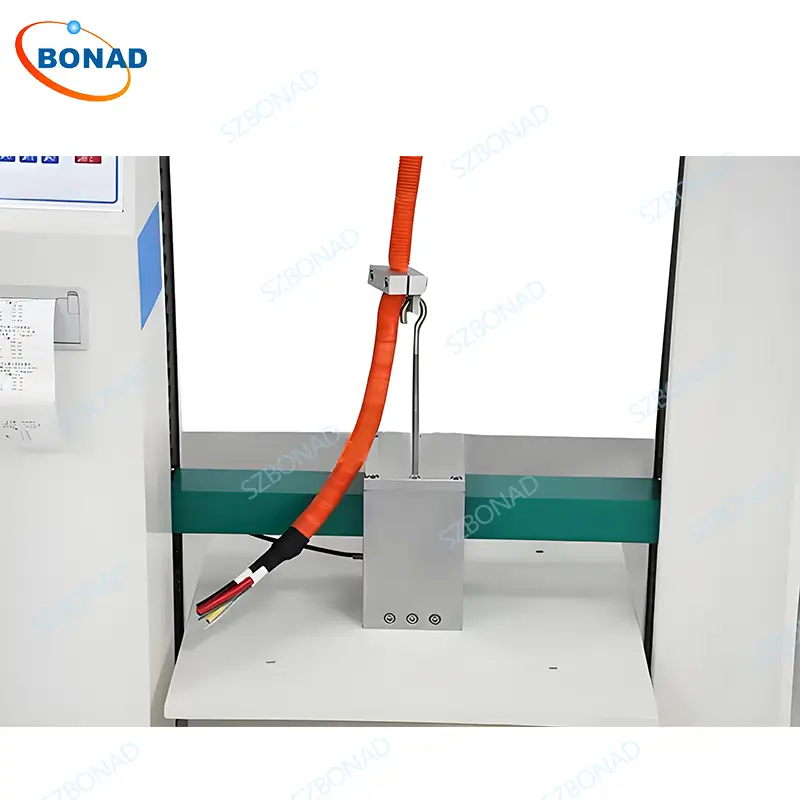

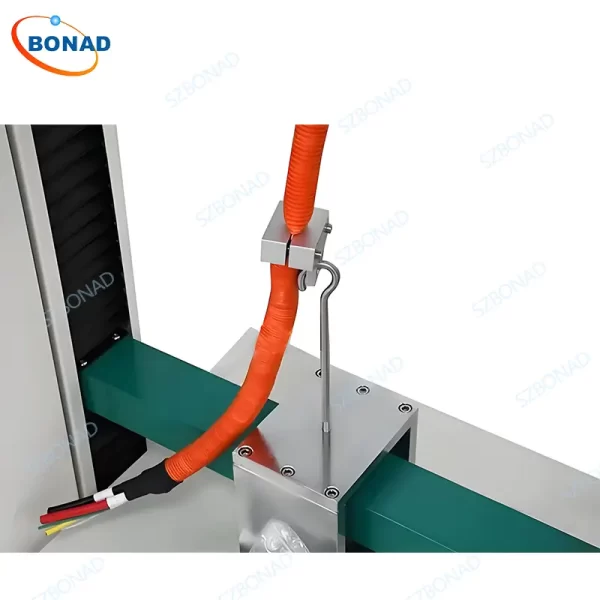

- Cable Clamp Integrity Testing
- Measures anti-pullout resistance (max. 5000N)
- Validates structural durability after repeated mating cycles
- Cable Body Compression Testing
- Simulates vehicle rollover/impact (500×500mm plate)
- Evaluates insulation layer crush resistance
- Reliability Validation
- Programmable constant-force hold (1-999s)
- Cyclic fatigue test mode
Features
Smart Control System
- 7-inch touchscreen HMI with real-time force curve display
- Switchable units: N, kg, lb | Resolution: 0.1N
- Auto-timer: Triggers upon reaching preset force
Robust Mechanical Design
- Dual-column frame (600×600×1000mm internal space)
- Servo motor drive | Speed accuracy: ±1%
- Standard accessories:
- 2× tension clamp plates
- 500×500mm compression plate
- 0.25% accuracy load cell (5000N)
Why Choose This Equipment?
- Risk Prevention: Detect connector fractures, insulation cracks, or clamp failures pre-production
- Certification Ready: Generate test reports for automotive supply chain audits
- High Efficiency: ≤10 mins/test (including fixture setup)
- Custom Solutions: Support non-standard tests (e.g., integration with thermal chambers)
Technical parameters:
| Sample range | Charging gun |
| Test station | Single station |
| Electrical control method | Touch screen operation |
| Drive mode | Motor drive |
| Sample clamping method | Mechanical clamping, 1. Configure 2 pc of tension clamp plates 2. Configure 1 pc of 500*500 compression plate |
| Internal dimensions of the column | WDH=600*600*1000mm |
| Height of stroke | 0-600mm |
| Test rate | 1-300mm/min can be preset |
| Constant force time | 1-999s, start timing after the force value is reached |
| Tension/Compression force | Force sensor monitoring, range 5000N, preset force value, switchable units N, kg, lb, accuracy 0.25, resolution 0.1N |
| Test items | Charging gun tension test Charging gun compression test; |
| Equipment size and weight | Approx.: 1200×600×1800 (mm) W×D×H, Equipment weight: 220kg |
