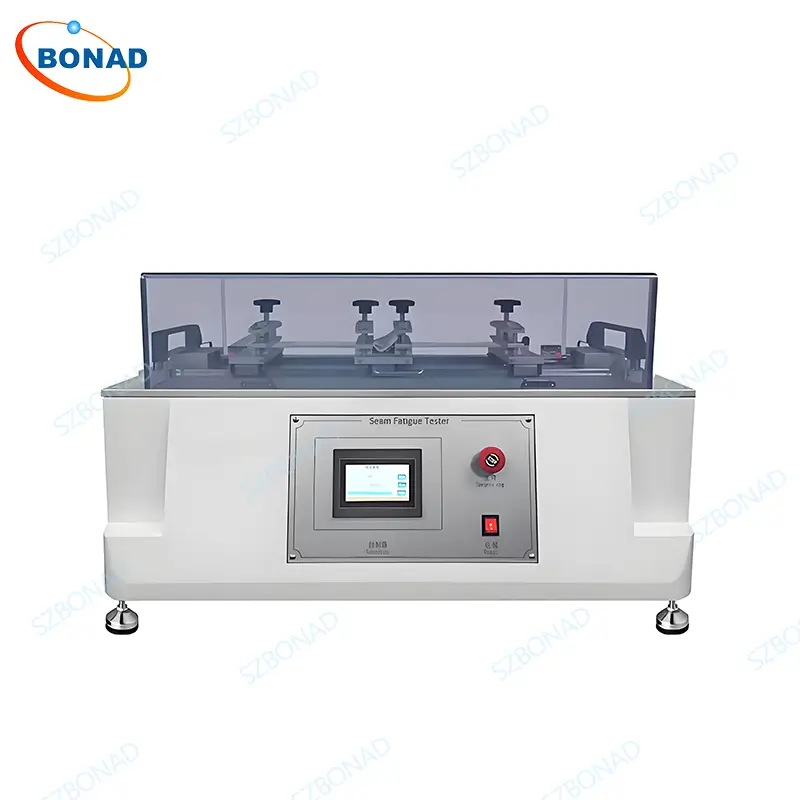

Seam Fatigue Testing Machine Manufacturer – BONAD Test Equipment
Standards
Industry-Leading Compliance:
- Global Material Standards:
ISO 17072 (Leather physical testing), ASTM D1683 (Seam strength), DIN 53843 (Textile mechanics), IS L1096 (Textile abrasion) - Automotive OEM Standards:
Toyota TSL 5101G (3.7), GMW 3405, Nissan M-0154, Ford BN 106-02, TSL 5100G (4.22)
Applications
- Automotive Seating: Validate seams in car seats, headrests, armrests.
- Material Development: Test leather, synthetic fabrics, vinyl, and hybrid materials.
- Quality Assurance: Ensure compliance with OEM durability specifications.
- Failure Analysis: Diagnose seam rupture, thread degradation, or needle-hole elongation.
Features
- Dual-Station Testing
- Simultaneously test 2 specimens for 50% faster throughput.
- Constant-Load Mechanism
- Pendulous weights deliver uniform tension (5cm clamps; adjustable spacing).
- Smart Touch Screen Control
- LCD interface for setting cycles (1–999,999), speed (5–60 cpm), and real-time monitoring.
- Precision Clamping System
- Integrated spacing gauge for accurate alignment; tool-free screw fastening.
- Enhanced Safety
- Auto-stop at target cycles; transparent acrylic hood isolates moving parts.
- Multi-Standard Adaptability
- Adjustable stroke, speed, and clamp spacing for ISO, ASTM, DIN, and OEM standards.
- Industrial-Grade Construction
- Aluminum and reinforced metal frame for zero-deviation operation.
Test principle
Specimens are clamped under constant tension. The central clamp reciprocates horizontally at a set speed and stroke, simulating cyclic stress. Post-test evaluation includes:
- Seam integrity (cracks, fraying)
- Needle-hole elongation
- Thread slippage or breakage
Outputs correlate with real-world seat durability and material optimization.
Technical specifications
| Model | BND-ISFT |
| Work stations | 2 |
| Specimen dimensions | 100 mm x 50 mm |
| Clamp width | 50 mm |
| Clamp spacing | 120 / 124 / 140 mm adjustable |
| Clamp stroke | 150 mm |
| Test speed | 30 CPM |
| Counter | 0 ~ 99,999 |
| Weight mass | 3 kg (29.4 N) |
| Weight | 50 kg |
| Machine dimensions | 86 cm x 31 cm x 54 cm |
| Power supply | AC 220 V or specified by users |
Why BONAD?
→ Global Compliance: Pre-configured settings for ISO, ASTM, DIN, and major OEM standards.
→ Efficiency: Dual stations + automated controls reduce testing time by 50%.
→ Precision: Lab-grade accuracy for actionable fatigue data.
→ Future-Proof Design: Modular upgrades for evolving standards.
