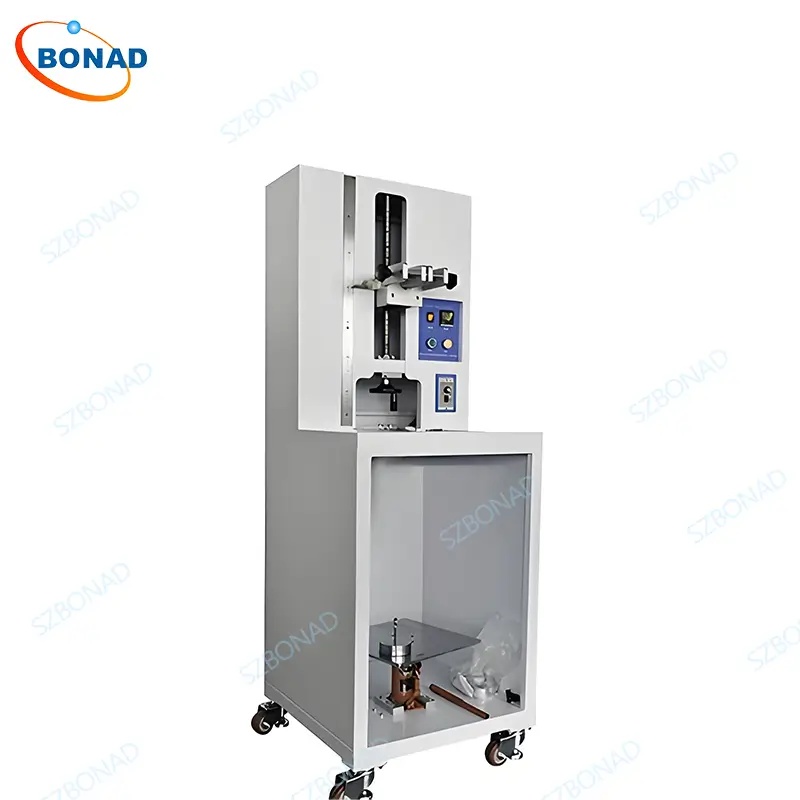

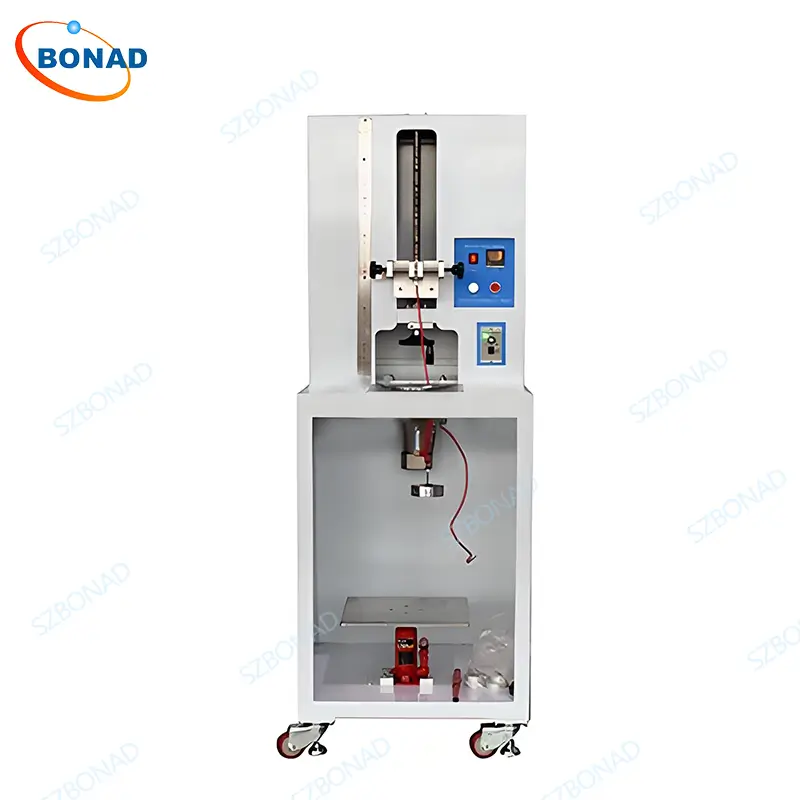

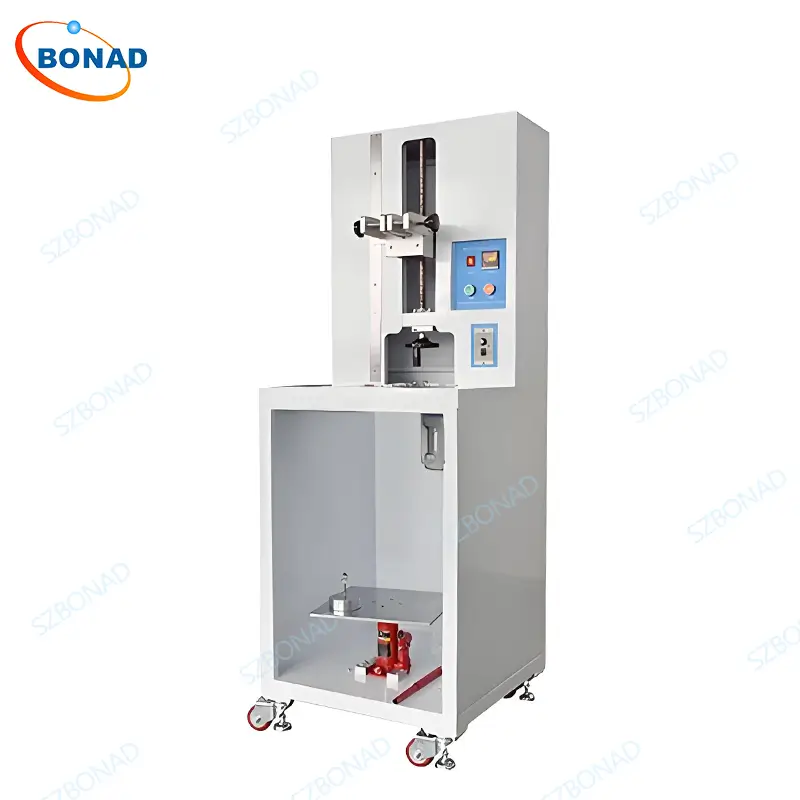

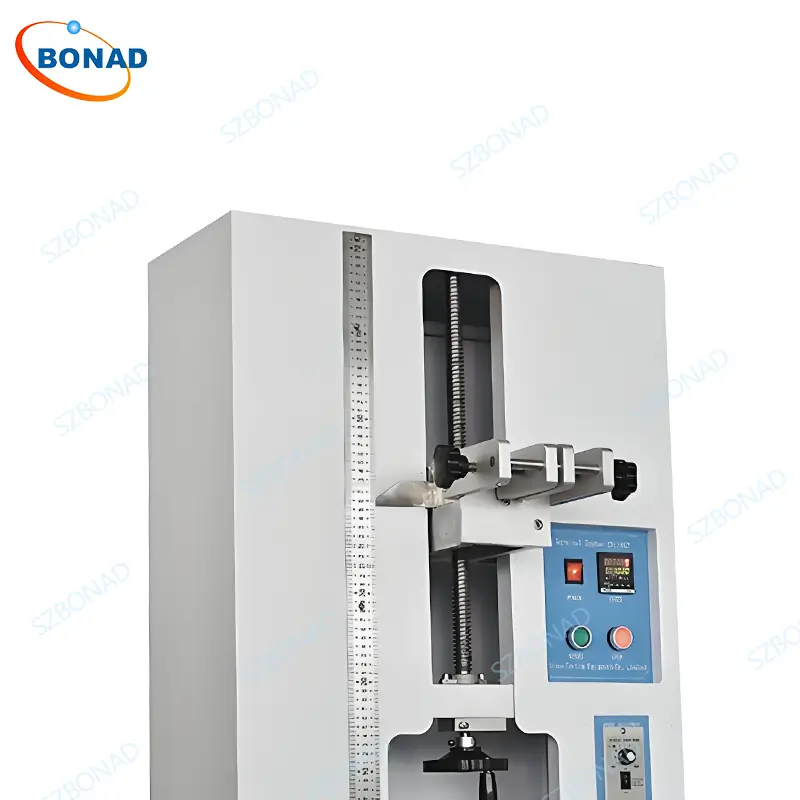

IEC 62196-1 Electric Vehicle Terminal Test Equipment – Mechanical Tests on Terminals
Standards:
- IEC 62196-1:2020 Clause 13.3.1 – Mechanical tests for terminals
- Ensures terminal compatibility with conductor sizes
- Validates clamping screw terminal durability
Applications:
- EV Charging Connectors – Tests mechanical strength of terminals in electric vehicle charging systems
- Manufacturing & QC – Ensures terminal reliability before mass production
- R&D Labs – Validates new terminal designs for compliance with international standards
Technical parameters:
| Parameter Name | Parameter Data |
| Power Supply | AC220V, 60Hz |
| Test Station | Single |
| Test Rate | (10 ± 2) r/min |
| Diameter of Gyration | 75mm |
| Test Times | 1-999999times |
| Load Weight | 0.4-70.3Kg |
| Test Height | 260-660mm adjustable |
| Diameter of Bushing | 6.5mm, 9.5mm, 13mm, 14.5mm, 15.9mm, 19.1mm, 22.2mm, 25.4mm, 28.6mm, 31.8mm, 38.1mm, 44.5mm |
| Equipment Dimensions & Weight | L 600mm* W 600mm * H1680mm, approx. 350KG |
| Weight with hook | 0.4kg*1, 0.7 kg*1, 0.9 kg*1, 1.4 kg*1, 2 kg*1, 4.5 kg*1, 9.5 kg*1, 19.5 kg*1, 24.2 kg*1 |
| Weight with hole | 0.7 kg*4, 0.8 kg*2, 0.9 kg*3, 3.2kg*1, 4.5 kg*1, 4.6 kg*1, 25 kg*1 |
Testing procedure:
- Set Test Cycles – Adjust based on requirements (default: 150 cycles).
- Start Test – Press “START”; turntable rotates at (10 ± 2) r/min.
- Completion Alert – Machine stops automatically with an audible alarm.
- Reset – Press “RST” to cancel the alarm and prepare for the next test.
Why Choose Our IEC 62196-1 Electric Vehicle Terminal Test Equipment?
- High Precision – Ensures accurate and repeatable test results
- Durable Construction – Built for long-term industrial use
- User-Friendly – Simple operation with preset cycles and automatic stop
- Compliance Guaranteed – Fully meets IEC 62196-1:2020 requirements
