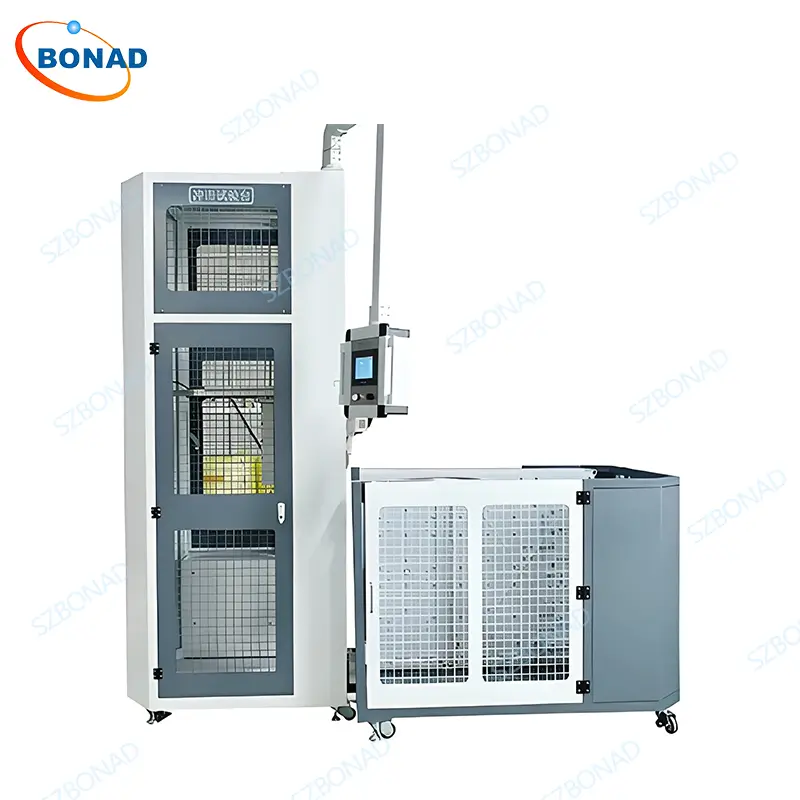

IEC 61851-1 Clause 12.11 EVSE Strength Impact Tester – BONAD EVSE Test Equipment
Standards:
- Primary Standard: IEC 61851-1:2017, Clause 12.11
- Test Scope: Mechanical strength verification for EVSE enclosures (e.g., AC charging stations, connectors).
- Impact Energy: 5J (default), configurable to 10J, 20J, or 50J.
Applications:
- Testing Labs: Compliance certification for EVSE manufacturers.
- EVSE Production: R&D quality validation and failure analysis.
- Regulatory Bodies: Market surveillance and safety inspections.
- Export Compliance: Meets CE, UL, and global certification requirements.
Features:

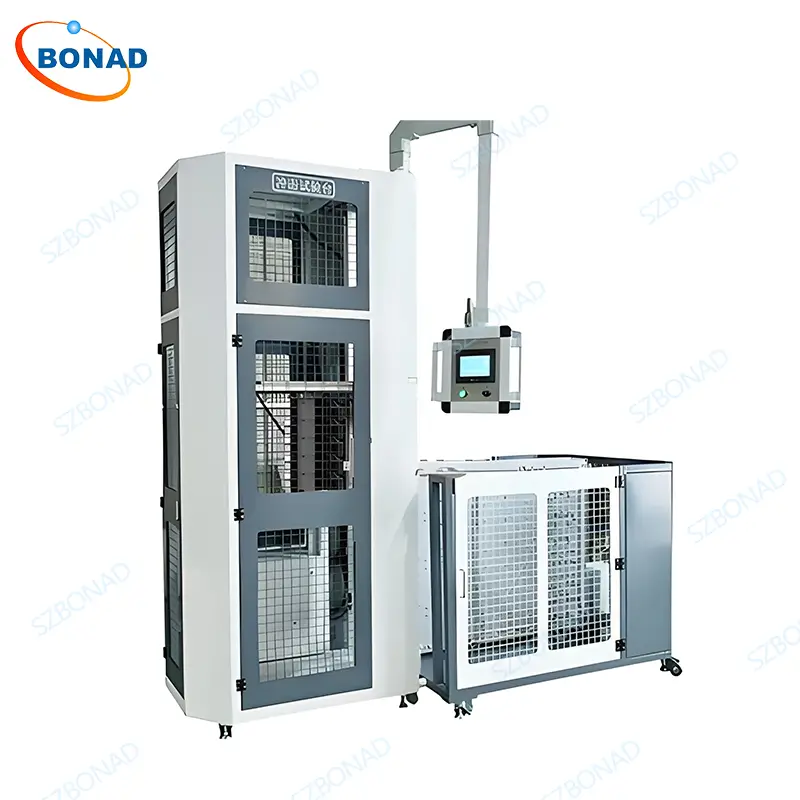

Dual-Test Technology

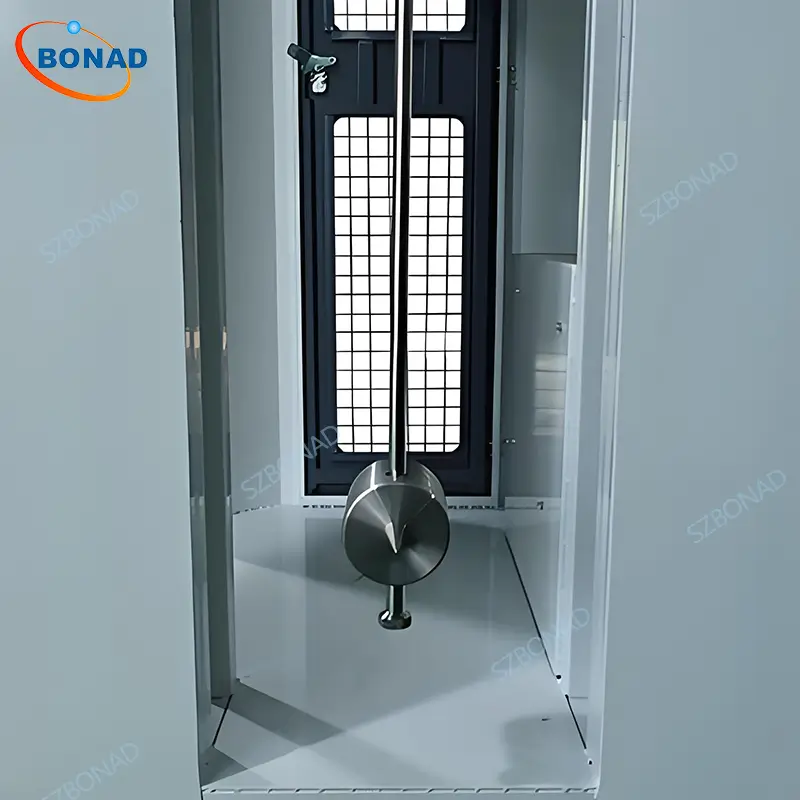

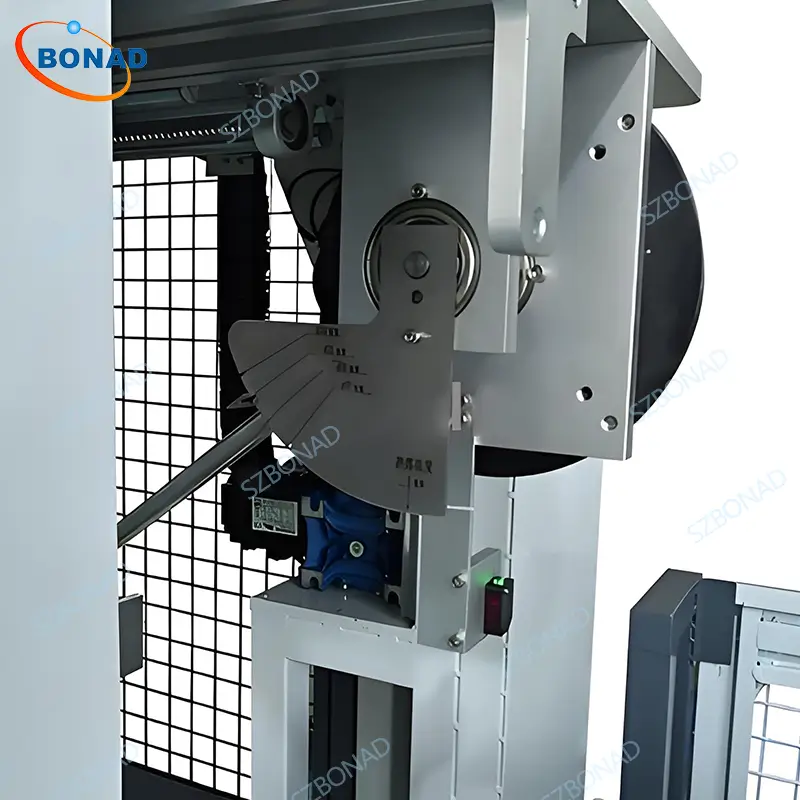

- Pendulum Impact: Electromagnetic release; 1.7kg spherical hammer (5kg/10kg optional).

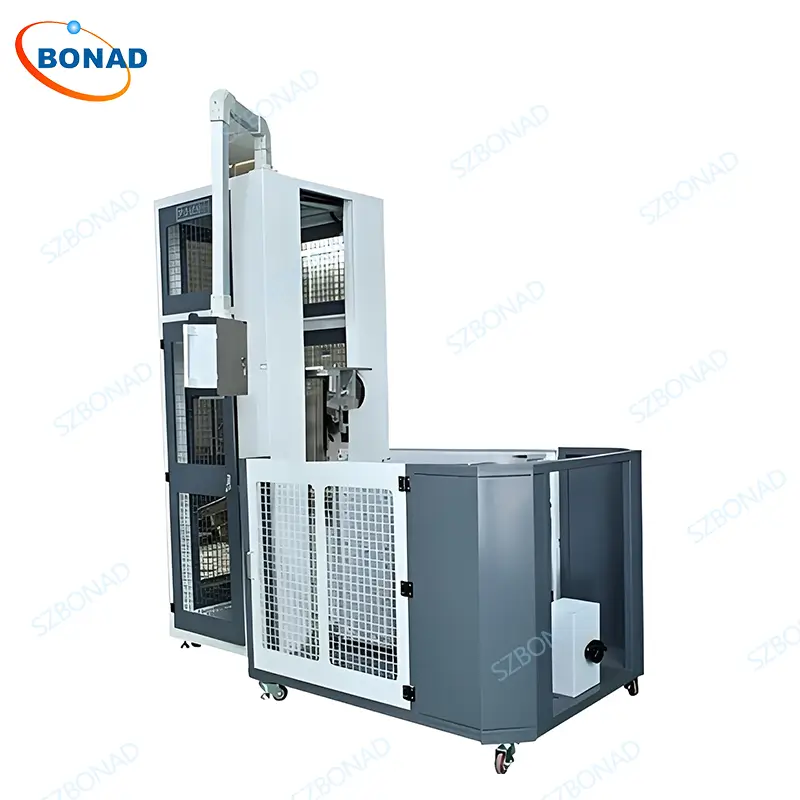

- Vertical Impact: Free-fall module with remote-controlled electromagnet release.
- Height Adjustment: Electric lift (200–500mm range) for diverse EVSE sizes.
Smart Control System
- PLC + 7″ Touchscreen: Programmable impact cycles (1–9,999 tests).
- Triple Operation: Touchscreen, wireless remote, or PC remote control.
- Safety: 360° protection + electric brake to prevent secondary impacts.
Precision & Flexibility
- ±1% mass accuracy (ISO 17025 traceable).
- High-strength steel sample mount with manual screw fixation.
- Customizable impact height and clamping range.
Efficiency Boosters
- Automated height adjustment (no manual handling).
- Real-time LED status alerts and error diagnostics.
- Modular design reduces maintenance costs by 40%.
Technical specifications:
| Control and operation | PLC control, 7-inch color touch screen control, remote control remote control. |
| Drive mode | Motor + reducer mechanism |
| Pendulum impact | |
| Rated test impact force | Standard 5J (10J, 20J, 50J optional) |
| Pendulum mass accuracy | ±1% |
| Equivalent mass of impact hammer | 1.7kg (5 kg, 5 kg, 10 kg are optional) |
| Impact hammer form | Spherical impact hammer |
| Pendulum striking point height adjustment range | Customized according to the sample |
| Swing arm height adjustment range | 200-500mm |
| Specimen clamping adjustment range | Customized according to the sample |
| Impact point height adjustment | Electric adjustable |
| Number of hits | 0-9999 times can be preset |
| Status indication | LED indicator |
| Pendulum height (energy) adjustment | Manual adjustment |
| Pendulum positioning | Electromagnet adsorption |
| Pendulum release | Wireless remote control or touch screen operation |
| Impact point height adjustment method | Wireless remote control or touch screen operation |
| Security | 360° all-round safety protection, automatic electric brake to prevent secondary impact |
| Vertical impact | |
| Rated test impact force | Standard 5J (10J, 20J, 50J optional) |
| Installation method | The hammer head is adsorbed by electromagnet, and the conduit is screw-in type |
| Release method | Button control, electromagnet momentary release |
| Hammer release | Remote control |
| Height adjustment method | Remote control |
