UL1278 Fig.10.1 Cone Probe
UL1278 Fig.10.1 Cone Probe

UL1278 Fig.10.1 Cone Probe

Brand: SZBONAD

Product Number: BND-ULCP

The UL1278 Fig.10.1 Cone Probe is a standardized testing tool designed for evaluating the safety of heating elements, fully compliant with the specifications outlined in UL1278 Figure 10.1. Featuring a durable nylon handle and a stainless steel probe, this tool ensures reliable performance in high-temperature environments. Its primary function is to verify whether heating elements and associated components (e.g., supports, sheaths) are adequately guarded to prevent contact with flammable materials or human exposure to hazardous high-temperature parts, ensuring compliance with international safety standards.

GET A QUOTE

UL1278 Fig.10.1 Cone Probe – UL 1278 Figure 10.1 Cone Test Finger Probe For Heating Elements

Standards:

  • Certification: UL1278 Fig.10.1 (U.S. Safety Standard for Household Appliances).
  • Specifications:

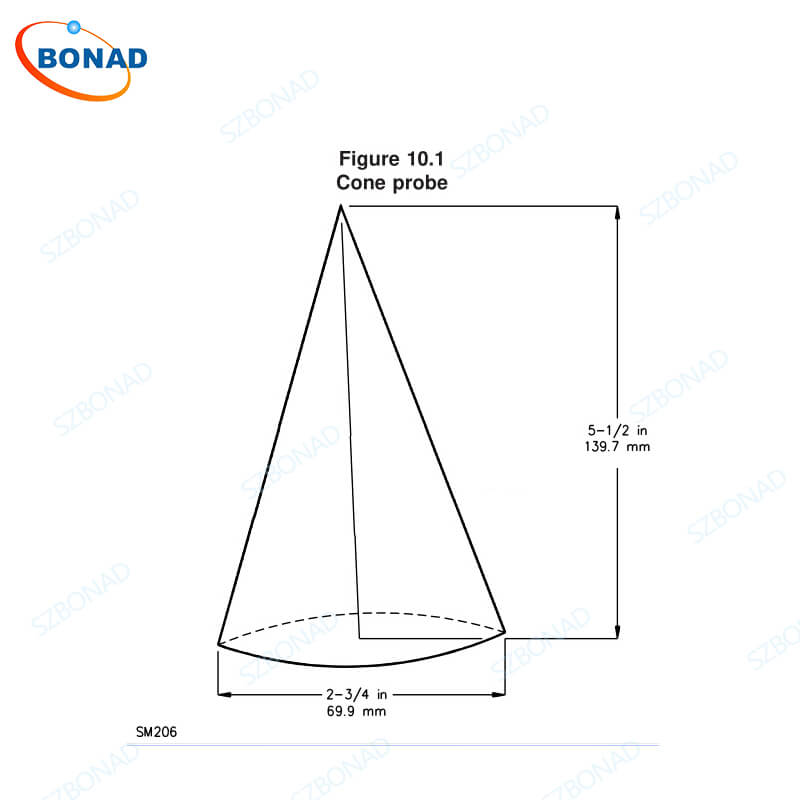

    • Cone dimensions: Base diameter of 2-3/4 inches (69.9 mm) and height of 5-1/2 inches (139.7 mm).

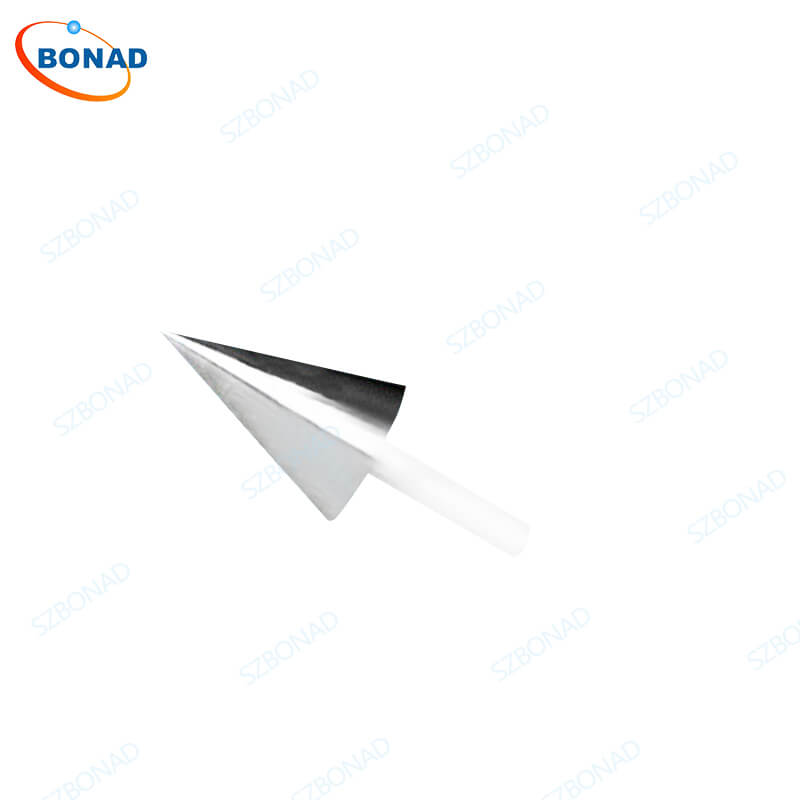

    • Materials: Stainless steel probe with a high-strength nylon handle.
  • Test Criteria: When inserted, the cone probe must prevent contact between the test gauge and heating elements or other high-temperature components.

Applications:

  • Primary Use:
    • Safety testing of heating elements in household appliances (e.g., heaters, ovens, microwaves).
    • Verification of protective design in industrial equipment with high-temperature components.
  • Test Targets:
    • Heating elements, supports, sheaths, insulation layers, and related assemblies.
  • Purpose: Ensures protective barriers effectively prevent human contact with hazardous areas or ignition of flammable materials.

Features:

  1. Precision Compliance: Manufactured strictly to UL1278 Fig.10.1 specifications for authoritative test results.
  2. Robust Construction: Corrosion-resistant stainless steel probe and heat-resistant nylon handle ensure durability and operator safety.
  3. Functional Design: Standardized cone geometry guarantees accurate assessment of protective measures.
  4. Versatility: Suitable for safety testing across household appliances, industrial machinery, and more.

UL1278 Fig.10.1 Cone Probe - 1
