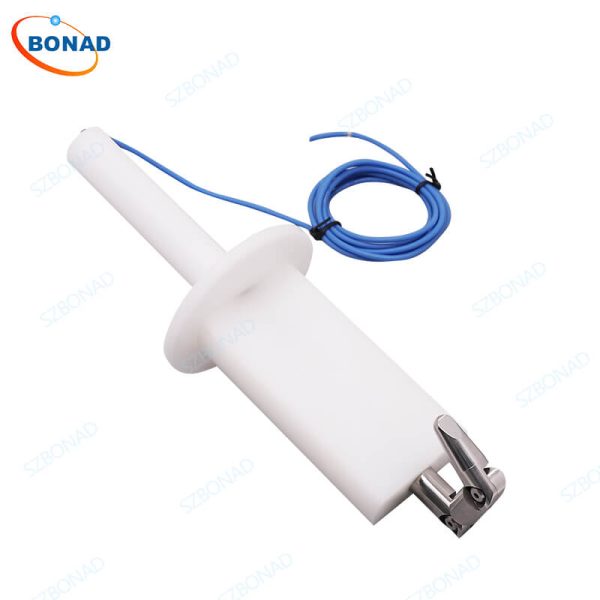

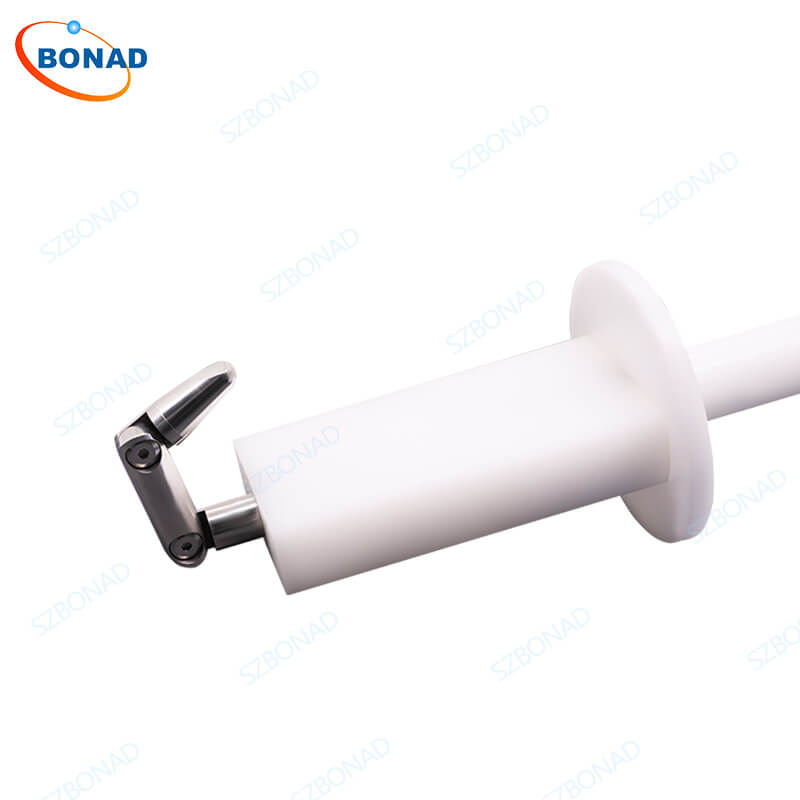

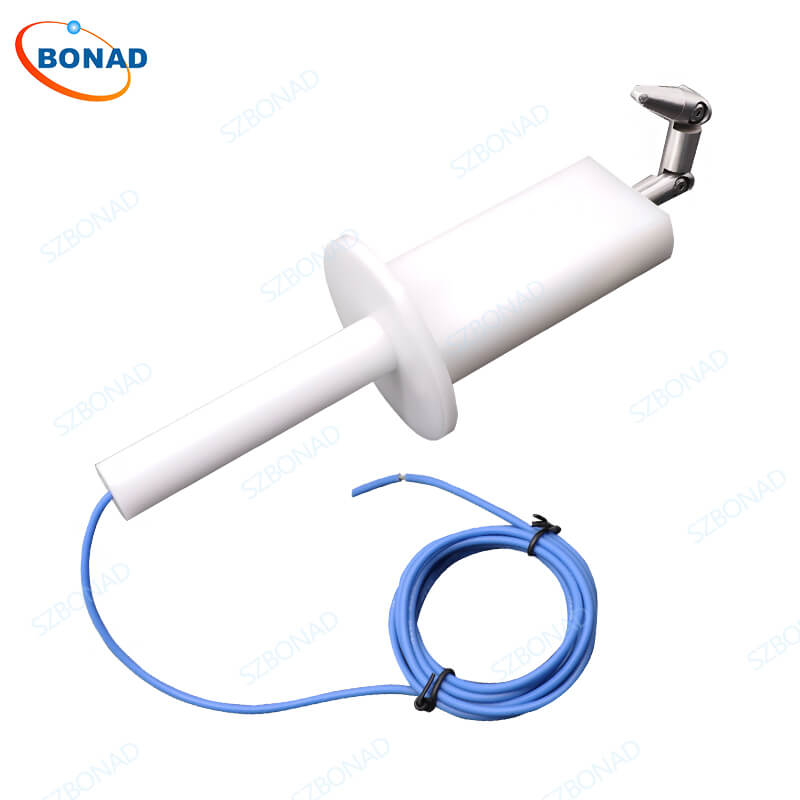

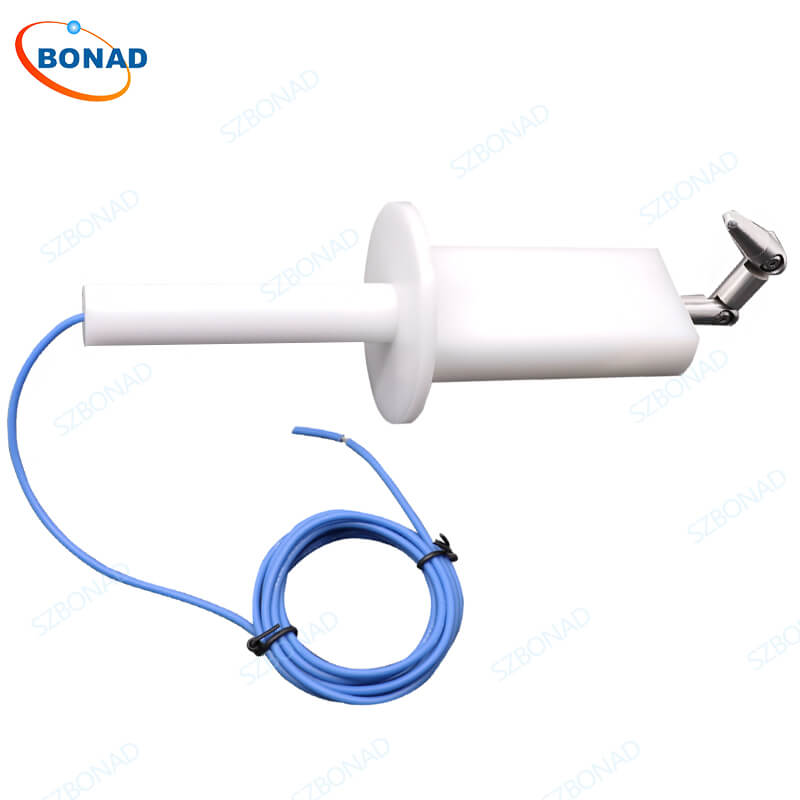

UL IP2X Articulated Probe – BONAD Test Equipment
Standards
- UL Certification: Meets UL 1431 and other electrical safety testing standards.
- IEC Specifications: Complies with IEC 61032 requirements for probe testing tools.
- IP2X Protection Rating: Prevents ingress of solid objects ≥12.5mm in diameter, suitable for low-risk contact environments.
- Global Compatibility: Aligns with international safety testing protocols (e.g., CE, CCC).
Applications
- Power Supply Equipment: Tests sockets, switches, and distribution boxes for shock protection.
- Wiring Systems: Validates safety of terminals, cable connectors, and junction boxes.
- Lighting Products: Evaluates isolation of live parts in luminaires, lamp holders, etc.
- Industrial Machinery: Assesses electrical safety in motors, control cabinets, and automation systems.
Features
- Precision Safety Design: Adjustable joint angles simulate multi-directional contact risks, ensuring 50mm–20mm baffles cannot access hazardous zones.
- Durable Construction: Stainless steel body with wear-resistant coating for corrosion resistance and long-term use.
- Standardized Testing: Strict adherence to UL/IP2X norms ensures repeatable results for compliance certifications.
- Ergonomic Operation: User-friendly grip enables single-handed testing, improving efficiency.
Technical parameters:
| Feature | Description |
|---|---|
| Knurled Finger Diameter | 12 mm |
| Knurled Finger Length | 80 mm |
| Baffle Diameter | 50 mm |
| Baffle Length | 100 mm |
| Baffle Thickness | 20 mm |
