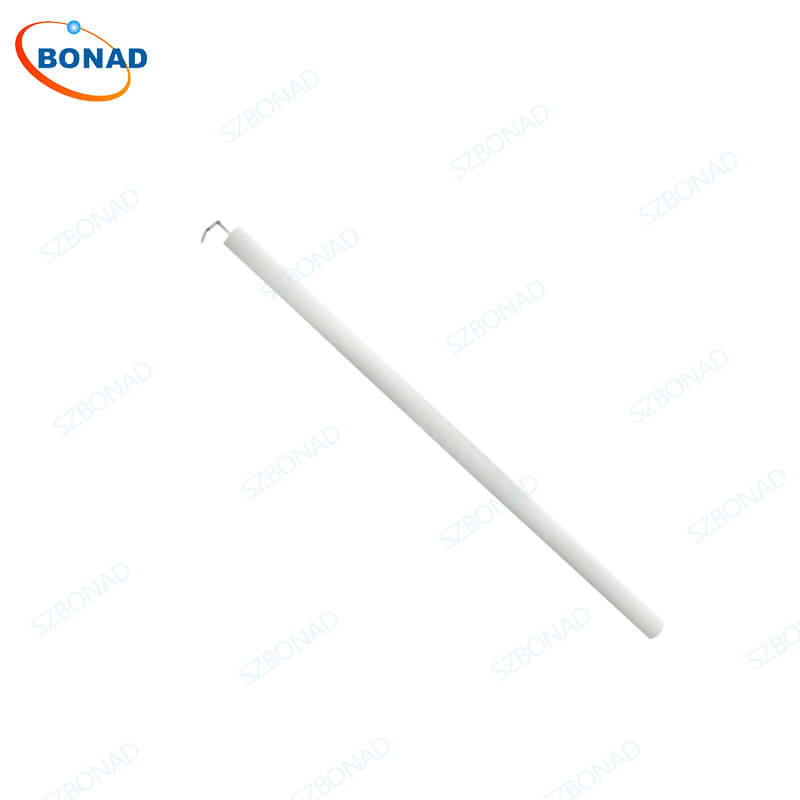

Test Probe 19 of EN 61032 Figure 13 – BONAD Test Finger Probe
Standards:
Test Probe 19 aligns with several key standards:
- EN 61032:1998
- IEC 61032:1997
- UL1017
Application:
The primary application of Test Probe 19 is in environments where there is a need to simulate young children’s interactions with potentially dangerous components.

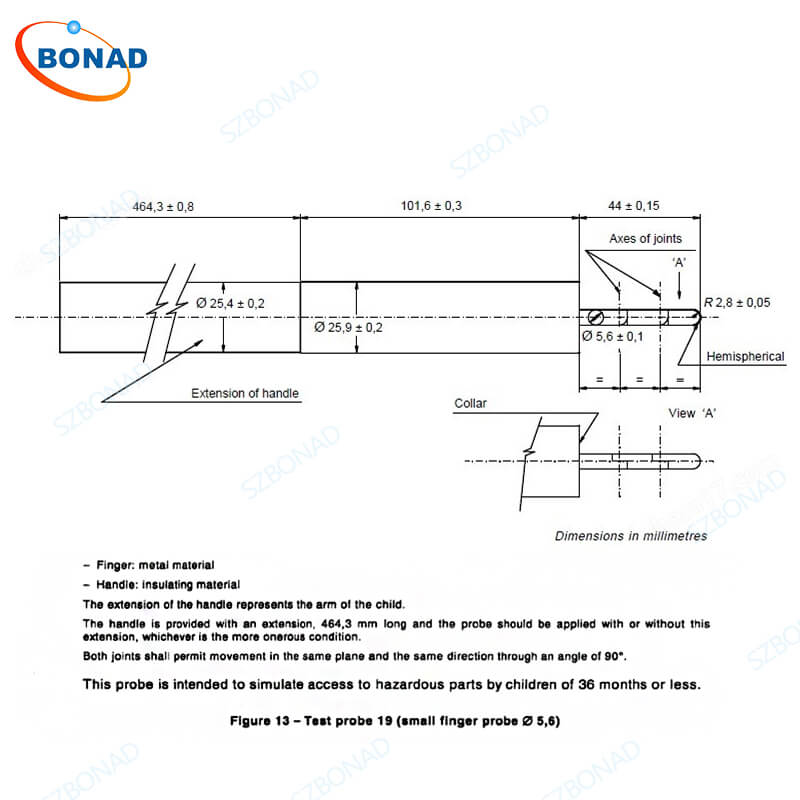

The extension of the handle represents the arm of the child.
The handle is provided with an extension, 464,3 mm long and the probe should be applied with or without this extension, whichever is the more onerous condition.
Both joints shall permit movement in the same plane and the same direction through an angle of 90°.
Technical parameters:
| Hemispherical radius (mm) | R2.8±0.05 |
| Finger probe diameter (mm) | Ф5.6±0.1 |
| Finger probe length (mm) | 44±0.15 |
| Axes of joints distance (mm) | 14.67 |
| Collar diameter (mm) | Ф25.9±0.3 |
| Collar length (mm) | 101.6±0.3 |
| Extension handle diameter (mm) | Ф25.4±0.3 |
| Extension handle length (mm) | 464.3±0.8 |
| Finger probe material (mm) | Stainless steel |
| Collar and handle material (mm) | Nylon |
