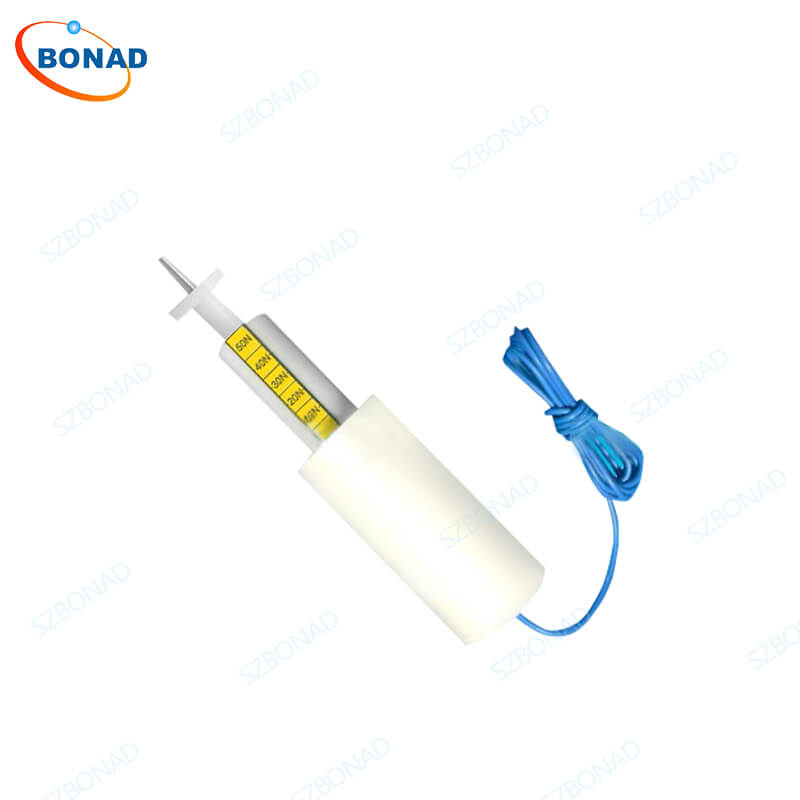

IEC 61032 Test Probe 13 with 50N Force – BONAD Test Equipment
Standards:

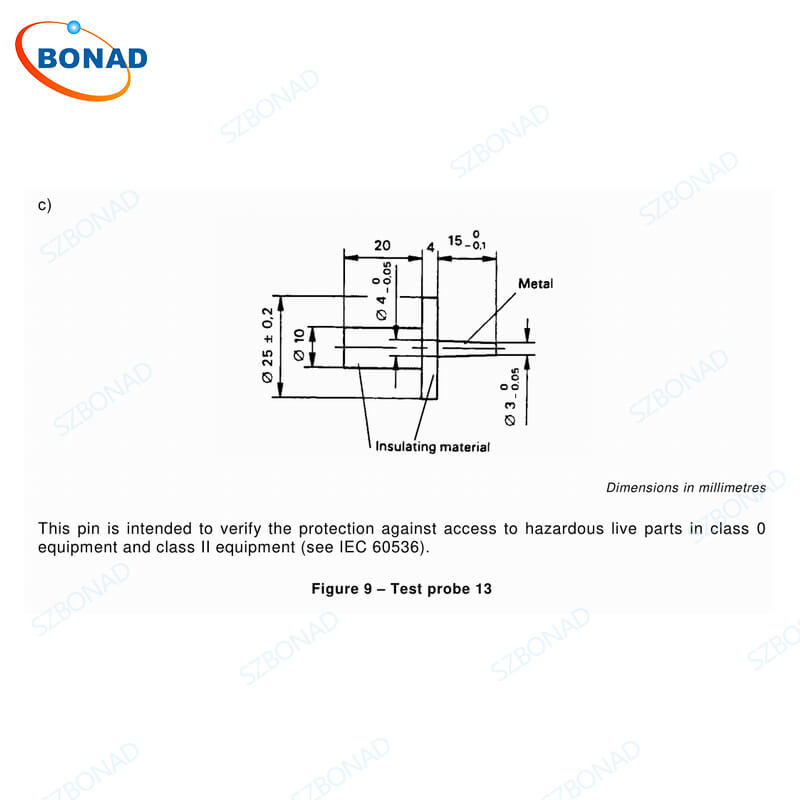

- Primary Compliance: IEC 61032 (Figure 9 – Test Probe 13)
- Additional Standards:
- IEC 60065 (Safety of Audio/Video Equipment)
- IEC 60335-1 (Household Appliance Safety)
- IEC 60950 (IT Equipment Safety)
- IEC 60601 (Medical Electrical Equipment Safety)
- IEC 60745 (Hand-Held Motor-Operated Tools Safety)
- UL Standards (U.S. Safety Certification)
- Certifications Supported: CE, UL, GS, and other global safety certifications.
Applications:
- Class 0 & Class II Equipment: Validates enclosure protection against accidental contact with live parts.
- Industry Coverage:
- Household Appliances: Power adapters, chargers, kitchen appliances.
- Medical Devices: Diagnostic equipment, therapeutic devices.
- Industrial Machinery: Power tools, control cabinets, electrical systems.
- Consumer Electronics: Lighting fixtures, power sockets, smart home devices.
- Testing Scenarios: Production quality control, third-party lab certification, R&D safety validation.
Features:
- Precise Force Application: 50N constant thrust force simulates accidental human contact for reliable test results.
- Durable Construction: Probe body made of Grade 304 stainless steel (corrosion-resistant, wear-proof); handle features high-voltage insulation (withstands voltages over 2000V).
- Global Compliance: Meets IEC, UL, and other international safety standards for worldwide certification.
- Ergonomic Design: Compatible with automated testing systems or manual operation.
- Long-Term Accuracy: Factory-calibrated with force tolerance <±2% for consistent performance.
Technical parameters:
| Specification | Details |
|---|---|
| Test Probe Diameter | 3 mm |
| Test Probe Length | 15 mm |
| Baffle Plate Thickness | 4 mm |
| Baffle Plate Diameter | 25 mm |
| Thrust | 10 N / 20 N / 30 N / 40 N / 50 N |
