IP1X Test Probe A – IEC 60529 50mm Sphere Ingress Protection Test Equipment
Standards
The IP1X test probe is manufactured and used according to the following international standards:
- IEC 60529 – Degrees of protection provided by enclosures (IP Code)
- IEC 61032 – Protection of persons and equipment by enclosures – Probes for verification
- IEC 60335 – Safety of household and similar electrical appliances
- IEC 62368 / IEC 60065 – Safety standards for electronic and audiovisual equipment
These standards define the dimensions, test procedures, and requirements for verifying protection against accidental contact with hazardous parts.
Applications
The IEC IP1X test probe is widely used in product safety verification across multiple industries.
- Electrical Appliance Testing: Household appliances such as washing machines, refrigerators, ovens, and air conditioners require enclosure protection testing to prevent user contact with internal components.
- Consumer Electronics: Electronic devices and equipment housings must provide adequate protection against accidental contact with internal electrical parts.
- Lighting Products: Lighting fixtures, luminaires, and electrical enclosures must meet safety requirements defined by international standards.
- Industrial Electrical Equipment: Switch cabinets, control panels, and industrial electrical enclosures require IP protection testing for safe operation.
- Testing Laboratories and Certification Bodies:Independent laboratories and certification organizations use IP test probes to verify compliance with international standards.
Key Features
- Precision 50 mm diameter sphere probe for IP1X verification
- Designed according to IEC 60529 and IEC 61032 standards
- High-strength metal construction for durability and accuracy
- Smooth spherical surface for consistent testing results
- Suitable for laboratory, manufacturing, and compliance testing
- Optional handle or force application device available
- Reliable and repeatable performance for professional testing environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IP1X Test Probe A |
| Probe Diameter | 50 mm |
| Probe Type | Sphere probe |
| Standard Compliance | IEC 60529 / IEC 61032 |
| Application | IP1X ingress protection testing |
| Material | Stainless steel or rigid metal |
| Test Purpose | Verify protection against access to hazardous parts |
| Optional Accessories | Handle or force application device |
There are two kinds of IP1X test probe, one is without force, another is with 50N force.
Model:
BND-A( steel probe without force)
BND-AF(steel probe with 50N force)
Pictures:

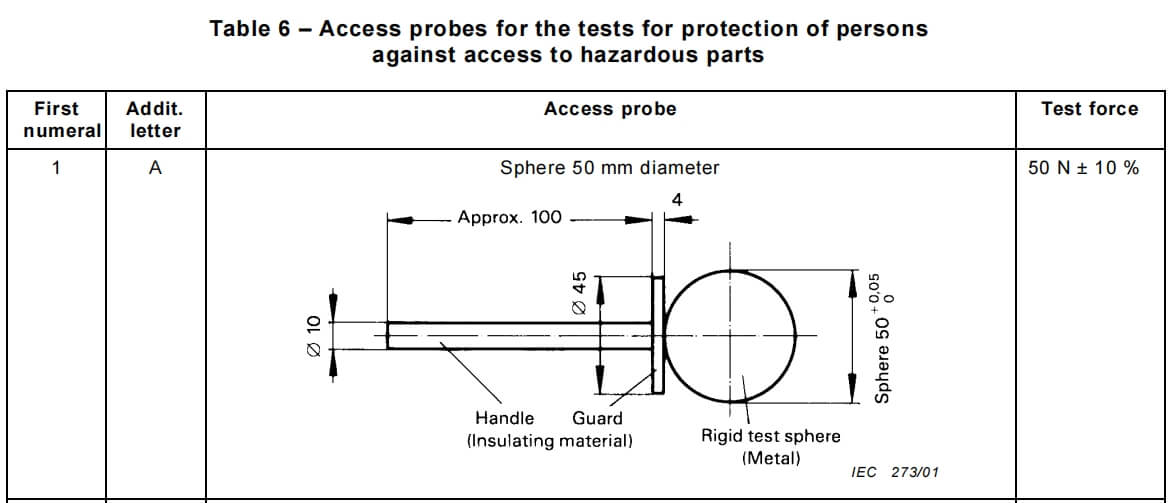

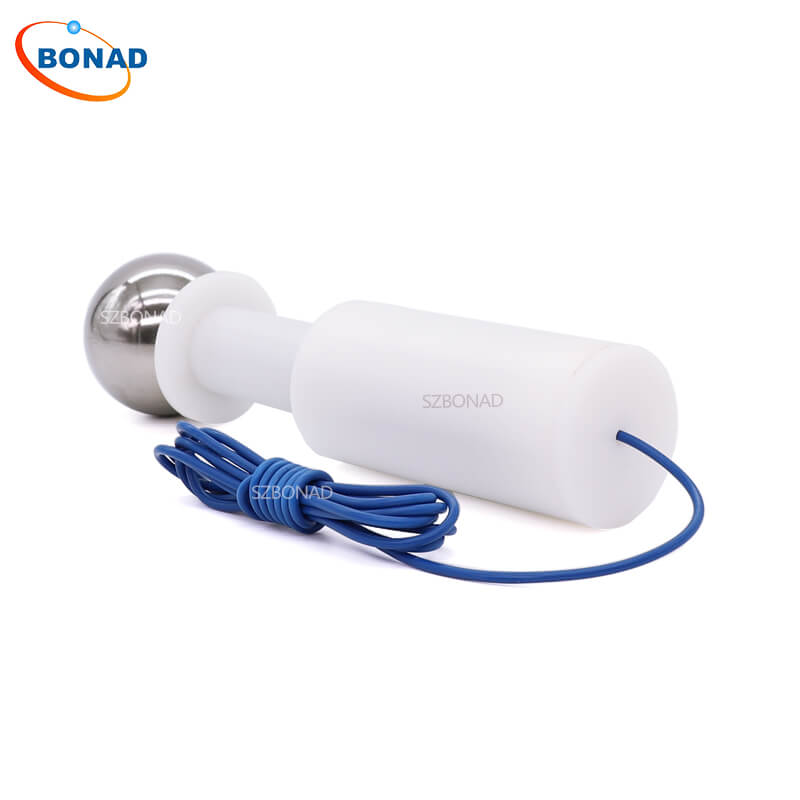

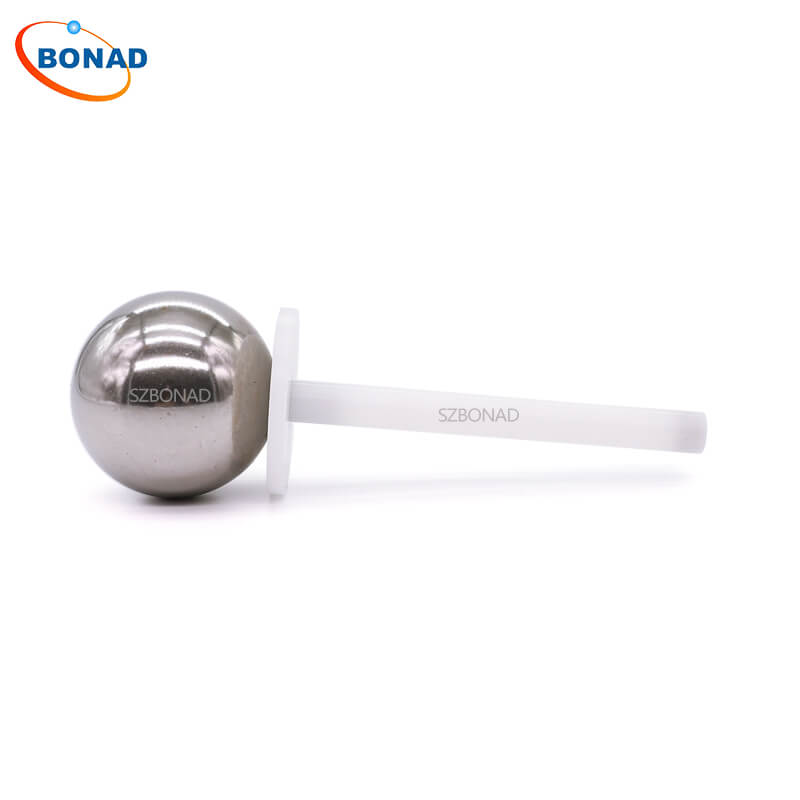

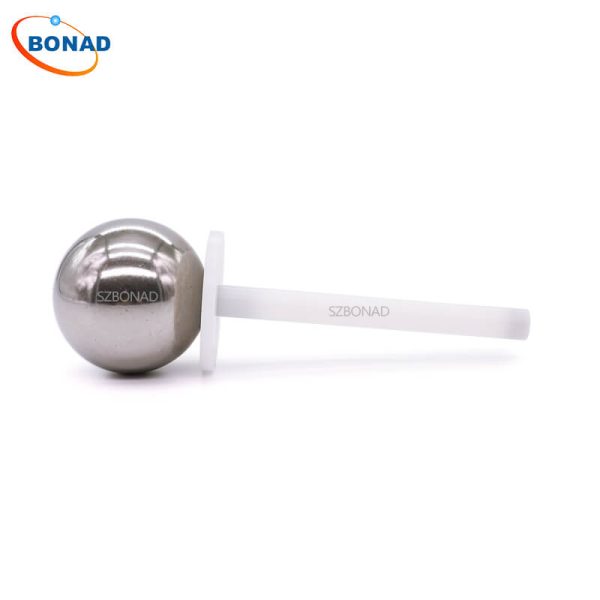

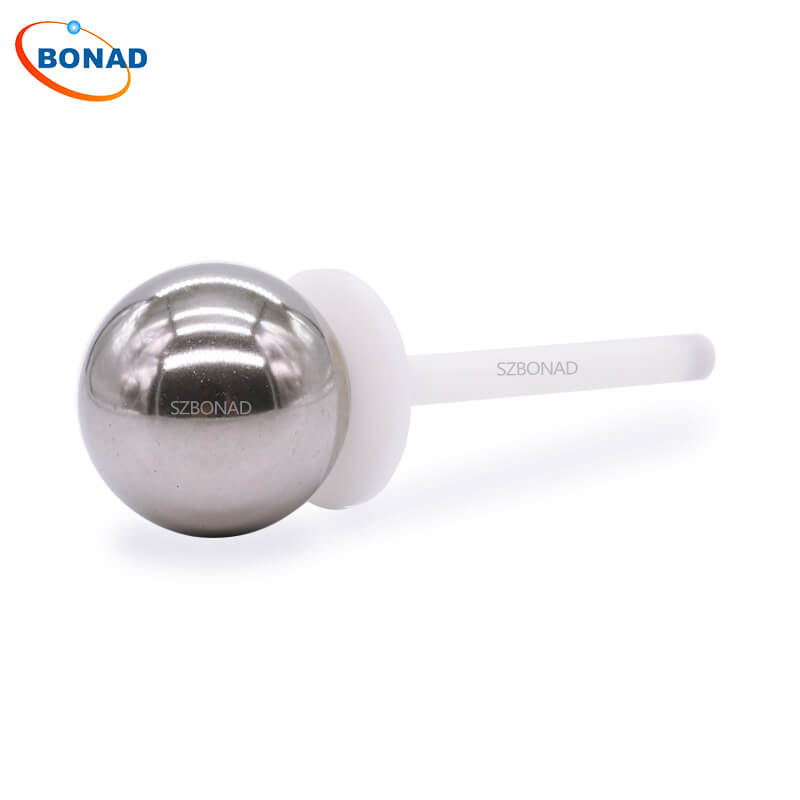

50mm steel ball /IP1X test probe A without force

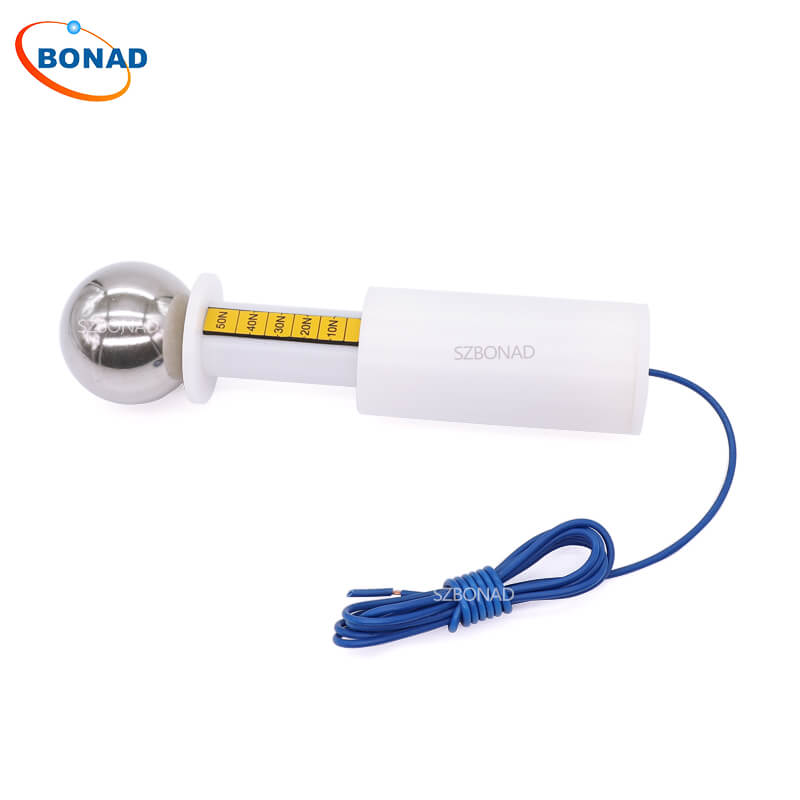

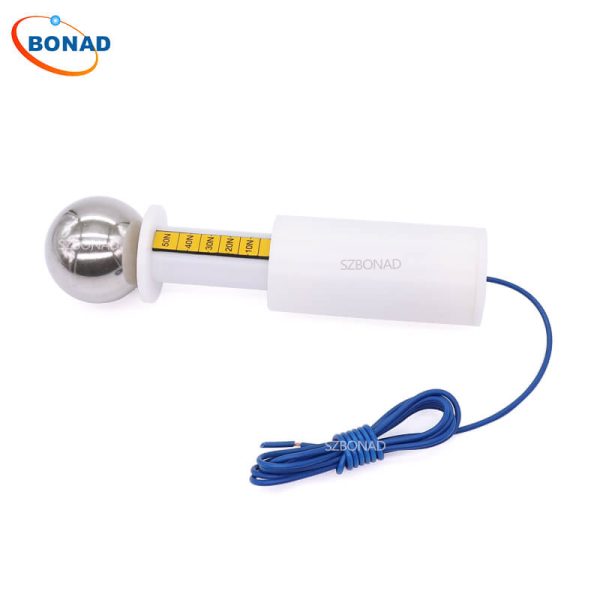

50mm steel ball/ IP1X Test probe A with 50N
IP1X Test Method (IEC 60529)
The IP Code defined in IEC 60529 specifies the level of protection provided by equipment enclosures against the intrusion of solid objects and liquids.
For IP1X protection, the enclosure must prevent objects with a diameter of 50 mm or larger from accessing hazardous internal components.
The IP1X test probe is therefore used to simulate large objects or the back of a human hand that could accidentally contact internal parts of electrical equipment.
Typical Test Procedure:
- Position the equipment in its normal operating configuration.
- Apply the 50 mm sphere test probe to all accessible openings of the enclosure.
- Apply the required test force if specified.
- Check whether the probe can touch hazardous internal components.
- If the probe cannot access dangerous parts, the enclosure complies with IP1X protection requirements.
This test ensures that electrical equipment provides basic protection against accidental user contact.
Comparison with Other IEC Test Probes
Different IEC probes are used to verify different levels of protection against solid objects entering an enclosure.
| Probe Type | Diameter | Protection Level |
|---|---|---|
| Test Probe A | 50 mm | IP1X |
| Test Probe B | 12.5 mm | IP2X |
| Test Probe C | 2.5 mm | IP3X |
| Test Probe D | 1 mm | IP4X |
Each probe simulates objects of different sizes that may enter an enclosure, ensuring appropriate safety protection for users and equipment.
Why Choose BONAD IP1X Test Probe A?
- Direct from manufacturer – factory pricing available
- High-precision probe production for reliable results
- Built according to international standards
- Durable and high-quality construction
- Customization and OEM support
- Global technical support and service
We provide trusted testing solutions to ensure product safety and regulatory compliance.
FAQ
What is an IP1X test probe used for?
An IP1X test probe is used to verify that equipment enclosures prevent objects with a diameter of 50 mm or larger from accessing hazardous internal parts.
Which standards define the IP1X test probe?
The probe dimensions and testing requirements are defined in IEC 60529 and IEC 61032.
Who uses IP1X test probes?
IP1X probes are commonly used by product manufacturers, testing laboratories, certification bodies, and quality inspection agencies.
Can the probe be customized?
Yes. Manufacturers such as BONAD can provide customized probe handles, materials, or additional accessories according to testing requirements.
