Compliance Standards
- International Standards:
- IEC 61000-4-3: Electromagnetic Compatibility (EMC) – Part 4-3: Testing and Measurement Techniques – Radiated Radio-Frequency Electromagnetic Field Immunity Test
- CISPR 16-1-6: Specification for Radio Disturbance and Immunity Measuring Apparatus
- Industry Applications:
- EMC testing for 5G communication devices, automotive electronics (ISO 11451), medical equipment (IEC 60601), and more.
Technical Specifications
| Parameter | Details |
|---|---|

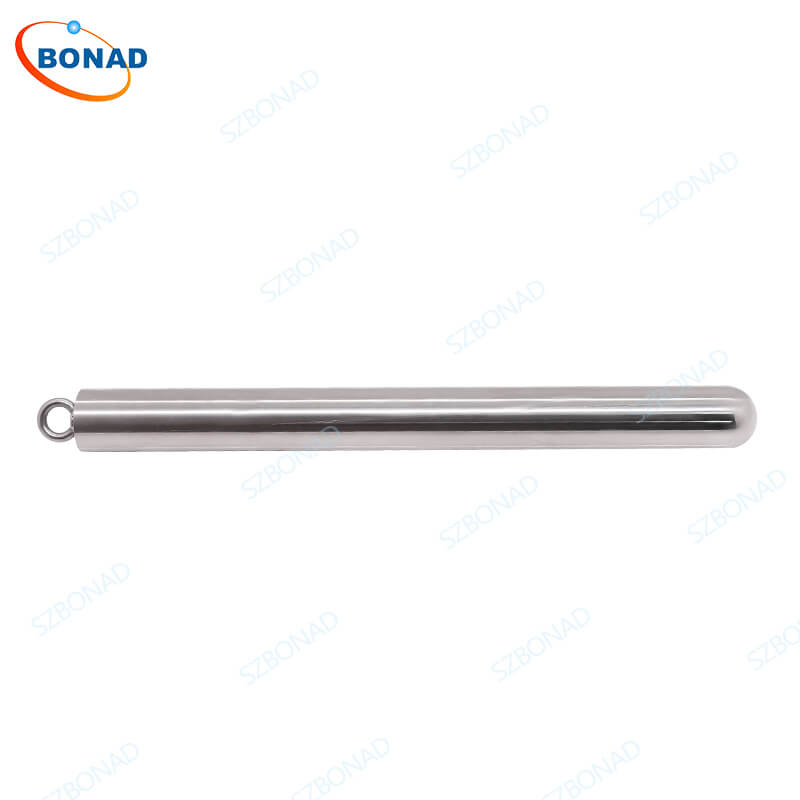

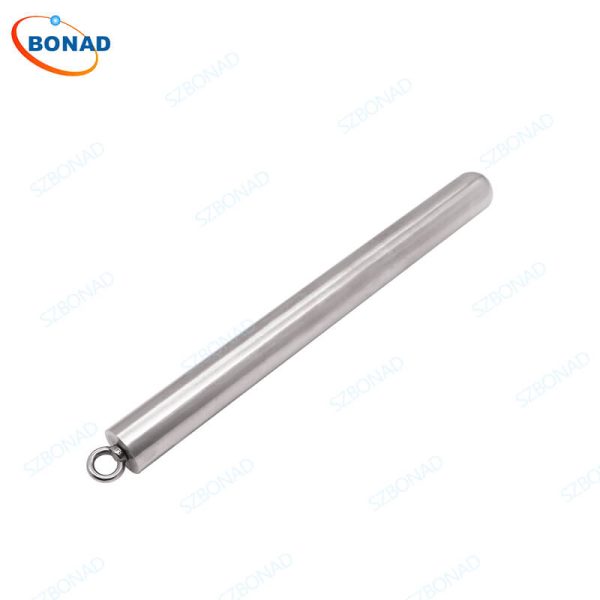

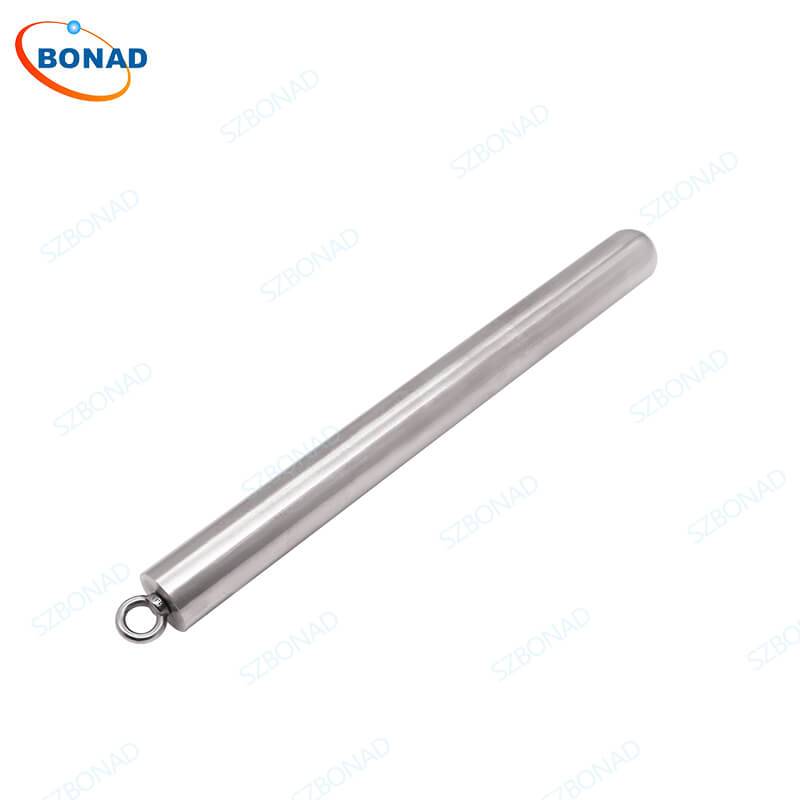

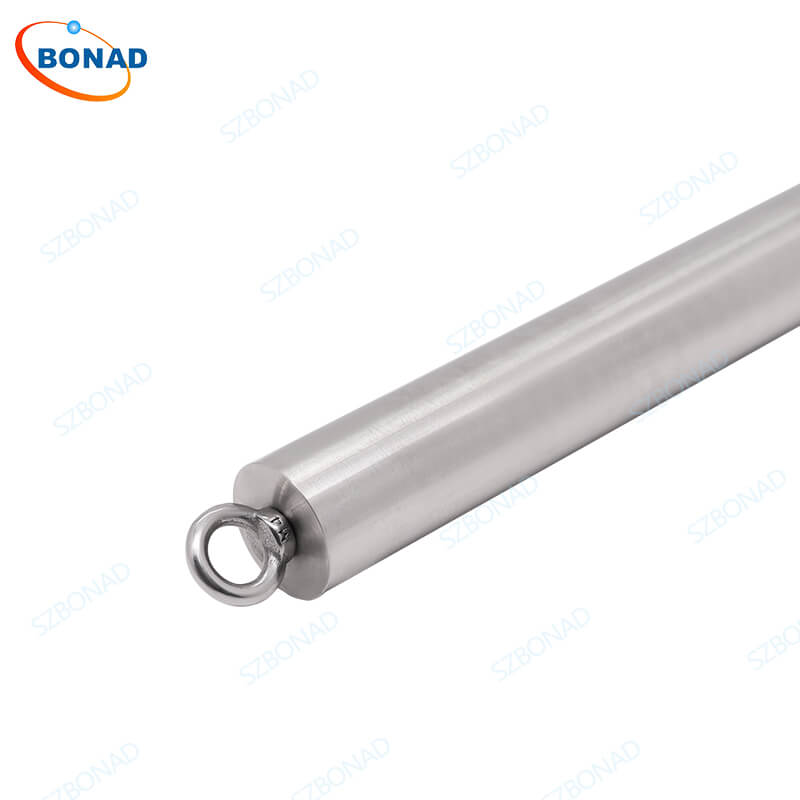

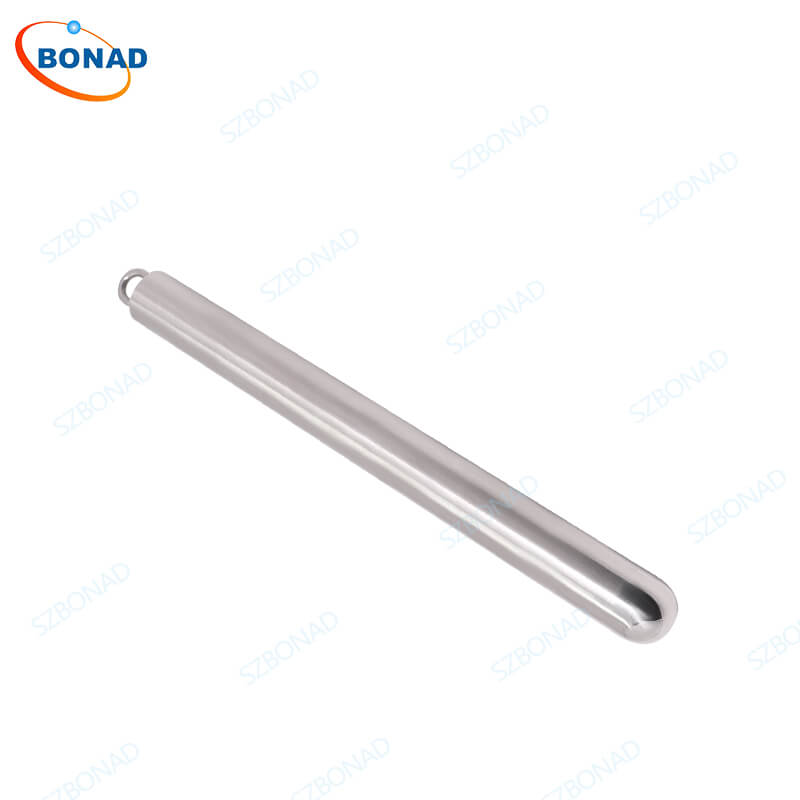

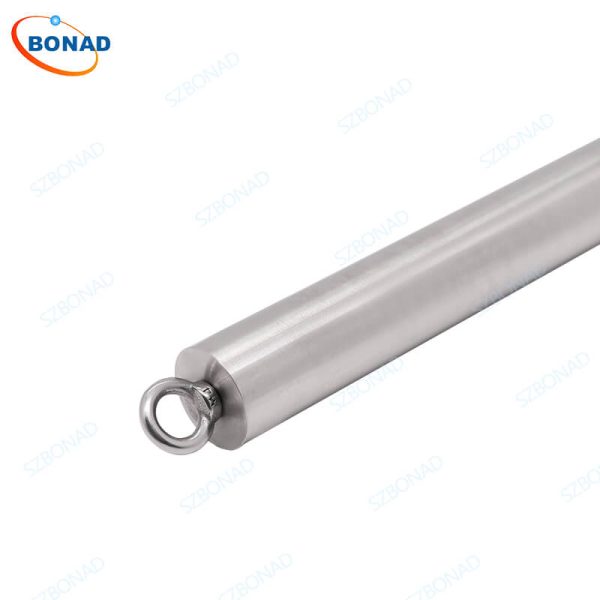

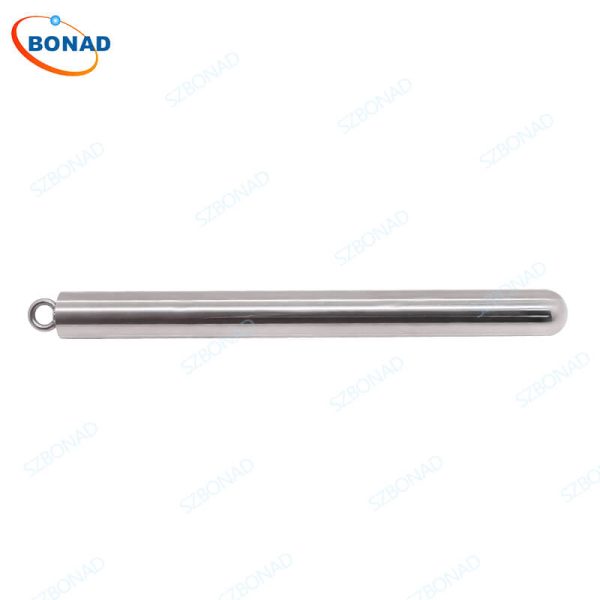

| Probe Diameter | 25mm ±0.2mm (hemispherical design) |
| Ring Dimensions | Inner Diameter: 10mm, Outer Diameter: 15mm (customizable) |
| Frequency Range | 100kHz ~ 6GHz |
| Sensitivity | ≤1mV/(V/m) (typical) |
| Material | High-permeability alloy housing with anti-corrosion coating |
| Interface Type | SMA/BNC (optional) |
Applications
- EMC Testing: Evaluate radiation and immunity of electronic devices to comply with IEC 61000 standards.
- RF R&D: Near-field signal analysis for 5G antennas, microwave modules, and RF circuit optimization.
- Industrial Diagnostics: EMI source localization in automotive, aerospace, and IoT devices.
- Academic Research: Electromagnetic field visualization and high-precision laboratory studies.
Key Features
✅ 3D Field Measurement: Hemispherical design enables omnidirectional field capture, minimizing directional errors.
✅ High Sensitivity: Ring sensor enhances weak signal detection for low-field-strength applications.
✅ Broad Frequency Range: Covers 100kHz–6GHz, adaptable to diverse testing scenarios.
✅ Robust Construction: Corrosion-resistant alloy ensures durability in harsh environments.
✅ Flexible Compatibility: SMA/BNC interfaces integrate seamlessly with spectrum analyzers and oscilloscopes.
