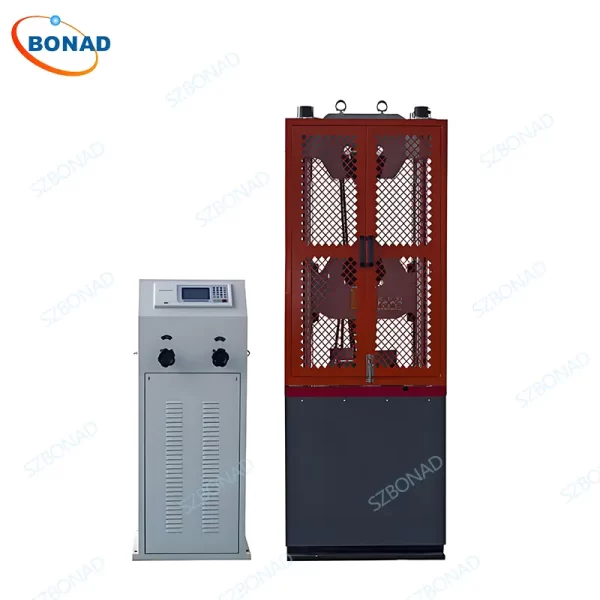

Manual Hydraulic Universal Testing Machine – Tensile/Compression/Bend Tester
Test Principle
Oil is drawn from the tank through a filter into the axial plunger pump. Closing the return valve and opening the supply valve directs high-pressure oil to the working cylinder, driving the piston and crossbeam. Load is measured via a pressure sensor linked to the microcomputer system, which processes data for real-time display and analysis.
Load Frame Design
- Rigid Construction: Precision-steel columns and fixed crossbeam form a high-strength frame.
- Dual Test Zones:
- Upper Space: Tensile tests (via hydraulic wedge grips).
- Lower Space: Compression/bending tests (using platens or rollers).
- Adjustable Crossbeam: Manual height adjustment for flexible test space.
- Protective Cover: Shields operators during sample fracture.
Control Cabinet
- Spray-Coated Enclosure: Rust and moisture-resistant.
- Intuitive Interface:
- Touch keys for test setup (method, parameters).
- Real-time curves and data on LCD.
- Manual Valves:
- Oil Supply Valve: Controls load application speed.
- Oil Return Valve: Unloads pressure post-test.
- Oil Tank: Visible level window; houses a high-pressure plunger pump (minimal leakage).
Fixtures & Attachments
- Hydraulic Wedge Grips
- Auto-clamps round samples (Ø6–40mm) and flat samples (0–30mm thick × ≤75mm wide).
- Compression Platens
- Rugged 160mm-diameter plates for crush testing.
- 3-Point Bend Fixtures
- Adjustable lower rollers (30–600mm spacing) and a 30mm upper roller.
Applications
Widely used in:
- Metallurgy: Metal strength validation.
- Construction: Concrete/brick compression tests.
- Aerospace & Aviation: Component durability checks.
- Manufacturing: Quality assurance for plastics, composites, and raw materials.
- R&D: New material performance analysis.
Key Features
- Open-Loop Manual Control
- Operators manually regulate load/speed via oil supply and return valves for tailored testing.
- Dual-Support Structure
- Two lead screws and columns ensure high bearing strength (up to specified capacity) and stability.
- Multi-Test Capability
- Conducts tensile, compression, and 3-point flexural tests with included fixtures.
- Smart Digital Display
- LCD screen shows real-time force, loading rate, peak values, and test curves.
- Automated Calculations
- Auto-computes tensile strength, yield strength, and max load post-test.
- Built-in Thermal Printer
- Instantly prints test results for documentation.
- Versatile Fixtures
- Includes 3 sets: hydraulic wedge grips (for round/flat samples), compression platens, and adjustable 3-point bend fixtures.
- Safety Protections
- Overload, overvoltage, overcurrent, and limit protection with a safety guard.
- Hand-Held Remote
- Simplifies specimen mounting and crossbeam adjustment.
Technical parameters:
| Model | BND-MHUT-1 | BND-MHUT-3 | BND-MHUT-6 | BND-MHUT-10 | ||
| Capacity | 100 kN | 300 kN | 600 kN | 1000 kN | ||
| Effective Measuring Range of Load | 2 ~ 100 % F.S | |||||
| Load Resolution | Better than 1 % the indicated value | |||||
| Piston Stroke | 250 mm | |||||
| Control Mode | Manual | |||||
| Max Vertical Test Space Between Tensile Grips | 650 mm | |||||
| Max Vertical Test Space Between Compression Platens | 550 mm | |||||
| Front column spacing | 540 mm | |||||
| Acceptable Diameter of Round Specimens for the Tensile Test | 6 mm ~ 26 mm | 13 mm ~ 40 mm | ||||
| Acceptable Thickness of Flat Specimens for the Tensile Test | 0 ~ 15 mm | 0 ~ 30 mm | ||||
| Utmost Width of Flat Specimens for the Tensile Test | 75 mm | |||||
| Diameter of Round Platens for Compression Test | 160 mm | |||||
| Attachments for the Flexural Test | Roller spacing of the lower attachment: 30 ~ 600 mm
Width of the roller: 140 mm Diameter of the roller: 30 mm |
|||||
| Power | AC 380 V / 50 Hz / 3-phase / 5 lines | |||||
| Dimension of the Load Frame | 810 × 560 × 2050 mm | 810 × 560 × 2050 mm | 880 × 580 × 2150 mm | 1060 × 660 × 2450 mm | ||
| Dimension of the Control Cabinet | 580 × 550 × 1280 mm | 580 × 550 × 1280 mm | 580 × 550 × 1280 mm | 580 × 550 × 1280 mm | ||
| Weight | 1500 kg + 320 kg | 1800 kg +320 kg | 2100 kg + 320 kg | 2800 kg +320 kg | ||
Why Choose This Machine?
- Cost-Effective: Manual operation reduces complexity and price.
- Time-Saving: Dual test zones eliminate fixture switching.
- Precision: Real-time data and automated calculations ensure accuracy.
- Versatility: 3 included fixtures handle diverse sample types.
- Durability: Steel frame and protective features for long-term use.
