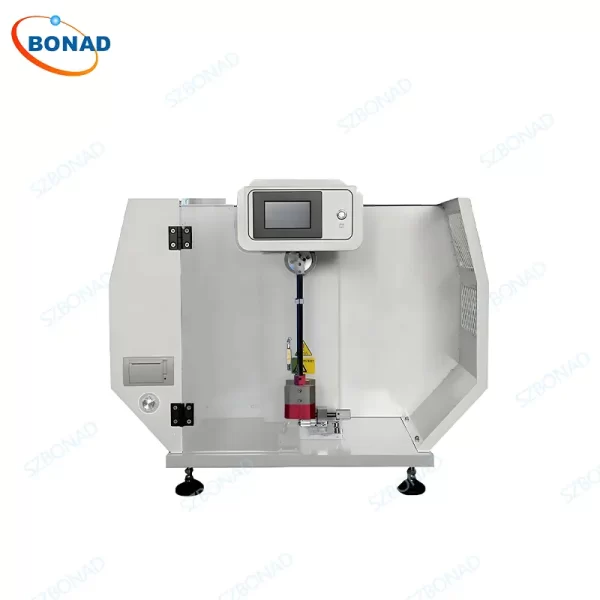

IZOD Pendulum Impact Tester – BONAD High-Precision Material Testing Machine
Standards:
- International: ISO 179 (Plastics – Charpy Impact Strength), ISO 180 (Izod Impact Testing), ISO 8256 (Plastic Film Impact)
- ASTM Standards: ASTM D256 (Plastic Notched Impact), ASTM D4812 (Plastic Film Impact)
- European: BS 2782 (Plastics Testing), DIN 51222 (Material Impact Testing)
Applications
- Material Research: Measure energy absorption of plastics, composites, ceramics, and polymers.
- Quality Assurance: Test impact resistance of automotive components, electronic housings, and packaging materials.
- Academic Studies: Analyze temperature-dependent toughness (e.g., low-temperature brittleness).
- Industrial Use: Aerospace, construction, and electrical insulation material testing.
Features:
Precision Engineering
▸ High-resolution digital encoder ensures angle measurement accuracy ≤±0.1°.
▸ Carbon fiber pendulum arm improves rigidity by 30% for optimized energy focus.
Smart Operation
▸ 7-inch LCD touchscreen with dual-language (English/Chinese) interface.
▸ Auto-calculation of impact strength (units: J/m, KJ/m², ft-lb/in, etc.).
▸ Built-in microprinter for instant test reports.
Enhanced Durability
▸ Aerodynamic hammer design + premium ball bearings reduce friction loss by 45%.
▸ Anti-vibration structure ensures <3% test repeatability error.
Data Management
▸ Stores 24 test results for comparative analysis.
▸ LIMS-compatible data export via USB or Bluetooth.
Technical Specifications:
| Model | BND-IZOD |
| Pendulum Energy | 2.75 J / 5.5 J |
| Energy Accuracy | 0.01 J |
| Display Method | touch screen LCD |
| Pendulum Lift Angle | 150° |
| Angle Accuracy | 0.01° |
| Impact Velocity | 3.5 m / s |
| Center Distance of Pendulum | 335 mm |
| Distance Between Impact Blade and Vice Jaw | 22 mm |
| Notch Corner Radius | R=0.8 ± 0.2 mm |
| Test Result Output | Printed |
| Power Supply | 220V 50 Hz 1 Phase or specified |
