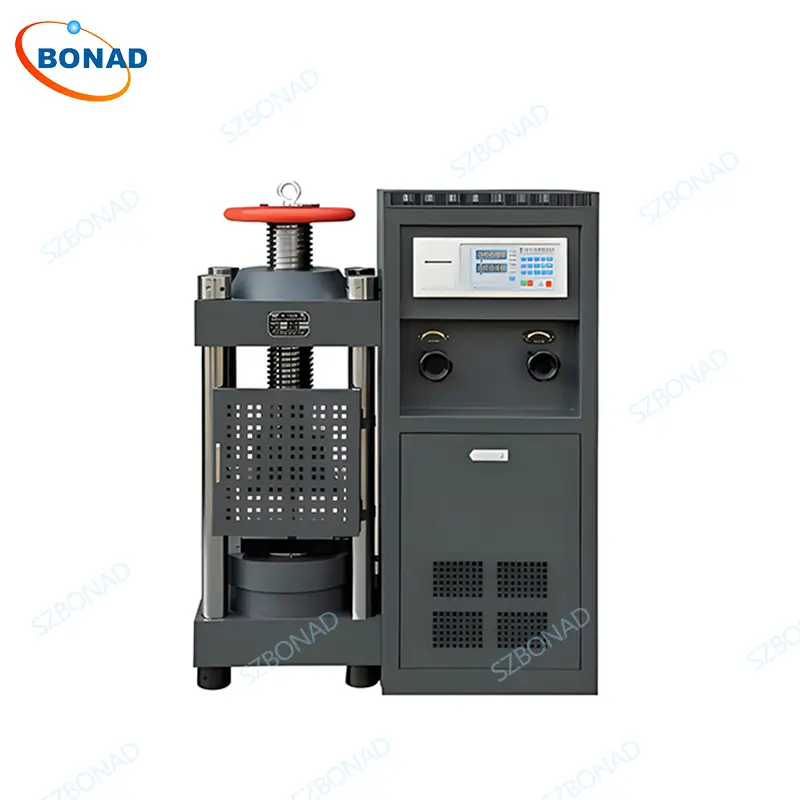

ISO 7500-1 Concrete Compressive Strength Testing Machine – BONAD Concrete Cube Crushing Machine
Standards:
- ISO 7500-1: Metrological verification of static uniaxial testing machines.
- ISO 679: Determination of strength of cement.
- EN 12390-3: Testing hardened concrete – Compressive strength of test specimens.
- ASTM C39/C39M: Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens.
Applications:
This versatile testing machine is indispensable for determining the compressive strength of:
- Concrete Cubes & Cylinders
- Cement Composites & Mortars
- Bricks, Blocks, and Pavers
- Natural Building Stone
- Other Structural Building Materials
It is widely used in: - Construction Materials Laboratories
- Quality Control/Quality Assurance (QC/QA) Departments
- Civil Engineering & Structural Design Firms
- Highway, Bridge, and Dam Construction Projects
- Research & Development (R&D) Facilities
- Precast Concrete Plants
- University Engineering Departments
Features:
- ISO 7500-1 Compliant Design: Ensures accuracy and traceability for force measurement.
- Integrated Hydraulic System: Load frame and control cabinet in one robust unit for stability.
- Manual Hydraulic Control: Precise load and speed adjustment via handwheel-operated valves (Oil Supply & Oil Return).
- Real-Time Digital Monitoring: Dual screens display instantaneous load (kN) and loading rate (kN/s) for optimal control during manual testing.
- Peak Load Hold Function: Automatically captures and displays the maximum compressive force achieved.
- On-Site Test Reporting: Built-in thermal printer generates immediate hard copies of test results.
- Adjustable Test Space: Manual handwheel adjusts the upper platen height (up to 330mm) to accommodate various sample sizes.
- Operator Safety: Protective door encloses the test area; overload protection automatically stops the pump if capacity is exceeded.
- Durable Construction: Four-column load frame and sturdy platens built to withstand high pressures repeatedly.
- Customization Available: BONAD offers standard configurations and tailored solutions to meet specific testing requirements.
Technical parameters:
| Model | BND-CCST-2000 | BND-CCST-3000 |
| Capacity | 2000 kN | 3000 kN |
| Measuring Range | 4 % ~ 100 % F.S | |
| Relative Error of Force | Less than ± 1 % of the indicated value | |
| Adjustment Method of Test Space | Wheel operated (Motorized model is optional) | |
| Piston Stroke | 30 mm | 50 mm |
| Size of Pressure Platen | 260 × 300 mm | 370 mm × 370 mm |
| Max. Test Space | 320 mm | 330 mm |
| Dimension | 800 × 500 × 1200 mm | 1000 × 600 × 1500 mm |
| Weight | 750 kg | 1800 kg |
| Power Supply | AC 380 V / 0.75 KW / 3-phase | AC 380 V / 1.1 KW / 3-phase |
Why Choose BONAD?
BONAD delivers reliable, standards-compliant concrete testing equipment at competitive prices. Our ISO 7500-1 Concrete Compressive Strength Testing Machine combines precision engineering, user-friendly operation, and essential safety features. We provide comprehensive support and customization options to meet your exact testing needs.
