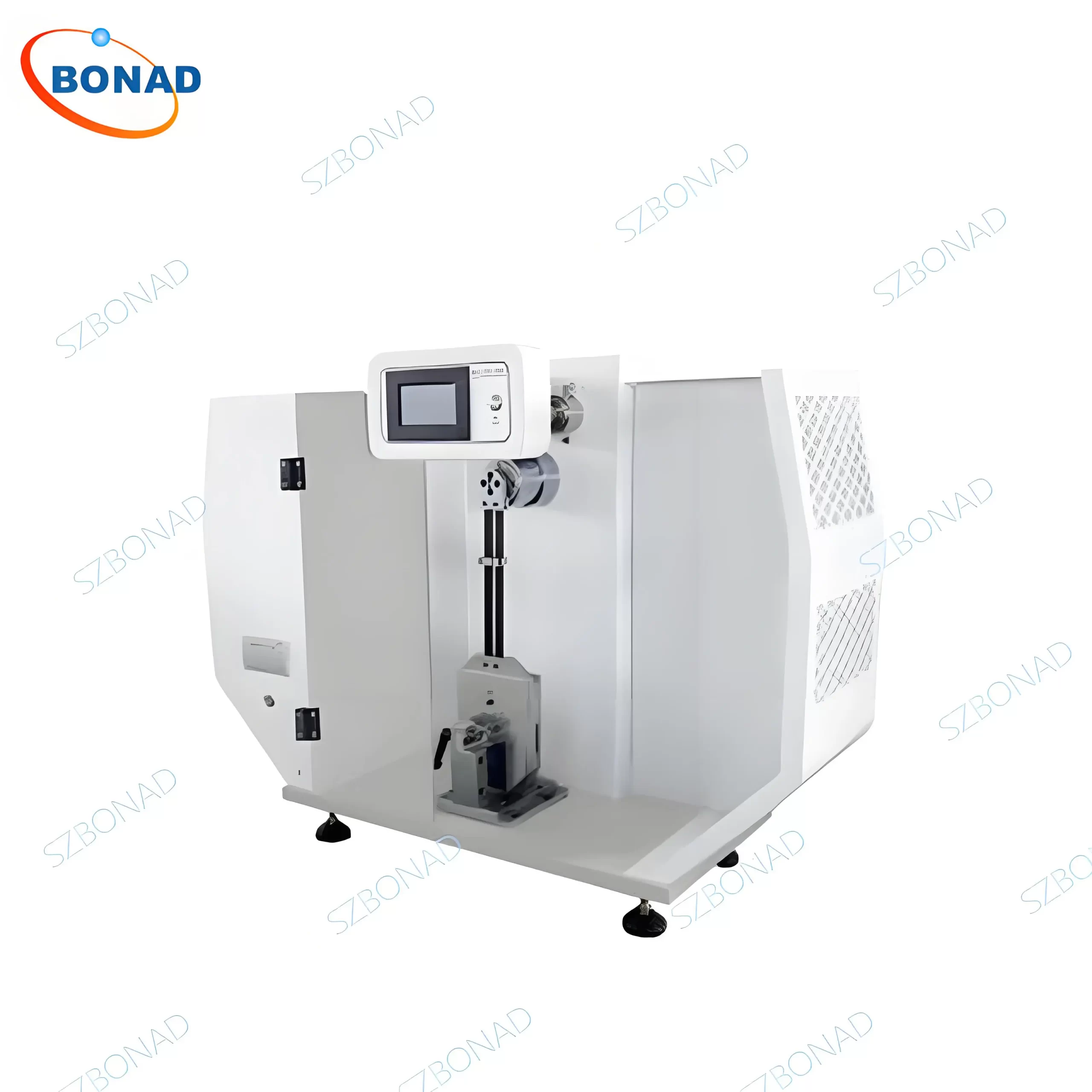

ISO 179 Charpy Impact Tester – Pendulum Impact Testing Machine for Plastics & Composites
Standards:
- Charpy Impact Tests: ISO 179-1/-2, ASTM D6110
- Izod Impact Tests: ISO 180, ASTM D256, ASTM D4812
- Tensile Impact Tests: ISO 8256 Methods A/B, ASTM D1822
- *Adjustable specimen spans (40mm/60mm/70mm/95mm) for versatile testing configurations*
Applications:
- Plastic Product Evaluation: Automotive components, electronics housings, packaging materials
- Composite Material Analysis: Aerospace parts, wind turbine blades, CFRP/GFRP
- Ceramic Brittleness Testing: Industrial ceramics, biomedical implants
- Academic Research: Material science experiments, mechanical engineering labs
- Quality Certification: ASTM/ISO-compliant validation for global market access
Features:
Precision Engineering
▸ Carbon fiber pendulum with 30% enhanced rigidity for vibration-free operation
▸ PLC-controlled system + high-resolution encoder (<±1% error)
▸ Automatic correction for air resistance and friction energy loss
Smart Operation
▸ 7-inch LCD displays 12+ parameters (impact energy, strength, angle, mean value)
▸ Auto-calculation for J/m, KJ/m², kg-cm/cm unit conversions
▸ 24-test data storage with batch averaging
Safety & Efficiency
▸ OSHA-compliant enclosed safety guard with anti-shatter design
▸ Built-in thermal printer for instant report generation
▸ Interchangeable pendulums (1J–50J) with dual impact speeds (2.9 m/s & 3.8 m/s)
Versatile Configuration
▸ 4 testing modes: edgewise, flatwise, vertical, and parallel impact
▸ Universal grips for notched/unnotched specimens
▸ 220V/50Hz plug-and-play setup for lab environments
Technical Specifications:
| Model | BND-ICIT | ||
| Pendulum Energy | 1 J, 2 J, 4 J, 5 J | 7.5 J, 15 J | 25 J, 50 J |
| Control Method | PLC + Color touch screen | ||
| Pendulum Angle of Elevation | 150° | ||
| Impact Velocity | 2.9 m/s | 3.8 m/s | 3.8 m/s |
| Center Distance of Pendulum | 230 mm | 395 mm | 395 mm |
| Angle Resolution | 0.01° | ||
| Energy Resolution | 0.01 J | ||
| Spacing of Support Blocks | 40 mm, 60mm, 70mm, 95mm (or customized) | ||
| Supporting Blade Radius | R 1 mm | ||
| Impact Blade Angle | 30° | ||
| Impact Blade Radius | R 2 mm | ||
| Power Supply | 1 Phase, 220V 50Hz or specified | ||
