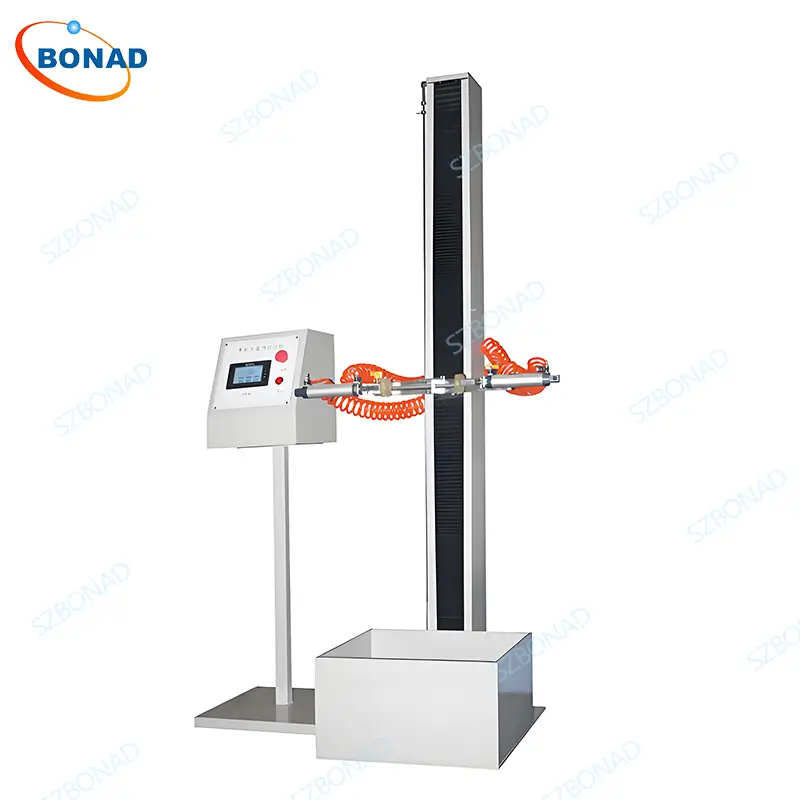

Free Fall Drop Test Machine for Electronic Products – BONAD Drop Tester
Standards
- IEC 60068-2-32 (Environmental Testing – Drop & Topple)
- JIS C 0044 (Japanese Industrial Standard)
Applications
Designed for unpackaged electronics requiring shock resistance validation:
- Smartphones & Tablets
- Wearables (Smartwatches, Earphones)
- Laptop Components & Electrical Parts
- Consumer Gadgets & Small Industrial Devices
Features
- Intelligent Clamping System
- Pneumatic/vacuum grips with silicone rubber jaws prevent specimen damage.
- Adjustable clamp width accommodates diverse product sizes (e.g., phones, sensors).
- Test in any orientation (face, edge, corner drops).
- Precision Height Control
- Electric height adjustment with calibrated scale for exact drop replication (up to 1.5m typical).
- Digital tracking ensures repeatable results.
- Dual Testing Modes
- Grip Release: Pneumatic hold → instant drop.
OR - Flip-Arm Mechanism: Support arms retract simultaneously for true free-fall.
- Grip Release: Pneumatic hold → instant drop.
- Multi-Surface Impact Plates
- Test on steel, marble, cement, or wood to replicate real-world surfaces.
- Efficiency & Reliability
- Electric lifting + pneumatic release for fast, accurate positioning.
- Low-noise operation with high repeatability (meets lab standards).
Technical parameters:
| Model | BND-FFDT |
| Specimen Max. Weight | 3 kg or 5 kg |
| Drop Height | 300mm ~ 1500 mm (Standard), 2000 mm and 3000 mm available |
| Drop Height Display | Scale on the vertical shaft, minimum scale value：1 mm |
| Lifting Method | Electric lifting (A motor drives the screw moving up and down) |
| Clamp Method | Pneumatic arm |
| Pneumatic Arm Width | (3 ~ 120) mm adjustable. The wider ones available |
| Drop Gesture | Flat, Edge, Corner |
| Drop Mode | Free fall |
| Impact Floor Material | Steel plate, marble, Cement slabs, Wood board (Optional) |
| Machine Overall Dimension | W 700 × D 600 × H 1850 mm |
| Weight | 100 kg |
| Power Supply | 1 Phase, AC220 V, 50 / 60 Hz or specified by users |
| Air Supply | 0.4 Mpa ~ 0.8 Mpa |
Why Choose Our Drop Tester?
- Damage-Free Testing: Silicone-lined clamps protect delicate specimens.
- Adaptability: Test any product posture or surface type.
- Regulatory Confidence: Full compliance with IEC 60068-2-32/JIS C 0044.
- Zero-Error Results: Programmable height control ensures audit-ready accuracy.
