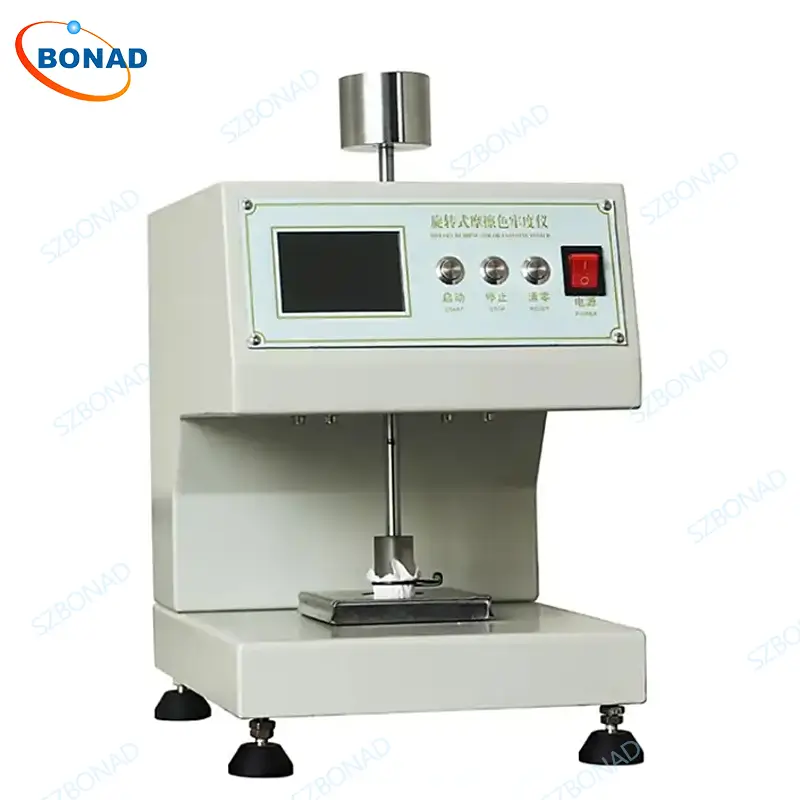

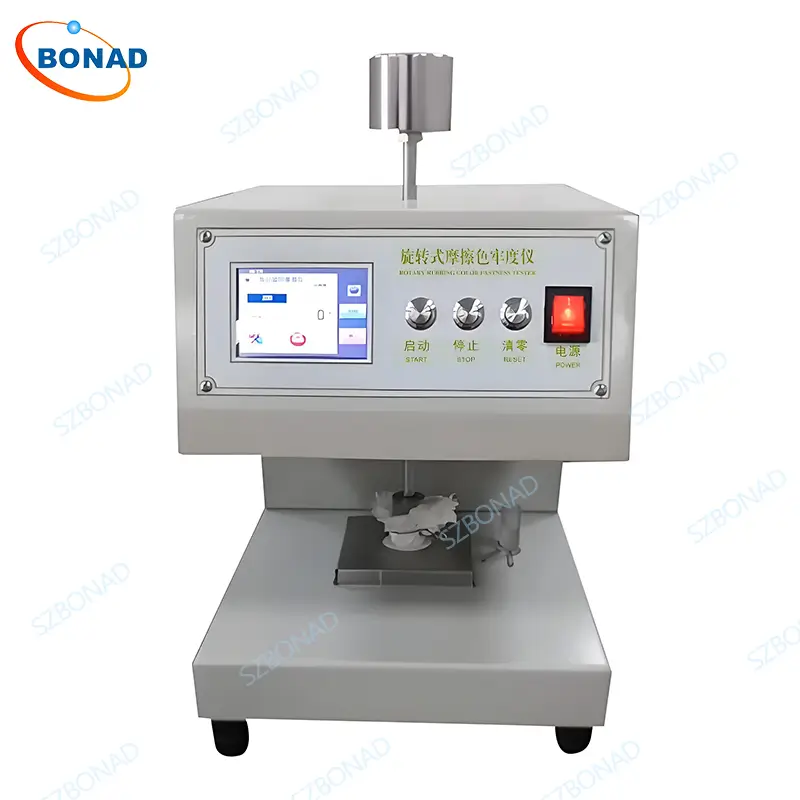

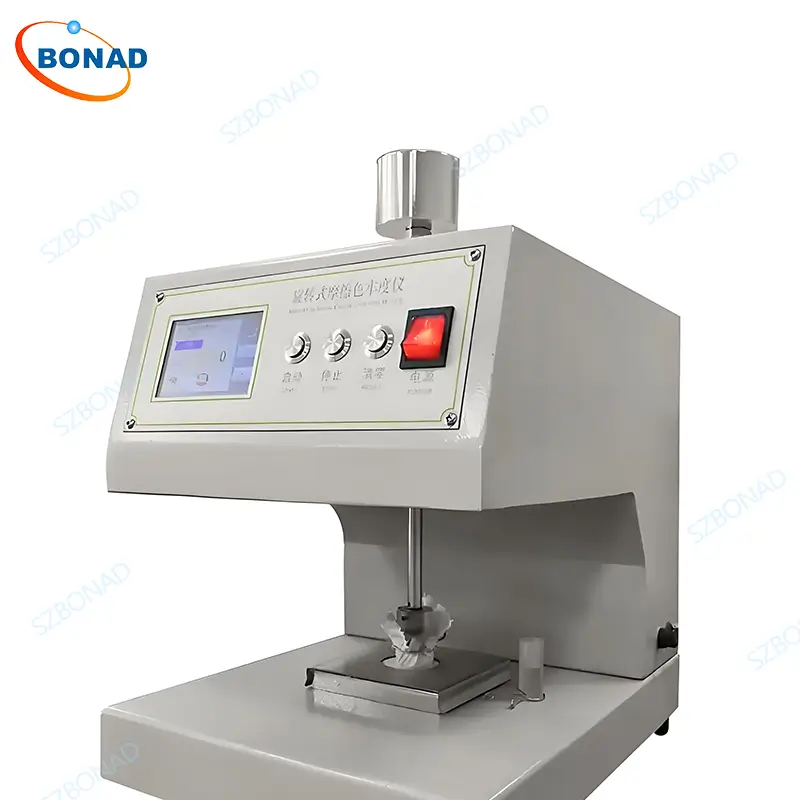

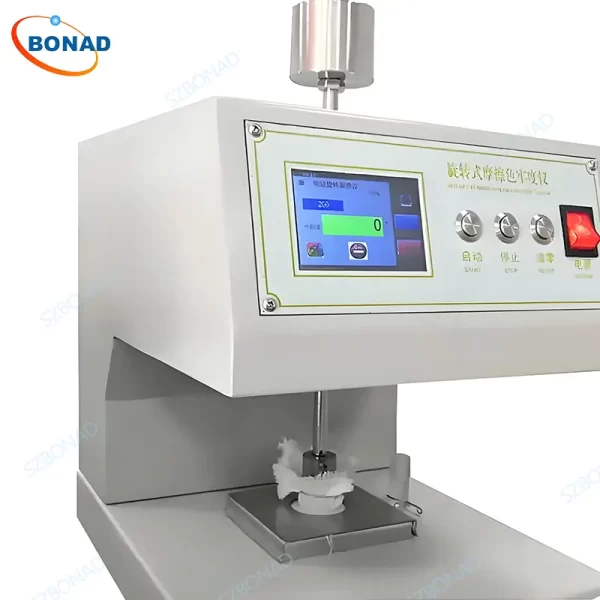

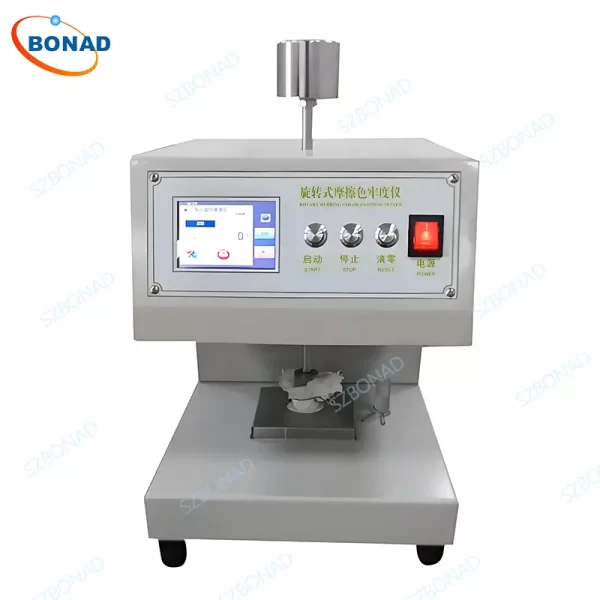

Circular Rubbing Colour Fastness Tester – Leather & Textile Color Transfer Testing Machine
The instrument uses a circular wool felt (dry or wet) to rub against the test specimen under predefined conditions. After a specified number of rotations, results are compared against a gray scale to assess color fastness. Its robust design and microprocessor-controlled operations ensure accurate and repeatable testing.
Applications
The Circular Rubbing Fastness Tester is suitable for:
- Textiles: Testing color fastness of fabrics, yarns, and dyed materials
- Leather & Footwear: Evaluating upper materials, linings, and insocks for color transfer resistance
- Quality Control Labs: Ensuring compliance with international color fastness standards
- Research & Development: Developing new materials with improved rubbing resistance
Test Standards
This tester complies with the following international standards:
- BS EN 13516 Method B: Footwear test for uppers, lining, and insocks color fastness to rubbing
- SATRA TM8: Color fastness to circular rubbing
- ISO 17700 Method B: Footwear test for uppers, lining, and insocks color fastness to rubbing
Key Features
- Durable Construction: Manufactured from quality materials with corrosion-resistant coating for long-term reliability
- Microprocessor Control: Automatically stops after pre-selected cycles, ensuring precise test conditions
- Memory Function: Saves unfinished test data until manually reset, allowing flexible operation
- Adjustable Loads: Supports various load configurations to meet different testing standards
- Versatile Testing Modes: Compatible with dry rubbing, wet rubbing, perspiration rubbing, alcohol rubbing, and organic liquids rubbing (liquids prepared by user)
Technical Parameters:
| Model | BND-RCFT |
| Revolution of Rubbing Axis | 150 ± 5 r / min |
| Load | 7.1 ± 0.2 N or 24.5 ± 0.5 N |
| Wool Felt | External diameter: 25 ± 1 mm, Inner diameter 3 ± 0.5 mm |
| Aluminum Plate | Diameter: 50 mm, Thickness: 12 mm |
| Metal Plate | 75 × 65 × 5 mm, Diameter of bore center: 25 mm |
Why Choose Our Circular Rubbing Fastness Tester?
- Accuracy: Ensures reliable and repeatable results for quality assurance
- User-Friendly: Intuitive controls and automatic operation reduce human error
- Compliance: Meets major international standards for rubbing fastness testing
- Adaptability: Suitable for wide range of materials and testing scenarios
