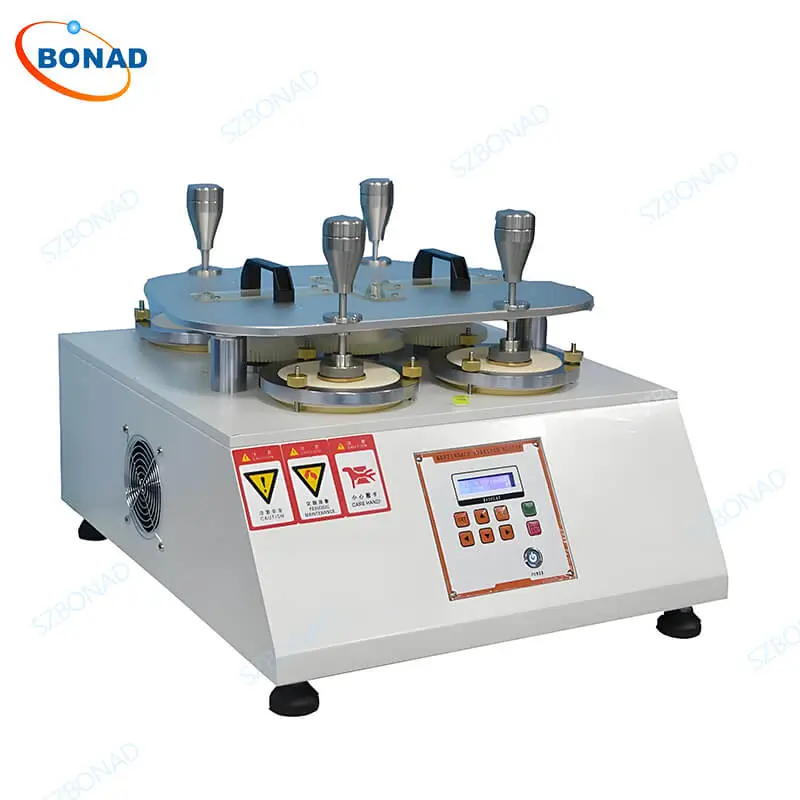

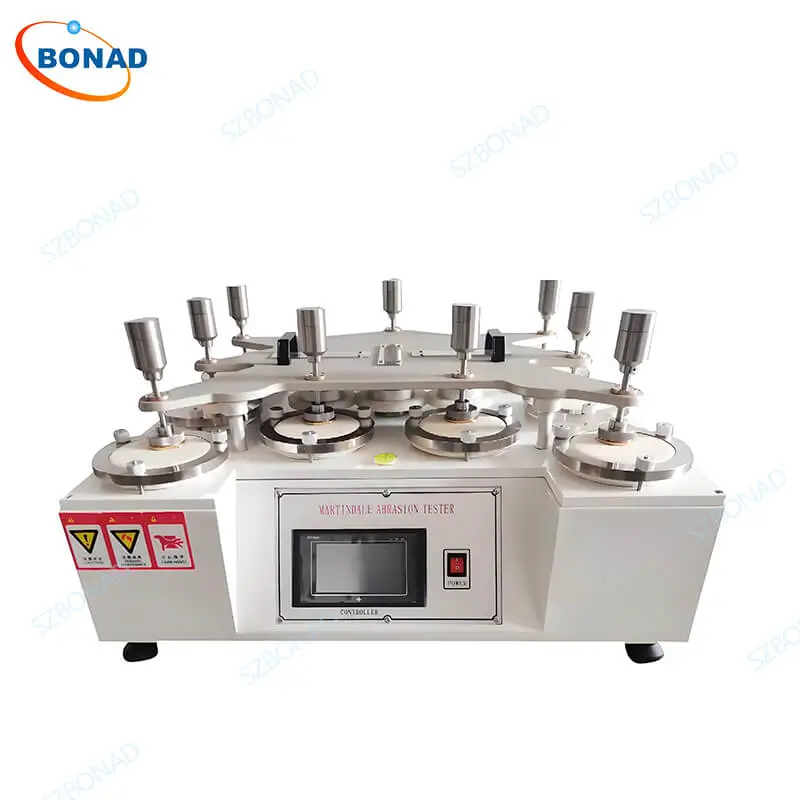

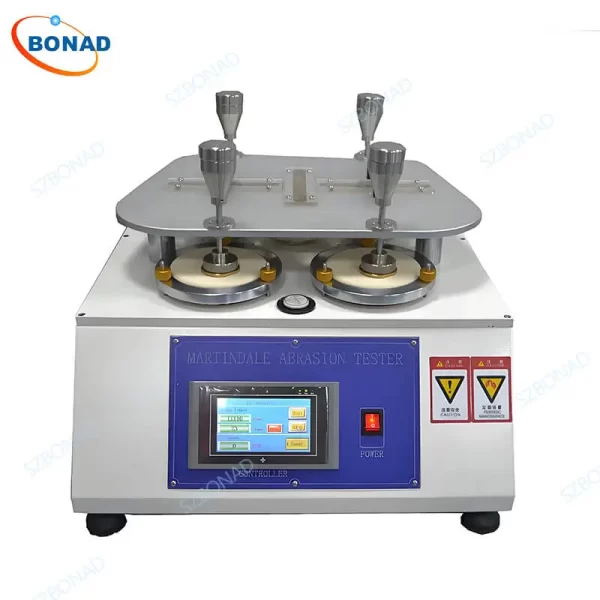

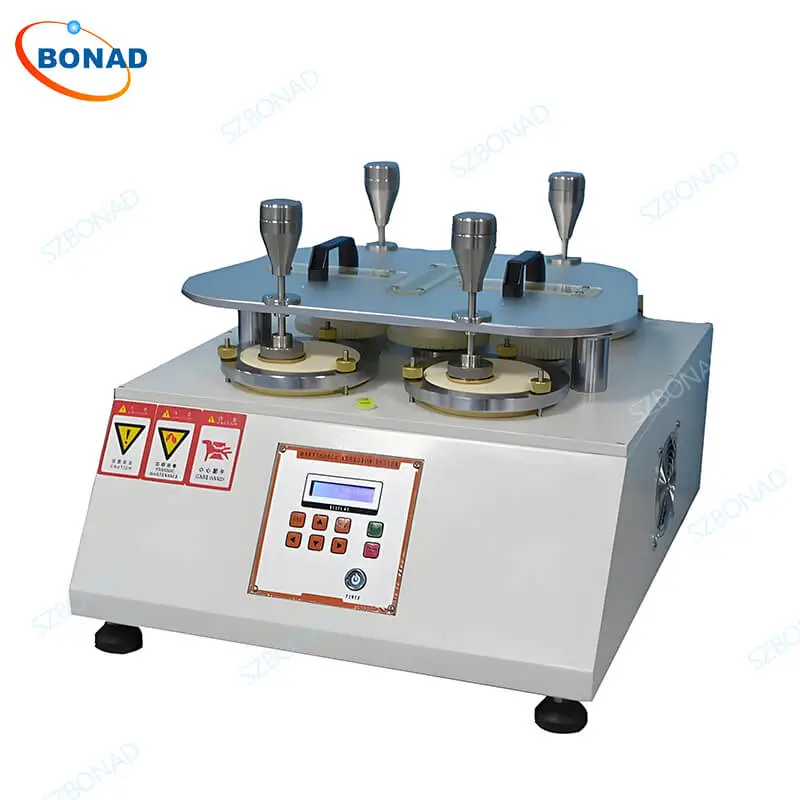

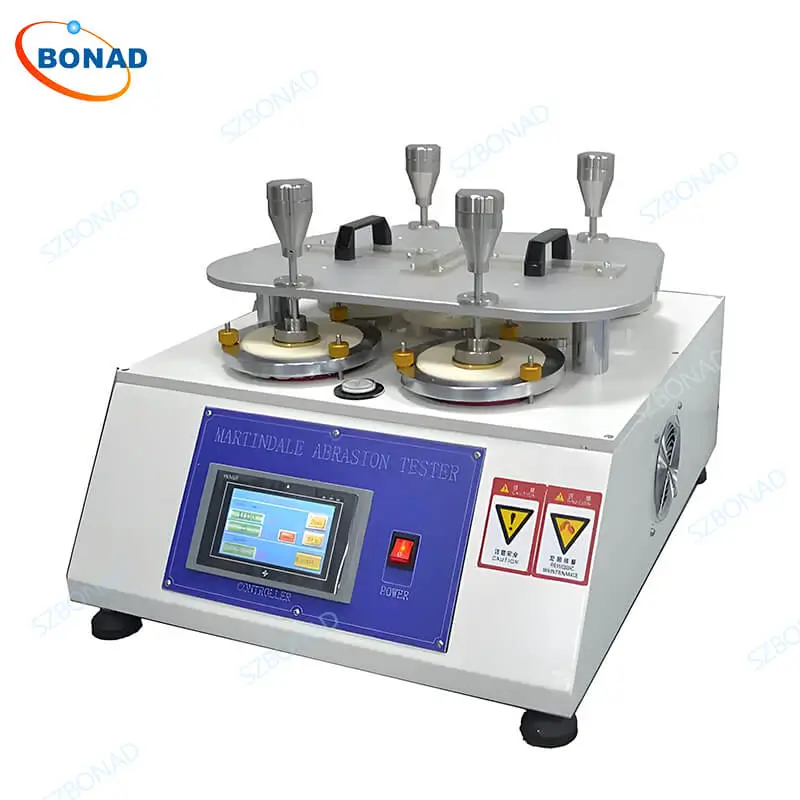

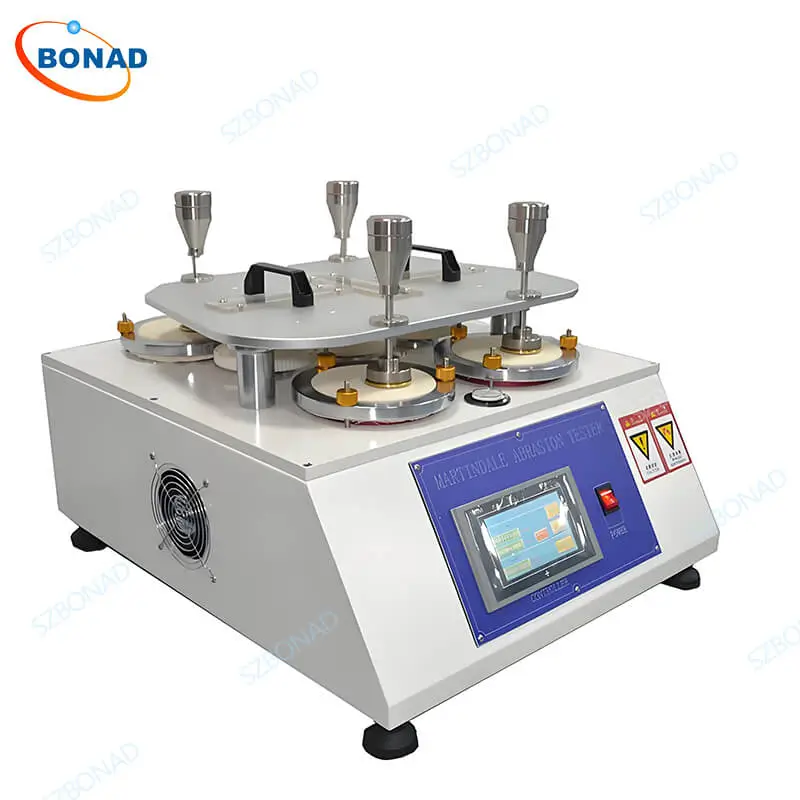

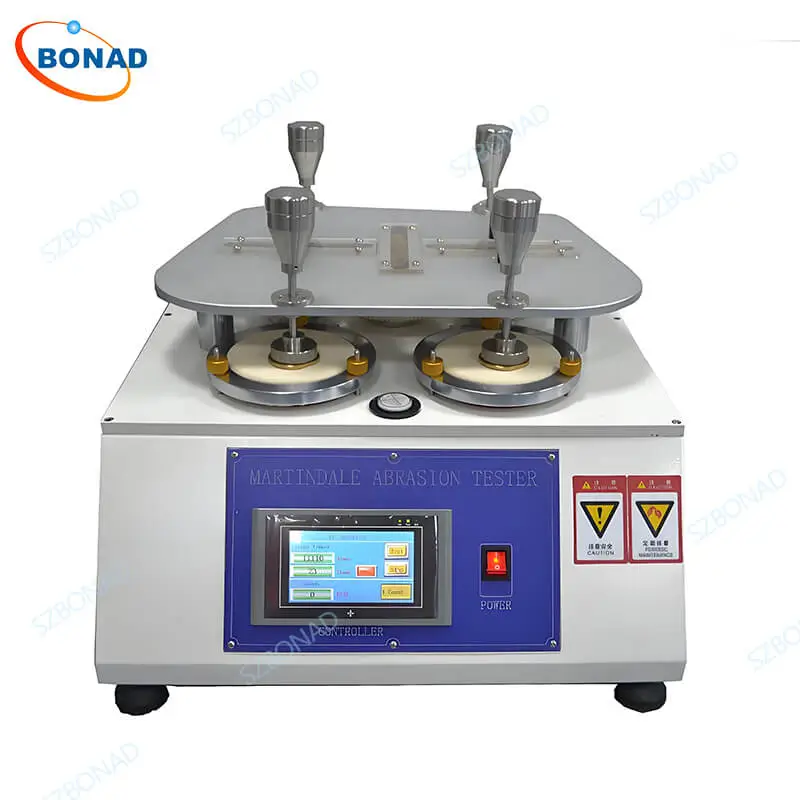

ASTM D4966 Martindale Abrasion and Pilling Tester – Martindale Abrasion Machine Supplier
Test Standards
This tester rigorously adheres to international protocols, including:
- ASTM: D4966, D4970
- ISO: 12945-1, 12945-2, 12947, 17076
- EN: 388, 13770
- BS: EN 388, EN 13770
- JIS L1096
- M&S: P17, P18C, P19, P19A, P19C
- SATRA TM31, PV 3928
Applications
- Textile Manufacturing: Quality control for apparel, upholstery, and technical fabrics.
- Automotive: Testing seat covers, carpets, and interior textiles.
- Laboratories: Compliance verification for ASTM, ISO, EN, JIS, and retail standards (M&S/SATRA).
- Research & Development: Material durability analysis for new fabric blends.
Testing Principles
Abrasion Resistance (ASTM D4966/ISO 12947)
A circular fabric specimen mounted on the holder rubs against standard abrasive fabric in a Lissajous motion under controlled pressure. Abrasion resistance is determined by the number of cycles until fabric failure (e.g., thread breakage or hole formation).
Pilling Resistance (ASTM D4970/ISO 12945)
Specimens rub against each other in a Lissajous pattern under defined load. Post-test, surface changes (pilling/fuzzing) are visually compared against standards to assign a pilling grade.
Key Features & Benefits
- Multi-Station Flexibility
Configurable with 4, 6, 8, or 9 stations for parallel testing. - Dual Motion Trajectories
24mm stroke (pilling) and 60.5mm stroke (abrasion) for diverse standards. - Smart Touch-Screen Control
User-friendly interface with adjustable speed (0–100 rpm) and programmable cycles. - Precision Engineering
Stainless steel construction ensures rigidity, corrosion resistance, and longevity. - Advanced Counting System
Up/down counters with independent station tracking and automatic stop function. - Smooth Operation
Variable-frequency motor minimizes vibration and noise. - Customization Support
Tailored configurations for specialized test requirements.
Technical Specifications
| Model | BND-MAPT |
| Work station quantity | 4/6/8/9 optional |
| Abrading table | Diameter: (121 ± 0.5) mm |
| Pressing weight mass | (2.5 ± 0.5) kg |
| Controller | PLC + LCD |
| Speed | (47.5 ± 2.5) RPM |
| Counter | 0 ~ 999,999,999 |
| Power supply | 1 phase, AC 220 V or 110V (specified) |
| For the Abrasion Test | |
| Maximum stroke of specimen holder movement | (60.5 ± 0.5) mm |
| Weight of the specimen holder & guide spindlle | (198 ± 2) g |
| Holder insert diameter | 38.1 mm |
| Load mass | (395 ± 7) g(595 ± 7) g |
| For the Pilling Test | |
| Maximum stroke of specimen holder movement | (24 ± 0.5) mm |
| Weight of the specimen holder & guide spindlle | (155 ± 1) g |
| Specimen holder diameter | Φ90 mm |
| Load mass | (260 ± 1) g |
Why Choose Our Martindale Tester?
As a leading China-based manufacturer, we combine ISO-compliant engineering with cost efficiency. Our testers deliver:
Accuracy: Repeatable results under standardized conditions.
Durability: Industrial-grade components for 24/7 operation.
Global Compliance: Pre-configured settings for 20+ international standards.
Service Support: Technical assistance and spare parts worldwide.
