Why IPX8 Matters for Product Reliability?
Water resistance is a critical quality attribute for many industrial and commercial products — from electronics and connectors to sensors and portable devices.
The IP (Ingress Protection) rating system, standardized under IEC 60529, classifies how well enclosures resist intrusion by solids and liquids. Within this system, IPX8 represents one of the highest levels of water immersion resistance, where products are tested under defined depth and duration conditions agreed between manufacturer and customer.
Achieving reliable waterproof performance is not only a quality benchmark but often a contractual requirement for industrial procurement. This guide explains what IPX8 testing is, how it’s conducted, and which industrial test machines help you meet the standard with precision, repeatability, and documentation suitable for certifications.
What Does IPX8 Waterproof Testing Mean?
The IP code consists of two digits:
- The first digit indicates protection against solids (dust).
- The second digit indicates protection against liquids.
When a product receives a rating like IPX8, it means:
- X = Dust protection was not tested or not relevant.
- 8 = The product is suitable for continuous immersion under conditions defined by the manufacturer and customer (such as specific depth, time, and water conditions).
Unlike IPX7 (which specifies 1 m immersion for 30 minutes), IPX8 conditions are agreed upon, so testing must be highly controlled and documented.
Key Elements of an Effective IPX8 Test Setup
To ensure that your product meets IPX8 criteria reliably:
Controlled Water Immersion
Testing must occur in an environment where:
- Water depth and pressure are controlled
- Temperature is consistent
- Product orientation is specified
Repeatable Test Conditions
Industrial labs need equipment capable of repeating the same conditions across batches and over time for compliance reporting.
Clear Observation and Recording
For certain products, it’s essential to observe the test in progress and log results, which helps with quality audits and customer acceptance.
Industrial Equipment for IPX8 Testing
High-quality IPX8 testing requires purpose-built machines. Below are two advanced solutions designed for industrial waterproof evaluation:

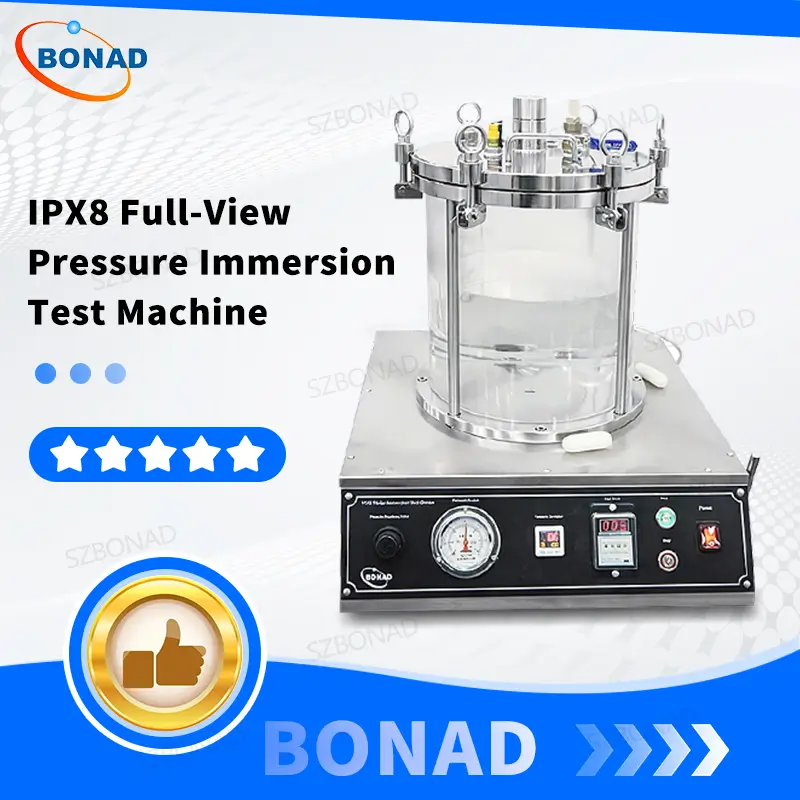

IEC 60529 IPX8 Full-View Pressure Immersion Test Machine with Power Supply
A complete system that allows:
- Real-time visual inspection during immersion
- Controlled pressure and water depth
- Power supply to test products under load
This approach is ideal when functional performance must be monitored while the device is submerged — for example, battery packs, electronic modules, and connectors.

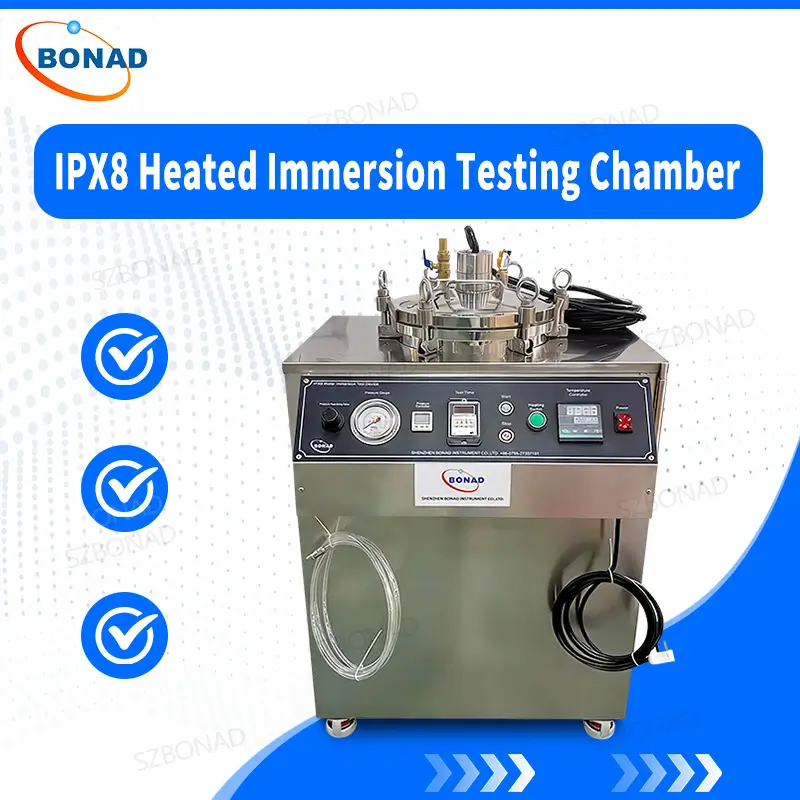

IEC 60529 IPX8 Heated Immersion Pressure Test Chamber
Designed for environments where water temperature affects waterproof performance, this chamber offers:
- Temperature control up to specified limits
- Pressure-regulated immersion
- Precise timing and logging
This equipment is often used for automotive components, outdoor lighting, and industrial sensors where operating temperatures vary.
How IPX8 Testing Is Conducted
A typical IPX8 test workflow includes:
- Preparation: Mount the product in the test tank, assign power/measurement leads if needed.
- Conditioning: Set water temperature and pressure based on agreed parameters.
- Immersion: Submerge the product to desired depth for specified duration.
- Observation: Monitor performance, leakage, or failures during the test.
- Documentation: Record results, time, and environmental conditions for compliance reports.
Industrial watering chambers and immersion pressure systems minimize human error and make documentation consistent — critical for audits and certifications.
Applications of IPX8 Testing
Industries that commonly require IPX8 compliance include:
- Consumer Electronics — for outdoor or wearable devices
- Automotive & Transportation — components exposed to water ingress
- Industrial Sensors & Controls — reliability in wet environments
- Marine & Outdoor Equipment — boats, lighting, anchors
- Medical Devices — instrument housings that tolerate fluid exposure
In each case, buyers consider not just whether a product passes water immersion, but how thoroughly the test is documented and replicable.
Choosing the Right IPX8 Test Equipment Supplier
When selecting test equipment for industrial use, prioritize:
- Standards compliance: Full adherence to IEC 60529 procedures
- Customization: Ability to set test parameters that match product requirements
- Documentation capabilities: Printouts and digital logs for quality records
- Service & support: Calibration, maintenance, and user training
The machines above exemplify systems built for industrial reliability, precise control, and repeatability that B2B customers expect.
Conclusion
IPX8 waterproof testing is a demanding evaluation that goes beyond simple water exposure. It requires controlled immersion, precise pressure regulation, and repeatability — all of which are achievable only with purpose-built industrial equipment. By using advanced test machines like full-view pressure immersion systems and heated pressure chambers, manufacturers and labs can ensure compliance with IEC 60529 and provide robust waterproof performance claims to their customers.
For businesses seeking industrial-grade IPX8 waterproof testing solutions, investing in the right equipment ultimately reduces product failures, enhances customer trust, and supports compliance workflows.
FAQ
What is IPX8 waterproof testing according to IEC 60529?
IPX8 waterproof testing is defined in IEC 60529 as a water immersion test where a product is subjected to continuous immersion under conditions specified by the manufacturer and agreed with the customer. These conditions typically include immersion depth, test duration, water pressure, and temperature, making IPX8 one of the most demanding ingress protection tests.
How is IPX8 different from IPX7 waterproof testing?
The main difference is that IPX7 has fixed conditions (1 meter water depth for 30 minutes), while IPX8 conditions are customizable. IPX8 testing often involves greater depths, longer immersion times, or increased pressure, depending on the product’s intended application. This flexibility requires more advanced immersion pressure test equipment.
What equipment is required for IPX8 waterproof testing?
IPX8 testing typically requires:
- A pressure-controlled immersion test chamber.
- Adjustable water depth and pressure settings.
- Optional temperature control for heated water tests.
- Observation and data recording capabilities.
Industrial-grade systems such as full-view immersion pressure machines or heated IPX8 test chambers are commonly used to ensure repeatability and compliance.
Can IPX8 testing be performed while the product is powered on?
Yes. Many industrial IPX8 test systems support testing with power supply, allowing products to operate during immersion. This is critical for evaluating functional performance, leakage, or failure under real operating conditions, especially for electronic components, connectors, and battery-powered devices.
Why is pressure control important in IPX8 waterproof tests?
Pressure directly relates to immersion depth. As depth increases, water pressure rises and can force water into weak sealing points. Pressure-controlled IPX8 test equipment ensures that test conditions accurately represent real-world underwater environments and remain consistent across multiple test cycles.
Is heated water required for IPX8 testing?
Heated water is not mandatory for all IPX8 tests, but it is often required when:
- Products operate in elevated temperature environments.
- Thermal expansion may affect seals and gaskets.
- Industry or customer specifications demand it.
In such cases, a heated immersion pressure test chamber is recommended.
What products typically require IPX8 waterproof testing?
IPX8 testing is commonly applied to:
- Electronic enclosures and control units.
- Cable assemblies and connectors.
- Automotive and transportation components.
- Outdoor and underwater lighting.
- Industrial sensors and instruments.
Any product exposed to long-term or deep water immersion may require IPX8 validation.
How are IPX8 test results documented for compliance?
Professional IPX8 test equipment provides:
- Test parameter records (depth, pressure, time, temperature).
- Visual inspection logs.
- Optional digital or printed reports.
These records are essential for quality audits, certification processes, and customer acceptance in B2B supply chains.
Can IPX8 waterproof test equipment be customized?
Yes. Most industrial manufacturers offer custom IPX8 test solutions, including:
- Larger or deeper immersion tanks.
- Extended pressure ranges.
- Temperature control options.
- Product-specific fixtures.
Customization ensures the test setup matches real application conditions.
How do I choose a reliable IPX8 waterproof test equipment supplier?
When selecting a supplier, consider:
- Compliance with IEC 60529.
- Experience in industrial and laboratory testing equipment.
- Ability to provide customized solutions.
- Technical support, calibration, and after-sales service.
A reliable supplier ensures accurate testing, repeatability, and long-term operational stability.
