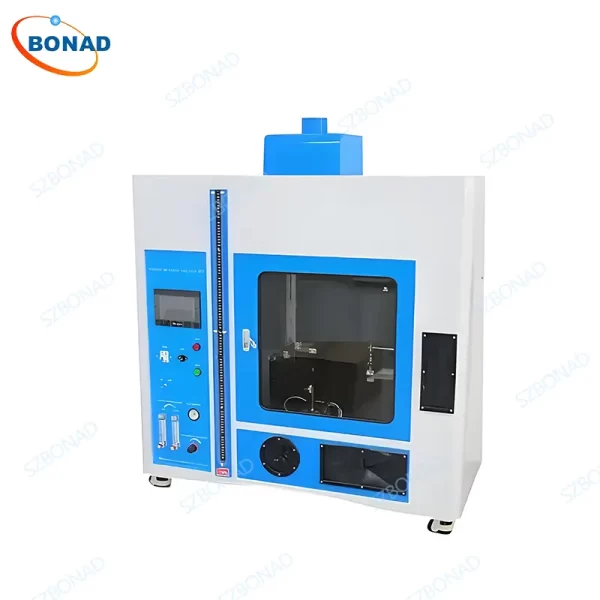

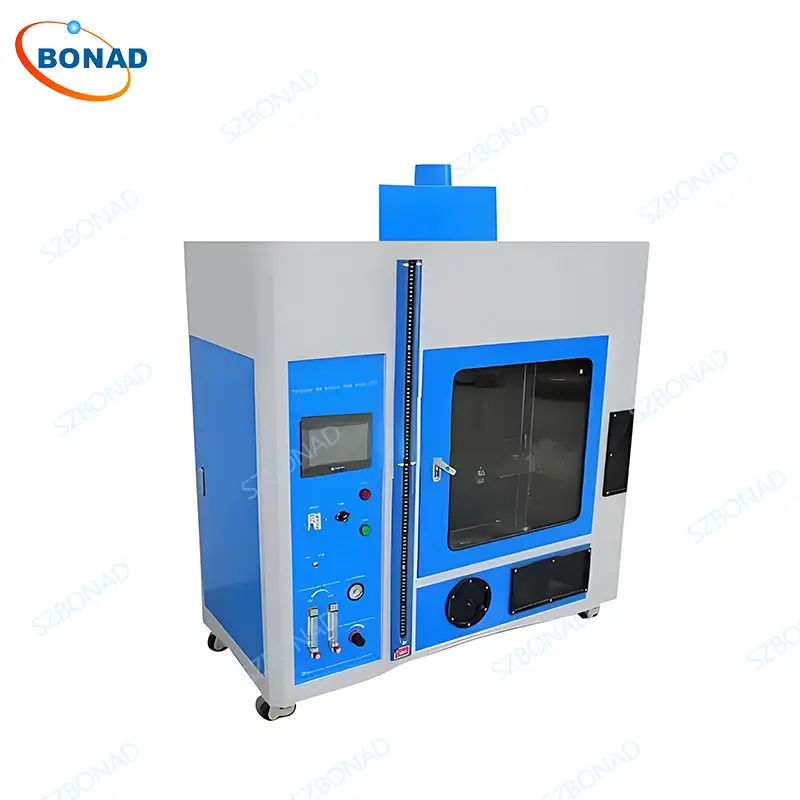

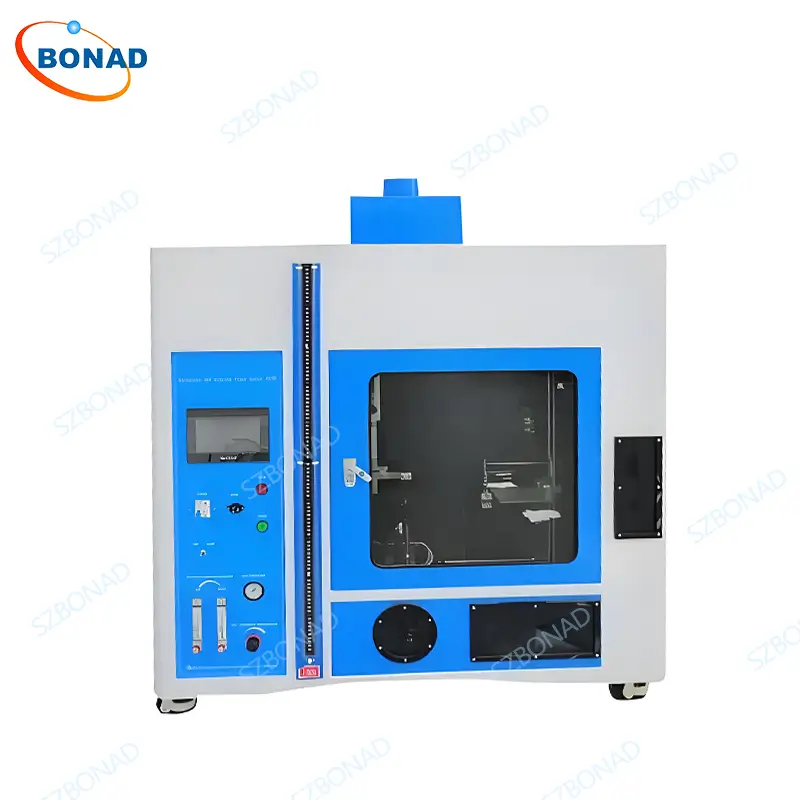

UL 94 Flammability Chamber – Horizontal Vertical Flame Chamber
Standards
Certified for critical international flammability protocols:
- Core Standards: UL94, IEC60695-11-10, IEC60695-11-20
- Additional Compliance: IEC60695-11-2, IEC60695-11-3, IEC60695-11-4
- Industry Methods: ISO 1210, ASTM D635, ASTM D3801, ISO 9773, IEC 707
Applications
Mandatory for safety testing under:
- Electrical/Electronic Products: IEC 62368-1:2018 (Annex S), IEC 60950:2013 (Clause 4.7.3), IEC 60065:2014 (Clause 14.1, 20.2.1, 20.2.4, Annex G)
- Household Appliances: IEC 60335-1 (Clause 30)
- Materials Tested:
- Plastics, solid non-metallics, and foam plastics (ISO845)
- Horizontal/Vertical flammability tests (HB, V-0/V-1/V-2, VTM-0/VTM-1/VTM-2, 5VA/5VB)
Features
1. Precision Flame Control
- Integrated 50W/500W Bunsen burners (US-sourced, Ø9.5±0.3mm) with 20°/45° tilt adjustment.
- Auto-ignition, flame-height adjustment, and timed flame exposure (0.1S gas delay for full combustion).
2. Enhanced Safety & Observation
- Gas-leak detection with audible alarms and automatic gas shutoff.
- Heat-resistant viewing window + matte-black interior for optimal visibility.
- ≥0.5m³ wind-free stainless steel chamber with toxic fume extraction.
3. Smart Automation
- Burner auto-positioning under samples; returns post-test.
- Digital timers record afterflame/afterglow durations.

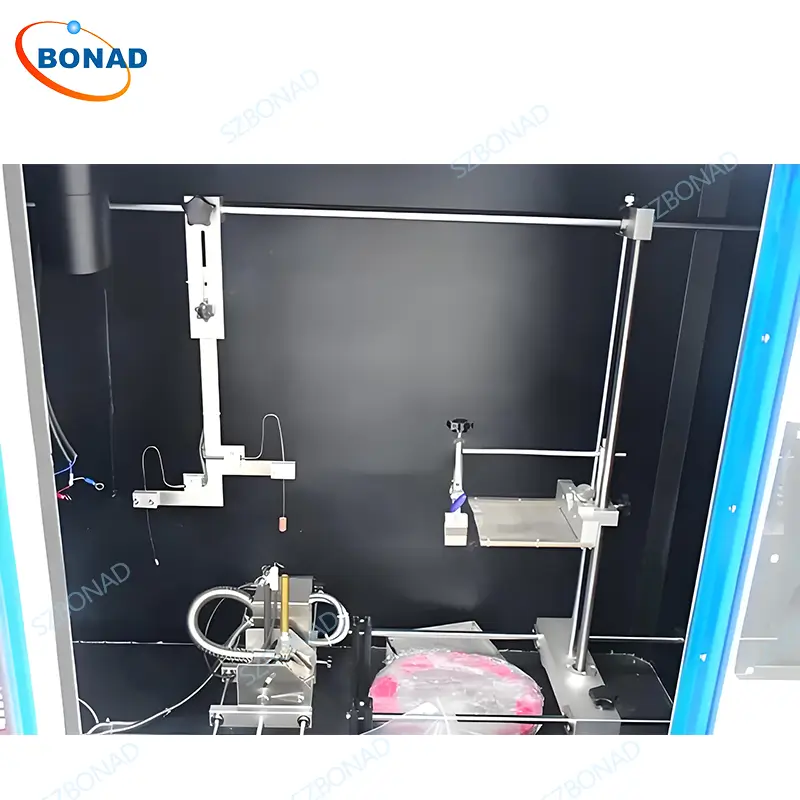

4. Versatile Fixture System
- Multi-directional clamps (up/down/left/right) for HB, V, VTM, 5VA/5VB tests.
- Compatible with horizontal/vertical configurations.
5. User-Centric Design
- LED control panel with one-key operation.
- Durable stainless steel construction, imported high-precision gauges.
Technical parameters:
| Working voltage | 220V/50Hz |
| Power/grade | 50W and 500W double power switching |
| Control operation mode | PLC control, 7-inch color touch screen operation, with infrared remote controller |
| Blast burner standard | IEC60695-11-10/IEC60695-11-20, UL94, etc. inner diameter:Φ9.5±0.3mm,length:100mm,made of brass |
| Gas pressure | 0.1MPa |
| Gas flow | 50W:105±5ml/min or 18±1mm;500W:965±30ml/min or 117±3 mm,flow meter adjustment |
| U type pressure gauge back pressure water column height | 50W:10mm; 500W:125±5 mm |
| Test angle | 50W: 0°,45°; 500W: 20° |
| Burning time | 0-9999X0.1S Can be preset |
| Burning times | 0-9999 times,Can be preset |
| Residual flame/Residual glow | 0-9999X0.1S Can be displayed |
| Test flame calibration | Temperature measuring copper head:50W:Ф5.5mm±0.01mm,weight before drilling 1.76 ± 0 .01 g；500W:Ф9mm±0.01mm,weight before drilling 10 ± 0 .05g |
| Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100° | |
| Distance between the bunsen burner port to temperature measuring copper block:50W: 10±1 mm; 500W: 55±1 mm | |
| Flame height:50W: 20±2mm(there is no internal and external flame); 500W: Inner flame:40±2mm,Outer flame:125±10mm | |
| Temperature rise time from100±2°to 700°±3°50W: 44±2S; 500W: 54±2S | |
| Lighting | Equip with lighting in the test chamber, with control |
| Test chamber and dimension | > 0.75 cube, black inwall, with exhaust fan, dimension:1100*550*1200mm, 140kg |
