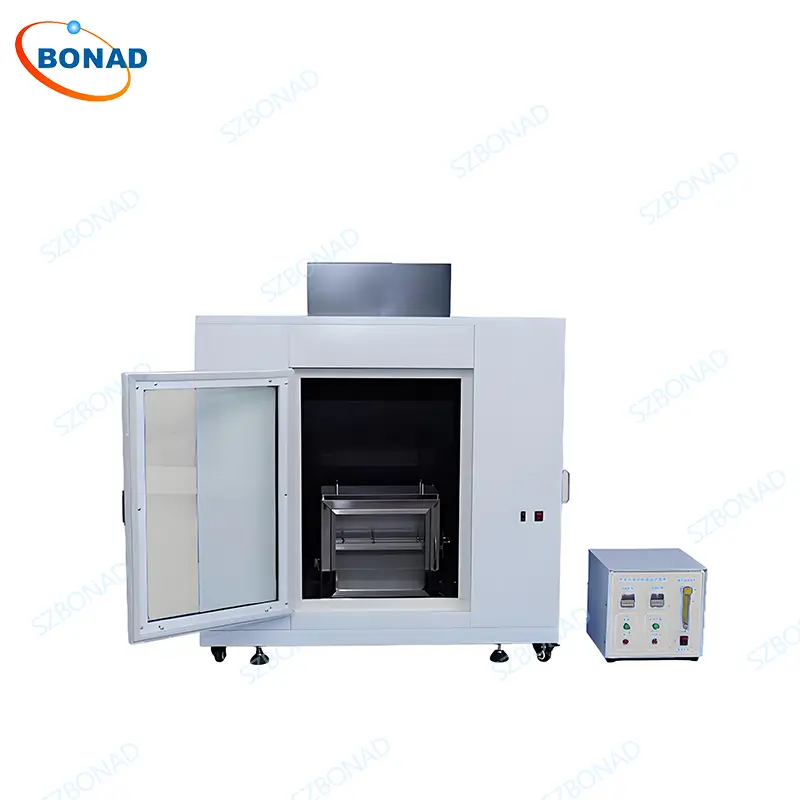

Horizontal Flammability Test Chamber China Supplier – BONAD Test Equipment
Standards
Compliant with globally recognized protocols:
- ISO 17074: Leather – Determination of horizontal burning rate.
- ISO 3795: Fire testing for road vehicles’ interior materials.
Applications
- Automotive Industry: Test leather seats, dashboards, door panels, and other passenger compartment materials.
- Material R&D: Evaluate flame resistance of synthetic/authentic leather for safety certifications.
- Quality Assurance: Ensure compliance with automotive flammability regulations (e.g., FMVSS 302).
Features
- Complete Test Kit:
- Combustion chamber, U-shaped sample holder, gas lamp, fume hood, stopwatch, leather thickness gauge, thermometer, and steel ruler.
- Includes test gas for immediate operation.
- Precision Flame Control:
- Adjustable 38mm flame height with 5-minute stabilization for consistent ignition.
- Automatic 15-second flame exposure timer.
- Flexible Sample Handling:
- U-shaped bracket accommodates varied leather thicknesses.
- Heat-resistant metal mesh option for unstable or narrow samples.
- Safety & Compliance:
- Fume hood vents toxic gases; combustion chamber minimizes external interference.
- Fully aligns with ISO 17074 and ISO 3795 requirements.
- Accurate Measurements:
- Records burn time/distance via stopwatch and steel ruler.
- Auto-calculation of burn rate (mm/min), including “0 mm/min” for self-extinguishing samples.
- User-Centric Design:
- Clear marking lines for burn tracking and intuitive test sequencing.
- Durable construction for high-throughput labs.
Technical parameters:
| Model | BND-HFTL |
| Sample ignition time | 15 s |
| The distance from the bottom of the sample to the bottom of the combustion chamber | 178 mm |
| The distance between the front end of the sample holder and the inner surface of the combustion box | 22 mm |
| The distance between the two longitudinal outer sides of the testing bracket and the inner surface of the combustion box | 50 mm |
| Nozzle inner diameter | 9.5 mm |
| Time setting range | 0 ~ 9999.9 s |
| Resolution | 0.1 s |
Test procedure overview
- Measure leather thickness using the included gauge.
- Secure the sample in the U-bracket (or metal mesh for unstable specimens).
- Ignite and stabilize the 38mm flame for 5 minutes.
- Expose the sample’s free end to flame for 15 seconds.
- Time the burn between two 38mm-marked lines; record distance/time if flame extinguishes early.
- Calculate burn rate: Distance (mm) / Time (min).
