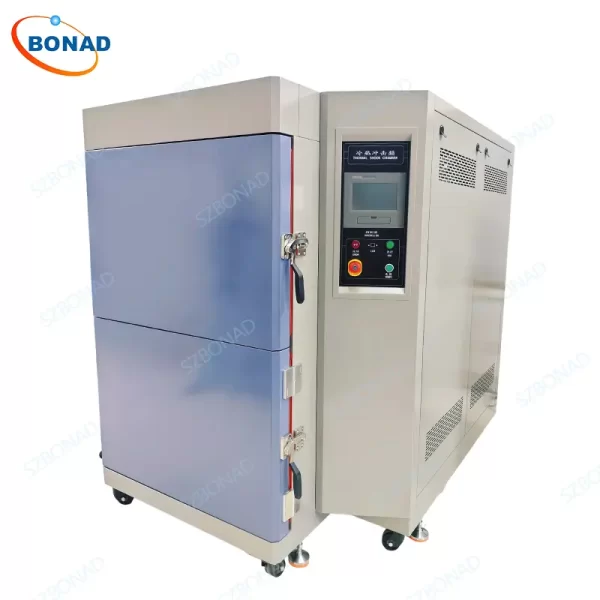

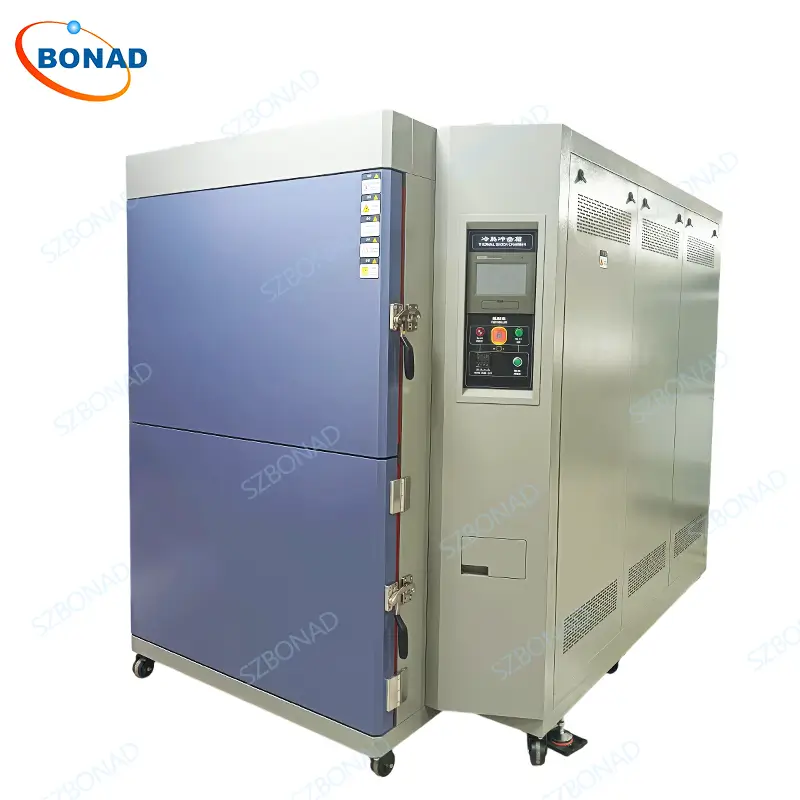

Two-Zone Thermal Shock Test Chamber – High-Speed Temperature Cycling
Compliant Standards
Our Two-Zone Thermal Shock Test Chamber meets rigorous international and industry-specific standards, including:
- GB/T 2423.22 (Chinese National Standard)
- IEC 60068-2-14 (International Electrotechnical Commission)
- MIL-STD-202 (US Military Standard for Electronic Components)
- MIL-STD-883 (US Military Standard for Microcircuits)
- JESD22-A104 (JEDEC Standard for Temperature Cycling)
- GJB 150.5 (Chinese Military Standard)
- EIA-364-32 (Electrical Connector Thermal Shock Testing)
Applications
This chamber is widely used for validating product performance under extreme temperature fluctuations in:
- Electronics & Semiconductors: PCB soldering integrity, IC packaging defects, passive components, connectors, and consumer devices (e.g., smartphones, batteries).
- Automotive: ECU, sensors, LED lights, plastic components, and other parts subjected to seasonal temperature variations.
- Aerospace & Defense: Avionics, military communication equipment, weapons systems, and material reliability under rapid descent/ascent conditions.
- Research & Quality Assurance: Material development, prototype validation, and compliance testing in certified laboratories.
Key Features
- Ultra-Fast Transition Time: Achieves temperature switching in ≤10 seconds (exceeding the ≤15s requirement per GB standards), delivering intense thermal shock effects.
- Extreme Rate of Temperature Change: Samples are directly exposed to stabilized extreme environments, ensuring a significantly higher temperature change rate compared to conventional rapid-rate chambers.
- Rapid Temperature Recovery: Both high and low temperature zones remain stable at all times, enabling quick recovery after each test cycle and ensuring high testing efficiency.
- Energy-Efficient Design: Unlike three-zone chambers, the two-zone design eliminates the need for large pre-heating/pre-cooling zones, reducing power consumption and offering a compact structure.
- Superior Testing Accuracy: A fully sealed chamber minimizes thermal exchange, ensuring exceptional temperature stability and repeatability.
- Advanced Construction:
- Inner Chamber: Fully welded SUS#304 stainless steel (1.2mm thick) for durability and corrosion resistance.
- Outer Casing: 1.5mm cold-rolled steel with anti-scratch brushed, polished, and painted finish.
- Insulation: 100mm thick polyurethane foam for maximum thermal efficiency.
- Sealing: Double-layer silicone rubber door seals.
- Observation Window: Multi-layer tempered glass with built-in heating wire to prevent frost formation.
- Safety & Control Features:
- Programmable timer, over-temperature protection, power-cut alarm, data logging, emergency stop, and test duration display.
- Customizable testing programs and optional real-time monitoring capabilities (with intermediate zone return).
Why Choose Our Two-Zone Thermal Shock Test Chamber?
- Precision Engineering: Balanced Temperature Control (BTC) and dynamic PID-based SSR power regulation ensure long-term stability and accuracy.
- Durability: Robust construction materials and full welding prevent leakage and structural degradation.
- User-Friendly: Intuitive controls, real-time curve recording, and customizable test profiles.
- Global Compliance: Suitable for enterprises requiring adherence to international certification standards.
Contact us today to learn more about how our Two-Zone Thermal Shock Test Chamber can meet your specific testing requirements. Customizable options are available to suit unique application needs.
Model / Specifications:
| Model | Capacity(L) | Inner Case Dimensions(cm) | Outer Case Dimensions(cm) |
| BND-TSTC-50 | 50L | 35x40x35 | 136x162x132 |
| BND-TSTC-80 | 80L | 40x50x40 | 146x170x140 |
| BND-TSTC-100 | 100L | 50x45x45 | 146x170x140 |
| BND-TSTC-150 | 150L | 50x60x50 | 160x185x150 |
| BND-TSTC-252 | 252L | 70x60x60 | 170x195x165 |
| BND-TSTC-480 | 480L | 80x80x75 | 180x210x200 |
Technical Parameters:
| Parameter | Specification |
| Temperature Range | Low Temp. Zone A: -40°C, B: -55°C; C: -60°C; D: -65°C High Temp. Zone: +60°C ~ +150°C |
| Temperature Uniformity | ±1°C |
| Temperature Fluctuation | ±0.5°C |
| Heating Rate (High Temp. Zone) | RT → +200°C in approx. 50 min |
| Cooling Rate (Low Temp. Zone) | RT → -70°C in approx. 70 min |
| Basket Switching Time | ≤ 10 sec |
| Refrigeration Method | Two-stage Refrigeration System |
| Inner Chamber Material | SUS #304 Stainless Steel |
| Outer Chamber Material | High-quality Steel Plate, Electrostatic Spray Coating |
| Cooling Method | Air Cooling / Water Cooling |
| Refrigeration Compressor | Tecumseh Hermetic Compressor (France) / Bitzer Semi-hermetic Compressor (Germany) |
| Controller | LCD Touch Screen |
| Safety Protections | Leakage Circuit Breaker, Phase-failure & Reverse-phase Protection, Overheat & Overload Protection, etc. |
| Power Supply | AC 380V |
