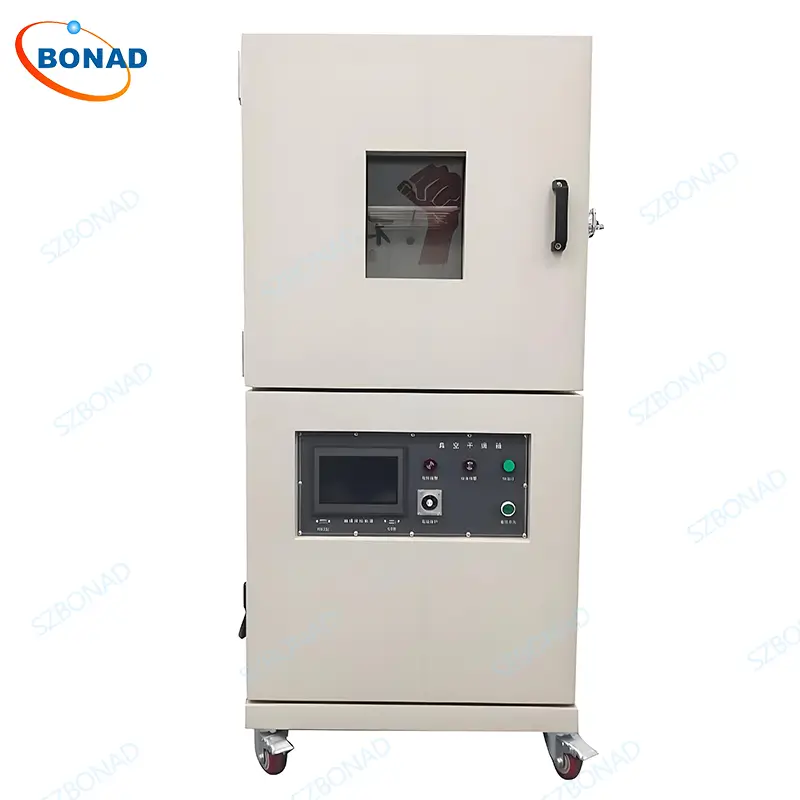

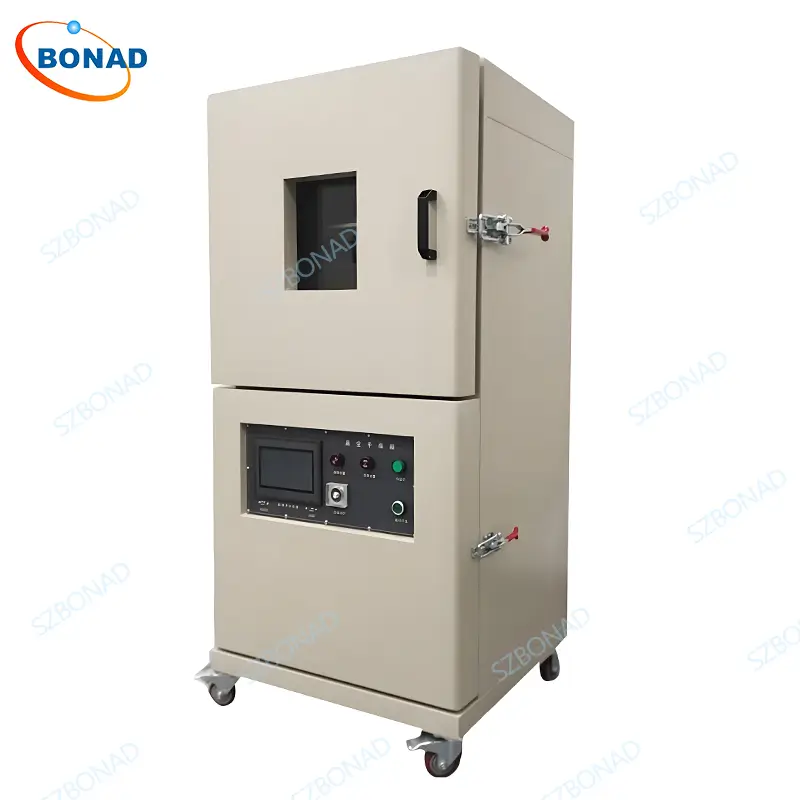

Touch Screen Controlled Vacuum Drying Oven – BONAD Programmable Vacuum Oven
Industry Applications
- Pharmaceuticals: Sterilization of glassware, powder drying, API processing.
- Biochemistry: Dehydration of enzymes, culture media, and sensitive reagents.
- Research Labs: Material testing, component drying (e.g., electronics, porous parts).
- Agriculture: Seed/soil sample preparation.
- Environmental Science: Pollutant analysis, sample preservation.
Key Features & Benefits
- Advanced Touch Screen Control
- 7-inch color touchscreen (U-View Series) for intuitive programming, real-time monitoring (PV/SV), and timer integration.
- Auto-resume function protects parameters during power outages.
- Precision Drying Performance
- Temperature Range: 25°C to 200°C (±0.5°C accuracy, 0.1°C resolution).
- Vacuum Range: 0 to -100 kPa (auto-cycling to maintain set pressure).
- Triple-Sided Heating: Stainless steel heating tubes (left/right/bottom) ensure uniform heat distribution.
- Vacuum & Safety Advantages
- Lowers boiling points for gentle drying of sensitive samples (e.g., powders, granules).
- Inert Gas Safe: Eliminates oxidation/explosion risks.
- Zero Sample Disturbance: No air circulation prevents displacement of lightweight materials.
- Automatic vacuum pump control with over-temperature cutoff.

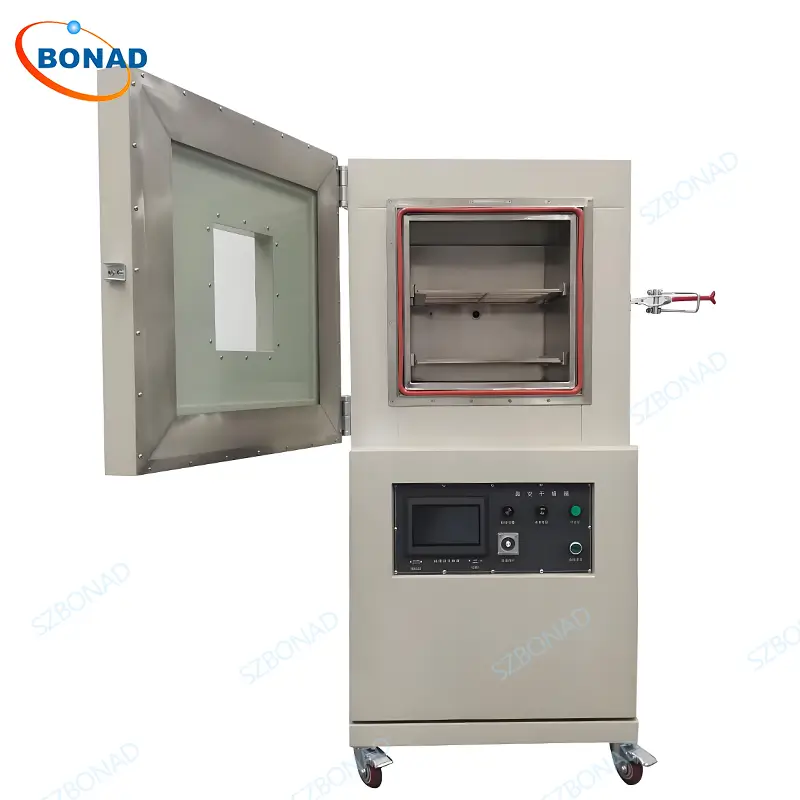

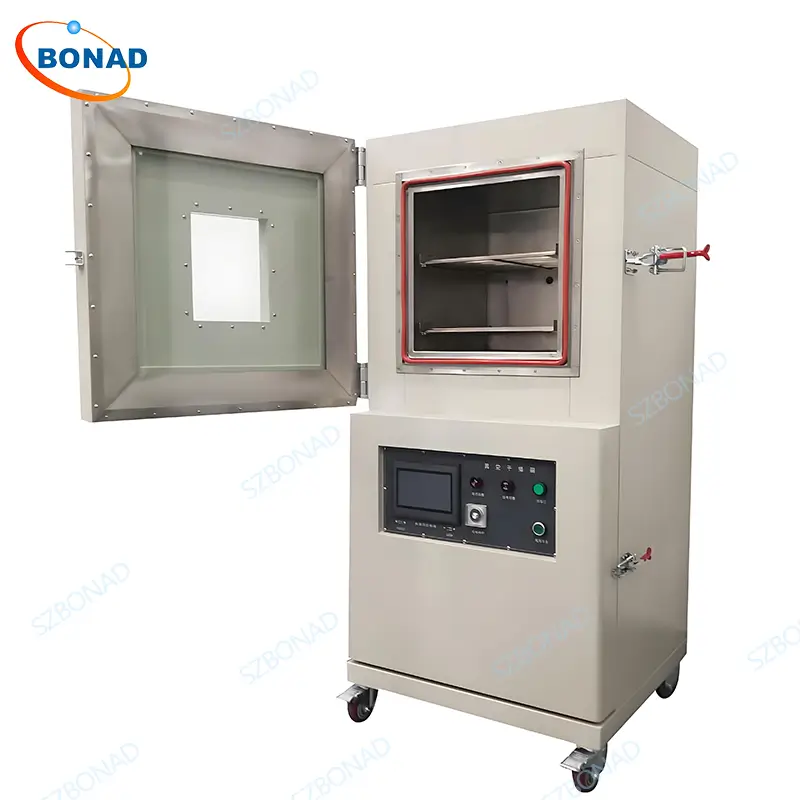

- Robust Construction
- 304 Stainless Steel Chamber (3.0mm, vacuum-reinforced) + powder-coated exterior.
- High-density silicone door seal + 200x250mm viewing window.
- Dual stainless steel mesh shelves + mobility casters.
- Compliance & Certifications
- IEC 61010-1 certified for electrical safety.
- Optional international certifications available (CE, UL, etc.).
Technical Specifications
| Parameter | Specification |
|---|---|
| Chamber Dimensions | 400×400×400mm (W×D×H) |
| External Dimensions | ~700×630×1320mm (with casters) |
| Temperature Range | 25–200°C |
| Vacuum Depth | 0 to -100 kPa |
| Leak Rate | ≤1.0 kPa/hour |
| Power Supply | 220V/50Hz, 20A, 4.5KW |
| Vacuum Pump | VP-3 Direct-Drive (0.37KW, includes exhaust kit) |
| Control System | PID + SSR, PT100 Sensor |
| Safety Protections | Over-temperature cutoff, ground-fault, overload |
Why Choose This Vacuum Drying Oven?
- Speed & Efficiency: 50% faster drying vs. conventional methods.
- Sample Integrity: No residue, no oxidation, no physical disturbance.
- User-Centric Design: One-touch pressure/temperature automation + mobile cart.
- Customizable: Available in larger sizes/configurations (contact for details).
