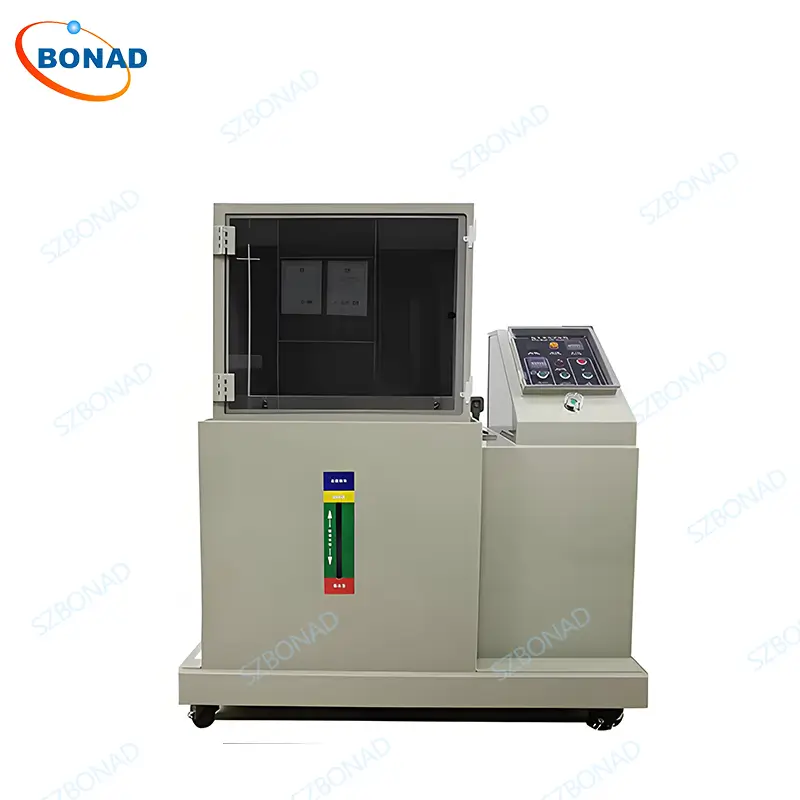

Seawater Immersion Corrosion Test Chamber – BONAD Environmental Test Chamber
Compliant Standards
- GBT10834-2008: Ship coatings (liquid immersion)
- QBT2174-2006: Metal tableware corrosion testing
- ISO EN8442-2: Cutlery immersion corrosion resistance
Applications
- Marine Coatings: Validate ship/offshore paint durability in static/seawater.
- Eyewear: Test frames/lenses in saltwater immersion.
- Jewelry & Watches: Assess metal/coating resilience in seawater.
- Cutlery & Cookware: Food-safe corrosion resistance validation.
- Electroplating: Check plating adhesion under immersion.
Key Features
- Pure Immersion Testing
- 100% liquid-phase testing – no spray/salt mist functionality.
- Industry-Specific Validation
- Tests eyewear, marine coatings, watches, jewelry, cutlery, electroplated parts.
- Active Brine Circulation
- Oil-free air agitation ensures uniform salinity/temperature (±1°C stability).
- Corrosion-Proof Construction
- 10mm PP plastic tank, lid & exterior – resistant to seawater degradation.
- Precision Thermal Control
- Range: RT to 60°C | Uniformity: ±3°C | Resolution: 0.1°C.
- Heavy-Duty Structure
- 1,000kg capacity with reinforced PVC-steel base.
- Safety & Reliability
- Dry-burn/overheat/low-water protection | OMRON/CHINT components.
Technical Specifications
| Parameter | Detail |
|---|---|
| Test Method | Pure liquid immersion (no spray) |
| Chamber Interior | 600×500×400mm (W×D×H) • Customizable |
| Water Depth | 300mm (adjustable) |
| Temperature Range | RT to 60°C |
| Agitation System | Oil-free air bubbling (no contamination) |
| Power | ≤5KW • 380V AC, 50/60Hz |
| Noise | ≤70 dB |
| Material | 10mm PP plastic (tank, lid, exterior) |
Why This Chamber?
- True Immersion Focus: No spray/mist – pure liquid testing only.
- Realistic Simulation: Air-agitated brine mimics ocean conditions.
- Zero Contamination: Oil-free components ensure test integrity.
- PP Durability: 10mm polypropylene resects pitting, scaling, and chemical wear.
