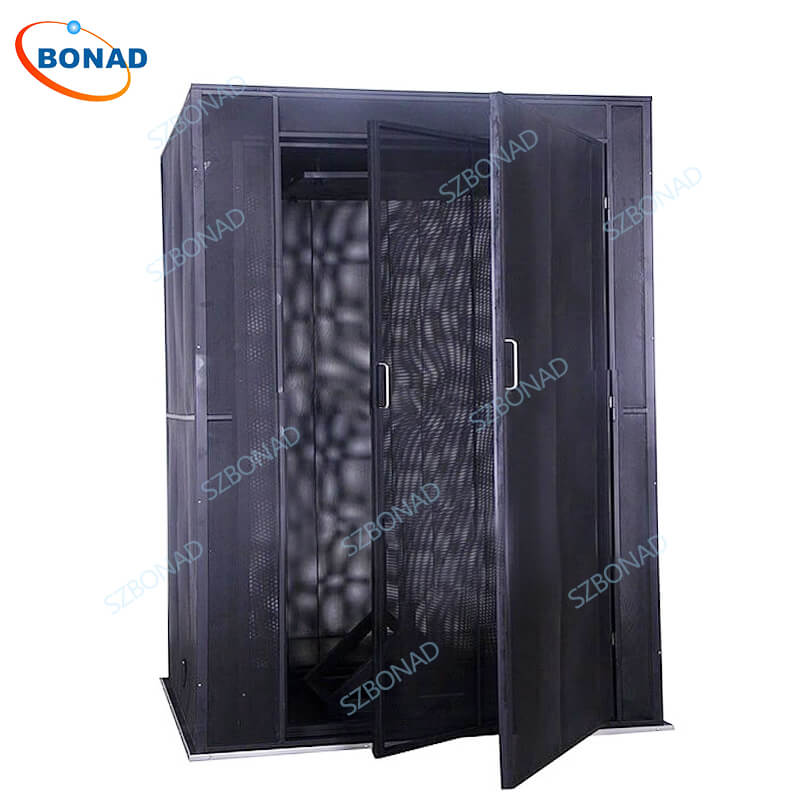

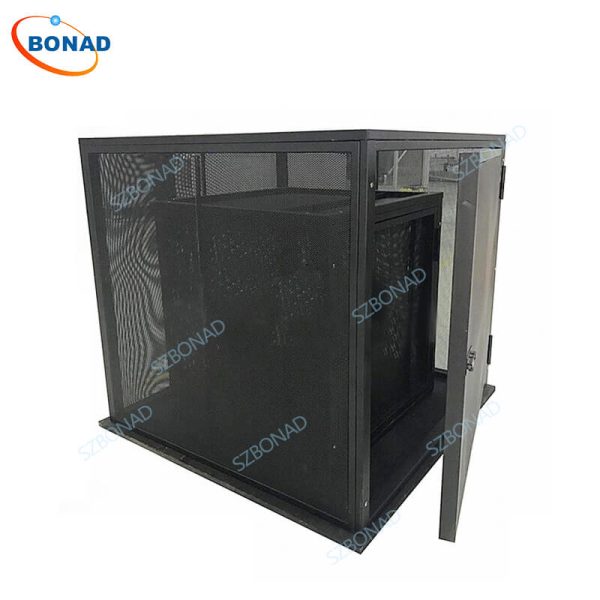

The windshield is rectangular in shape, with double-layer perforated panels on the top and four sides, and solid wood composite flooring at the bottom, which is convenient for placing sample racks and samples. The distance between the two layers is about 150mm, and the holes of the perforated panels are regularly distributed with a hole diameter of 1-2mm. The spacing between the holes should make the area of each layer of perforated panels account for about 40% of the total area (through-hole ratio index).
Place a ceiling mounting plate or removable hook on the top of the windshield for testing lamps fixed to the ceiling; leave a hole for threading at the bottom of the side of the windshield, which is convenient for testing wires.
Specification parameters:
| Shell structure | double shell rectangular metal structure, shell material: 1mm cold plate (non-glossy black spray) |
| Outer size | 2000X2000X2150mm |
| Inner layer size | 1700x1700x2000mm |
| Level spacing | 150mm |
| Door structure | single double layer (inner and outer double door structure)
Mesh panel aperture: ф1mm -ф2mm |
| Ventilation rate of mesh plate | about 40% |
| Frame type | Stamping and moulding with mesh plate material, which does not affect the ventilation rate. |
| Surface spraying | black non-glossy paint |
| High Light | luminaire draught-proof enclosure,Lamp temperature rise test equipment,Environmental test chamber |
Base plate plywood (surface sprayed black),sandwich solid wood flooring installation.
