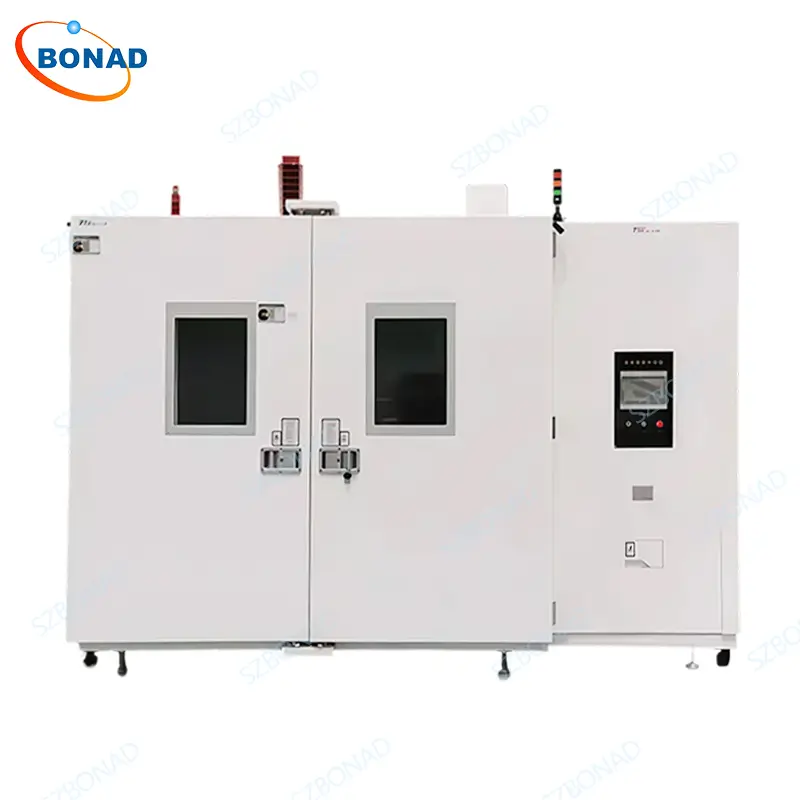

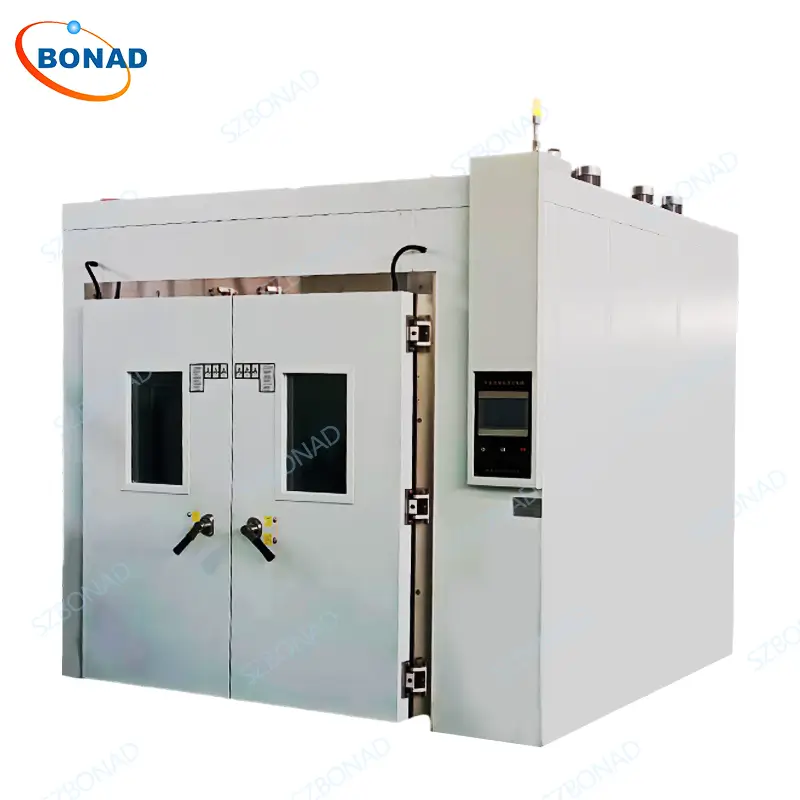

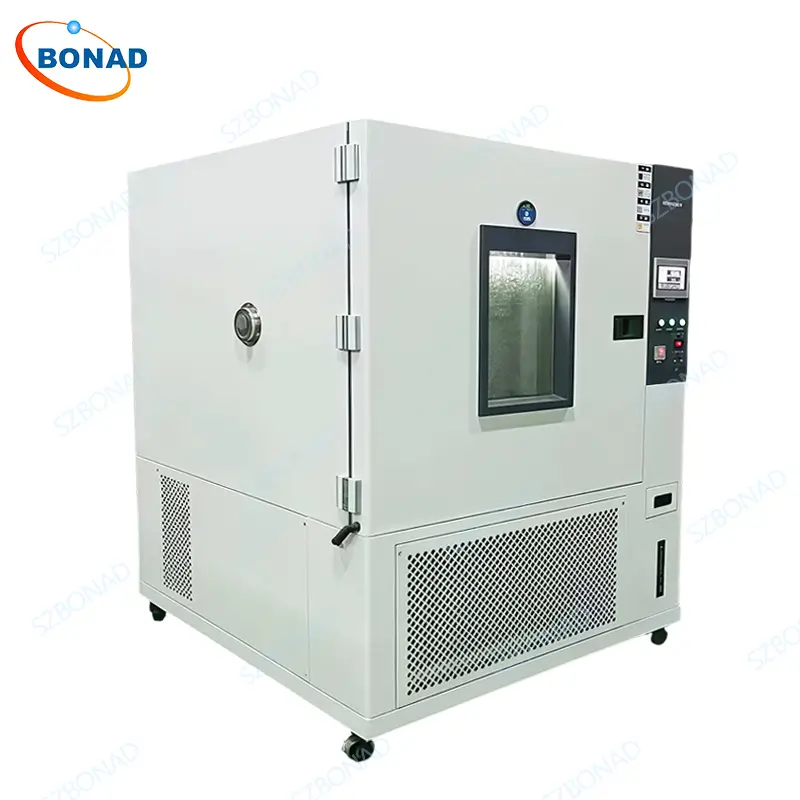

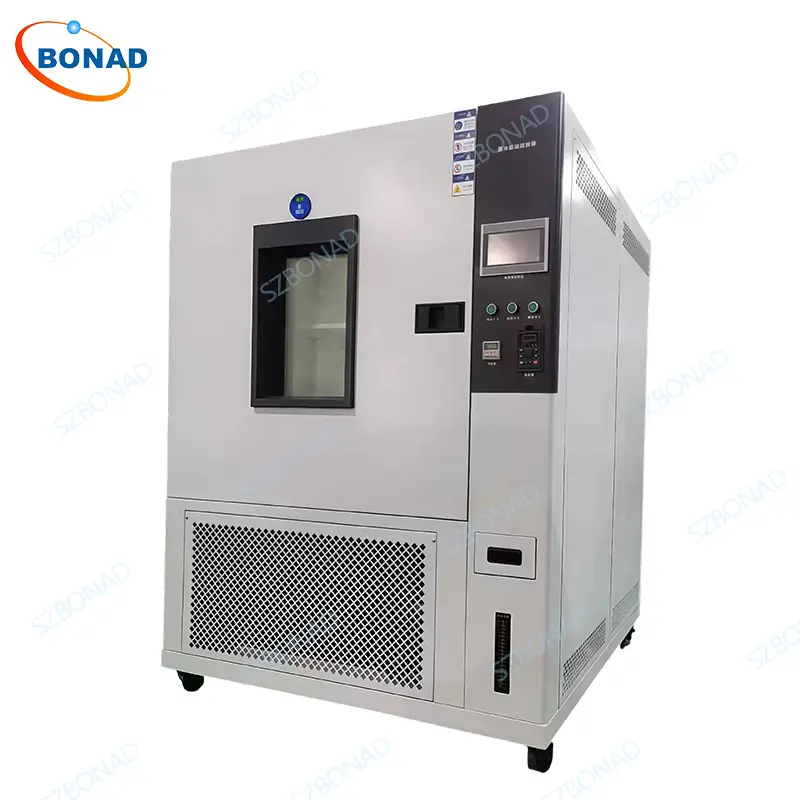

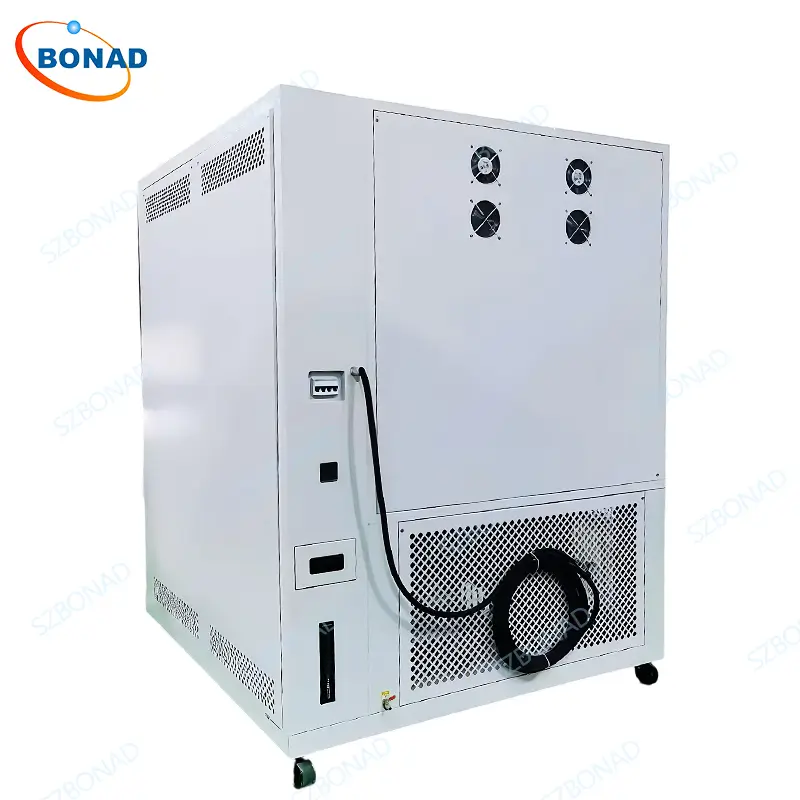

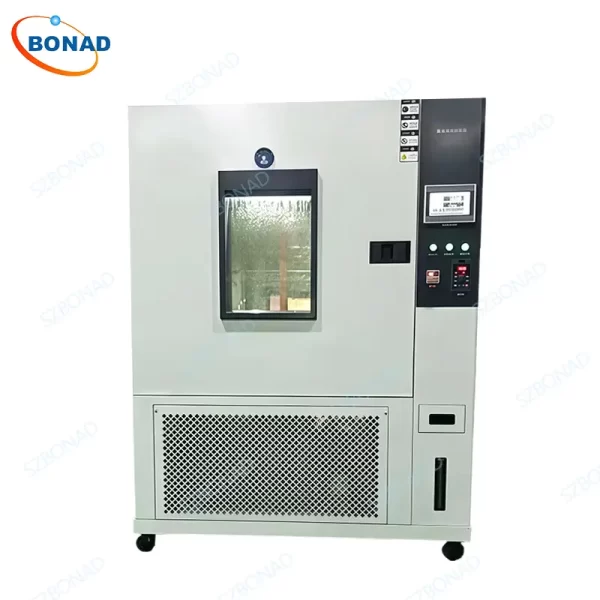

Ice Covered Test Chamber – Artificial Icing Lab – BONAD Environmental Test Chamber
Key Applications
This versatile chamber is critical for testing in numerous sectors:
- Power & Electrical Industry: Testing composite insulators, power line components, insulators, and electrical equipment under icing and polluted conditions.
- Aerospace: Research and certification testing for wing de-icing systems, engine inlets, sensors, and aerodynamic surfaces (aligned with FAA and SAE standards).
- Wind Energy: Evaluating ice accretion on wind turbine blades and its impact on performance and structural integrity.
- Automotive & Rail: Testing sensors, cameras, and braking systems in icy conditions.
- Scientific Research: Studying the fundamental physics of ice accretion and the environmental impact on materials and structures.
Standards Compliance
Our ice-covered test chambers are designed to meet rigorous international testing standards, including:
- ISO 12494: Atmospheric icing of structures (The authoritative international standard for icing loads).
- IEC 60815: Selection and dimensioning of insulators for polluted conditions (covers icing).
- IEC 60060-1: High-voltage test techniques.
- FAA AC 20-73A: Aircraft ice protection system certification guidance.
- SAE ARP5485: Definitions of icing terms for aerospace.
- SAE ARP5907: Calibration and test methods for aircraft flight in icing conditions.
Note: Chambers can be customized to meet specific client or additional standard requirements.
Technical Features & Advantages
- Precise Climate Simulation: Independently controls temperature, wind speed (0-10 m/s+), precipitation, humidity (30%-98% RH), and supercooled water droplet parameters.
- Robust Construction:
- Exterior: Heat and cold-resistant stainless steel plate with baking paint finish.
- Interior: SUS#304 stainless steel plate for superior durability and corrosion resistance.
- Insulation: High-efficiency rigid polyurethane foam and fiberglass to ensure thermal stability.
- Standard Configuration Includes:
- (1) Observation window with transparent electrically heated membrane and insulated glass.
- (1) 50mm cable port (left side).
- (2) Sample holders.
- (1) Interior light.
- (4) Casters for mobility.
- (1) Power cable (3m length).
- Simulation Capabilities:
- Natural wind during icing events.
- Rain with various conductivity levels.
- Supercooled water droplets (fog).
- Clean fog and pollution.
- Condensation humidity at different temperatures.
- Fixed Sample Testing: Designed for static tests where the sample (e.g., composite insulators) is fixed in place without automatic rotation.
Testing Capabilities
The chamber is engineered to perform a comprehensive suite of environmental tests:
- Low-Temperature Testing: Evaluating environmental endurance from -40°C to 0°C.
- High-Humidity Testing: Testing performance at relative humidity levels between 30% and 98%.

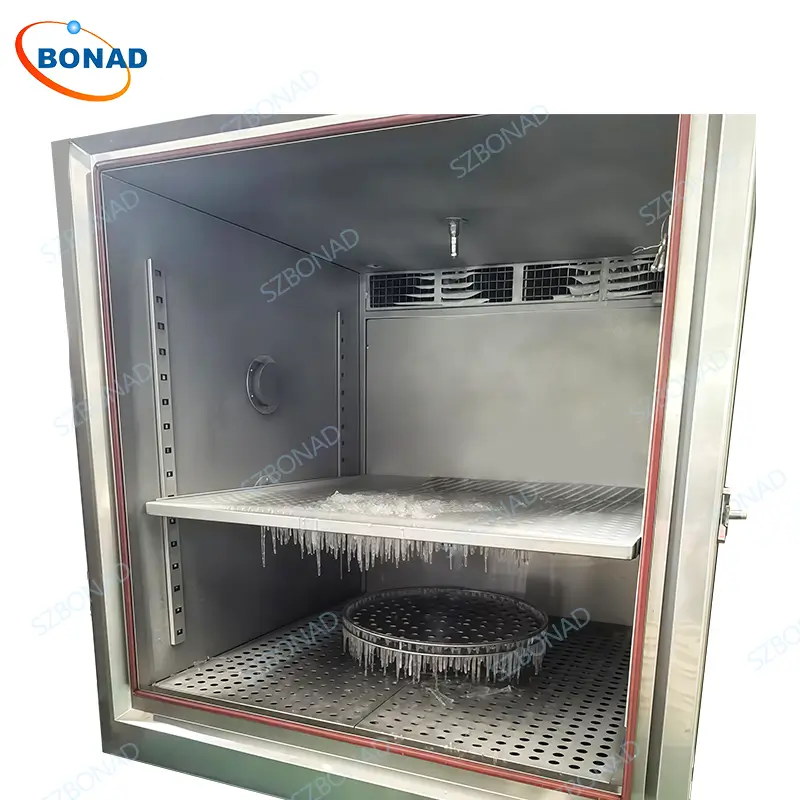

- Icing Accretion Testing: The core function, combining wind speeds (0-10 m/s) with sub-zero temperatures (e.g., -5°C, -10°C) to create controlled ice buildup.
