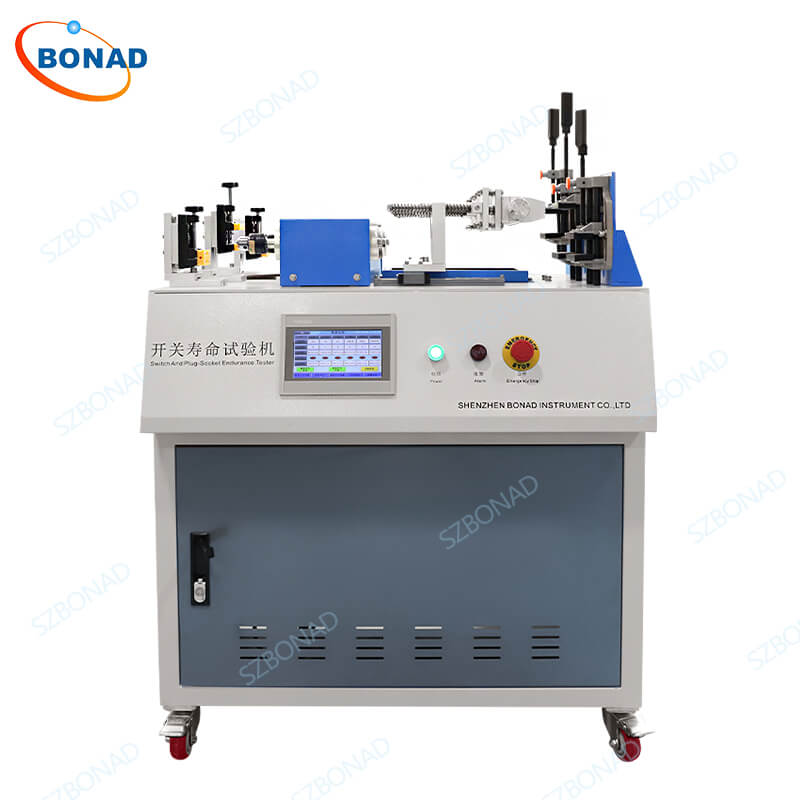

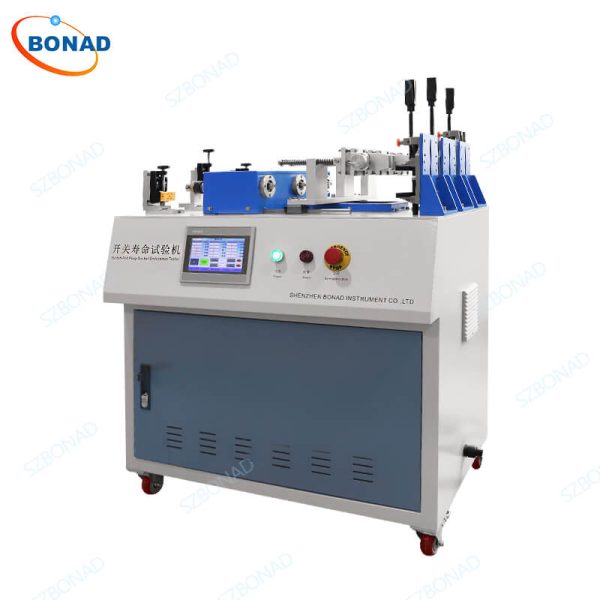

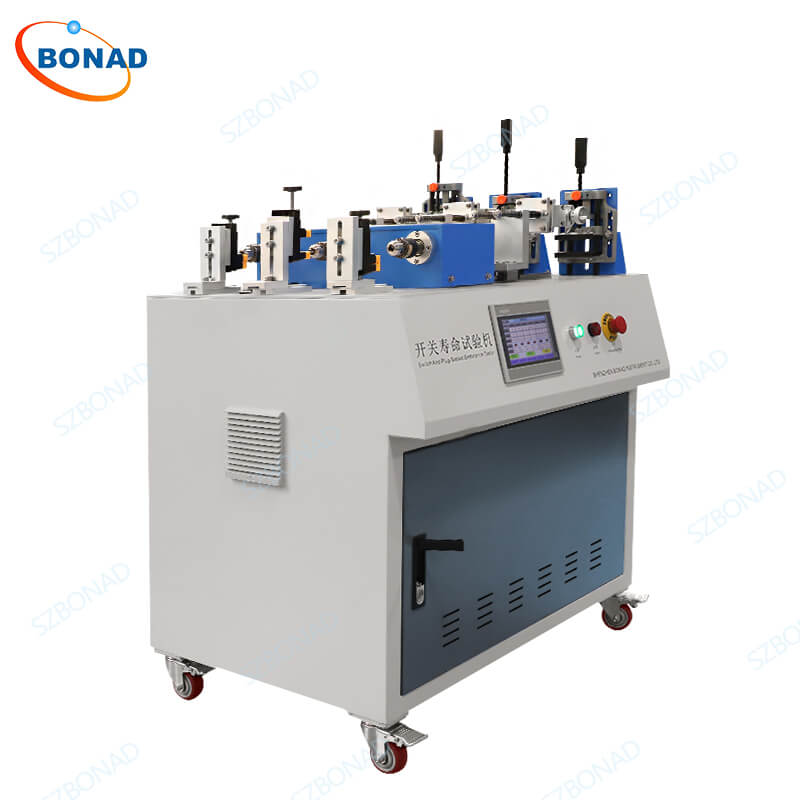

IEC 60669 Six-Station Switch Plug And Socket Endurance Tester – BONAD Plug Socket Switch Life Tester
Standards:
- IEC 60884-1:2022 (GB/T 2099.1): Plugs and Socket-Outlets for Household and Similar Purposes – Part 1: General Requirements (Clauses 20, 21, and Figure 22).
- IEC 60669-1:2017 (GB 16915.1): Switches for Household and Similar Fixed-Electrical Installations – Part 1: General Requirements (Clauses 18, 19).
- IEC 61058-1 (GB/T 15092.1): Switches for Appliances – Part 1: General Requirements (Clause 17).
Applications:
- Plug and Socket Testing: Conduct making/breaking capacity and normal operation endurance tests to verify contact adhesion, wear, or long-term on/off failures.
- Household Switch Testing: Evaluate mechanical durability and electrical fatigue of rocker switches, push-button switches, and tumbler switches.
- Quality Assurance: Used by manufacturers, laboratories, and certification bodies to validate compliance with IEC and GB standards.
Features:
- Multi-Station Efficiency

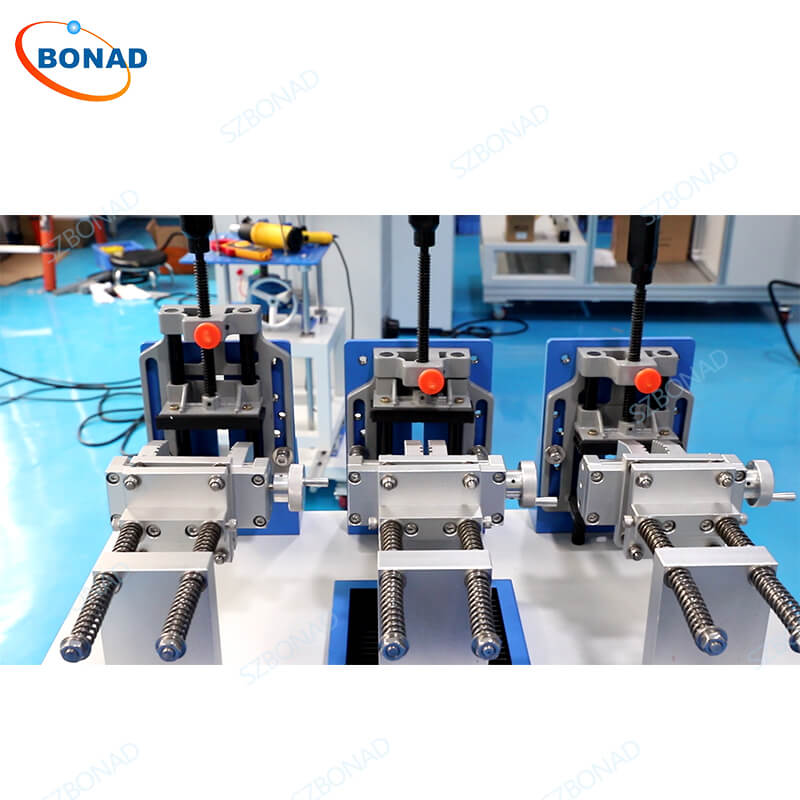

- 6 synchronized stations: 3 linear stations for rocker/push-button switches + 3 rotary stations for tumbler switches.
- Automatic shutdown and alarm triggered by abnormal operations, ensuring safety.
- Precision Control
- Servo motor + ball screw drive for accurate stroke and speed adjustments.
- 7-inch color touchscreen + PLC control for preset test cycles, rates, and strokes.
- Robust Design
- Aluminum alloy frame + stainless steel panels for durability in high-intensity environments.
- Compatible with load cabinets to simulate real-world electrical loads.
- Global Compliance
- Test results align with IEC/GB standards, supporting international certifications for product exports.
Technical parameters:
| Power | AC 220V±10V, 60Hz |
| Station | 6 stations (3 linear stations synchronously for
testing plugs, sockets, linear switches; 3 rotary stations synchronously for testing rotary switches) |
| Operation interface | 7-inch color LCD touch screen |
| Drive mode | Servo motor + ball screw |
| Control system | PLC control system |
| Test times | 0～999999 times, can be preset |
| Conduction time | 0～99.9s, can be preset |
| Non-conduction time | 0～99.9s,can be preset |
| Test stroke | Linear: 0～100mm, can be preset
Rotary: 1 ～360°,can be preset |
| Test speed | Linear: 0～ 100mm/s ，can be preset
Rotary: 0～360°/s, can be preset |
| Test angle | 0～360°,can be preset |
| Test angle gears | 1-15 gears, can be preset |
| Sample fixtures | One universal fixture with different auctors to adapt to different switches |
| Atmospheric pressure | 80～ 106kpa |
| Ambient temperature | 5～40°C |
| Relative humidity | （20～90）%RH |
| Use environment | Requires no violent shaking, no vibration, no
electromagnetic interference, no dust, no explosive, no corrosive gases, needs good heat dissipation place |
| Dimensions and weight | L*W*H=960*730*600mm,160kg |
