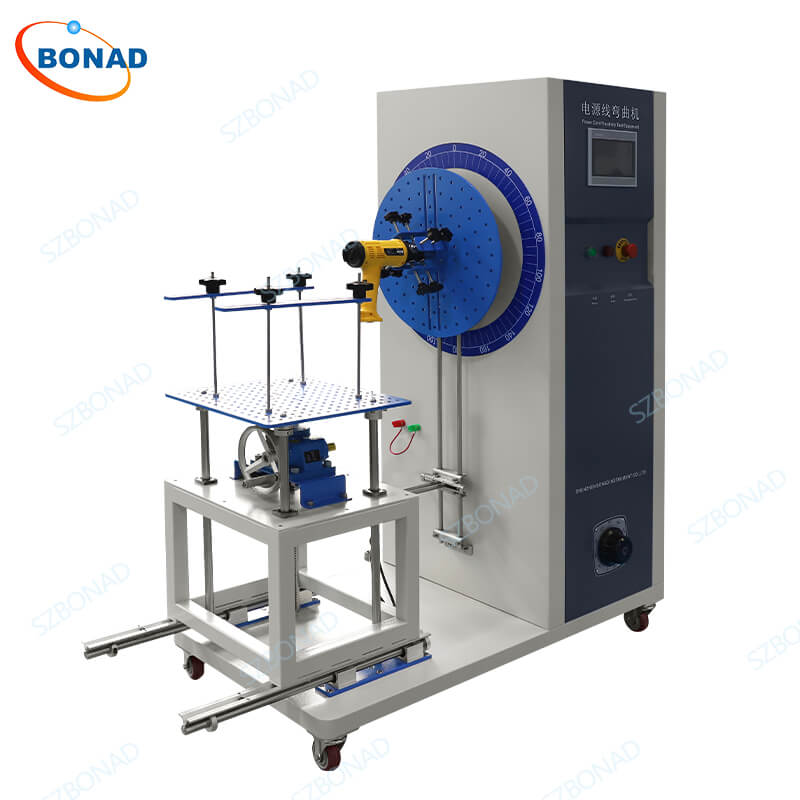

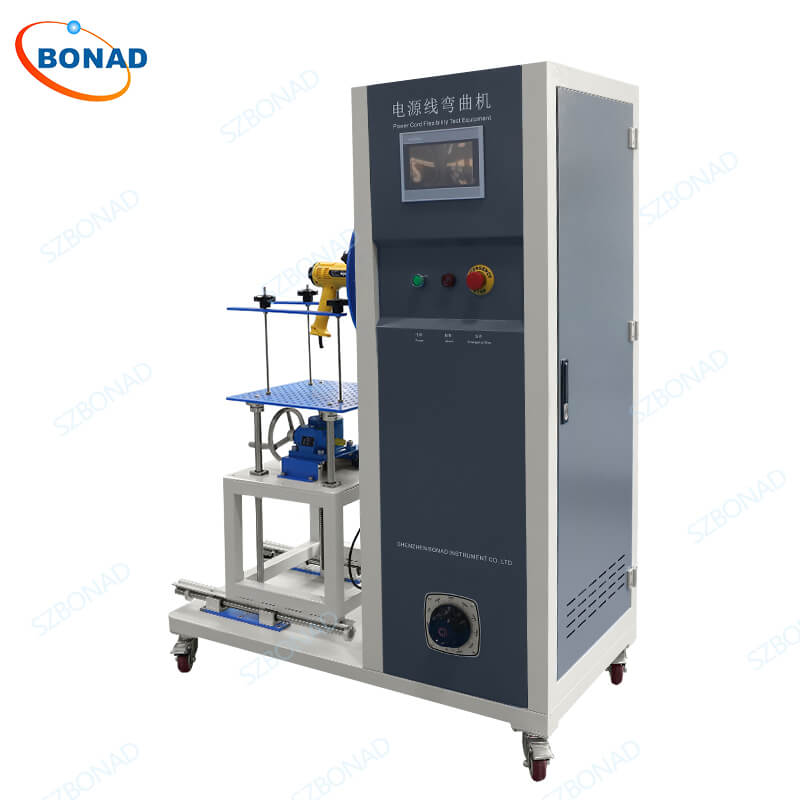

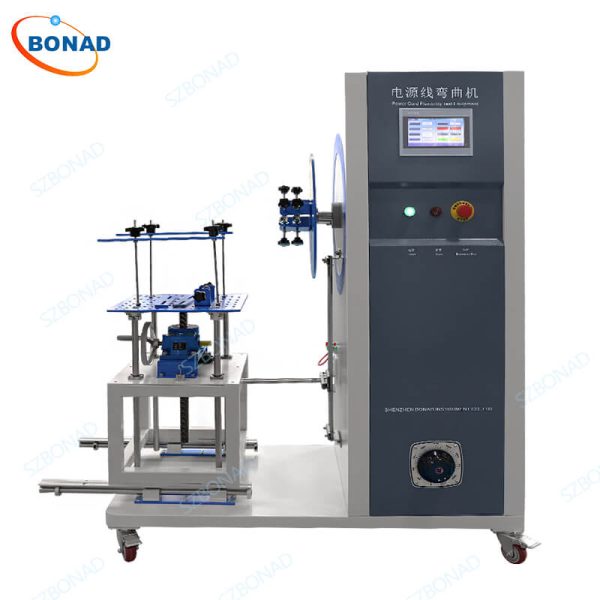

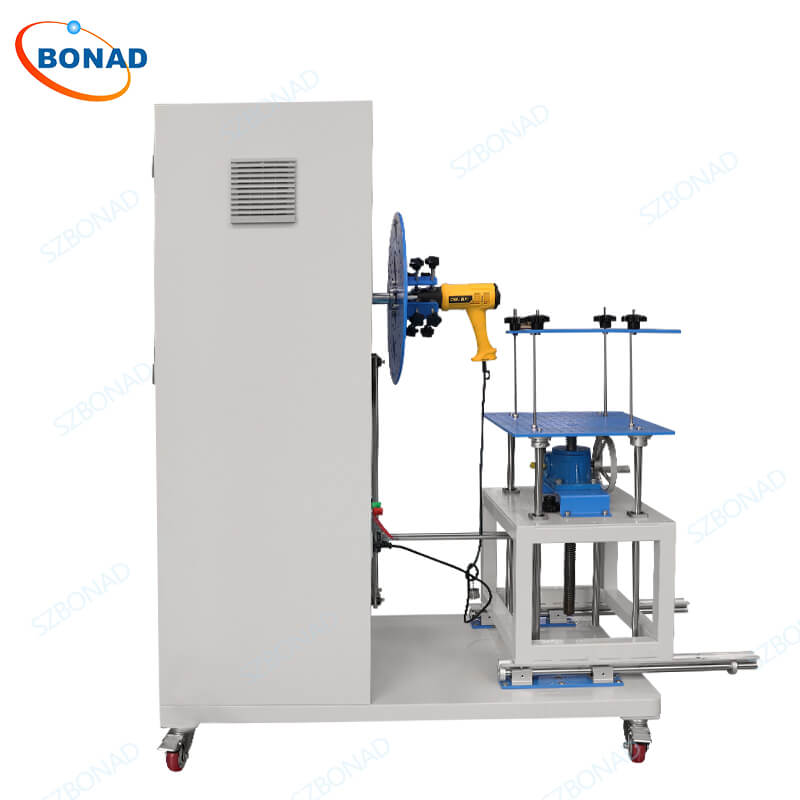

IEC 60335 Power Cord Flexibility Bend Test Equipment – BONAD Electrical Appliance Testing Equipment
Standards Compliance:
- Primary Standard: IEC 60335-2-23 (Household and Similar Electrical Appliances – Safety)
- Additional Standards: IEC 60884, IEC 60245, GB/T 2099 (flexibility test clauses)
- Customizable to meet regional or client-specific testing protocols.
Applications:
- Household Appliances: Test power cords for hair dryers, kettles, vacuum cleaners, etc.
- Industrial Equipment: Validate flexible cables for power tools, medical devices, and lighting systems.
- Quality Control: Used by third-party labs and manufacturers to certify compliance with global safety regulations.
Features:
- Intelligent Control System
- 7-inch color touchscreen interface with PLC electrical control for intuitive parameter setup.
- Servo motor-driven angle adjustment (0°–360°), ensuring precision with ≤±1° repeatability error.
- High Precision & Versatility
- Digital frequency converter + 6-digit memory timer; preset test cycles (up to 999,999 cycles), speed, and angles.
- Multi-functional clamps + rotating center gauge, compatible with wire diameters (0.5–6mm²) and diverse sample types.
- Load Simulation
- 4kW output power with 1.25x rated current load capacity; real-time current monitoring for authentic test conditions.
- Safety & Efficiency
- Auto-stop protection: Halts testing upon wire breakage or current interruption, with data logging.
- Broad compatibility: Meets IEC standards for most small household appliances.
Technical Parameters:
| Flexing or rotation angle | 0-360°. Can be preset |
| Flexing or rotation speed | 0~60 rpm, can be preset |
| Test times | 0~999999 times, can be preset and displayed |
| Input Power | Single phase 127V, 60Hz |
| Control | PLC programmable control |
| Drive | Servo motor |
| Operation | 7” Touch screen intelligent operation |
| Max. output power | 4KW |
| Output voltage | 0~250V |
| Output current | 0~16A |
| Max. carrying capacity | 30kg |
| Test station | 1 station |
