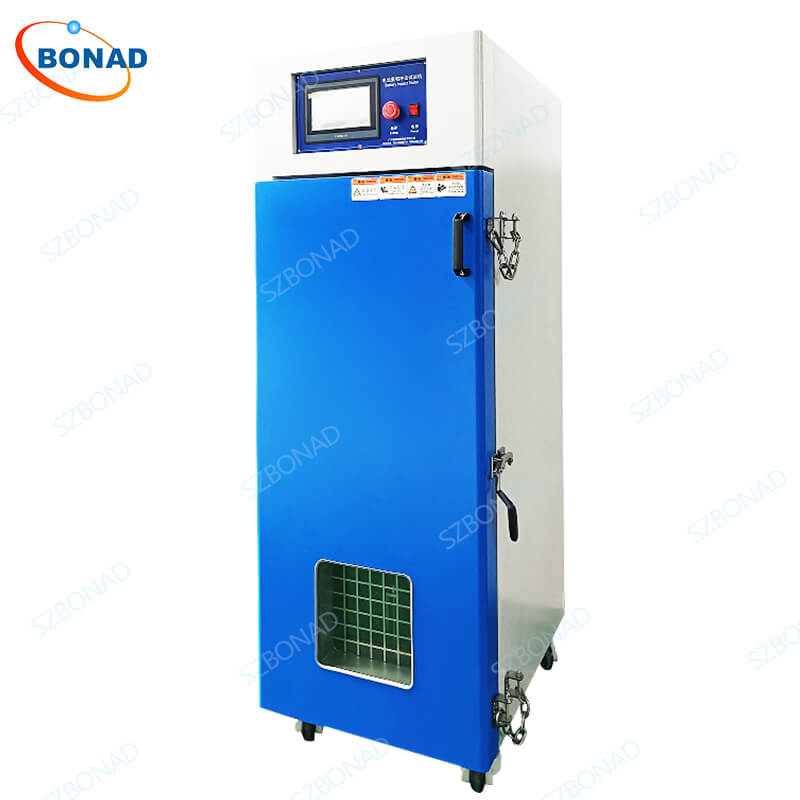

Battery Heavy Object Vertical Impact Tester – Lithium Battery Safety Tester
Working principle:
Based on the principle of converting gravitational potential energy into kinetic energy, the battery impact tester lifts a pre-set weight to a specified height and then releases it. The weight falls freely under the action of gravity and hits the battery placed on the test platform. During the impact process, various sensors installed inside the tester, such as temperature sensors, pressure sensors, voltage and current sensors, monitor the changes in various battery parameters in real time, and transmit the data to the computer control system for analysis and processing.
Test Standards:
- UN 38.3
- IEC62133
- IEC62619
- UL1642

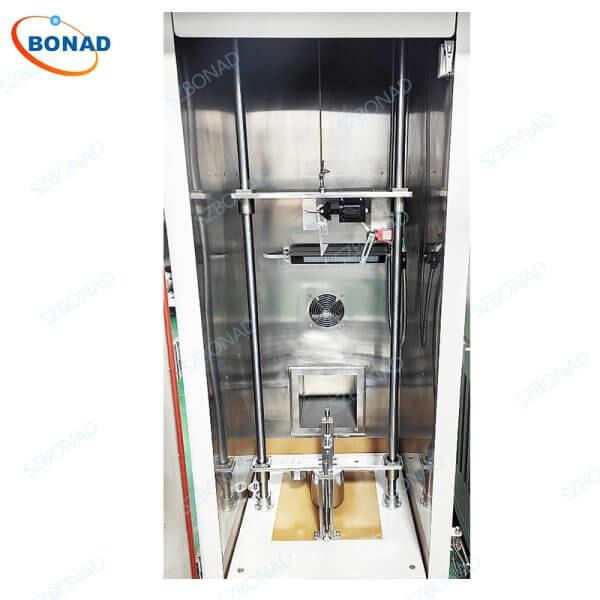

Main components:
- Test bench: used to support and fix the battery to ensure that the battery remains stable during the impact test.
- Weight device: including weight, guide mechanism and lifting mechanism; the weight falls along a fixed trajectory through the guide mechanism to simulate the impact scene in the real environment; the lifting mechanism is used to adjust the falling height of the weight.
- Control system: responsible for controlling the test process, including the setting of parameters such as the falling speed and falling height of the weight; the control system can also record various data of the lithium battery during the test in real time, which is convenient for subsequent analysis and evaluation.
- Safety protection device: ensure the safety of the impact test process and prevent the heavy object from causing harm to the operator; common safety protection devices include protective nets, protective covers, etc.
Technical parameters:
| Inner box size | 500x500x1440mm (w x d x h) (customizable) |
| Overall dimensions | 660x900x1700mm (w x d x h) (customizable) |
| Control method | PLC+Touch Screencontrol |
| Functional Overview | The height can be set, equipped with a digital height display and an encoder for height tracking, accurately giving the drop height |
| Impact height | 0-1000mm, common test height 610±25mm |
| Precise displacement | ±1mm |
| Inner box material | SUS304Stainless steel plate,Thickness 1.2mmAnd affixedTeflon tape,Effective insulation and flame retardant, easy to clean |
| Outer box material | Thickness 1.5mmCold rolled steel plate paint treatment |
| Observation window | Size is 250x250mm tempered glass, transparent window is equipped with stainless steel mesh |
| Lighting | The machine is equipped with a lighting lamp to facilitate observation of the status of the tested sample. |
| Smoke outlet | 100mm diameter, located at the back of the box |
| Pressure relief port | The opening size is 200x200mm, located at the back of the box. When the sample explodes, the pressure relief port pops open to release the pressure. |
| Box structure | Door: Single door opens to the left, with safety limit switch and sideExplosion-proof chain, ensuring personnel safety |
| Drop ball weight | 9.1±0.1kg 、10kg±0.1kg |
| Impact method | After the falling ball is lifted to a certain height and released, it falls freely in the vertical direction without tilting or shaking |
| Hard metal rod | Diameter 15.8 ± 0.2 mm (5/8 inch)Hard chrome plated steel rod(Better than stainless steel), length greater than 6 cm |
| Maximum size of battery that can be measured | 200x200x200mm |
| Impact surface | 45# steel hard chrome treatment, thickness 15mm |
| Protective devices | Upper and lower limit protection switch |
| Equipment weight | 270kg |
| power supply | AC220V |
| power | 600W |
